Product Code: FA108-123076-108
In Stock
34 162 грн.
Buy this product in 1 click:
Main specifications
Air Filter:
Multi-stage filter with transparent cyclone
Battery type, capacity A∙h:
Lead-acid, 28
Clutch type:
Normally open multi-disc in oil bath
Coolant type:
-
Cooling system capacity, L:
-
All specifications
We will deliver this product:
Payment
Description

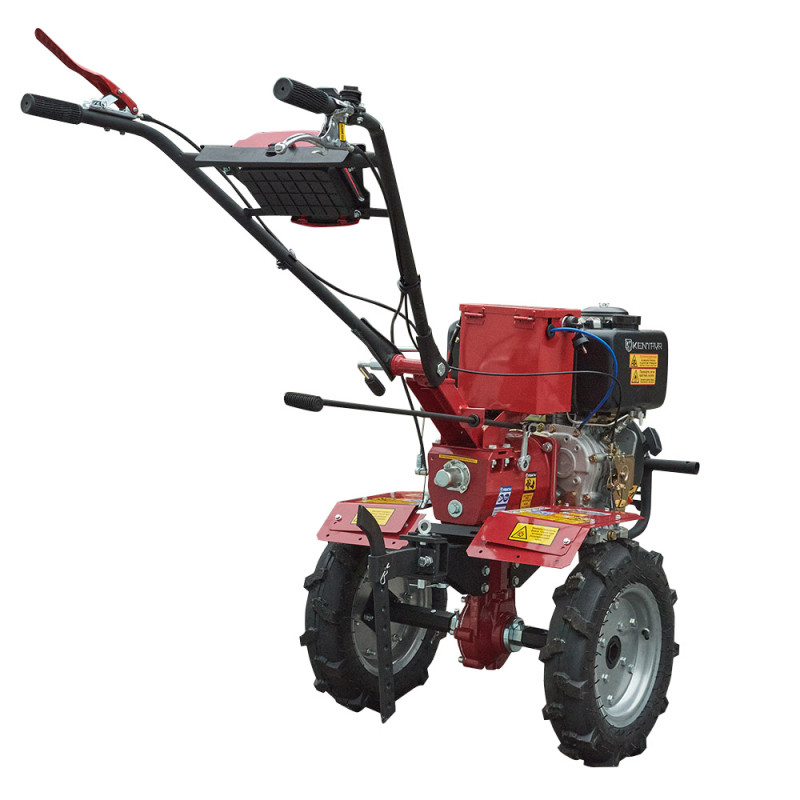

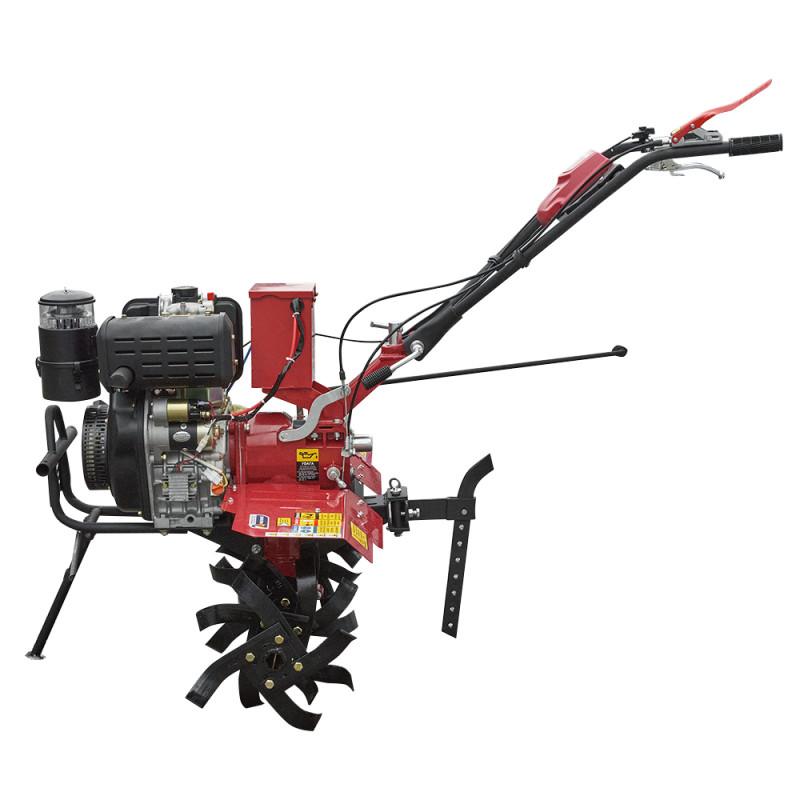

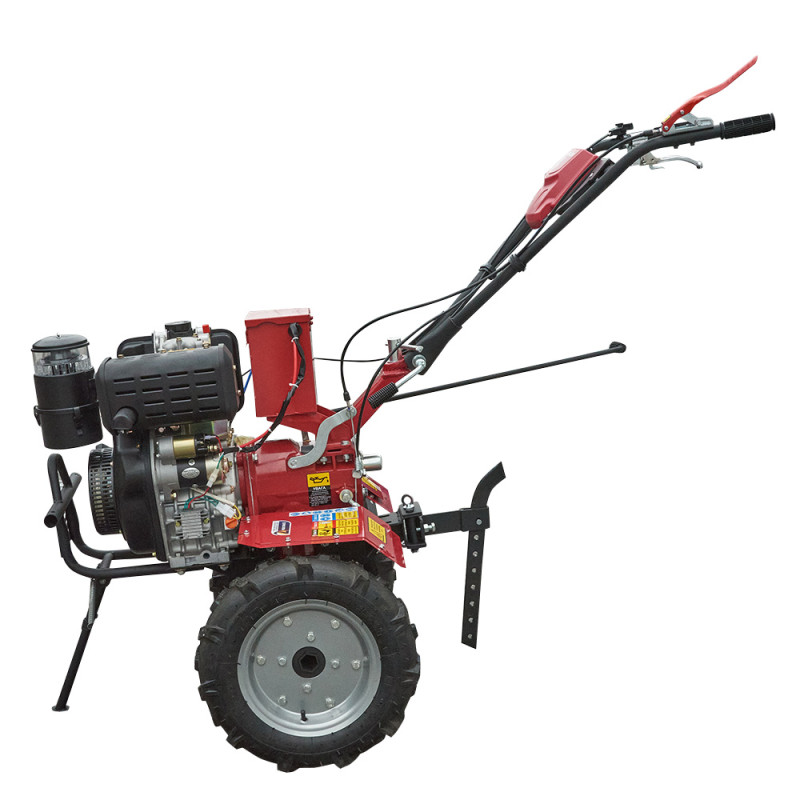

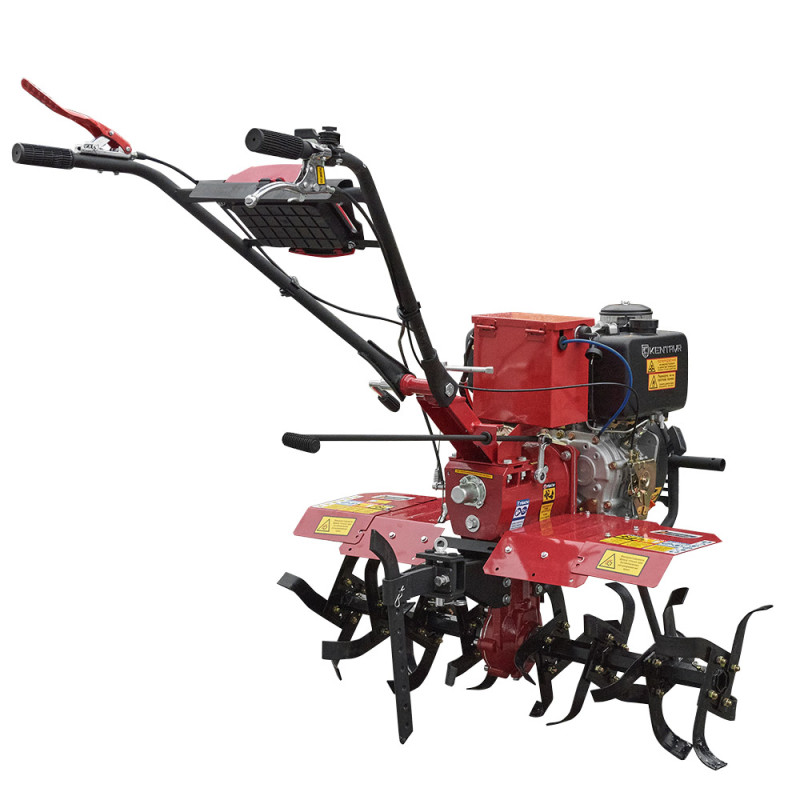

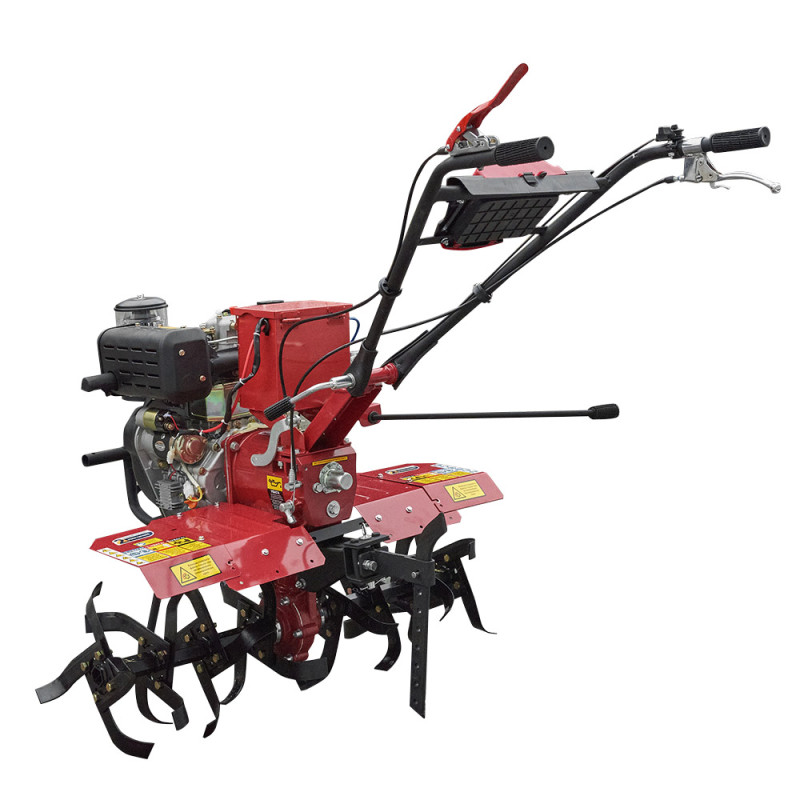

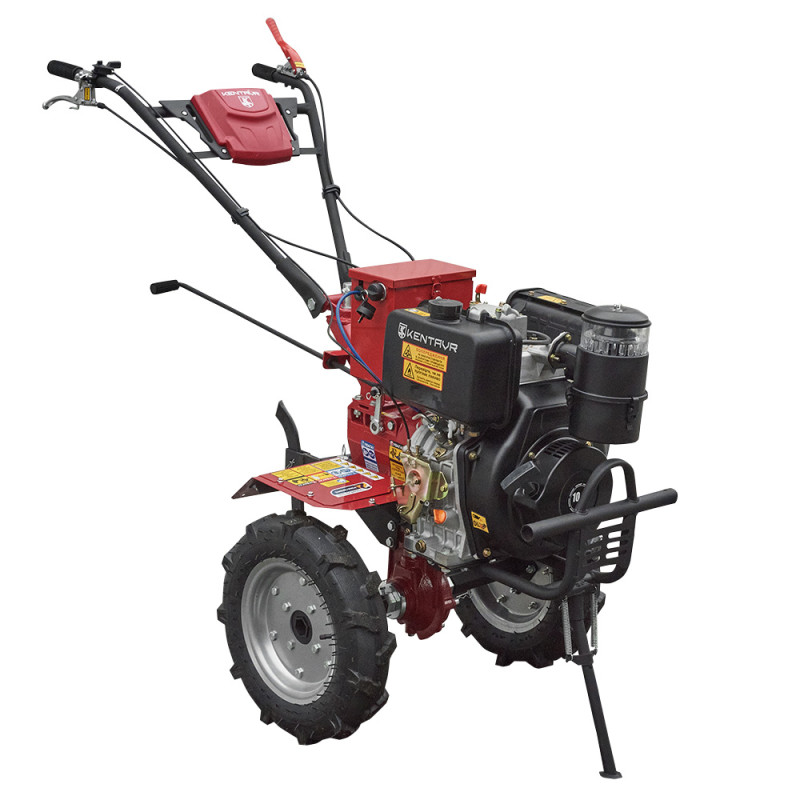

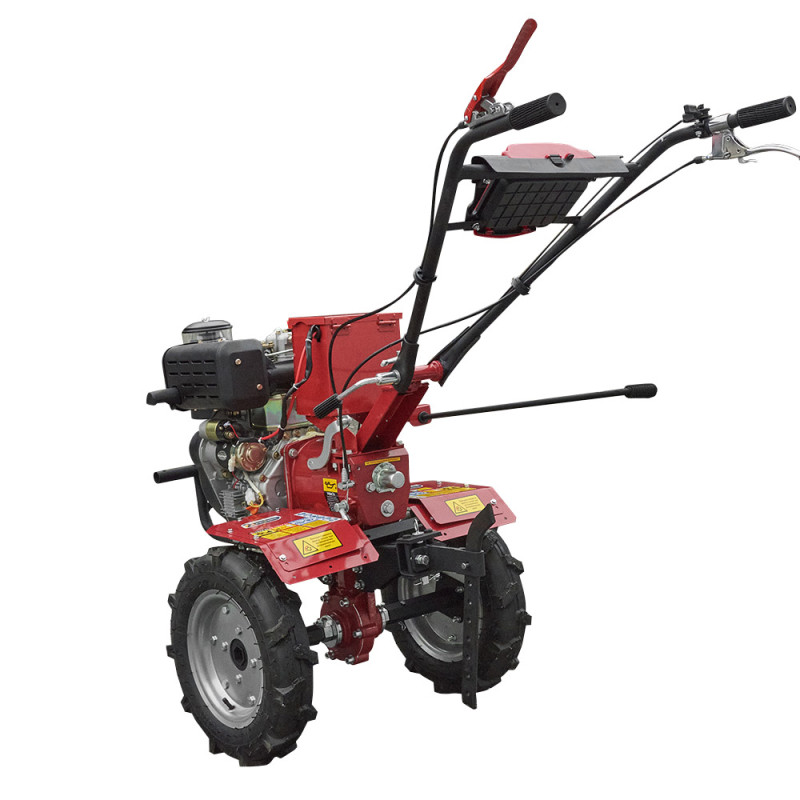

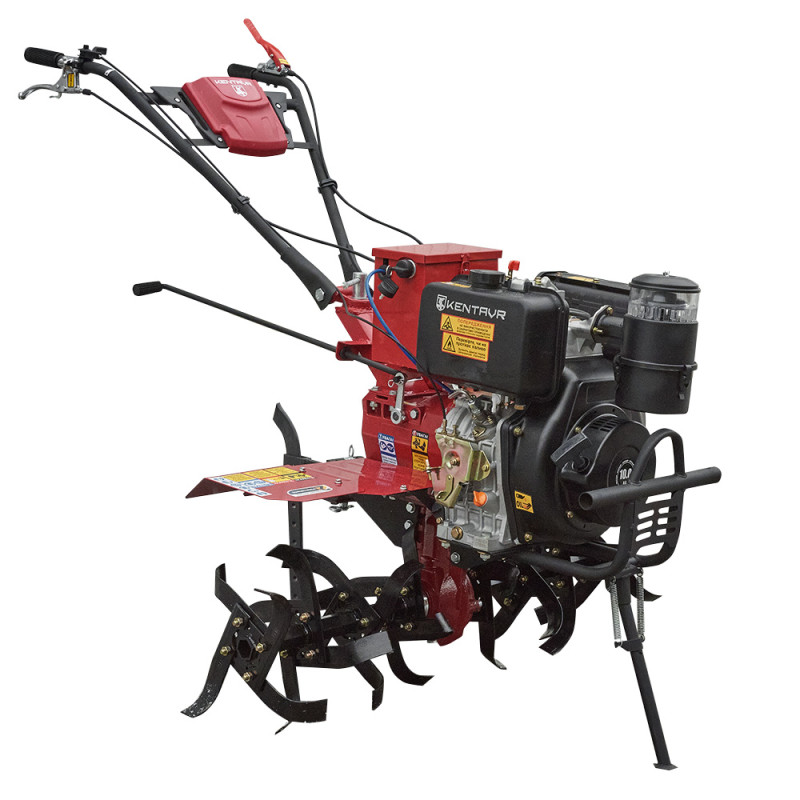

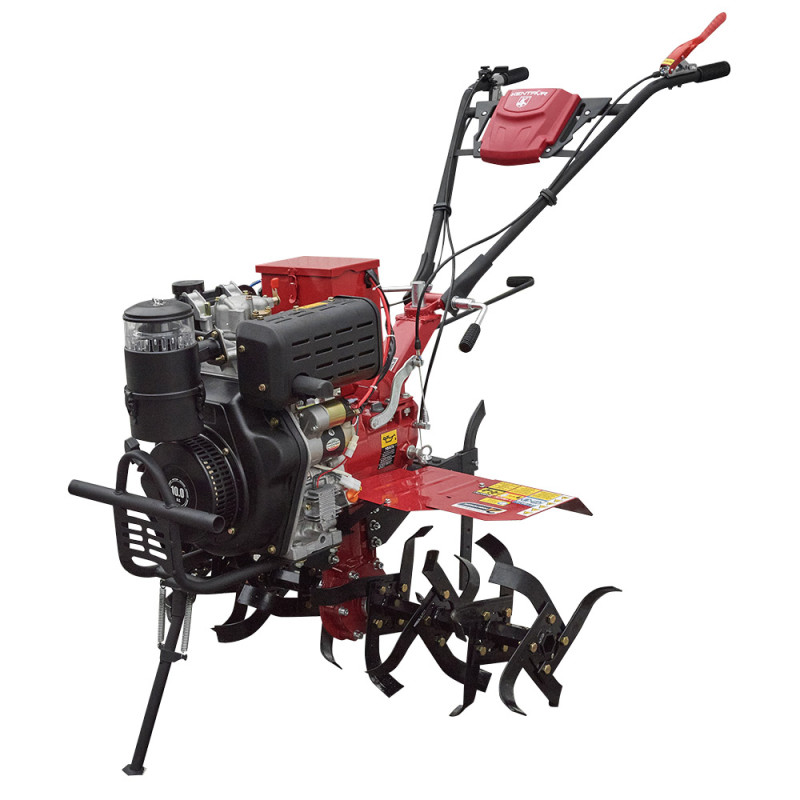

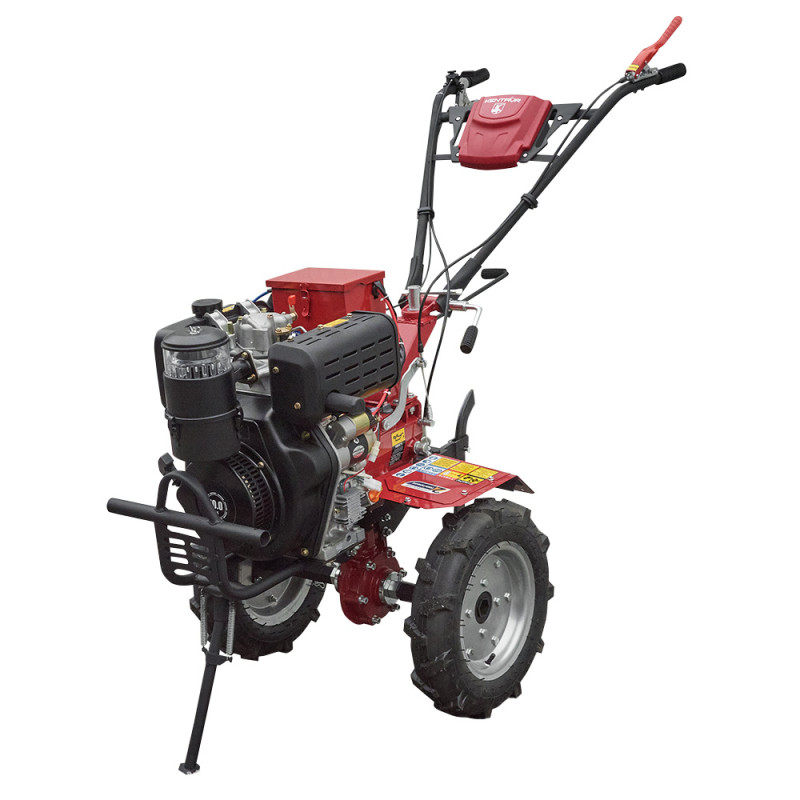

Description of the Kentavr MB2010DE walk-behind tractor (4.00-10 wheels)
The MB 2010D and MB 2010DE diesel walk-behind tractors are structurally similar to the basic MB 2060D model, but are equipped with a significantly more powerful 10-hp engine, and the MB 2010DE also has an electric starter and a battery. This means their productivity and efficiency are much higher, both when tilling the soil and when transporting goods on a special trailer. It is now possible to expand the rotary tiller's working width to 1400 mm thanks to additional sections and the installation of 5.00-12 wheels (additional rotary tiller sections and 5.00-12 wheels are purchased separately).
Specifications
Air Filter
Multi-stage filter with transparent cyclone
Battery type, capacity A∙h
Lead-acid, 28
Clutch type
Normally open multi-disc in oil bath
Coolant type
-
Cooling system capacity, L
-
Cultivation depth, mm
Up to 200
Cutter Drive
Straight with bevel gear
Drive Belt Type
-
Electrical Equipment
Battery 28 Ah, metal box with ignition lock
Engine Cooling System
Air cooling
Engine crankcase oil type
TM "DTZ" TURBO SYNT 10W-40 API CF-4/SG
Engine crankcase volume, L
1,3
Engine displacement, cm³
406
Engine model
186FAE
Engine power, hp
10,0
Engine Start System
Electric/Manual Starter
Equipped weight, on wheels/on cutters, kg
129 / 136
Fuel tank capacity, L
4.0
Fuel type
Diesel
Gearbox type
Gear
Hitch type
Motor-block type
How to Engage Reverse Gear
Handlebar grip
Measuring Devices
-
Nominal fuel consumption, g/kW∙h
273
Nominal rotary tiller speed, rpm
93; 130 / 68
Nominal RPM
3000
Nominal wheeled speed forward/backward, km/h
8.3; 11.6 / 6.1
Number of Gears
2/1
Number of tiller sections, pcs
8=(2+1+1)×2
Oil Level Sensor
No
Other Equipment
-
Overall dimensions assembled (LxWxH), mm
1780×670×850 / 1780×1140×805
Power Take-Off (PTO) Shaft
Rear longitudinal for keyway Ø18, L=24
Rotor diameter of soil tiller, mm
360
Size/quantity/type of tiller blades
5.5mm × 235mm / 32 pcs.
Spare Parts
In the box
Steering wheel type and adjuster
Quick adjustment for elevation and windage
Stream for connecting active attachments
-
Tiller mounting method
Instead of Transport Wheels
Tiller working width, mm
620, 880, 1140
Transmission drive type
Direct Hexagonal
Transmission oil capacity, L
2.6
Transmission sump oil type
TM "DTZ" TAD-17I API GL-
Transport Wheels
4.00-10
Wheel track, mm
600
