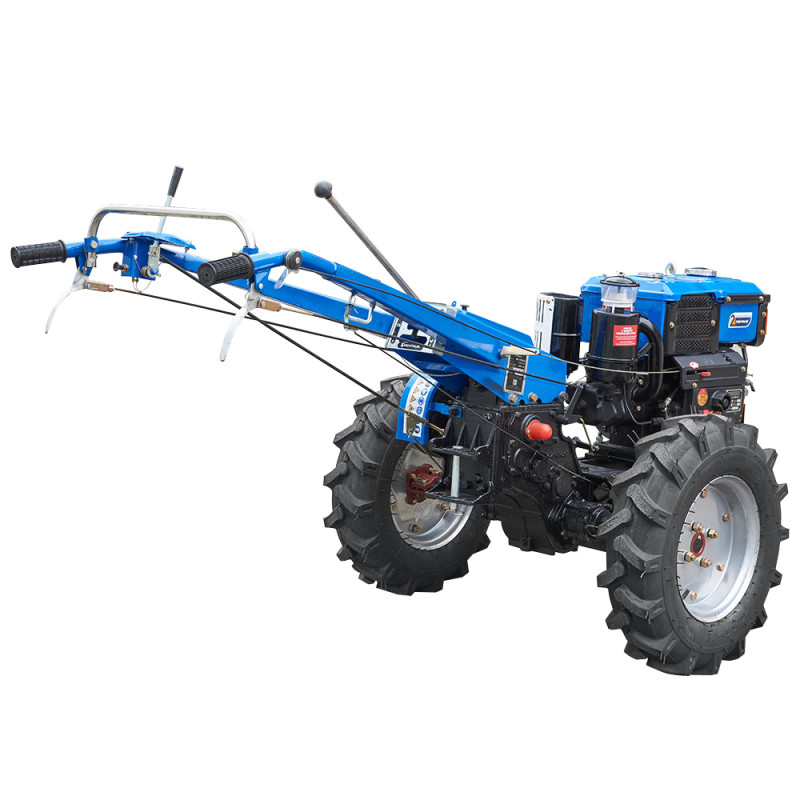

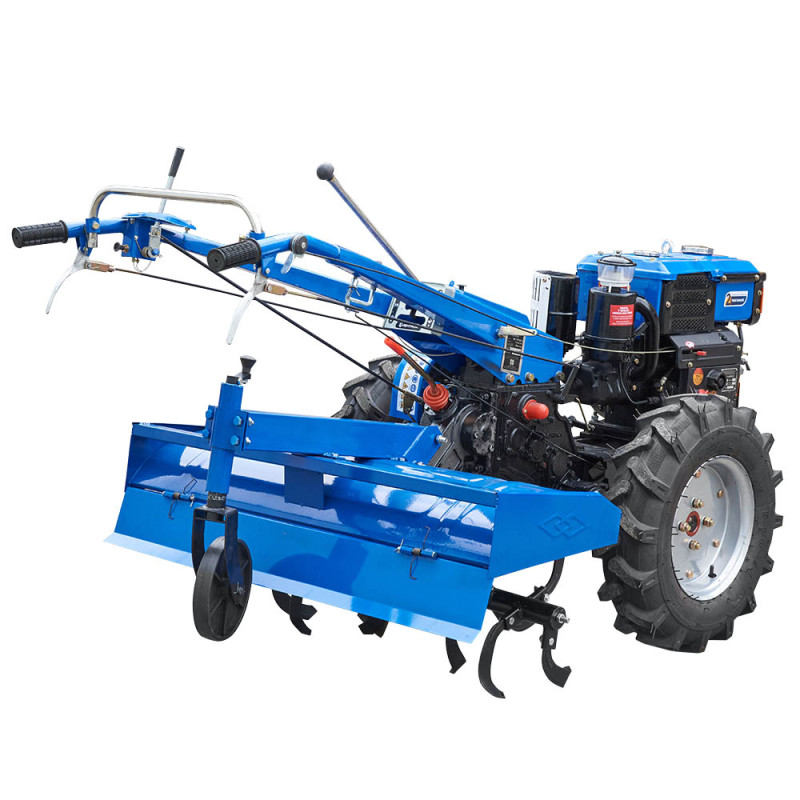

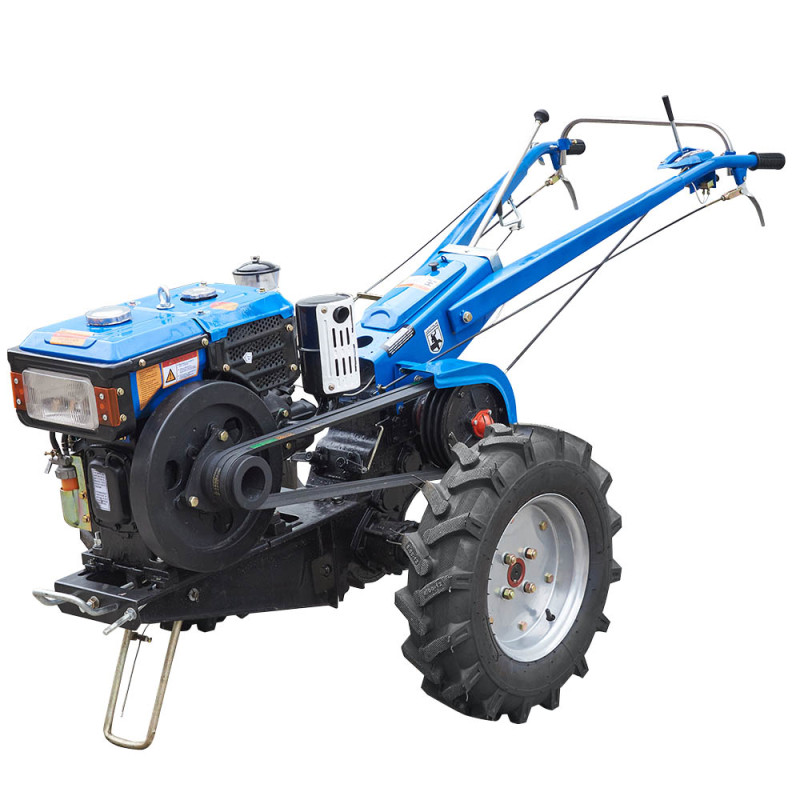

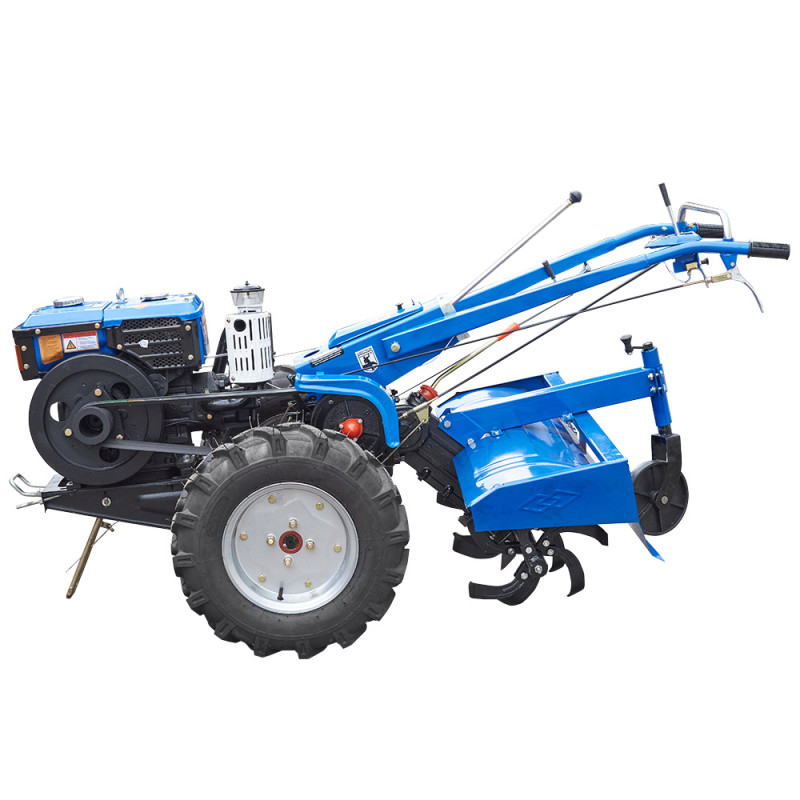

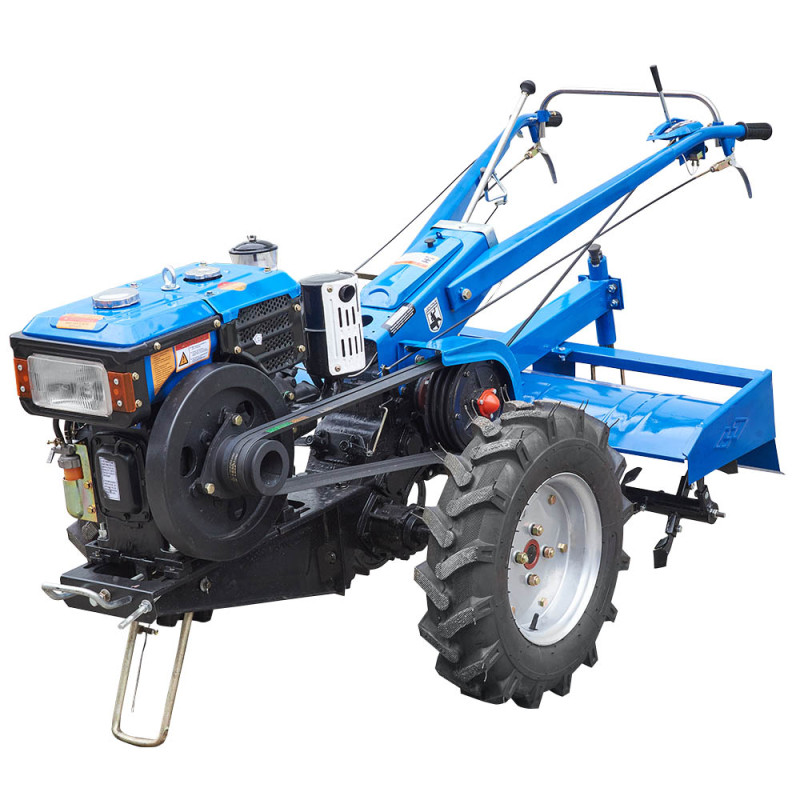

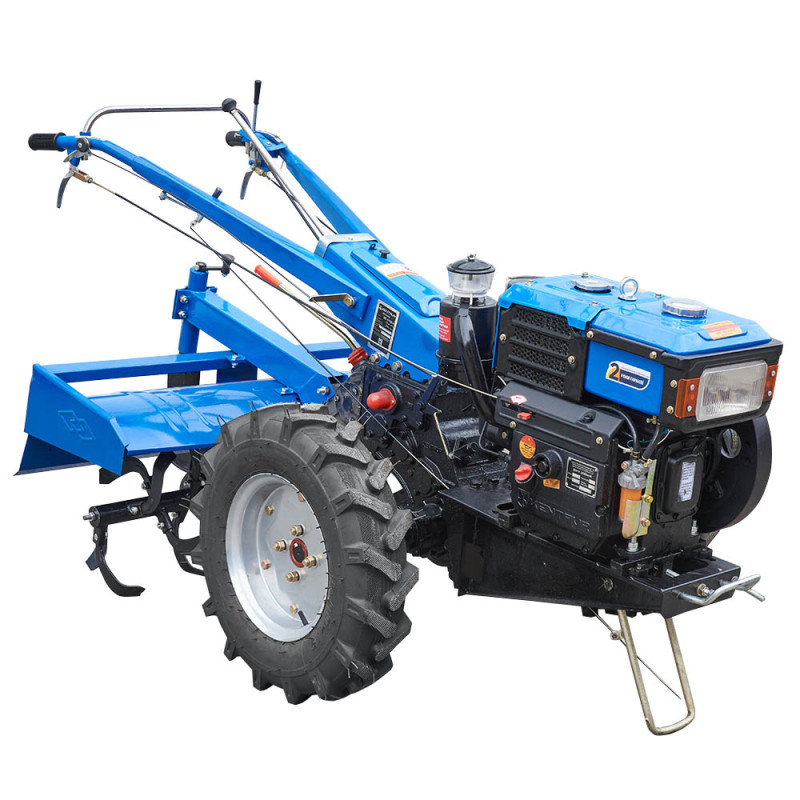

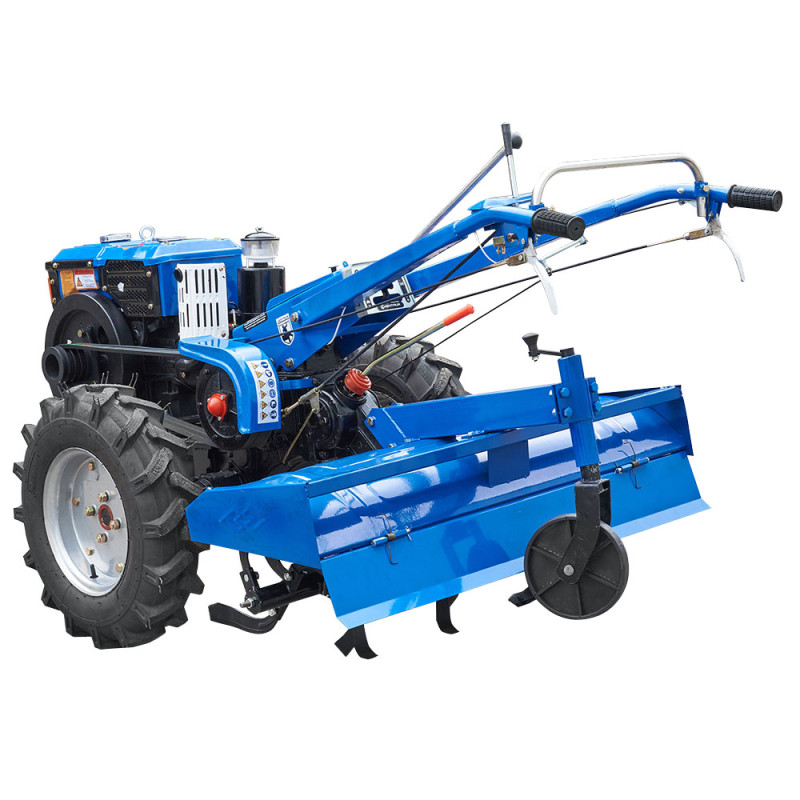

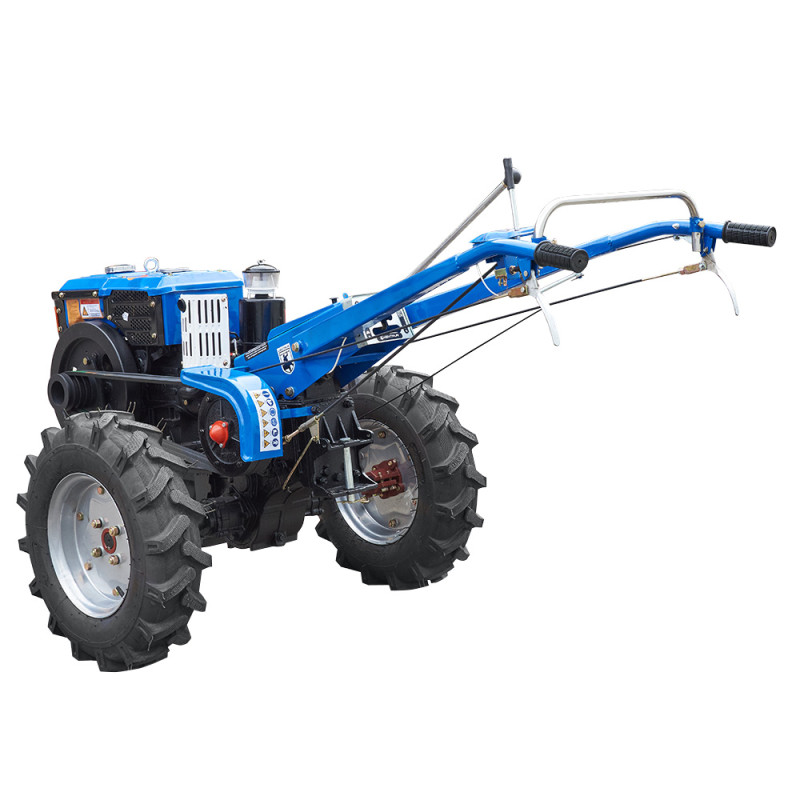

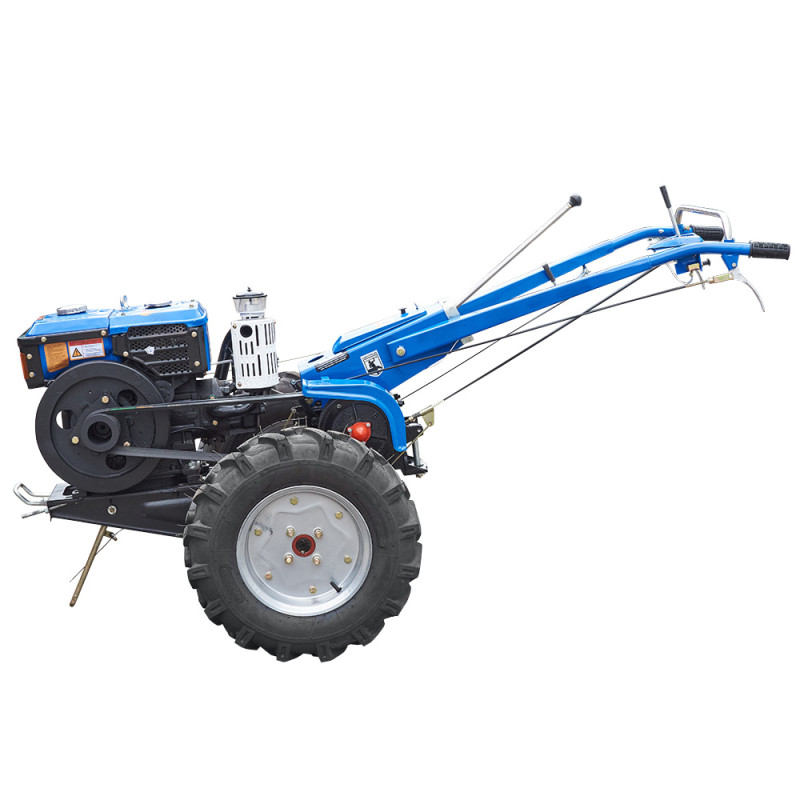

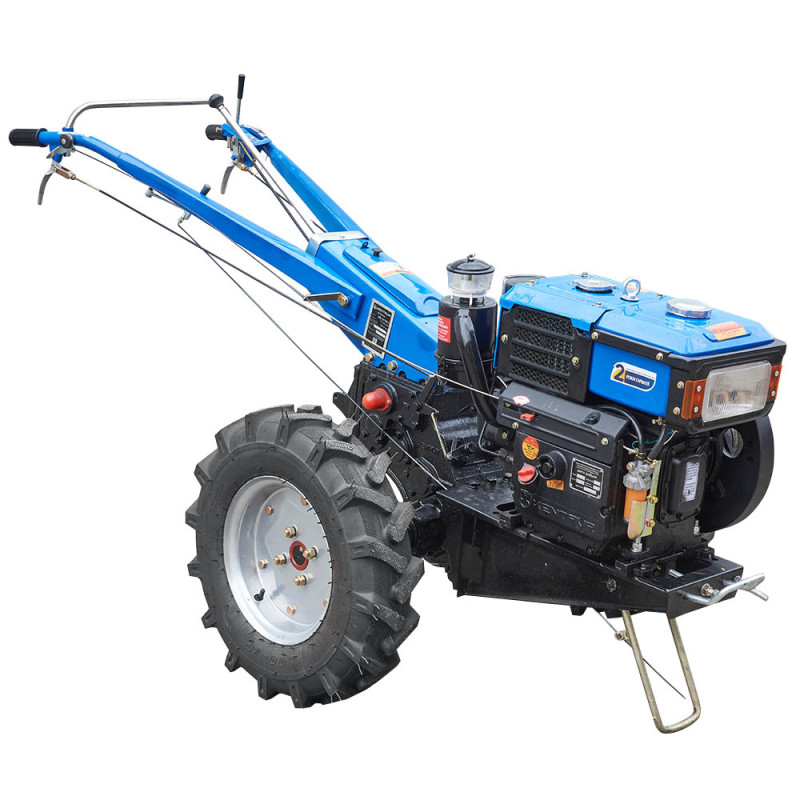

Description of Kentavr MB 1010D Power Tiller

Structurally, Kentavr diesel power tillers with water cooling are almost identical; the difference lies in the power of their engines (8, 10, and 12 hp) and their starting method.

Models with the "D" index have only manual engine start. Models with the "DE" index are equipped with an electric starter, which significantly simplifies starting, especially at low ambient temperatures. In addition to the electric starter, the electrical equipment kit includes a battery, ignition switch, ammeter, and master switch. The electrical equipment is housed in a durable metal box mounted on the power tiller's handlebars. Power tillers with manual start can be retrofitted with an electric starter. However, this operation requires not only additional financial investment for purchasing components, including replacing the flywheel, but also sufficient technical qualification of the installer, as partial disassembly of the power tiller is necessary.

Features of the Kentavr MB 1010D model:

ENGINE

• Increased engine life - due to the use of quality materials and modern manufacturing technologies for parts.
• 5-stage air filter: translucent cyclone, oil bath, two mesh, and one paper filter elements – significantly extends the service life of the piston group.
• Metal fuel filter housing - durable, does not break or crack.
• Mushroom-type oil pressure sensor - allows visual monitoring of the lubrication system and prevents engine failure in the absence of oil pressure.
• Powerful electric starter (on models with electric starter) - allows easy engine start at any time of year and provides battery charging.
• Powerful 150 W generator, twice as powerful as power tillers of other brands - provides bright headlight illumination and allows operation in the dark.
• High fuel tank neck – convenient for refueling.
• Muffler burn guard – improves safety during operation and maintenance of the power tiller.
• Radiator cap with valve - allows pre-releasing pressure in the radiator and avoiding burns from hot steam.

TRANSMISSION

• Three drive belts (analogs have two belts) - eliminates slippage, reduced load on the belts significantly extends the service life of the belt drive.
• Additional groove for connecting front attachments (4-groove pulley) - allows quick connection of active front attachments or using the power tiller as a drive for stationary equipment.
• Long axle, extended adjustable track of 845 mm - increases the stability of the power tiller when working on slopes and during transport, allows setting the track for various agricultural crops.
• 6-position gear shift lever (no need to press down) - easy and convenient gear shifting.
• Dual-disc clutch - eliminates slippage, has an extended service life.

FRAME

• Reinforced frame with stiffening ribs, 2 kg heavier - has increased strength, reduces vibration, ensures stable operation of the belt drive.
• Crankcase and covers made of cast iron - significantly stronger and heavier than aluminum.
• Handlebar mounting with 3 bolts - more reliable and stronger than two bolts, as in similar power tillers of other brands.
• Engine mounting with 5 bolts - significantly more reliable than mounting with 2 studs, noticeably reduces vibration and facilitates adjustment of engine position on the frame.
• High removable cover of the spare parts compartment - significantly increases the useful volume of the compartment, opens conveniently.
• Rigid front footrest, made of 16 mm rod - ensures stability of the power tiller when stopped, does not deform or sink deep into soft soil.
• Reinforced hitch - allows installing a wider range of mounted and trailed equipment, has a long service life.
• Steel bushings on the hitch - significantly reduce wear and increase the service life of the hitch.

ERGONOMICS

• High-quality even painting - reliable corrosion protection and attractive appearance.
• Reliable welds - ensure the strength and integrity of the entire structure.
• Voltmeter-ammeter (on models with electric starter) - allows prompt monitoring of battery charging and electrical equipment operation.
• Springs on handlebar levers - eliminate vibration and loosening of connections during operation.
• Solid (not welded) clutch lever - does not break or deform during active use, unlike a welded lever.
