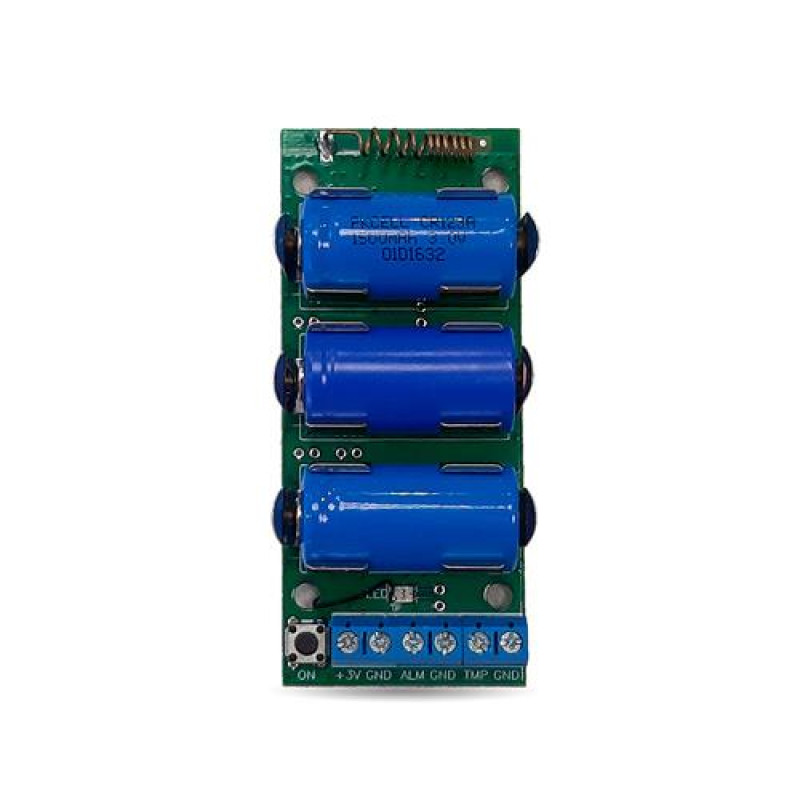

U-Prox Wireport is a wireless interface module with three "dry contact" inputs for connecting wired devices to the U-Prox ecosystem. Each input supports a pulse counting function, allowing for precise recording of sensor activations, door openings, or signals from meters. It ensures secure event transmission via radio channel and simple integration with the security system.
Advantages:
-
Three independent inputs with pulse counting
-
Support for wired sensors, magnetic contacts, meters
-
Detection of activation count and transmission to the system
-
Compact housing with wall or hidden mounting options
-
Powered by three CR123A batteries with up to five years of operation
-
Radio communication range up to 4800 meters
-
Two-way secure communication with 256-bit encryption
-
Sabotage detection and event logging
-
Support for over-the-air (OTA) firmware updates
-
Used for security sensors, automation, and monitoring
Specifications
| Parameter | Value |
|---|---|
| Number of inputs | 3 "dry contact" inputs |
| Input functionality | Pulse counting, event storage |
| Power supply | 3 × CR123A |
| Battery life | Up to 5 years |
| Transmission frequency | 868–868.6 MHz (EU/UA), 916.5–917 MHz (AU) |
| Range | Up to 4800 meters (line of sight) |
| Communication type | Two-way, 256-bit encryption |
| Sabotage protection | Yes |
| Firmware update | Supported (OTA) |
| Operating temperature | From –10 to +55 °C |
| Mounting | Wall or hidden |
| Dimensions | Compact housing |
| Purpose | Connecting wired sensors, event accounting |
