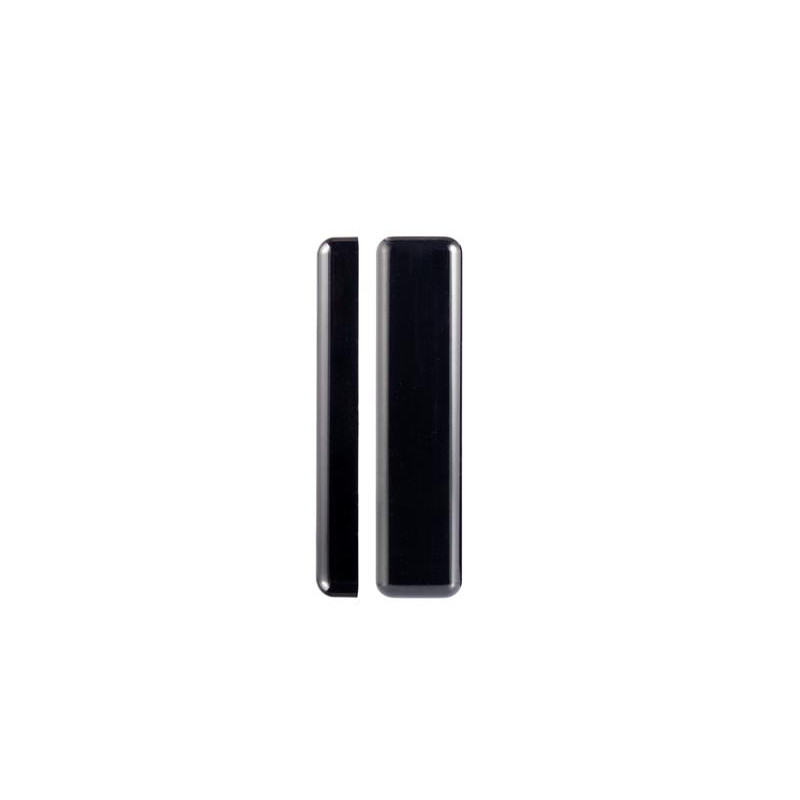

U-Prox WDC Uni is a wireless magnetic contact sensor for doors and windows with a built-in tilt (shock) sensor, temperature sensor, external device input, and LED output. Designed for indoor use, it provides extended control over opening, vibration, and object position.

Key advantages:

• Reed switch activation distance: 7–15 mm, mechanical life — over 1,000,000 activations.

• Input for connecting an external sensor (e.g., an additional reed switch).

• Output for an LED to indicate security mode.

• Built-in tilt and temperature sensors.

• Powered by a CR123A battery, up to 5 years of autonomous operation.

• Radio frequency: 868–868.6 MHz (EU/Ukraine) or 916.5–917 MHz (Australia).

• Communication range — up to 4800 m in open areas.

• Two-way encrypted communication with 256-bit encryption and sabotage protection.

• Over-the-air (OTA) firmware updates supported.

• Sealed enclosure with IP55 protection rating.

• Operating temperature — from -20 to +50 °C, humidity — up to 95%.

• Complies with EN 50131 standard: environmental class III, security grade 2.

Specifications
