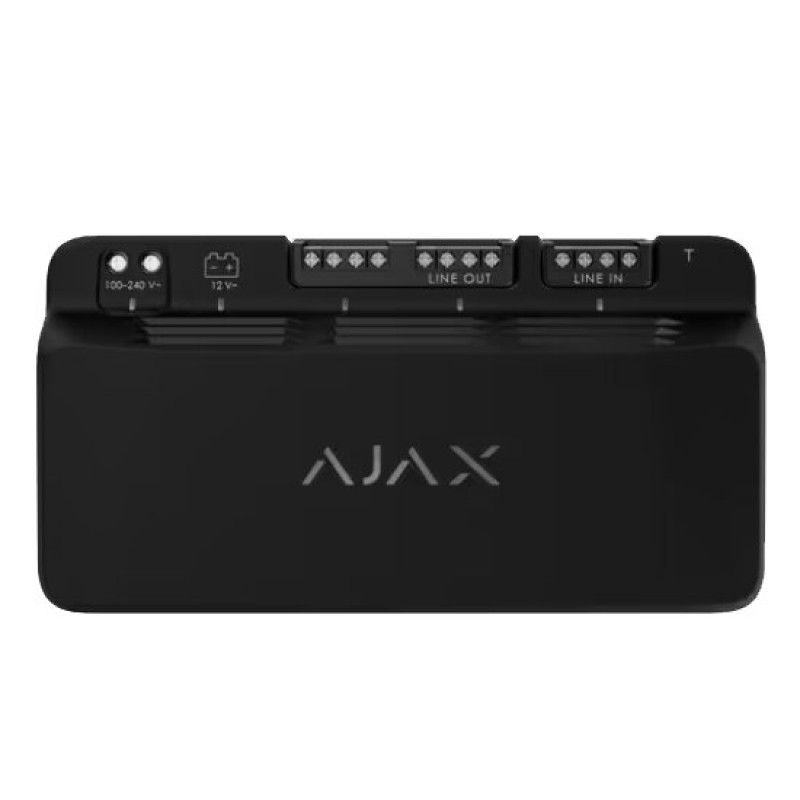

The Ajax system with LineSupply Fibra black can cover an object that requires kilometers or even tens of kilometers of wires. A new project or renovation of an old system — it doesn't matter. The device powers Fibra devices connected to it and extends the line by 2000 m. Up to 10 LineSupply Fibra modules can be installed on one Fibra line, extending the connection from 2 km to 22 km. This allows covering the territory of a factory, farm, power plant, or other large object.

Working with the power module must be safe. The LineSupply Fibra casing is designed to isolate all elements that come into contact with current. The module casing also has special guides that allow quick installation of the device into the Case without additional holders. Installation engineers can choose one of two placement options for the device and rotate it 180 degrees. Passive ventilation protects the module from overheating. LineSupply Fibra is available in two colors, making it easy to combine with any Case.

Typically, the output line length of one Fibra device reaches up to 2000 m. LineSupply Fibra modules allow extending the Fibra line up to 22 km. For this, the installation engineer only needs to install up to 10 modules one after another on the line. This way, the wired Ajax system can cover the territory of any large object, such as a factory, power plant, farm, office, or shopping center with underground parking.

The Ajax system uses secure two-way communication based on its proprietary Fibra protocol. The protocol uses encryption and authentication during each communication session to protect against sabotage, spoofing, and data theft. Fibra lines are universal, so sirens, keypads, and sensors with photo verification support can be connected to one line.

LineSupply Fibra and the devices connected to it do not consume power from the hub. The Fibra protocol requires minimal energy for communication and operates on the TDMA principle, which involves regular polling of devices by the hub at a specified frequency. The rest of the time, the communication modules of the devices are inactive. This significantly reduces energy consumption and helps avoid interference even when several devices communicate with the hub simultaneously.

Each output line of LineSupply Fibra is energy-independent, which makes the system even more reliable. The module is powered by 110/230 V~ mains and has a connector for connecting a 12 V backup battery with a capacity of 7 to 18 Ah.
