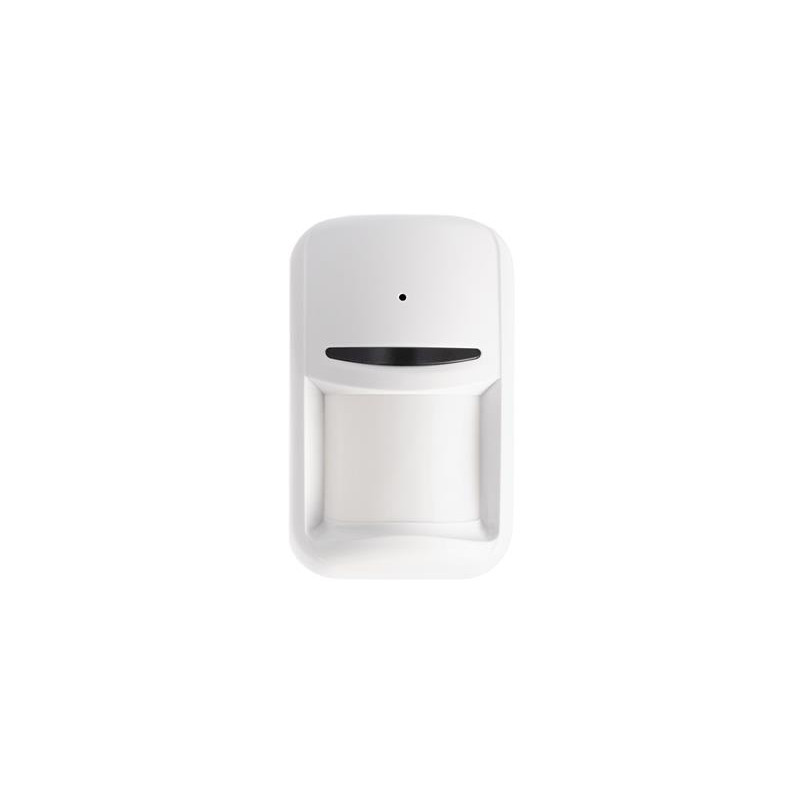

U-Prox PIR Combi VB is a wireless combined sensor that integrates motion detection (PIR) with glass break detection and features a vertical curtain lens. The device is designed for indoor perimeter protection, for example, along windows, doors, or corridors. It sends separate notifications for motion and glass breakage, which increases response accuracy.
The IR sensor detects motion at a distance of up to 12 meters with an 88-degree viewing angle. The acoustic sensor detects the sound of glass breaking at a distance of up to 8 meters. Standard, tempered, laminated, and multi-layer glass with a thickness of 2 to 8 mm and dimensions from 0.5×0.5 m to 3×3 m are supported. Light resistance over 6500 Lux, digital signal processing, and temperature compensation ensure stable operation even in bright lighting.
The sensor operates at a frequency of 868–868.6 MHz on a secure two-way radio channel with 256-bit encryption. The communication range is up to 4800 m in open areas. Firmware updates via OTA are supported, as well as tamper protection. Powered by one CR123A battery. Service life is up to 5 years. Mounting is done using a flat or corner bracket. Operating temperature: -10 to +55 degrees. Humidity: up to 75%.
Specifications
| Characteristic | Value |
|---|---|
| Device type | Motion + glass break sensor with vertical lens |
| Motion detection range | up to 12 m |
| PIR viewing angle | 88° |
| Object speed | 0.3–3 m/s |
| Light resistance | >6500 Lux |
| Glass detection range | up to 8 m |
| Glass types | standard, tempered, laminated, multi-layer |
| Glass thickness | 2–8 mm |
| Glass panel dimensions | from 0.5×0.5 m to 3×3 m |
| Radio channel frequency | 868–868.6 MHz |
| Communication range | up to 4800 m (open area) |
| Encryption | Two-way, 256-bit |
| Power supply | 1×CR123A (3 V) |
| Battery life | up to 5 years |
| OTA firmware updates | Supported |
| Tamper protection | Yes |
| Operating temperature | -10 to +55 °C |
| Maximum humidity | up to 75% |
| Protection class | Class II, EN 50131-1, Grade 2 |
| Dimensions without bracket | 90×60×34.35 mm |
| Dimensions with bracket | 90×60×41.6 mm |
| Weight | 150 g |
| Package contents | Sensor, CR123A battery, 2 brackets, mounting kit, manual |
| Warranty | 2 years (excluding battery) |
