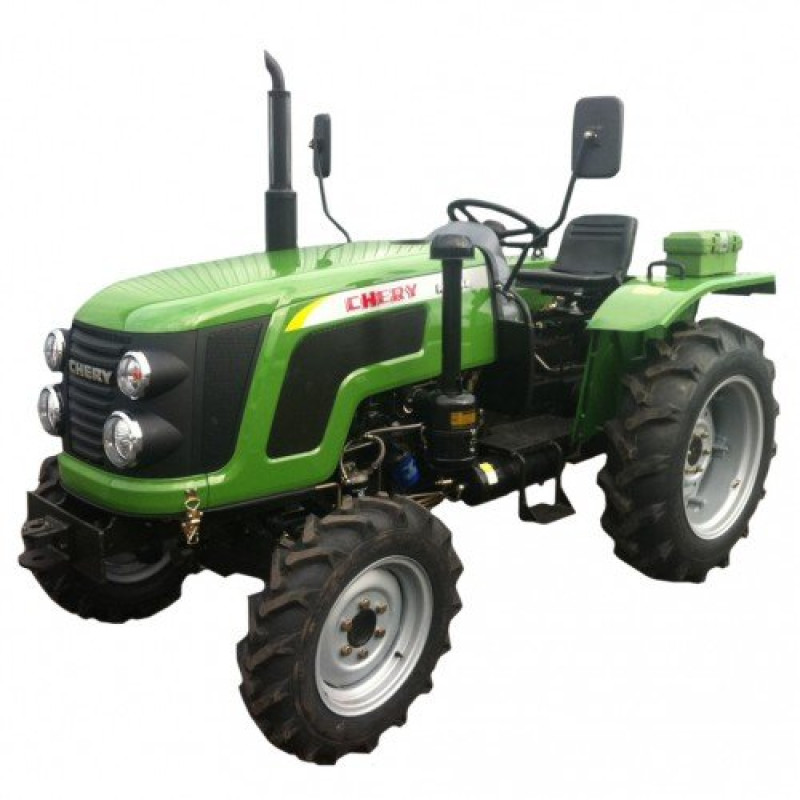

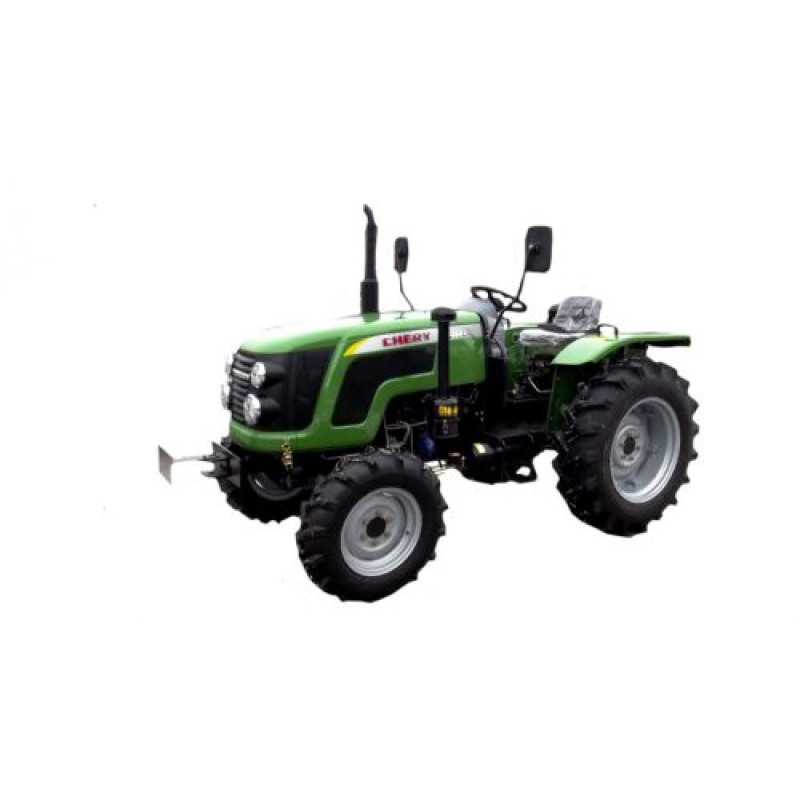

Mini Tractor Zoomlion RF 244 B

Brand: Zoomlion. Model: RF 244 B — a productive and reliable mini tractor designed for a wide range of tasks in agriculture, horticulture, gardens, as well as with mounted and trailed equipment in construction and utilities.

The design features a 3-cylinder ZN390T diesel engine with liquid cooling. The engine displacement is 1.813 cm3, nominal crankshaft speed is 2350 rpm, and nominal fuel consumption is ≤244 g/kWh. The engine is started by an electric starter with safe start. The description contains ambiguous information regarding power: a value of ~30 hp is mentioned, while the technical specifications indicate 24 hp (17.6 kW). Both values are provided in the original description.

Wheel formula — 4x4 with front axle; wheelbase — 1720 mm. Ground clearance is 35.8 cm, ensuring high passability over uneven terrain. Overall dimensions of the machine: 3290x1530x1895 mm, structural weight — 1400 kg. Fuel tank capacity — 30 L.

Transmission: mechanical gearbox (4+1)x2, geared; clutch — dry, dual-disc. Rear differential lock is available. Nominal traction force — 6.9 kN. Power take-off (PTO) shaft speed — 540/1000 rpm. Brake mechanism — drum type.

Chassis and tires: front tire size — 6.5-16, rear — 11.2-24. Front wheel track — 1100 mm, rear — 960-1300 mm, ensuring stability and maneuverability. Theoretical forward speed — 1.4-32.00 km/h, reverse — 1.78-9.40 km/h.

Configuration and equipment: the mini tractor is equipped with a trailer socket, a tool box, large convenient rearview mirrors, an hour meter, and a glow plug. Power steering is also provided; there is a hydraulic distributor with two hydraulic pairs and removable hydraulic couplings. The tractor has a pneumatic brake booster installed.

Practical Application

The Zoomlion RF 244 B is suitable for soil cultivation (the tractor is sold complete with a rotary tiller), plowing, sowing, transporting goods with a trailer, snow removal, haymaking, and trench digging. Its compact size and maneuverability allow it to perform tasks in hard-to-reach and narrow spaces. The tractor is noted for its ability to operate continuously for extended periods.

Advantages

• 1. Reliable operation in a wide temperature range due to liquid cooling.
• 2. Three-point hitch system for trailed and mounted implements.
• 3. Presence of power steering and an instrument panel for monitoring speed, fuel level, oil, and engine hours.
• 4. Economical fuel consumption.
• 5. 1720 mm wheelbase and appropriate tire sizes for increased stability.
• 6. Rear differential lock for better traction on difficult terrain.
• 7. 35.8 cm ground clearance for effective operation on rough terrain.
• 8. Competitive price and supplied complete with a rotary tiller.

Recommended alternatives and similar models: Jinma 404, Shifeng 354, Dongfeng, Xingtai, Foton, Zoomlion, DTZ 5244, Bulat 454, Bulat 250, Bulat 254, Belarus 320.4, Shifeng 350, DW 244, DTZ 5404K, Solis 26, Solis RX 50.

Purchase conditions: payment can be made to the courier or credit can be arranged through the website. Goods are delivered from warehouses in Kyiv, Poltava, Kharkiv, Vinnytsia, Chernihiv in the shortest possible time.

Technical Specifications:

Please note: the main description mentions 30 hp, while the parameter table indicates 24 hp (17.6 kW). Both values are provided in the original description.

This mini tractor is a compact and easy-to-use solution for farms and private plots requiring versatile and reliable equipment.
