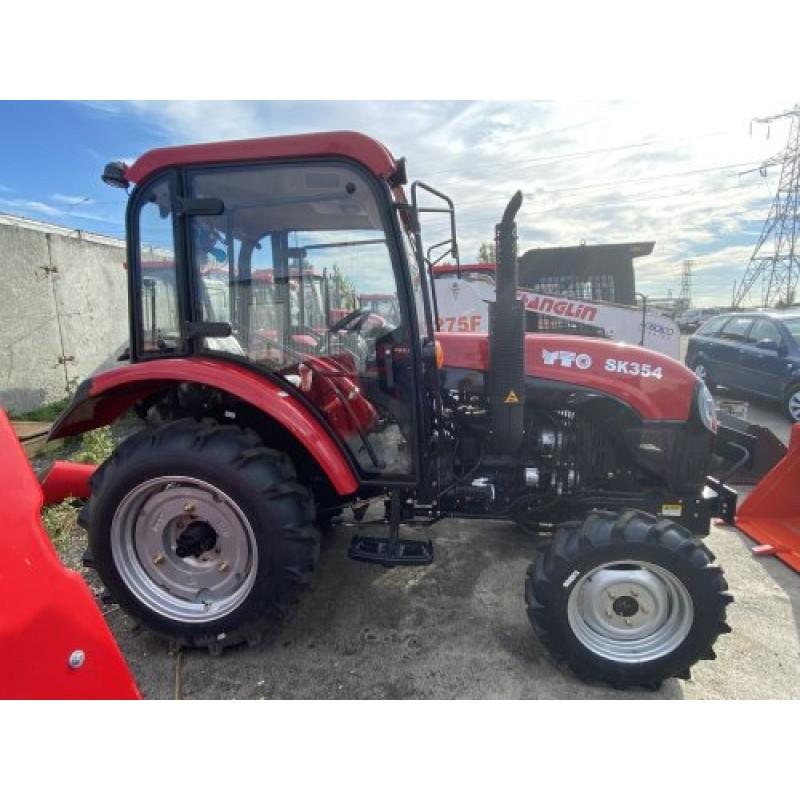

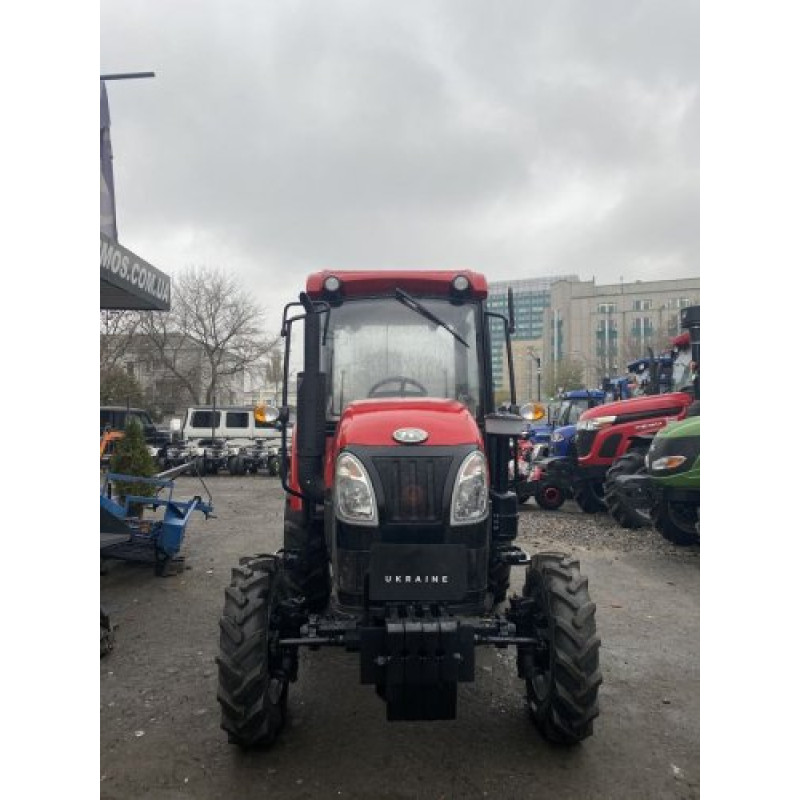

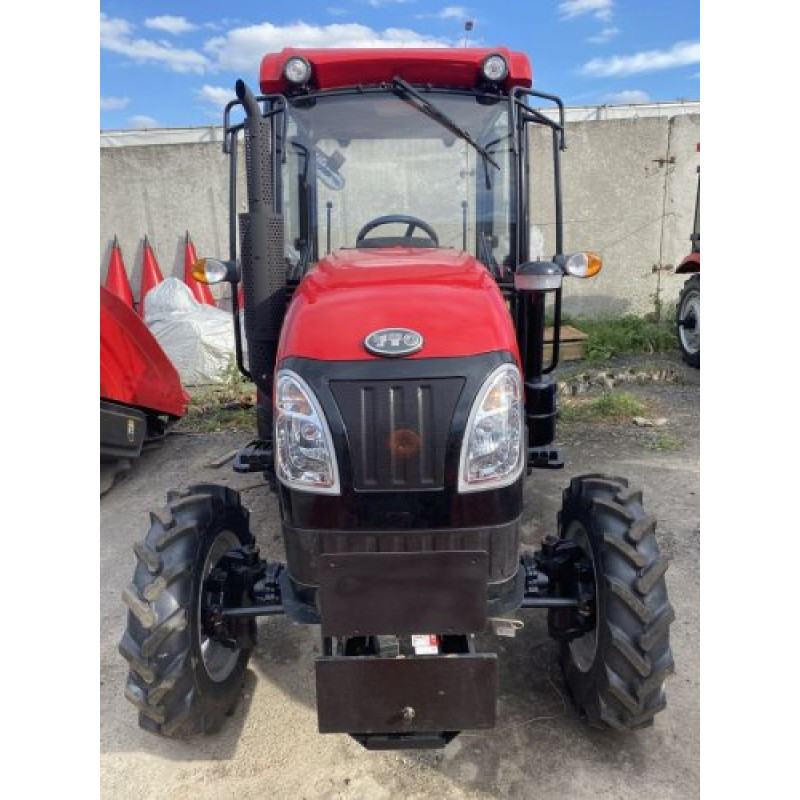

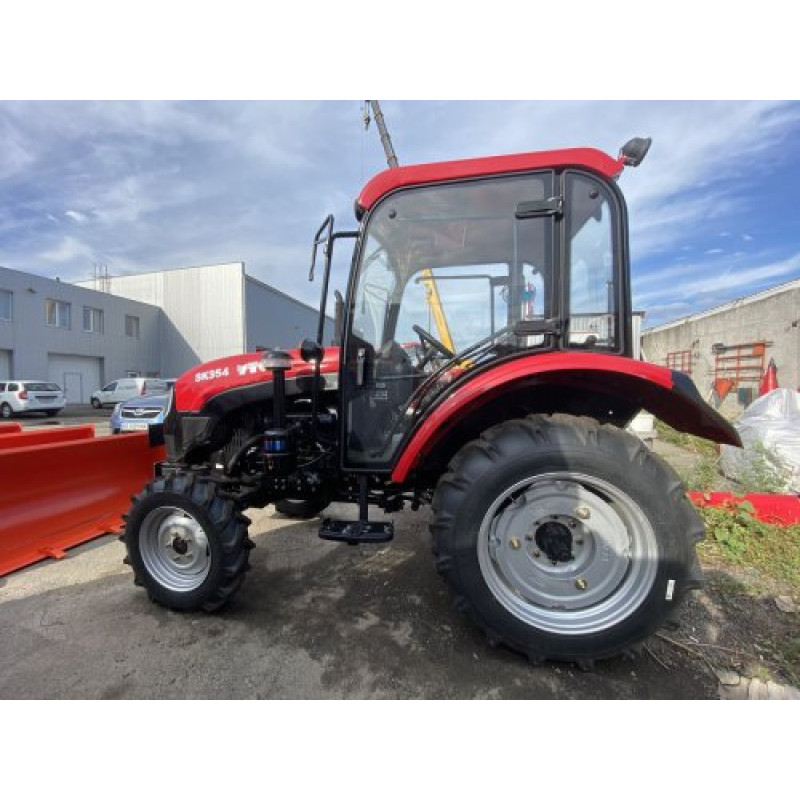

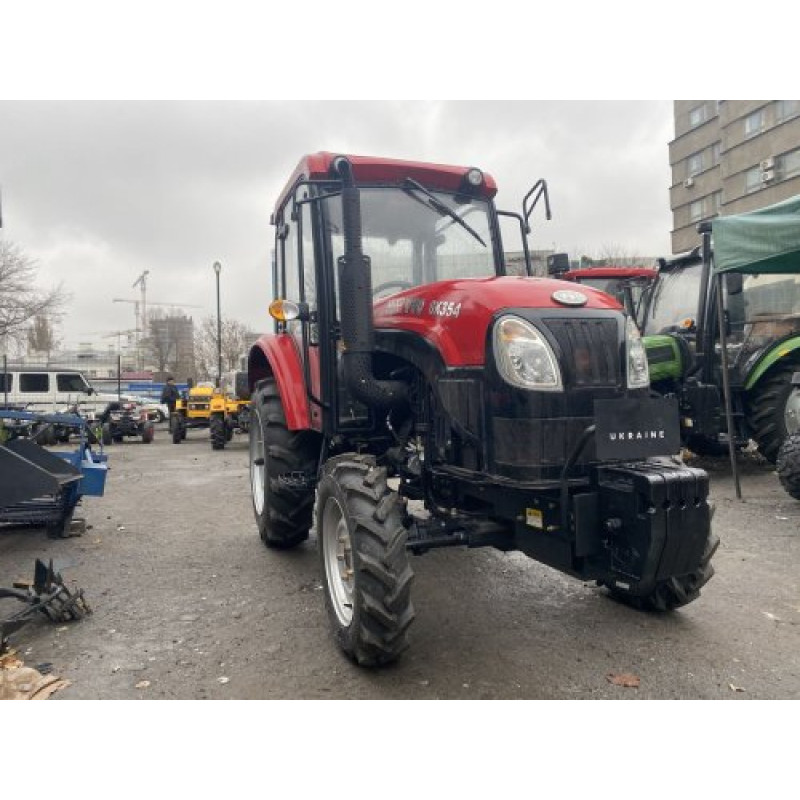

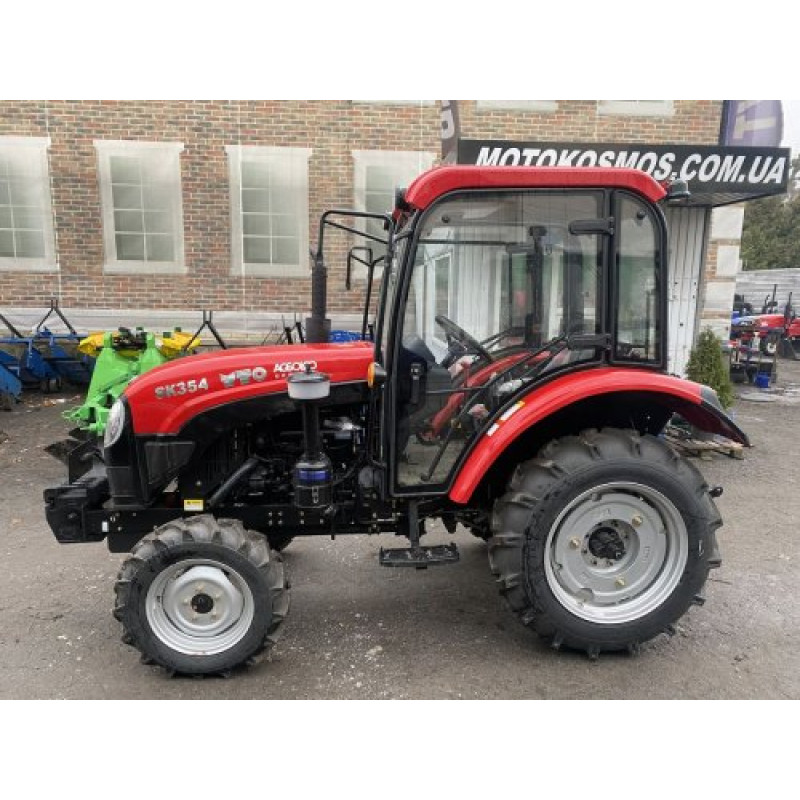

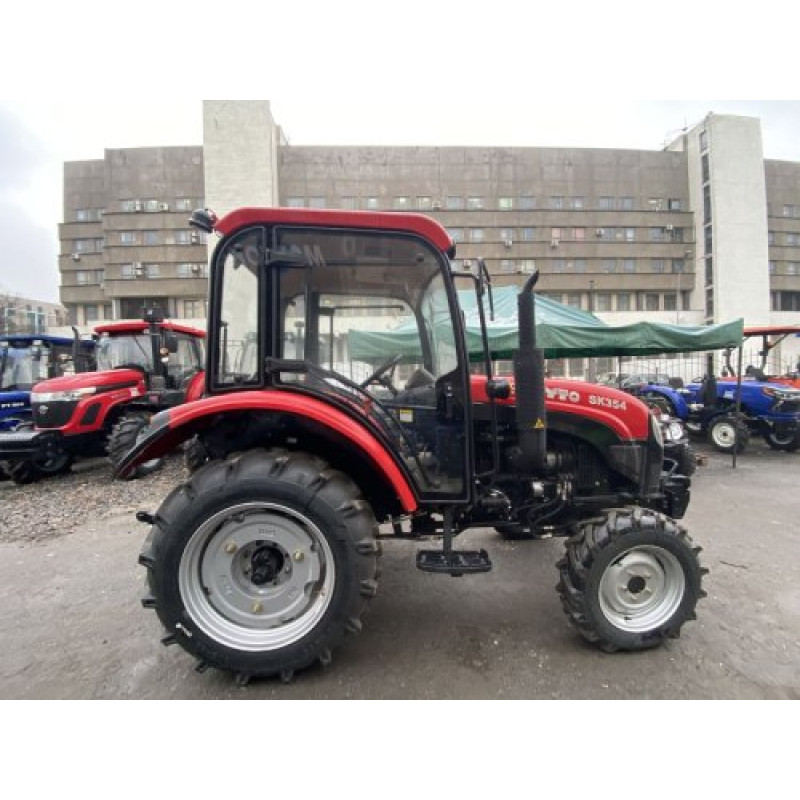

The YTO SK 354 mini-tractor from the YTO brand is a versatile and reliable assistant for private farms, agricultural plots, and municipal work. The model combines an economical diesel engine, 4x4 all-wheel drive, a well-designed chassis, and ergonomic solutions for long-term operation. The mini-tractor is ideal for cultivating small fields, tending greenhouses, transporting goods, and working with mounted and trailed equipment.
Key Features
The YTO SK 354 is equipped with a YD490 engine with a preheater (Euro II emission level), with a power output of 35 hp (25.7 kW), a displacement of 2.415 L, and a nominal crankshaft speed of 2300 rpm. Four vertically arranged cylinders ensure balanced operation and a long engine life. The 4x4 all-wheel drive, along with a ground clearance of 260 mm and a wheelbase of 1698 mm, provides good off-road capability.
Functionality and Operation
The (4+1)x2 gearbox and a wide speed range of 2.07-31.54 km/h forward and 2.72-12.59 km/h reverse allow for selecting the optimal driving mode for various tasks. The dry-type, 9-inch, single-action clutch ensures simple and reliable gear shifting. PTO speed options of 540/720 or 540/1000 rpm ensure compatibility with a wide range of agricultural implements.
Hydraulics, Lifting, and Convenience

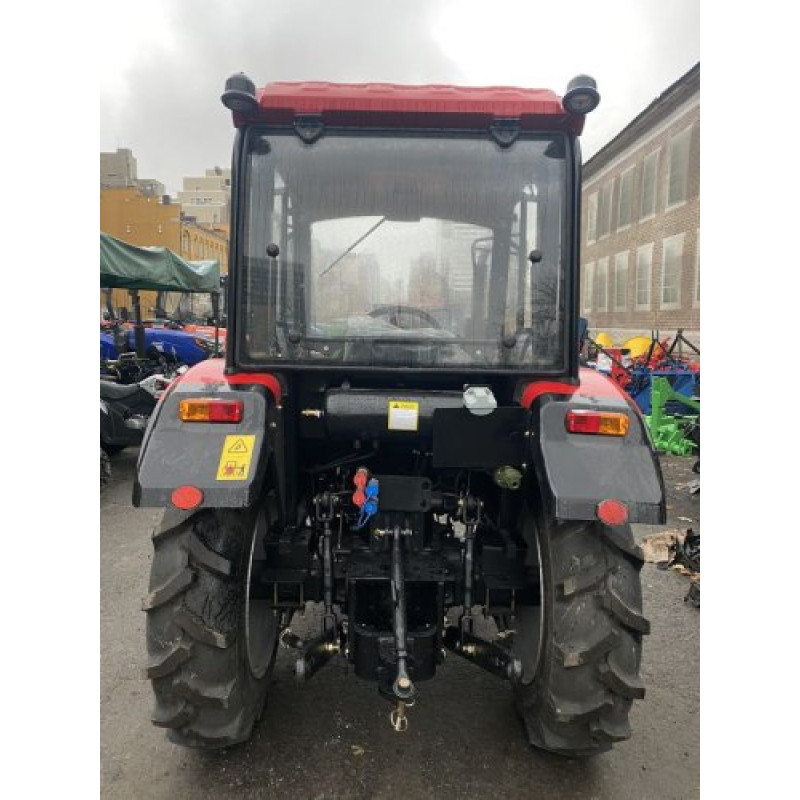

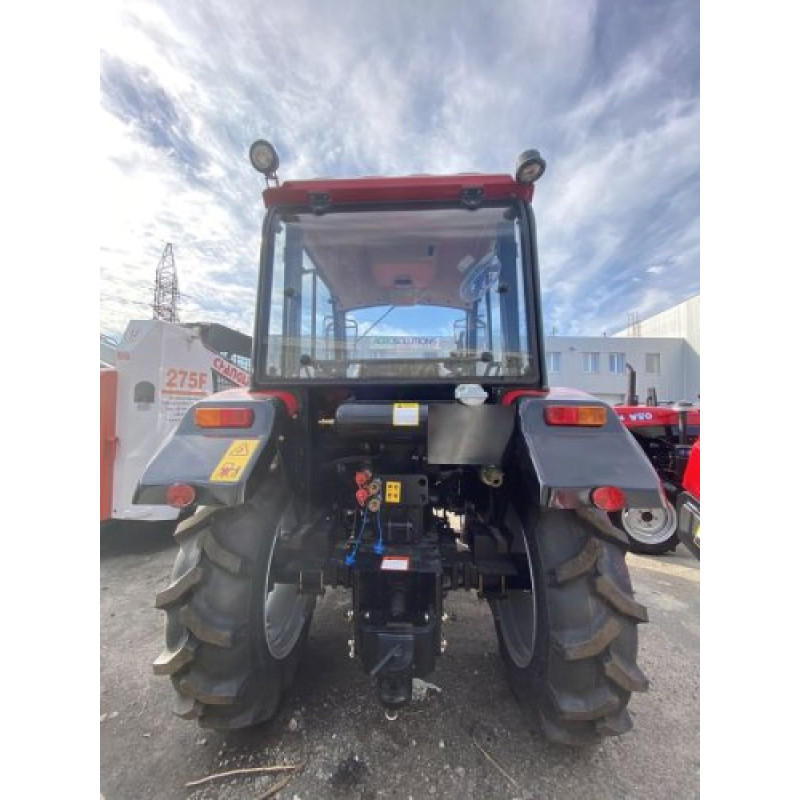

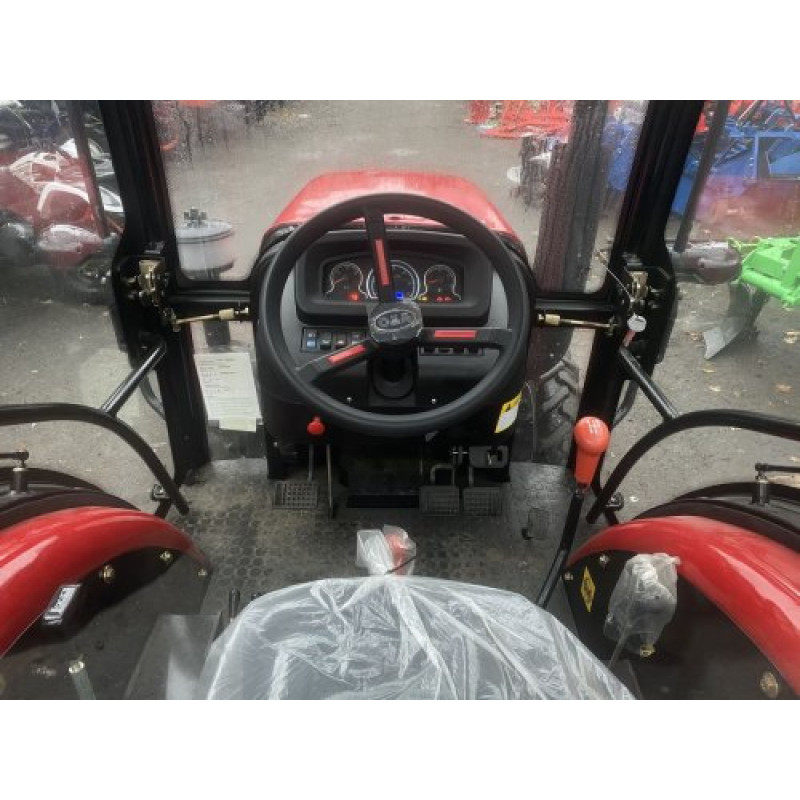

The efficient hydraulic system with a capacity of 21.6 L/min works stably with mounted equipment, and the lifting capacity of the three-point hitch of 660 kg allows the use of plows, cultivators, and other working tools. Hydraulic steering and hydraulic brakes facilitate control and enhance safety. For comfortable maintenance, an instrument panel, power switch, towing device, and hood gas strut are provided. There are also 2 pairs of hydraulic outlets with a common coupling.
Technical Specifications
| Engine brand | YD490 engine with preheater (Euro II emission level) |
| Engine power, hp (kW) | 35 (25.7) |
| Engine displacement, L | 2.415 |
| Nominal engine crankshaft speed, rpm | 2300 |
| Wheel formula | 4x4 |
| Number and arrangement of cylinders | 4, vertical |
| Clutch | dry type, 9 inches, single-action |
| Gearbox | (4+1)x2 |
| Speed: forward / reverse, km/h | 2.07-31.54 / 2.72-12.59 |
| Power Take-Off (PTO) speed, rpm | 540/720 or 540/1000 |
| Three-point hitch lifting capacity, kg | 660 |
| Hydraulic system capacity, L/min | 21.6 |
| Steering | hydraulic |
| Brakes | hydraulic |
| Tire size | 6.5-16 / 11.2-24 |
| Front / rear wheel track adjustment | 1190 / 1100-1300 |
| Wheelbase, mm | 1698 |
| Ground clearance, mm | 260 |
| Overall dimensions: LxWxH, mm | 3453 × 1465 × 1200 |
| Curb weight, kg | 1524 |
| Counterweights | Front 4pcs / wheel 0pcs |
| Fuel tank capacity, L | 30 |
| Instrument panel | Yes |
| Towing device | Yes |
| Power switch | Yes |
| Hood gas strut | Yes |
| 2 pairs of hydraulic outlets with a common coupling | Yes |
This mini-tractor combines an affordable price with the maintainability of its engine, chassis, and hydraulic system design. The YTO SK 354 is suitable for those looking for a powerful, maneuverable, and economical assistant for a wide range of agricultural and municipal tasks. Brand: YTO. Category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors.
