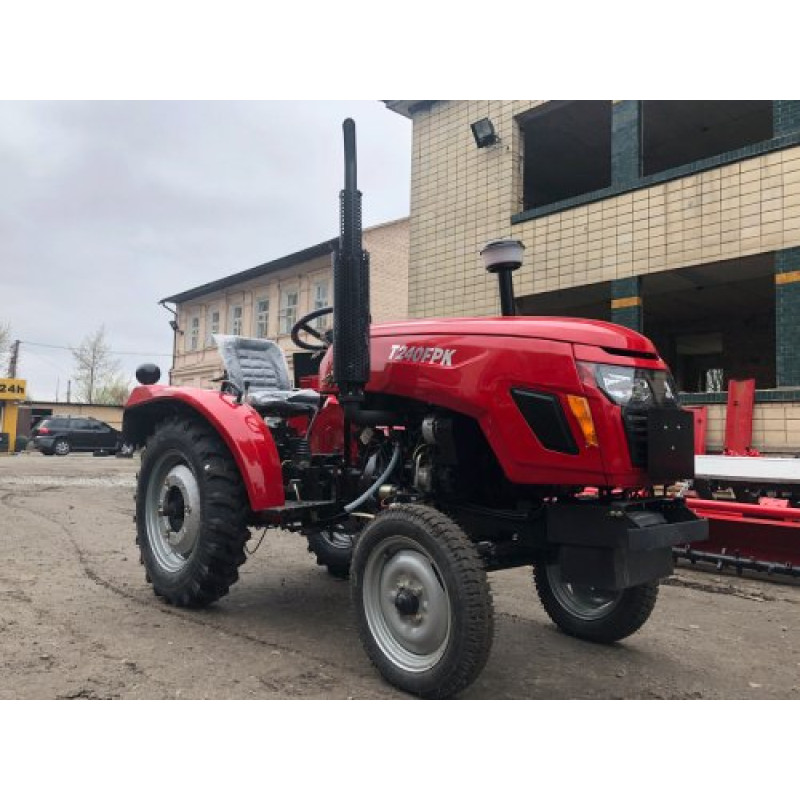

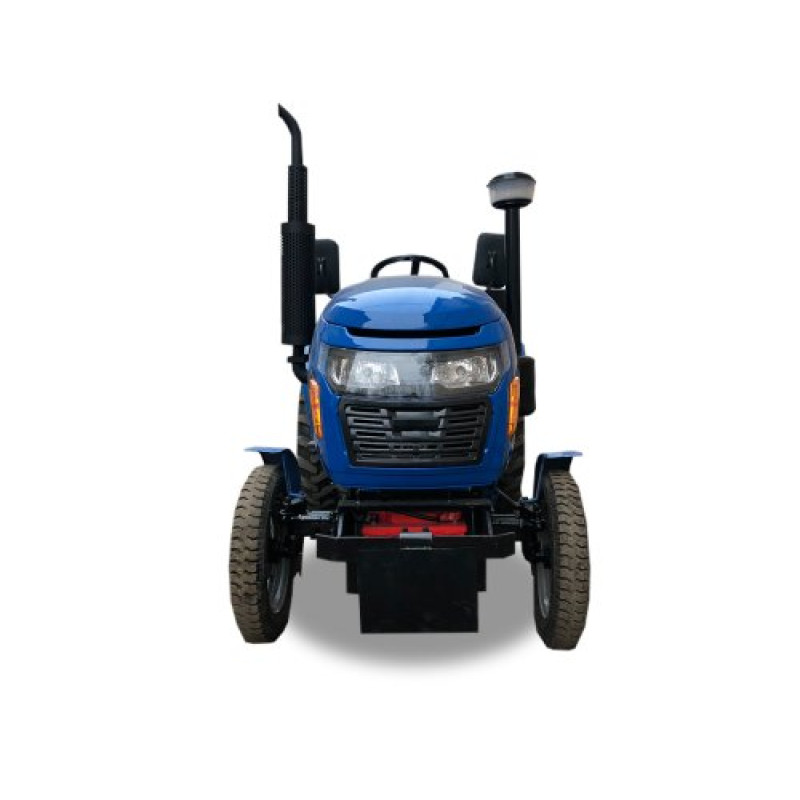

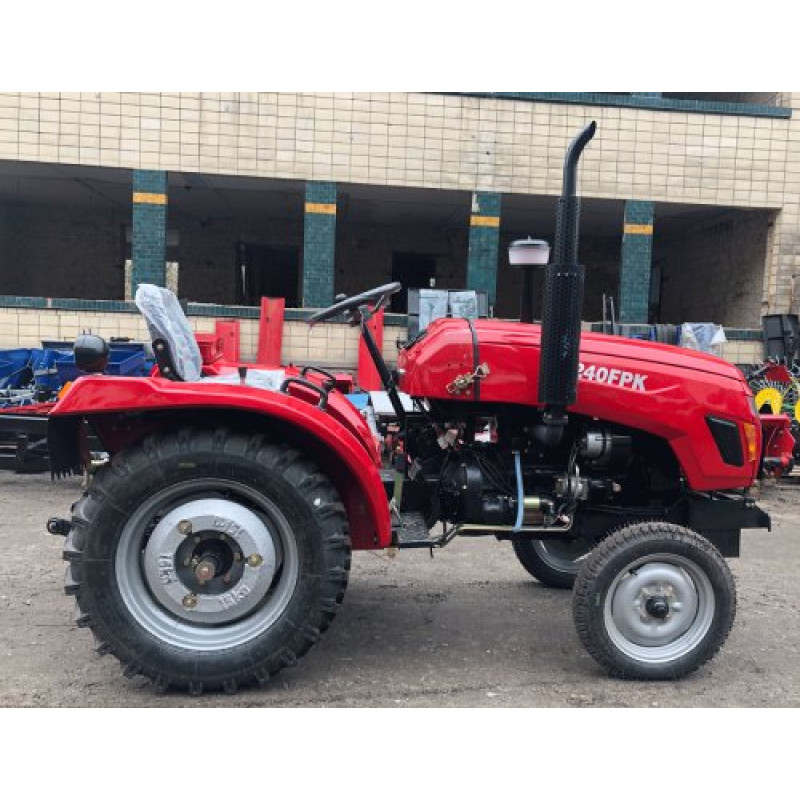

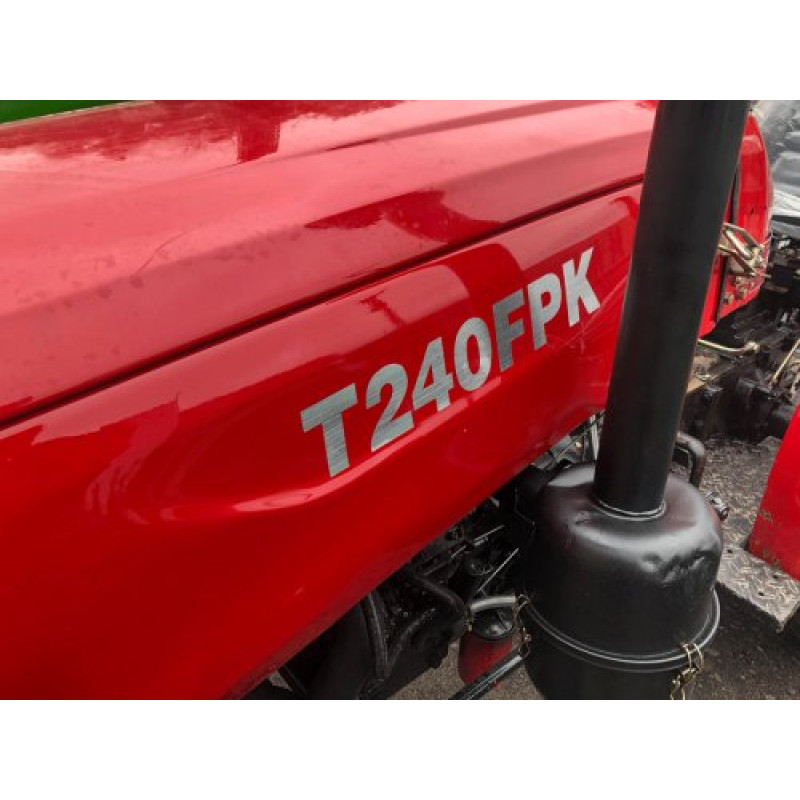

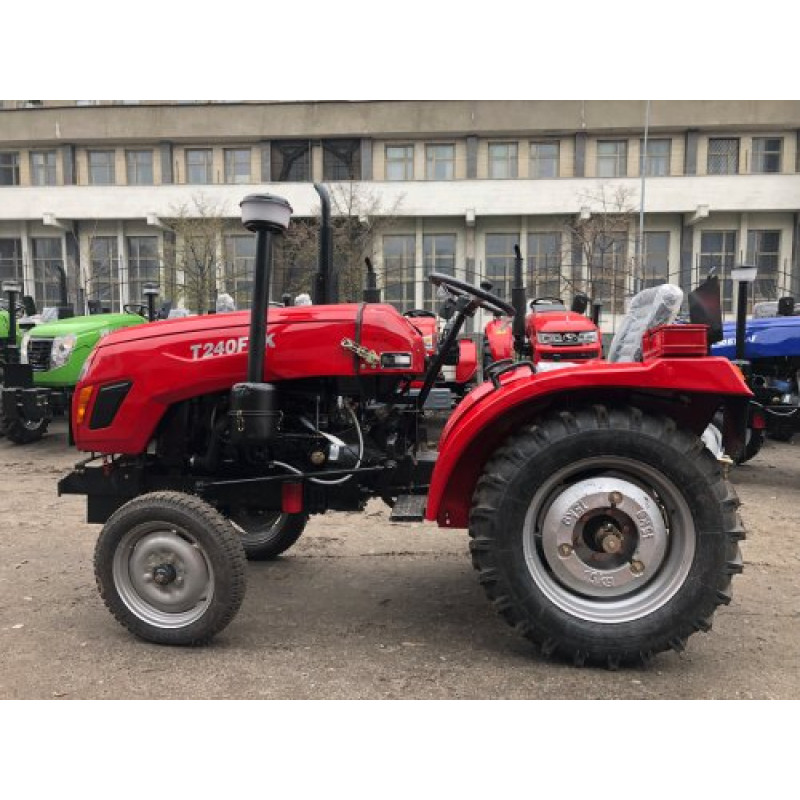

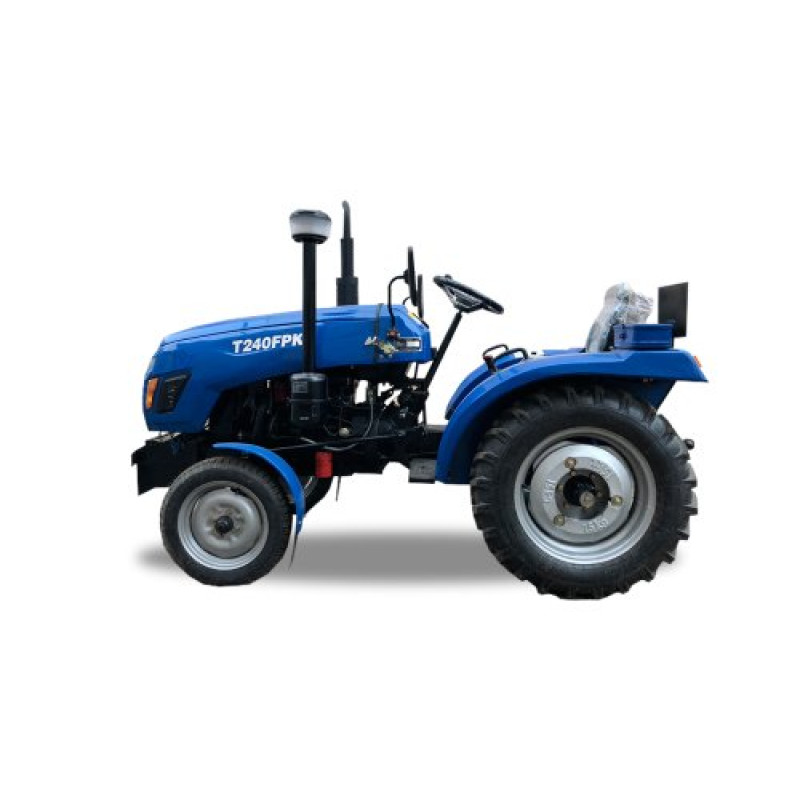

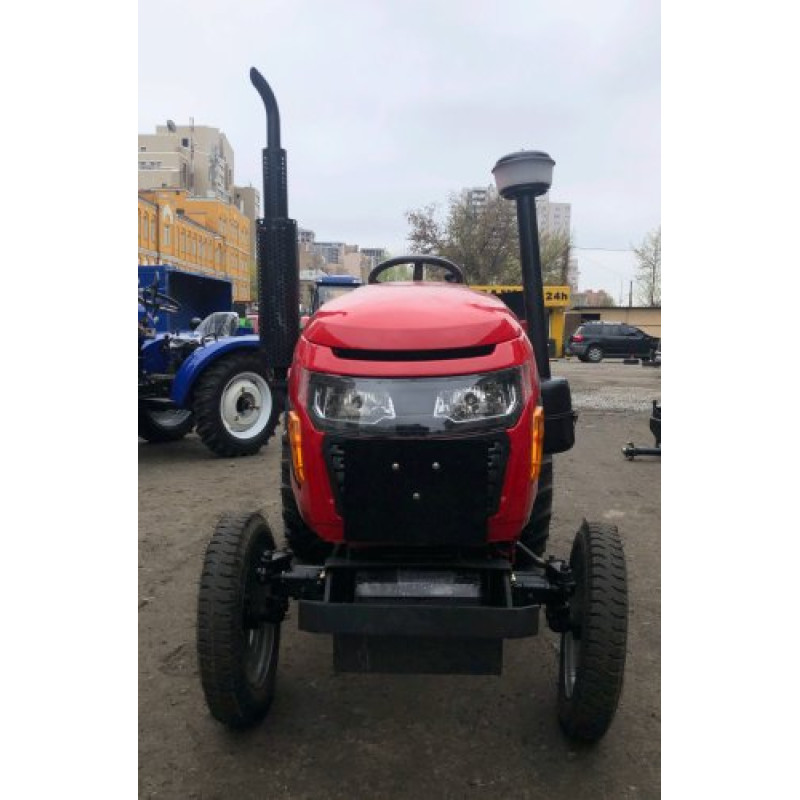

Xingtai T240 FPK Mini Tractor — Updated 2018 Model

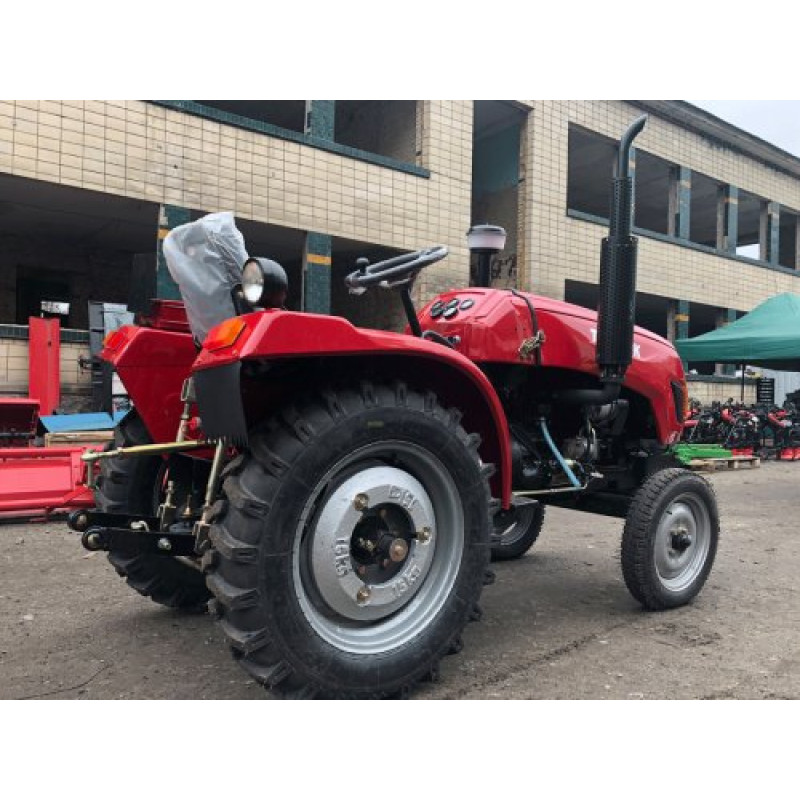

The Xingtai T240 FPK mini tractor from manufacturer Xingtai is a modernized universal unit, introduced in October 2018. The machine features an updated design, modern optics and dashboard, an reinforced hitch system, new hydraulics with an engine-mounted hydraulic pump, and a quick-release connector on the hydraulic output, making operation more convenient and technologically advanced. Additionally, it includes a manual throttle with a lock and a dedicated space for mounting a license plate, enhancing comfort and convenience when working on the plot.
Key Advantages and Design Features
The mini tractor is equipped with one of two engines — KM385BT or HS385BT (we recommend clarifying the exact modification with a manager). Both versions have identical operating characteristics: a three-cylinder diesel four-stroke engine with direct fuel injection, without turbocharging, and with a liquid cooling system for stable operation under load.
- Engine: three-cylinder diesel, liquid (water) cooling.
- Power: 24 hp (17.6 kW) — sufficient for a wide range of agricultural and municipal tasks.
- Transmission: mechanical, non-synchronized, 8 gears (6 forward / 2 reverse) — (3+1)x2.
- Maximum speed: up to 27 km/h — convenient for moving between plots.
- Front wheel track adjustable from 960 mm to 1,240 mm; rear wheel track from 990 mm to 1,240 mm — suitable for various row widths.
- Ground clearance: 300 mm, allowing work on uneven fields.

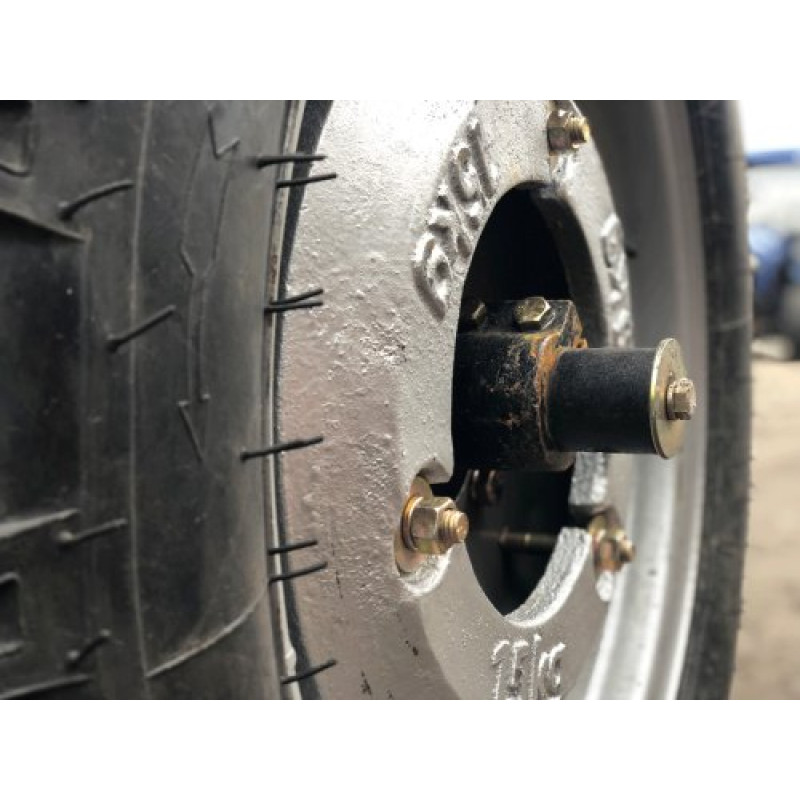

- Tires: front 4.00-14, rear 7.50-20 (road-type with tread for better grip).
The Xingtai T240 FPK mini tractor can be easily equipped with additional attachments: seeder, cultivator, potato planter, potato digger, rake, rotary mower, and more. It is recommended to select attachments according to the specifics of your activity to achieve maximum work efficiency and save time.
Commercial Terms: Delivery and Payment
Flash Army online store offers free delivery of the Xingtai T240 FPK model across Ukraine at the company's expense. Purchase in installments is also possible with the support of a partner bank. To clarify availability, configuration, and price, please contact us by phone listed on the website — our managers will provide free consultation on selection and configuration.
We also recommend checking out other models: Jinma 404, Shifeng 354, Dongfeng, Xingtai, Foton, Zoomlion, DTZ 5244, Bulat 454, Bulat 250, Bulat 254, Belarus 320.4, Shifeng 350, DW 244, DTZ 5404K, Solis 26, Solis RX 50.
Technical Specifications
| Rated traction force, kN | 4.7 kN |
| Compression | 18:1 |
| Engine type | Three-cylinder diesel, four-stroke, with direct fuel injection, non-turbocharged, liquid-cooled |
| Engine model | KM385BT or HS385BT |
| Engine displacement, cm3 | 1,532 cm3 |
| Engine power, hp and kW | 24 hp or 17.6 kW |
| Number of engine cylinders | 3 |
| Cylinder bore | 85 mm |
| Piston stroke | 90 mm |
| Engine dimensions, mm | 569 mm x 525 mm x 604 mm |
| Engine structural weight, kg | 234 kg |
| Wheelbase, mm | 1,570 mm |
| Overall dimensions, mm | 2720x1260x1870 mm |
| Front wheel track, mm | 960 mm - 1,240 mm |
| Rear wheel track, mm | 990 mm - 1,240 mm |
| Ground clearance, mm | 300 mm |
| Drive type | 4x2 |
| Transmission type | Mechanical, non-synchronized |
| Number of gears (forward / reverse) | (3+1)x2 - 6 forward / 2 reverse |
| Clutch | Single-disc dry |
| Maximum speed, km/h | 27 km/h |
| Front wheel size | 4.00x14 (agricultural road-type tires) |
| Rear wheel size | 7.50x20 |
| Engine oil capacity, L | 5 liters |
| Engine cooling system capacity, L | 10 liters |
| Fuel tank capacity, L | 17 liters |
| Weight, kg | 920 |
This model belongs to the category: Mini Tractors. Manufacturer: Xingtai. If you need help choosing a configuration or selecting attachments for specific tasks — contact us, we will find the optimal solution.
