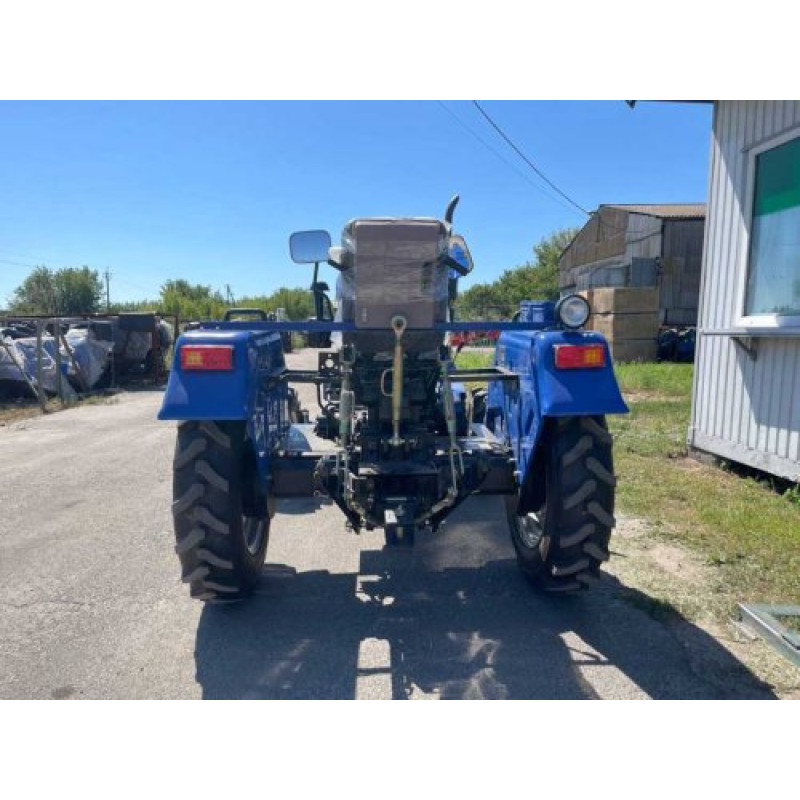

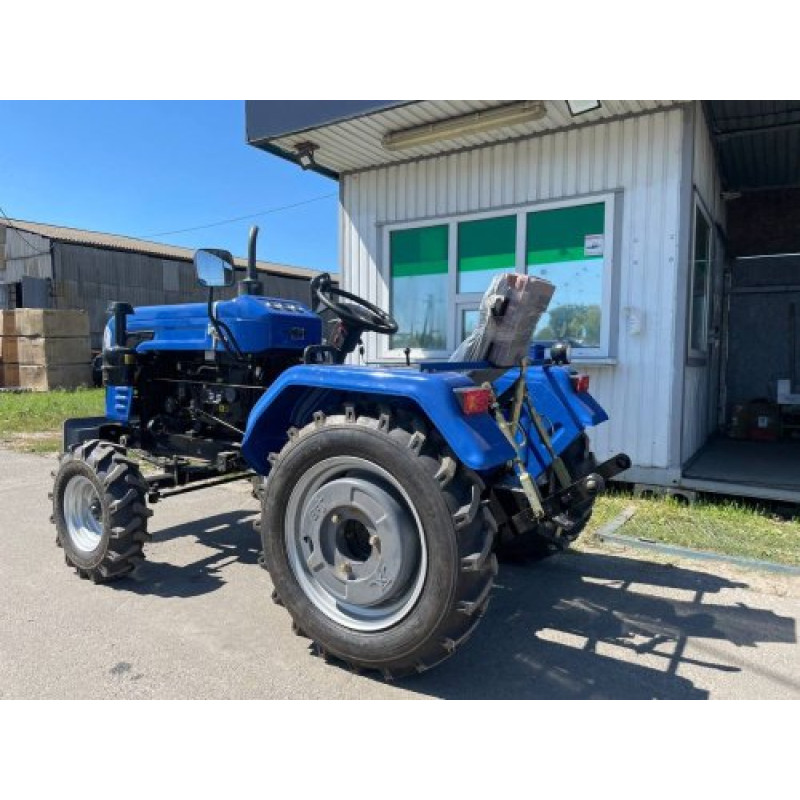

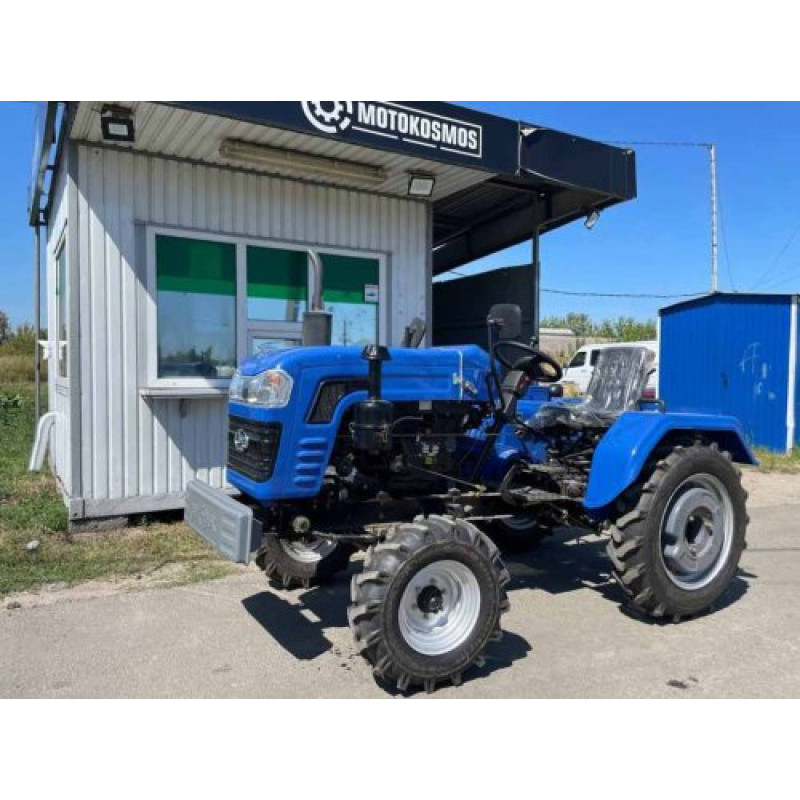

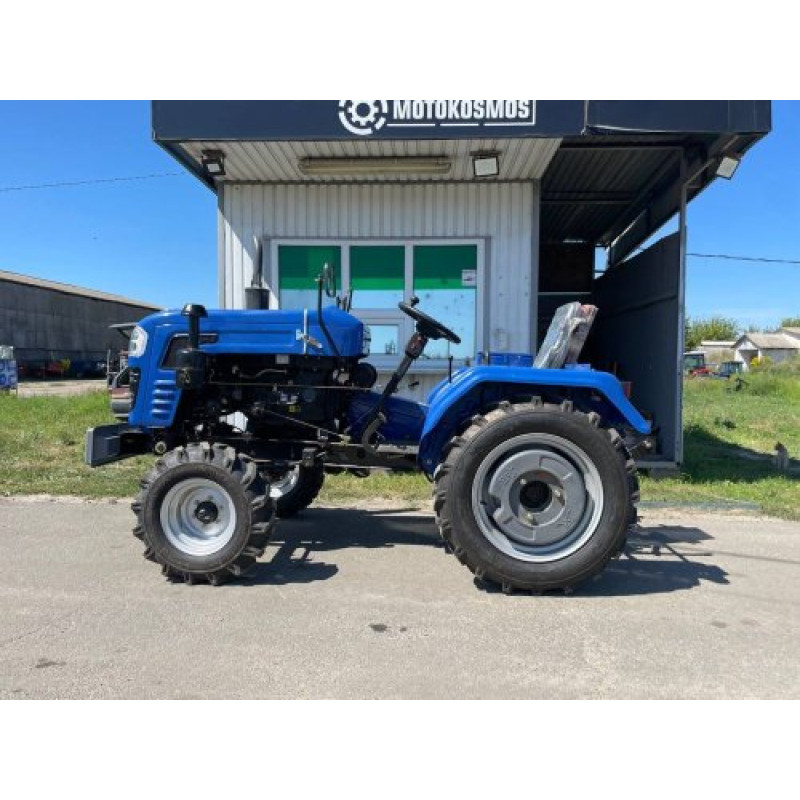

Mini Tractor Shifeng SF-240 BFL — A Reliable Assistant for Small and Medium-Sized Farms
Model: Mini Tractor Shifeng SF-240 BFL. Manufacturer: Shifeng. Category: Tractors > Mini Tractors.
Compact, economical, and multifunctional, the Shifeng SF-240 BFL is designed for a wide range of tasks on the farm, in the garden, park, or on a construction site. Thanks to its 4-stroke diesel engine with water cooling and a displacement of 1,344 cm3, the mini tractor provides stable power and a long service life with moderate fuel consumption.
Key Features and Benefits
- Engine power of 24 hp (17.6 kW) provides the necessary reserve for plowing, working with attachments, and towing.
- Engine: 4-stroke diesel with water cooling, nominal crankshaft speed 2,200 rpm, nominal fuel consumption ≤252 g/kWh.
- Compact dimensions of 2860x1400x1770 mm and a structural weight of 1050 kg guarantee maneuverability and stability even in confined spaces.
- Wheel formula 4x2, wheelbase 1480 mm, front wheel track 1170 mm, rear wheel track 1200 mm.
- The gearbox is non-synchronized, mechanical: (3 forward + 1 reverse) x 2, ensuring simplicity of design and reliability in operation.
- Rear differential lock improves проходимость in difficult conditions, dry single-disc clutch — for reliable torque transmission.
- Power take-off (PTO) shaft speed of 540 rpm allows connection of a wide range of mounted and trailed equipment, maximum lifting capacity of the mounted mechanism 300 kg.
- Drum-type braking mechanism, theoretical forward speed 2.5–27.0 km/h, reverse 5.5 km/h.
- Tire size front 6.0-12, rear 7.5-20 — optimal combination for working on various soils.
Below is a complete table of technical parameters for quick reference:
| Engine power, hp (kW) | 24 hp (17.6) |
| Wheel formula | 4x2 |
| Engine type | 4-stroke diesel engine with water cooling |
| Engine displacement, cm3 | 1,344 |
| Nominal fuel consumption g / kWh | ≤252 |
| Nominal engine crankshaft speed rpm | 2,200 |
| Nominal traction force kN | 4.7 |
| Gearbox (transmission) | non-synchronized, mechanical (3 forward + 1 reverse) x 2 |
| Rear differential lock | yes |
| Clutch | Dry, single-disc |
| Braking mechanism | drum type |
| Power take-off (PTO) shaft speed rpm | 540 |
| Maximum lifting capacity of the mounted mechanism, kg | 300 |
| Wheelbase, mm | 1480 |
| Front wheel track, mm | 1170 |
| Rear wheel track, mm | 1200 |
| Front tire size | 6.0-12 |
| Rear tire size | 7.5-20 |
| Theoretical forward speed, km / h | 2.5-27.0 |
| Theoretical reverse speed, km / h | 5.5 |
| Fuel tank volume L | 9 |
| Engine crankcase volume, L | 4.5 |
| Gearbox and rear axle crankcase volume, L | 10 |
| Lift housing volume, L | 3.2 |
| Engine cooling system volume, L | 8 |
| Overall dimensions (LxWxH), mm | 2860x1400x1770 |
| Structural weight, kg | 1050 |
The Shifeng SF-240 BFL is designed for intensive and long-term operation with minimal maintenance costs. Fluid and technical system volumes: engine crankcase 4.5 L, cooling system 8 L, gearbox and rear axle crankcase 10 L, lift housing 3.2 L, fuel tank 9 L. This makes the unit convenient for daily use and maintenance.
The mini tractor is ideal for private farms, garden and park work, municipal tasks, and construction, when maneuverability, reliability, and the ability to connect various attachments are required. If you are looking for a versatile mini tractor with a proven design and accessible service, the Shifeng SF-240 BFL will be a practical choice.
