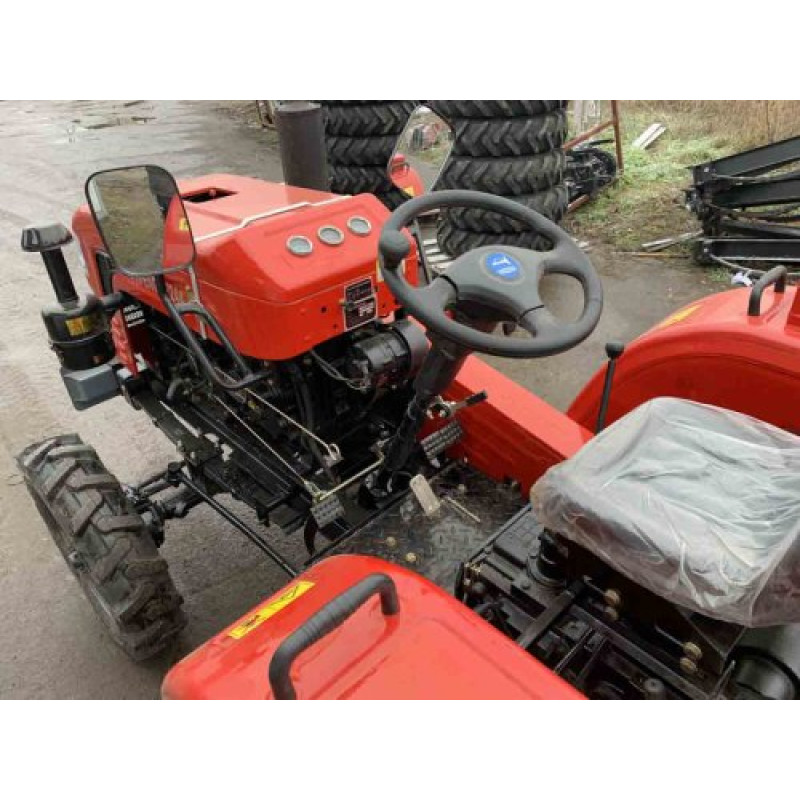

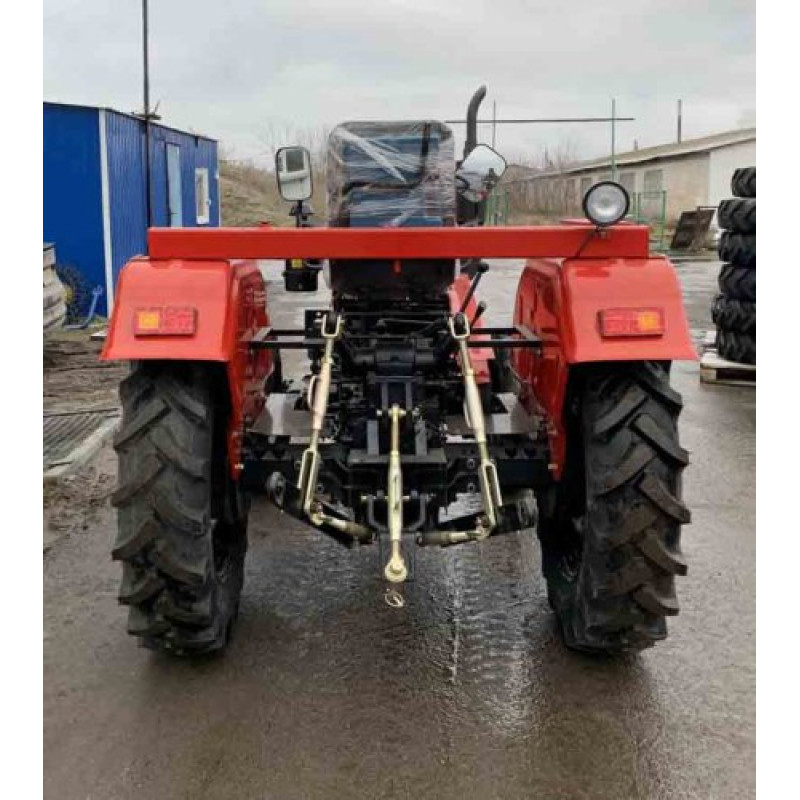

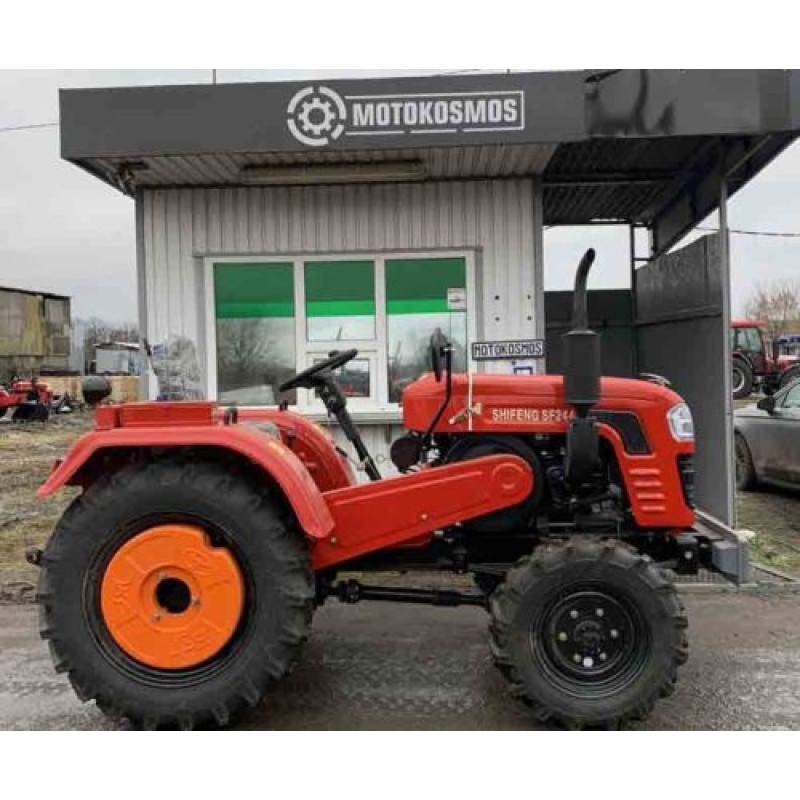

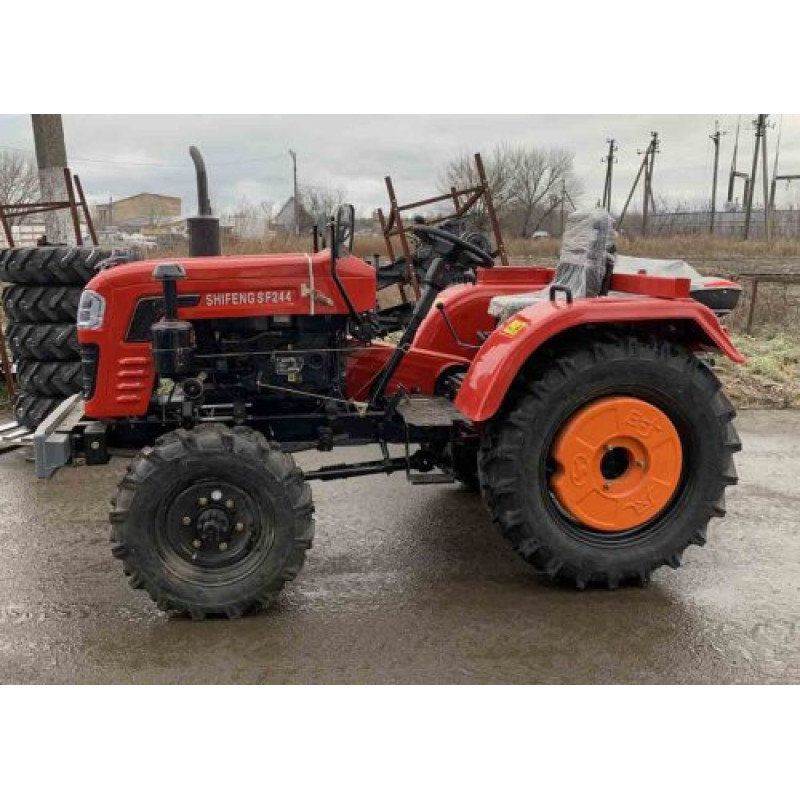

Mini Tractor Shifeng SF-244R (Front Radiator)
Brand: Shifeng. Category: Mini Tractors. The Shifeng SF-244R mini tractor with a front radiator is a reliable and versatile unit for private farms and agricultural needs. It combines a robust design, good traction, and the ability to connect various attachments, making it an ideal solution for soil cultivation, inter-row work, and utility tasks.
The model is equipped with an SF138-2 diesel engine (1 cylinder) with a displacement of 1.344 L and a nominal power of 24 hp (17.6 kW). The cooling system is liquid-cooled. Fuel consumption is 252 g/kWh, and the fuel tank capacity is 17 L. This configuration provides an optimal balance of power and fuel efficiency for field and transport operations.
The transmission is mechanical, with a (4+1)x2 gearbox and belt drive (4 belts). Steering is mechanical, and the clutch is single-disc. The rear differential is not lockable. Rear brakes are drum brakes, and there is a parking brake. The power take-off (PTO) is located at the rear, 540 rpm. The drawbar pull is 4.7 kN, and the three-point hitch lifting capacity is 320 kg. A hydraulic output is provided for connecting attachments.
Overall dimensions: length/width/height 2860x1570x1720 mm, wheelbase 1450 mm, ground clearance 360 mm. Front/rear axle width is adjustable: 920-1270 mm / 960-1300 mm. The unit's weight is 1305 kg. Speed range: 2.3–27.4 km/h. Tire size: 6.00-16 front and 9.5-24 rear. These parameters ensure maneuverability in narrow rows and stability on uneven terrain.
Specifications:
| Power, hp (kW) | 24 (17.6) |
| Wheel formula | 4x4 |
| Engine | diesel, SF138-2 |
| Number of cylinders | 1 |
| Displacement, L | 1.344 |
| Fuel consumption, g/kWh | 252 |
| Cooling | liquid |
| Fuel system preheating | no |
| Gearbox | (4+1)x2, mechanical |
| Drive | belt (4 belts) |
| Steering | mechanical |
| Clutch | single-disc |
| Differential | rear, not lockable |
| Rear brakes | drum |
| Parking brake | yes |
| Dimensions LxWxH, mm | 2860x1570x1720 |
| Wheelbase, mm | 1450 |
| Front/rear axle width, mm | 920-1270/960-1300 |
| Ground clearance, mm | 360 |
| Weight, kg | 1305 |
| Speed, km/h | 2.3-27.4 |
| Tire size | 6.00-16.00/9.5-24 |
| Tank capacity, L | 17 |
| PTO, rpm | rear, 540 |
| Drawbar pull, kN | 4.7 |
| Hitch lifting capacity, kg | 320 |
| Hydraulic output | yes |
The Shifeng SF-244R is ideal for cultivating small fields, gardens, inter-row cultivation, mowing grass, transporting goods, and working with attachments such as plows, cultivators, potato diggers, mowers, and trailers. Its reliable design, simple maintenance, and readily available spare parts make this mini tractor a profitable investment for private households and farmers.
When choosing, consider operating conditions: terrain, soil type, and the need for additional implements. The SF-244R demonstrates a good balance of power, maneuverability, and functionality in the 24 hp mini tractor segment, making it a versatile helper on the farm.
