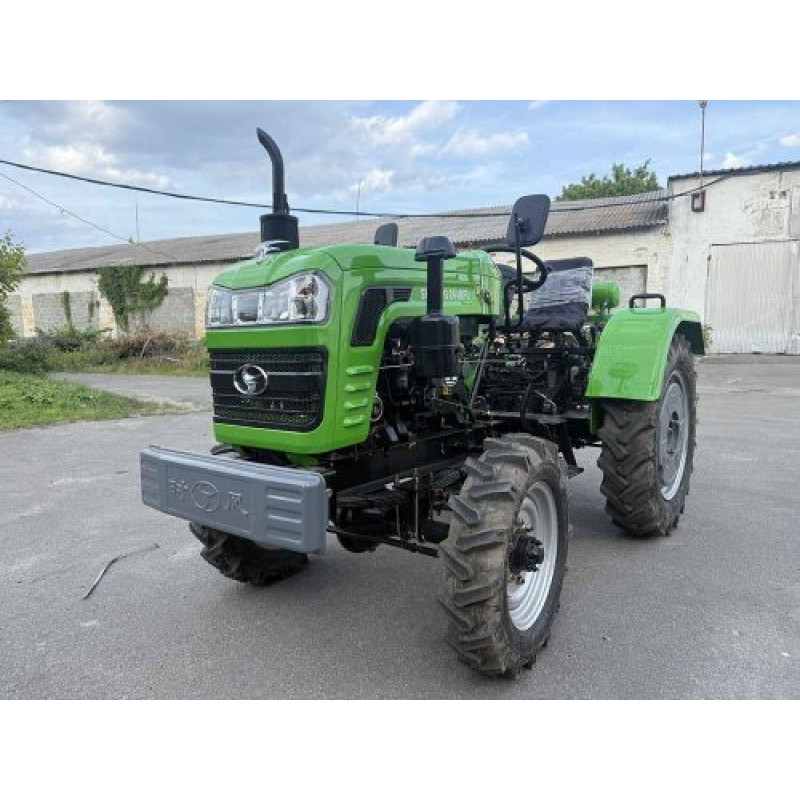

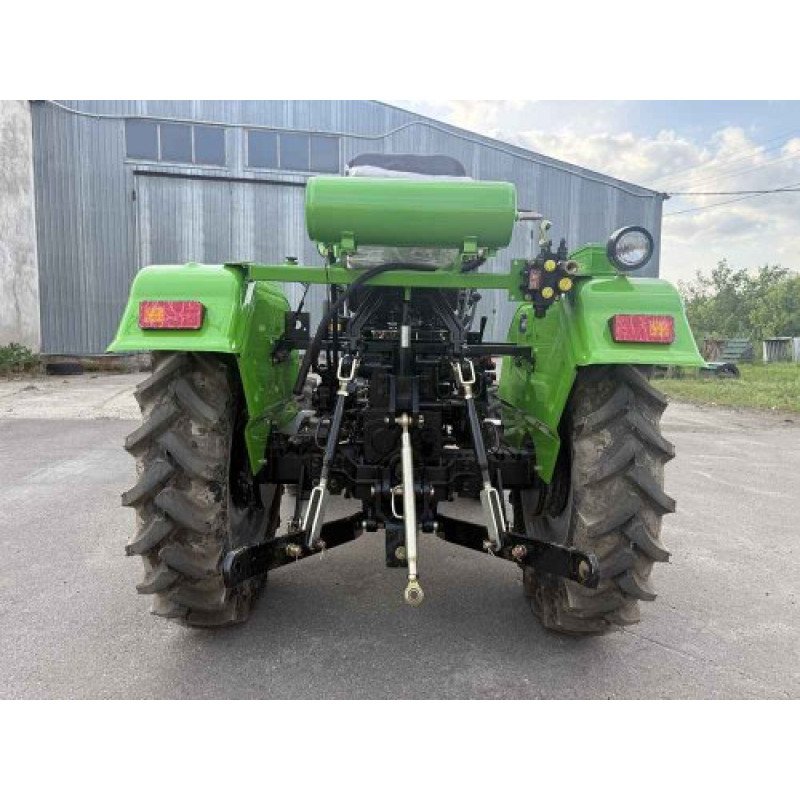

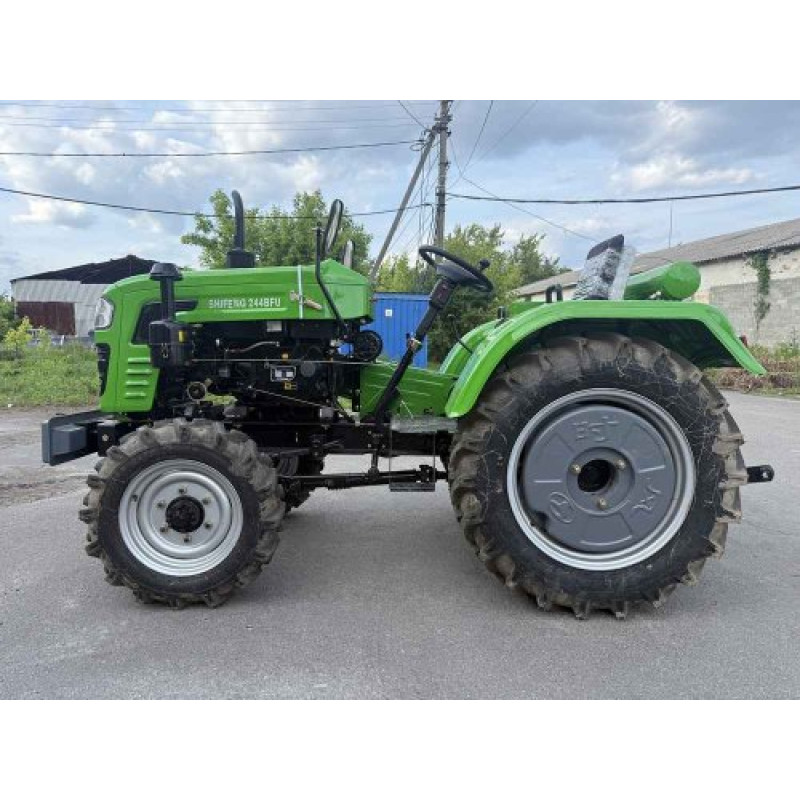

Mini Tractor Shifeng 244BFU
Model: Shifeng 244BFU. Manufacturer: Shifeng. Product type: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors. This compact and reliable mini tractor is designed for agricultural, municipal, and general utility tasks on small to medium-sized plots. Its construction ensures excellent cross-country capability and stability thanks to 4x4 all-wheel drive and optimal weight distribution.
Key Advantages and Purpose: Economical 24 hp water-cooled diesel engine, compact dimensions of 2860x1420x1770 mm, universal 540 rpm power take-off (PTO) shaft, sufficient hitch lifting capacity of up to 300 kg for working with mounted equipment (plows, harrows, cultivators, and other small-class implements). The mechanical non-synchronized gearbox ensures ease of maintenance and reliability, while the drum braking system guarantees effective braking in field conditions.
Operational Advantages Overview: Low fuel consumption (≤252 g/kWh) makes operation cost-effective, and the 9 L fuel tank allows for work without frequent refueling during a short workday. The dry single-disc clutch design and simple transmission facilitate technical work and repairs. Large lubricant volumes (engine crankcase 3.5 L; gearbox and rear axle 19.0 L; lift housing 5.0 L; front axle crankcase 5.0 L; cooling system 15 L) allow for scheduled maintenance planning. Dimensions and massive tires (front 6.0-16, rear 9.5-24) provide reliable support and cross-country capability on various soil types. Theoretical forward speed up to 31.19 km/h and reverse up to 11.25 km/h provide sufficient mobility in the field and between plots.
Technical Specifications:
| Engine power, hp | 24 hp |
| Wheel drive | 4x4 |
| Engine type | 4-stroke, water-cooled diesel engine |
| Engine displacement | 1344 cm3 |
| Rated fuel consumption, g/kWh | ≤252 |
| Rated traction force, kN | 4.7 |
| Gearbox | non-synchronized, mechanical (4 + 1) * 2 |
| Differential lock | none |
| Clutch | dry, single-disc |
| Cooling system fan drive | external in oil bath |
| Braking system | drum type |
| Power take-off (PTO) shaft, rpm | 540 |
| Maximum hitch lifting capacity, kg | 300 |
| Wheelbase, mm | 1480 |
| Front wheel track, mm | 1240 |
| Rear wheel track, mm | 1200 |
| Front tire size | 6.0-16 |
| Rear tire size | 9.5-24 |
| Theoretical forward speed, km/h | 31.19 |
| Theoretical reverse speed, km/h | 11.25 |
| Fuel tank capacity, L | 9 |
| Engine crankcase volume, L | 3.5 |
| Gearbox and rear axle crankcase volume, L | 19.0 |
| Lift housing volume, L | 5.0 |
| Front axle crankcase volume, L | 5.0 |
| Engine cooling system volume, L | 15 |
| Overall dimensions (LxWxH), mm | 2860x1420x1770 |
The Shifeng 244BFU mini tractor combines simple design and practicality for utility tasks: the 540 rpm PTO shaft allows for connecting standard mounted equipment, and the 300 kg lifting capacity enables a wide range of work. The economical engine and small dimensions make this unit an ideal choice for farming, horticulture, municipal work, and cultivating household plots. The dry single-disc clutch system and non-synchronized gearbox simplify maintenance, and the specified lubricant and fluid volumes help plan routine work without unnecessary complications. Thanks to large rear tires and a stable wheelbase, the tractor demonstrates good cross-country capability on various soil types and in conditions with small inclines. If you are looking for a compact, reliable, and economical mini tractor for daily tasks, the Shifeng 244BFU meets these requirements.
