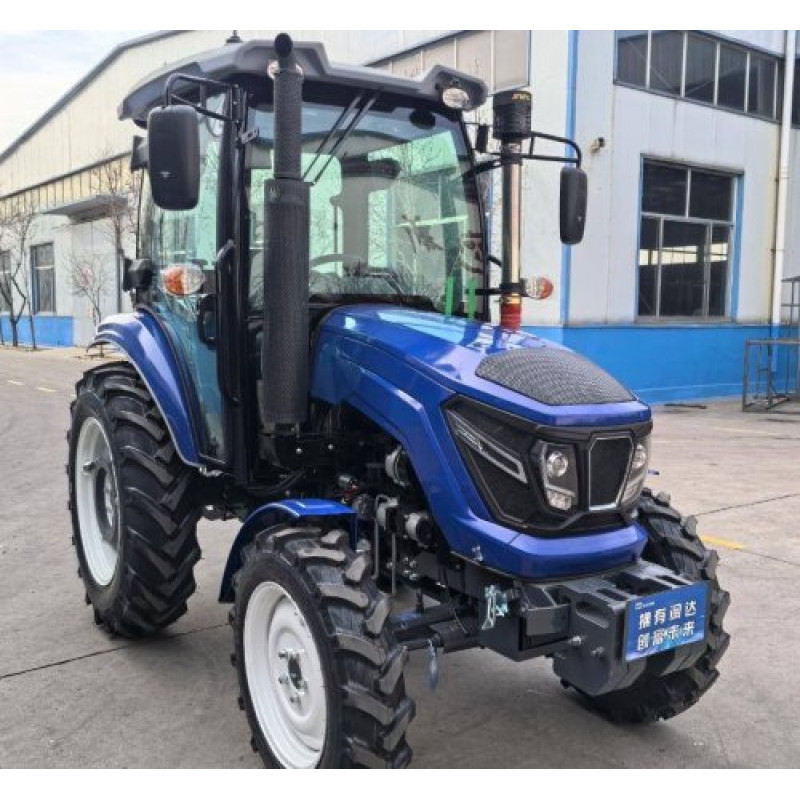

The Forte RD 404C mini tractor from the FORTE brand is a versatile and reliable unit with 40 hp, designed for efficient operation in private farms, vegetable gardens, orchards, and for municipal work. This mini tractor combines a robust design, thoughtful ergonomics, and modern technical solutions that ensure a long service life and economical fuel consumption.
Technical Specifications:
| Tractor power, hp (kW) | 40 |
| Wheel formula | 4x4 |
| Engine type | Vertical, 4-cylinder with liquid forced cooling and direct injection. |
| Engine start | Electric starter with safe start |
| Fuel pump type | Plunger, in-line |
| Gearbox | (4+41)x2 |
| Rear differential lock | Yes |
| Clutch | Dry, dual-disc |
| Power steering | Yes |
| Cooling system fan drive | V-belt drive |
| Braking mechanism | Drum type |
| Power take-off (PTO) shaft speed, rpm | 540/1000 |
| Hydraulic system pump type | Gear pump |
| Minimum ground clearance, mm | 350 |
| Wheelbase, mm | 1560 |
| Tire size | rear 7.5x16, front 12.4x28 |
| Minimum turning radius, m | with one-sided brake 3.9 |
| Fuel tank capacity, L | 22 |
| Overall dimensions, (L × W × H), mm | 3250x1500x2300 |
| Structural weight, kg | 1570 |
The heart of the Forte RD 404C model is a vertical 4-cylinder engine with liquid forced cooling and direct fuel injection, which guarantees stable traction and optimal fuel consumption when performing heavy work. For ease of operation, an electric starter with a safe start system is provided.
The fuel system is implemented via a plunger in-line pump, which ensures precise fuel metering. The transmission with a (4+41)x2 configuration allows selecting the optimal gear for various speeds and loads, and the presence of a rear differential lock increases cross-country ability in difficult soil conditions.
The control system is designed with operator comfort in mind: a dry dual-disc clutch, power steering to reduce fatigue during maneuvering, and drum brakes for reliable braking. The cooling system fan drive is implemented via a V-belt drive.
For working with mounted and trailed equipment, the tractor provides standard PTO speeds of 540/1000 rpm. The hydraulic system with a gear pump ensures a stable oil supply and lifting/lowering of working bodies. The minimum ground clearance of 350 mm allows working on uneven surfaces, and the 1560 mm wheelbase along with a minimum turning radius of 3.9 m (with one-sided braking) provide high maneuverability in narrow areas.
Dimensions of 3250x1500x2300 mm and a structural weight of 1570 kg make the Forte RD 404C stable and convenient for transport, and the 22-liter fuel tank capacity ensures a long operating life between refuels. The typical tire equipment (rear 7.5x16, front 12.4x28) is suitable for tasks of soil cultivation, transportation, and working with mounted equipment.
The Forte RD 404C mini tractor is suitable for small and medium-sized farms, performing field, garden, and municipal work, as well as for transporting goods. The reliable design, wide range of gears, and additional options — differential lock, power steering, hydraulic gear pump — make this model a profitable choice for those who value the balance of power, maneuverability, and economy.
