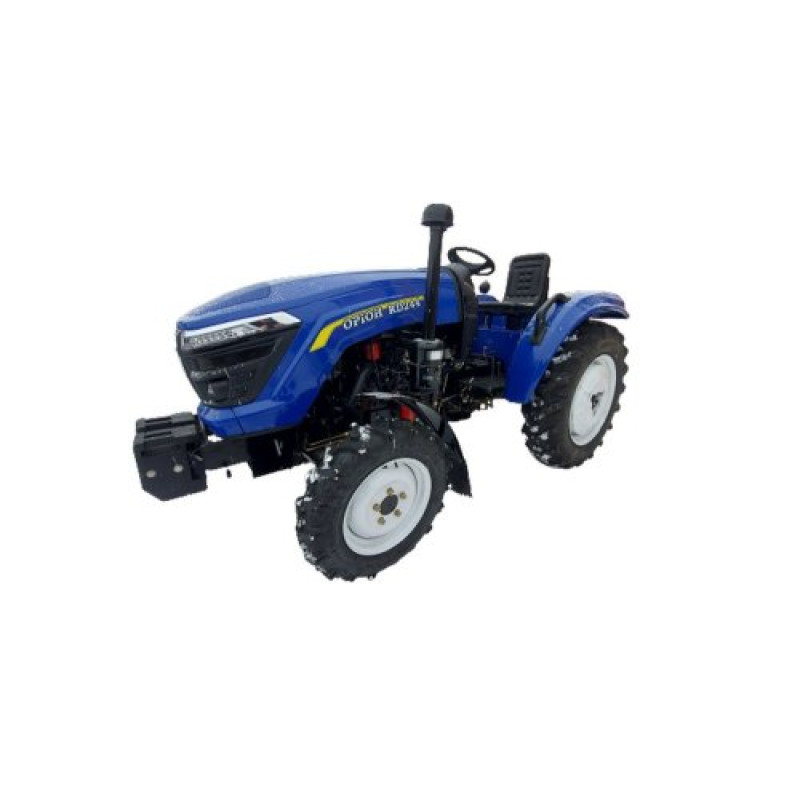

Mini Tractor Orion RD 244 LUX (Wide Tires)

The Orion RD 244 LUX mini tractor is a reliable and multifunctional 24-horsepower (17.65 kW) diesel mini tractor with a 4x4 wheel formula, designed for a wide range of agricultural, municipal, and transport tasks. Thanks to its vertical three-cylinder engine, liquid cooling system with forced circulation, and electric starter, this unit demonstrates stable operation under prolonged loads and ensures comfortable use for operators of small and medium-sized farms.

The RD 244 LUX engine has a displacement of 1531.33 cm3, a nominal speed of 2350 rpm, and a nominal fuel consumption of ≤275 g/kWh, which optimally combines performance and economy. The nominal oil consumption is 2.31 g/kWh. The starting system is an electric starter; cooling is liquid, closed, with the fan driven by a V-belt transmission. Mineral or semi-synthetic oil for diesel engines is recommended for the engine.

The transmission features a (4+1)x2 gearbox with a direct main drive and a dry single-disc clutch of the constantly closed type. The rear differential is equipped with a lock, and the braking system is implemented on the secondary shaft of the gearbox with brake drums. The steering is hydraulic with power steering, which significantly facilitates maneuvering when performing work in the field or in confined spaces.

The mini tractor has a minimum ground clearance of 300 mm, ensuring good passability over uneven terrain, and a nominal traction force of 5.8 kN allows for efficient work with various attachments. The rear power take-off (PTO) shaft is splined, with speeds of 540/1000 rpm, and the maximum lifting capacity of the three-point hitch is 420 kg, making the tractor versatile for tillage, sowing, harvesting, and other operations.

The hydraulic system is built on gear pumps (NSh) for driving the hitch and for power steering; the body provides 4 hydraulic outlets. The presence of a trailer connector (socket) allows for transport operations with trailers and other towed units.

Dimensions and operating parameters: wheelbase 1700 mm, front wheel track 1200 mm, rear 1230 mm. Front tires 6.50-16, rear — 11.20-24 (wide tires). Minimum turning radius without brakes 3.0 m, with brakes 2.3 m. Forward speed range 2.11–32.19 km/h, reverse 1.68–7.75 km/h. Fuel tank capacity 17.0 L, engine crankcase 6.6 L, gearbox and rear axle crankcase 11.0 L, front axle crankcase 4.0 L, engine cooling system capacity 6.0 L. Tractor curb weight — 1310 kg; overall dimensions — 3100x1500x1900 mm.

Operator comfort is enhanced by the presence of an hour meter, a seat with a shock absorber, power steering, and rear weights. A roll bar and compressor are not included in the basic configuration. For the transmission and axles, recommended transmission oils are: Silver SAE 85W-90, Gold SAE 80W-90, or Platinum SAE 75W-90.

The Orion RD 244 LUX is ideal for cultivating fields and homestead plots, working in gardens, vineyards, greenhouses, for transporting goods, and working with mounted implements. Its compact size is combined with well-thought-out technical equipment, guaranteeing durability and reliability in everyday use.

Technical specifications:

This mini tractor will be useful for those seeking a combination of compactness, off-road capability, and broad functionality: the RD 244 LUX allows for efficient work in agriculture, on private plots, in the municipal sector, and in greenhouse farms.
