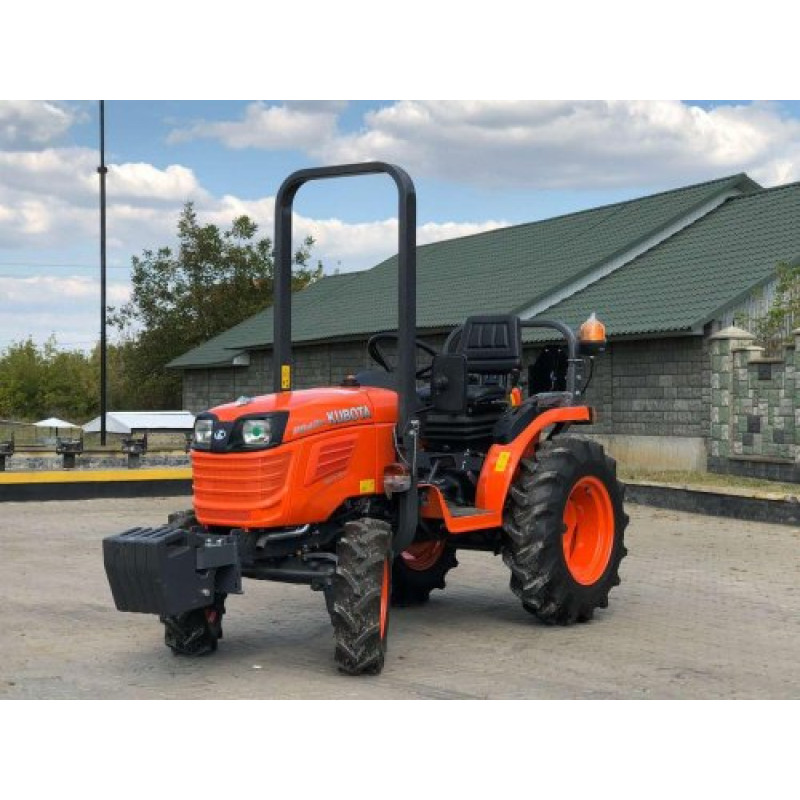

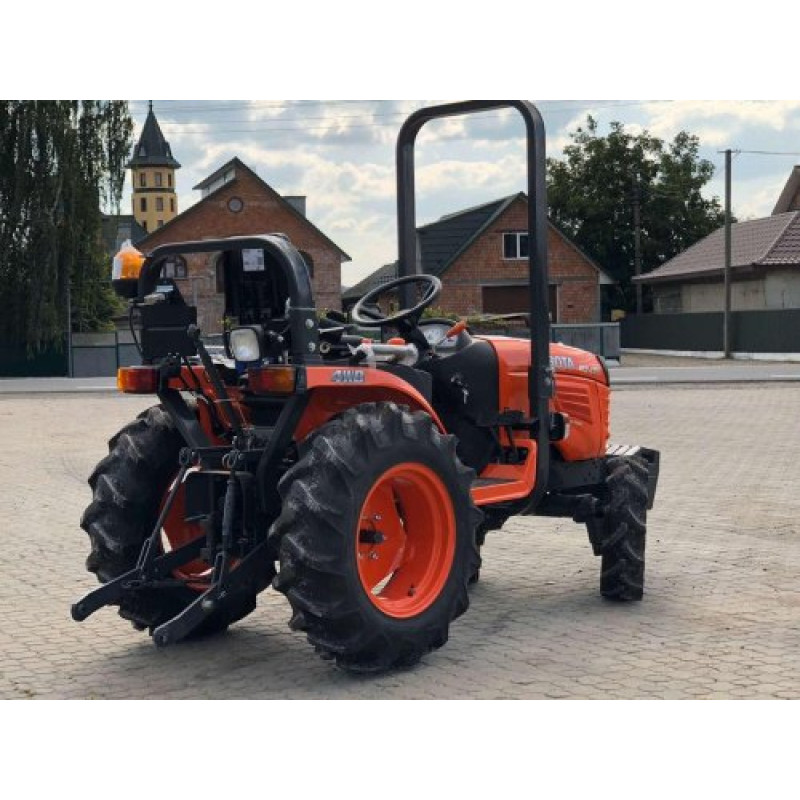

Kubota B2420 Mini Tractor — Reliability and Efficiency in Operation

Model: KUBOTA B2420 Mini Tractor. Manufacturer: Kubota — a Japanese company with over 120 years of history in agricultural machinery production. This compact and powerful mini tractor is ideal for private farms, agricultural and municipal work, as well as for use in greenhouses and livestock facilities.

Purpose and Key Advantages

The Kubota B2420 is designed for a wide range of tasks: mechanizing field operations, street cleaning from dust and snow, and transporting loads up to 1.5 tons. Thanks to its small dimensions and high maneuverability, the tractor is suitable for confined areas. Operational advantages:

• Stable performance characteristics in its class;
• High engine and component service life;
• Interchangeability of many spare parts within the Kubota brand;
• Comfortable operator workspace and thoughtful ergonomics.

Engine and Fuel

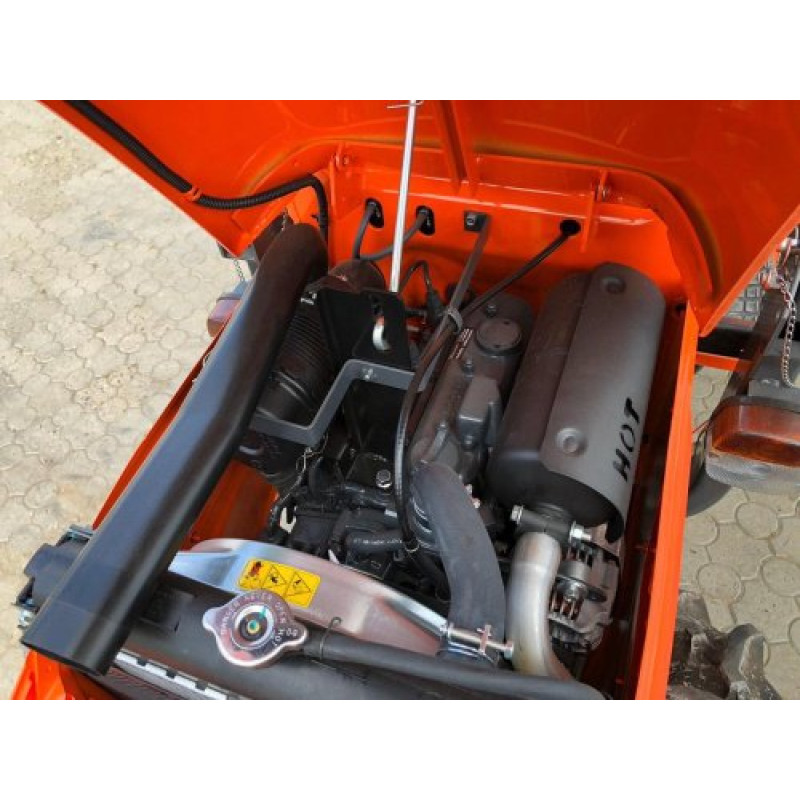

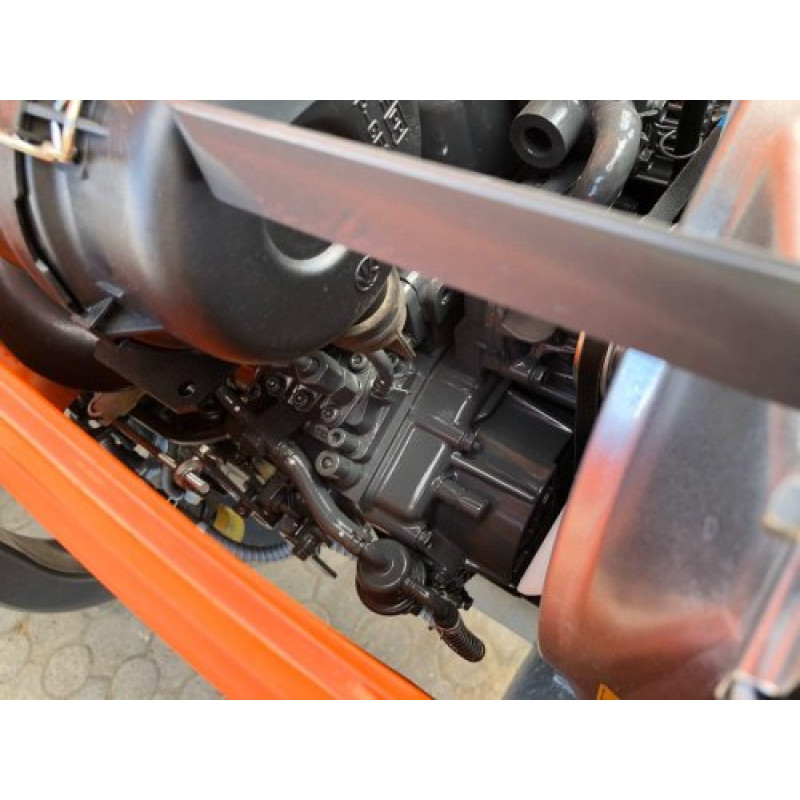

Equipped with an original three-cylinder diesel engine Kubota D1105 (also referred to as D1105-E2-D22T in descriptions) with a volume of 1,123 cm3 and a power of 24 hp. The engine is characterized by good traction, economical fuel consumption, and a long service life. The source material indicates two fuel tank capacities: 26 L in the text and 23 L in the technical table; this should be clarified with the manager before purchase.

Transmission, Drive, and Brakes

The transmission is multi-stage with 9 + 3 gears and a single-disc clutch, allowing for optimal operating mode selection. The maximum speed is mentioned as up to 19 km/h in the text and 19.4 km/h in the technical data. Wet disc brakes are used for reliable braking.

Off-road Capability and Steering

This is a 4x4 all-wheel drive model with wide-profile tires and power steering. The increased turning angle of the guide wheels provides a minimum turning radius of 2.5 m. Off-road capability is enhanced by pronounced grousers and a ground clearance of 325 mm.

Hydraulics and Attachments

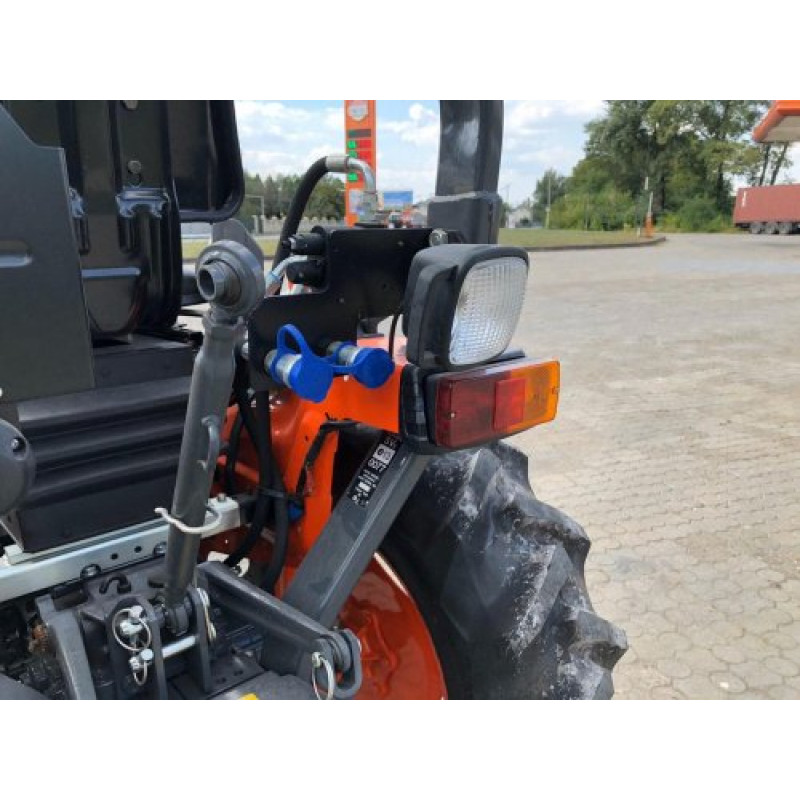

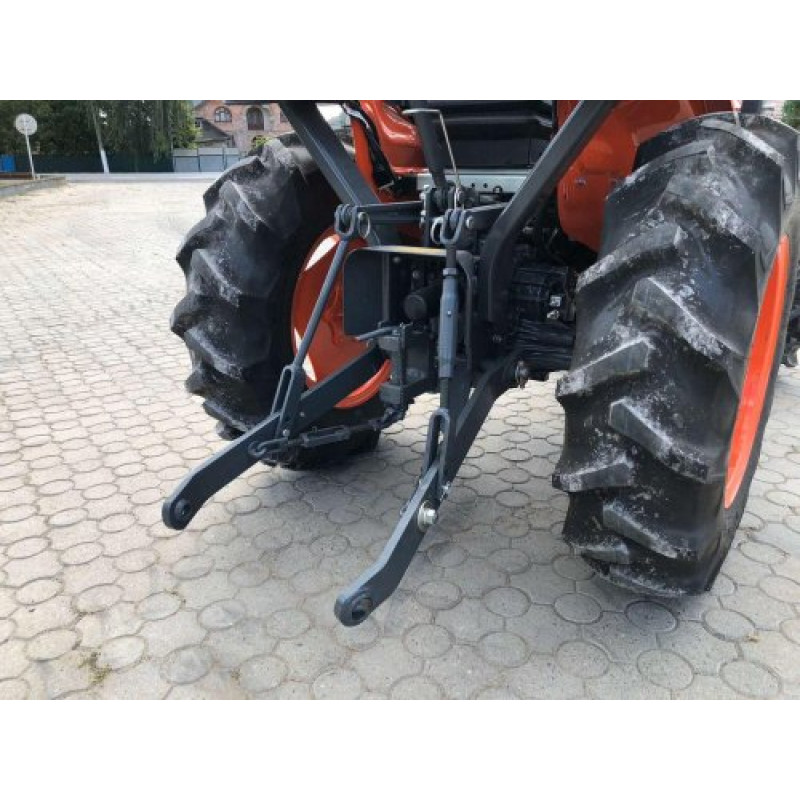

The three-point hydraulic mechanism lifts up to 615 kg, and a productive hydraulic pump stabilizes the operating pressure. The power take-off (PTO) has two speeds: 540 and 960 rpm are indicated in the text, and 540/980 rpm in the technical table; both options are provided in the source data. A safety roll bar reduces the risk of injury when working on slopes.

Configuration, Weight, and Traction

The mini tractor in standard configuration has a lifting mechanism for working with mounted and trailed equipment. In the original description, the machine's weight is indicated ambiguously: 700 kg in the text and 722 kg in the technical table. The tractor's traction force can reach up to three tons.

Economics and Service Life

The diesel engine ensures economical fuel and oil consumption, and quality components guarantee a long service life — the description states a service life of up to 15–20 years with proper operation. The Kubota B2420 is considered an investment with a long payback period.

Purchase Conditions, Delivery, and Warranty

We deliver with our own courier service to all regions of Ukraine and provide an official manufacturer's warranty. Payment methods: prepayment, payment upon receipt, or low-interest credit. For additional information, please contact the sales department or place an order on the website.

Technical Specifications (from original table)

Summary: The Kubota B2420 mini tractor is a reliable, maneuverable, and economical model with a powerful three-cylinder diesel engine, a productive hydraulic system for working with attachments, and 4x4 all-wheel drive. Given its technical parameters and configuration, this equipment is suitable for a wide range of agricultural and auxiliary tasks. Product Category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors.
