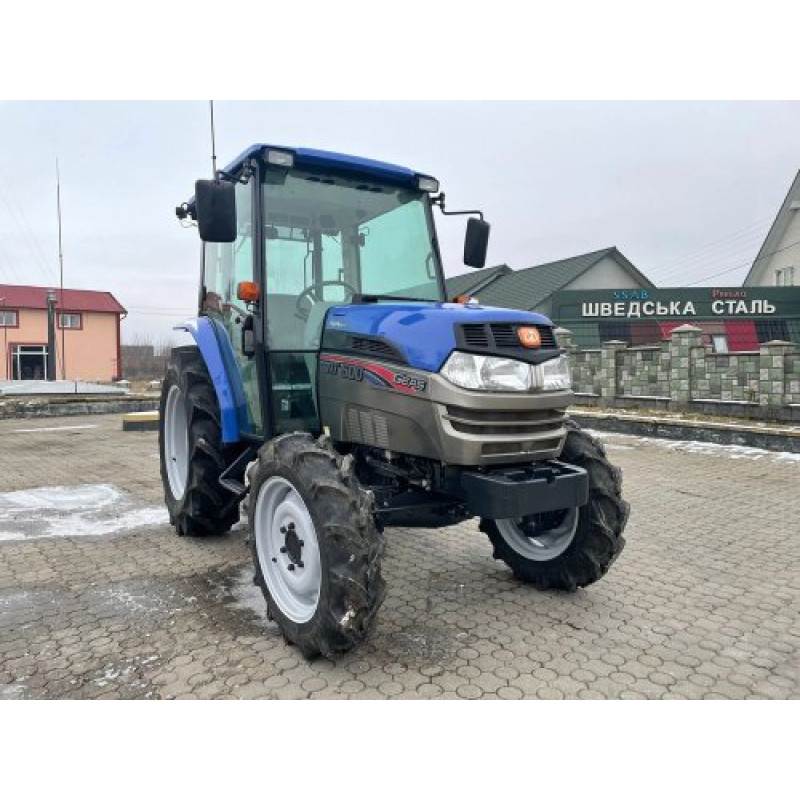

Kubota AT 500 Mini Tractor
Manufacturer: Iseki. The Kubota AT 500 model combines reliable design and modern technical solutions, making it a versatile assistant for agricultural, municipal, and park maintenance work. This compact yet powerful mini tractor is designed for intensive use where maneuverability, off-road capability, and stability are required.
Key Advantages and Purpose
The three-cylinder diesel engine with a power output of 50 hp provides an optimal combination of traction and fuel efficiency. The 4x4 all-wheel drive ensures confident movement over rough terrain and in challenging soil conditions. The Kubota AT 500 is designed to work with various mounted and trailed equipment, making it an excellent choice for farms, municipal services, horticulture, and viticulture.
The 12+12 gearbox offers a wide range of speeds for various tasks: from slow operations during plowing to fast transportation. The maximum travel speed is 28.3 km/h, ensuring efficient movement between sites.
The transmission is equipped with a mechanical rear axle differential lock for better traction on slippery or uneven surfaces. Reliable drum brakes ensure safe operation during intensive use and transport.
| Engine power, hp: | 50 |
| Wheel formula: | 4x4 |
| Engine type: | diesel |
| Number of cylinders: | 3 |
| Fuel tank capacity, L: | 50 |
| Gearbox | 12+12 |
| Max. travel speed, km/h: | 28.3 |
| Differential lock: | mechanical, rear axle |
| Brakes: | drum brake |
| Overall length, mm: | 3550 |
| Overall width, mm: | 1500 |
| Overall height, mm: | 2600 |
| Front wheel size | 8.3-20 |
| Rear wheel size | 13.6-28 |
| Lifting capacity of lifting mechanism, kg: | 800 |
| PTO speed, rpm: | 540/780/960/1260 |
| Weight, kg | 1940 |
Technical Details and Operation
The 50 L fuel tank capacity allows for long operations without frequent refueling, increasing productivity in the field. The lifting mechanism with a lifting capacity of up to 800 kg enables the use of a wide range of mounted equipment: plows, cultivators, harrows, seeders, and loaders. The power take-off (PTO) shaft with modes 540/780/960/1260 rpm ensures compatibility with various implements and precise selection of operating mode.
The compact dimensions of the tractor — 3550 mm length, 1500 mm width, and 2600 mm height — are combined with a weight of 1940 kg, providing the unit with the necessary stability when working with heavy attachments. The 8.3-20 front wheels and 13.6-28 rear wheels ensure effective traction and even load distribution.
- Reliable three-cylinder diesel engine — fuel-efficient and long-lasting.
- 4x4 all-wheel drive and mechanical differential lock for challenging operating conditions.
- Multi-mode PTO and powerful lifting mechanism for a wide range of mounted equipment.
The Kubota AT 500 mini tractor from Iseki is ideal for farms, municipal enterprises, and work in gardens and vineyards, where a balance between power, maneuverability, and economy is required. Product category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors
