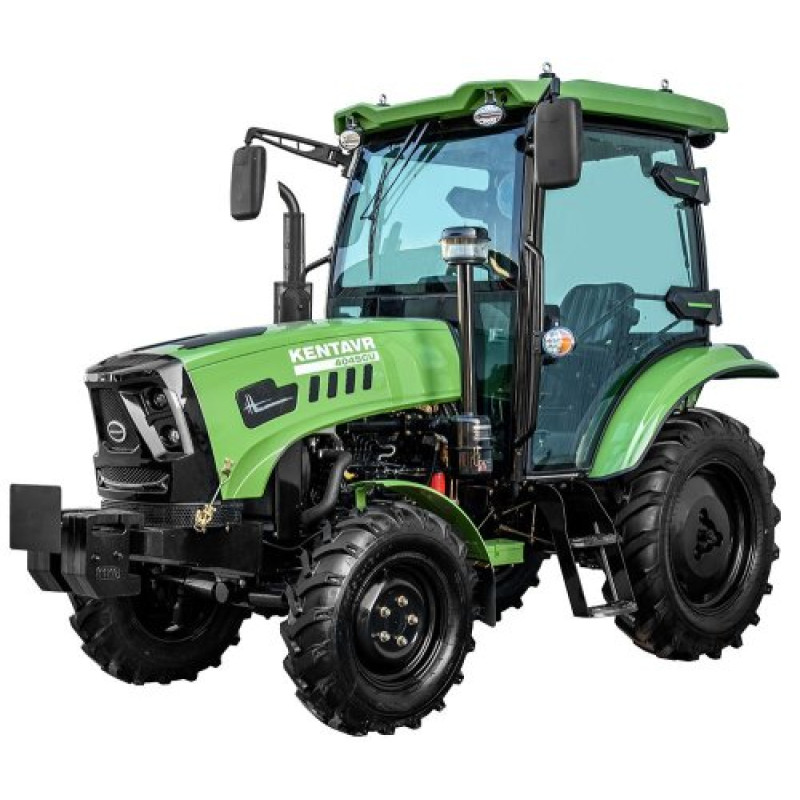

Mini Tractor KENTAVR 404 SCU — Overview and Specifications
The KENTAVR 404 SCU mini tractor from the KENTAVR brand is a compact yet powerful work unit for private households, small farms, and municipal tasks. The model features a 4x4 wheel formula and is equipped with a reliable JDM390T3 diesel engine with a displacement of 2543 cm³, combining high productivity with economical fuel consumption. Thanks to its vertical 4-cylinder, 4-stroke engine with forced liquid cooling and direct injection, the tractor demonstrates stable operation under intense loads.
Key advantages: reliable transmission with (4+1)x2 gearbox, rear differential lock, power steering with a separate pump, powerful PTO with a speed of 540/720 rpm, and a maximum hitch lifting capacity of 550 kg. The mini tractor is well-suited for soil cultivation, working with plows, rotary cultivators, small-type seeders, as well as for transporting goods and operating with trailed and mounted equipment.
Technical specifications and operational parameters:
| Tractor power, hp (kW) | 40 (29.3) |
| Wheel formula | 4x4 |
| Engine brand | JDM390T3 |
| Engine type | vertical, 4-cylinder, 4-stroke diesel with forced liquid cooling and direct injection |
| Engine displacement, cm3 | 2543 |
| Cylinder bore/piston stroke | 90 x 100 |
| Nominal fuel consumption, g/kWh | ≤238 |
| Fuel pump type | plunger, in-line |
| Nominal crankshaft speed | engine, rpm 2300 |
| Engine oil type | mineral or semi-synthetic for diesel engines |
| Gearbox (transmission) | (4+1)x2 |
| Oil type in gearbox, rear axle | transmission oil |
| Oil type in front axle | transmission oil |
| Rear differential lock | + |
| Clutch | dry, single-disc |
| Power steering | with separate pump and oil tank |
| Cooling system fan drive | V-belt drive |
| Brake mechanism | drum type |
| Hydraulic lift drive: | integrated hydraulic cylinder |
| Power take-off (PTO) speed, rpm | 540/720 |
| Hydraulic system pump type | gear pump |
| Maximum hitch lifting capacity, kg | 550 |
| Minimum ground clearance, mm | 320 |
| Wheelbase, mm | 1830 |
| Wheel track, mm | rear 1220, 1280, 1440, 1540, front 1230, 1430 |
| Tire size | rear 11.2-24.0, front 7.50-16.0 |
| Minimum turning radius, m | with one-sided brake 2.6, without brake 3.0 |
| Fuel tank capacity, L | 35.0 |
| Engine crankcase volume, L | 6.0 |
| Gearbox, rear axle, and lift crankcase volume, L | 12.5 |
| Front axle crankcase volume, L | 8.0 |
| Engine cooling system volume, L | 5.0 |
| Overall dimensions (LxWxH), mm | 3470x1560x2050 |
| Curb weight, kg | 1630 |
Briefly about the design: the powerful 4-cylinder JDM390T3 diesel engine provides a nominal speed of 2300 rpm and fuel consumption of ≤238 g/kWh; the fuel system with an in-line plunger pump ensures stable supply; the transmission with (4+1)x2 gears and transmission oil in the gearbox and axles ensures reliability and ease of maintenance. The hydraulics based on a gear pump and integrated hydraulic cylinder allow efficient operation with mounted equipment, and power steering simplifies maneuvering on the site.
This mini tractor perfectly meets the needs of users looking for a versatile, compact, yet functional tractor for various seasonal tasks. Brand: KENTAVR. Product category: Tractors > Mini Tractors.
