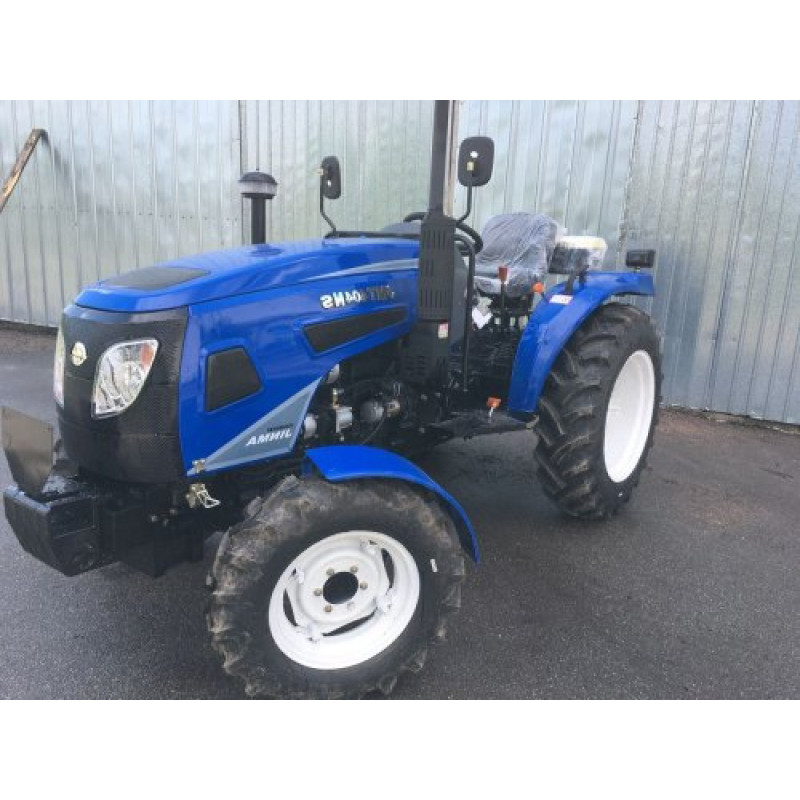

Jinma JMT 404 NS Mini Tractor — Reliable Equipment for Farm and Municipal Works

The Jinma JMT 404 NS mini tractor from the manufacturer Jinma combines proven Chinese quality and versatility for daily agricultural and municipal tasks. The Jinma brand is well-known in the market and exported to 59 countries worldwide, confirming the availability of spare parts and service support. The JMT 404 NS model is designed for use on homesteads, farms, and in the municipal sector, where powerful yet economical equipment is required.

Engine and Power Unit

The mini tractor is equipped with a KM 490 engine — a vertical four-cylinder, four-stroke diesel with water cooling and pre-combustion chamber injection. The engine marking is deciphered as follows: 4 — number of cylinders, 90 — piston diameter in mm. The engine's displacement is 2543 cm3, cylinder diameter / piston stroke — 90/100 mm, crankshaft speed — 2200 rpm, power — 40 hp (29.4 kW). The engine is started by an electric starter with safe start.

Transmission, Drives, and Off-Road Capability

The gearbox features a (16+4) option, providing wide variability of operating modes and convenience for various operations. The presence of a front axle engagement lever allows for quick switching between rear-wheel drive and 4×4 all-wheel drive for enhanced off-road capability. The front and rear axle differentials have self-locking and locking mechanisms (rear axle — four-satellite, conical, closed type with lock; front axle — conical, satellite, self-locking), which increases efficiency on difficult terrain and in heavy soil. The minimum turning radius with brake on one wheel is 3.4 m, without brake — 4.2 m.

Steering, Comfort, and Controls

For operator convenience, the Jinma JMT 404 NS features power steering and a special step for easy access to the seat. Gear shifting is done via a conveniently located lever. A separate lift lever is provided for raising and lowering attachments, and the power take-off (PTO) operates at 540 rpm, which corresponds to standard working attachments. The clutch is dry, dual-disc.

Operational Characteristics and Fluid Volumes

Fuel tank capacity — 35 L. Engine crankcase volume — 7 L; gearbox and rear/front axle crankcase volume — 20.2 / 6.6 L; lift housing volume — 10 L; engine cooling system volume — 7.2 L. Mineral or semi-synthetic oil is recommended for the engine, and mineral oil for the gearbox, rear, and front axles. The cooling system fan is driven by a V-belt transmission.

Dimensions, Wheelbase, and Track

The mini tractor's wheelbase is 1825 mm. The track is adjustable: front wheels — 1170, 1250, 1370 mm; rear wheels — 1230, 1310, 1370 mm. Ground clearance — 300 mm. Dimensions (length × width × height) — 3430×1480×1530 mm. Nominal machine weight — 1440 kg.

Practicality in Operation and Purpose

Thanks to its 40 hp power, front axle engagement capability, and 540 rpm PTO, the Jinma JMT 404 NS easily pulls a three-furrow plow, performs plowing, cultivation, snow removal, cargo transportation, and other agricultural and municipal operations. Reliable components and minimal maintenance requirements make this model an economical and durable solution for farms of various scales. It is recommended to regularly check the oil level in the hydraulics and transmission and replace filters in a timely manner.

Technical Specifications:

How to Buy in Kyiv

To purchase the Jinma JMT 404 NS in Kyiv, fill out the form on the website or contact a manager to confirm your order and arrange delivery. Our specialists will help you choose the configuration, answer technical questions, and organize service maintenance.
