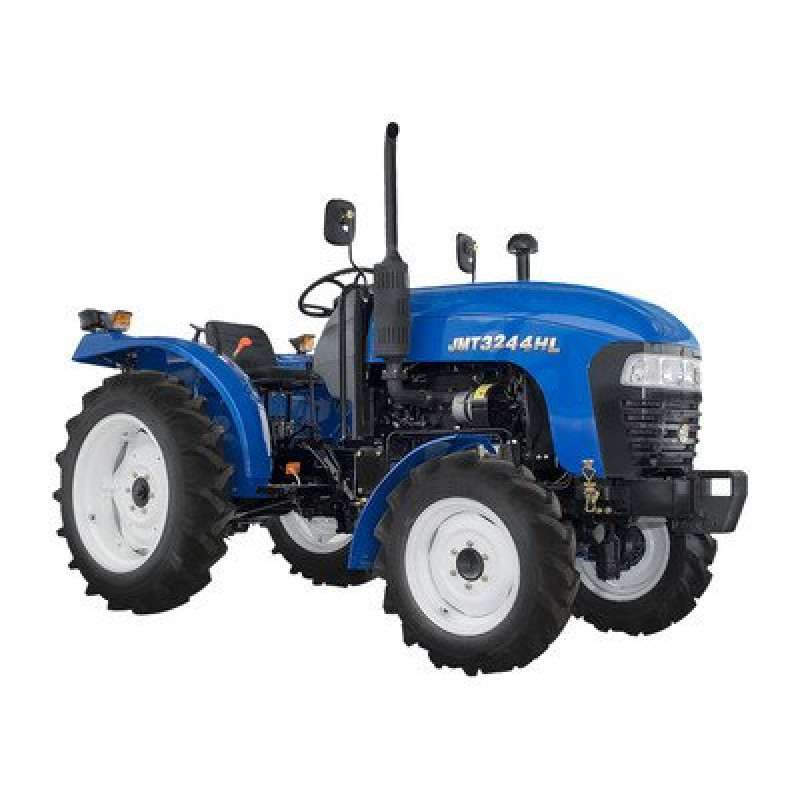

JINMA JMT 3244 HL Mini Tractor — Powerful and Compact 4x4 Assistant, 24 hp
The JINMA JMT 3244 HL mini tractor from the manufacturer Jinma is an all-wheel drive (4x4) universal machine with a water-cooled 3-cylinder KM385BT engine, ideal for working on plots up to 2 hectares, in private farms, on construction sites, and in utilities. The tractor's power is 24 hp, which provides reliable traction for a wider range of attachments and various tasks.
Application and Compatibility of Attachments
The JMT 3244 HL is compatible with a standard attachment system, allowing the use of units such as plows, tillers, rotary and drum mowers, potato diggers, fertilizer spreaders, snow blades/dumps, etc. Thanks to this, the tractor is suitable for:
- Cultivating various types of soil;
- Sowing and harvesting;
- Plant care: watering, spraying, hilling;
- Mowing grass, haymaking, preparing feed;
- Cleaning territories and clearing snow.
The selection of attachments depends on your needs: for example, a rotary mower is not needed for growing potatoes, and diggers are superfluous when cultivating a garden.
Design and Key Features
The heart of the machine is a reliable KM385BT engine with a water cooling system. The model's technical solutions ensure long-term operation and ease of maintenance:
- Separate oil baths in the gearbox and power steering for increased component durability;
- Two-speed PTO — 500 rpm and 1000 rpm modes for working with various attachments;
- Dual-disc dry clutch for reliable power transmission;
- Drive type — 4x4, which improves cross-country ability on difficult terrain;
- The gearbox and power steering have separate oil baths.
Place an order in the Flash Army store — prompt delivery in Kyiv, the region, and shipping throughout Ukraine. For additional questions, contact a manager for an individual consultation.
We also recommend paying attention to other models: Jinma 404, Shifeng 354, Dongfeng, Xingtai, Foton, Zoomlion, DTZ 5244, Bulat 454, Bulat 250, Bulat 254, Belarus 320.4, Shifeng 350, DW 244, DTZ 5404K, Solis 26, Solis RX 50.
Technical Specifications
| Number of engine cylinders | 3 |
| Cylinder diameter | 90 mm. |
| Fuel consumption | up to 275 g/kWh |
| Engine dimensions, mm | 569 mm x 525 mm x 604 mm |
| Engine structural weight, kg | 234 kg. |
| Wheelbase, mm | 1,700 mm. |
| Overall dimensions, mm | 3,080 mm x 1,440 mm x 1,510 mm. |
| Front wheel track, mm | 1,080 / 1,280 mm. |
| Rear wheel track, mm | 1,050 mm - 1,310 mm. |
| Ground clearance, mm | 295 mm. |
| Structural weight, kg | 1,290 kg. |
| Drive type | 4x4 |
| Number of gears (forward/reverse) | (4+1)x2x2 with creeper gear |
| Clutch | Dual-disc dry |
| Maximum speed, km/h | 26.4 km/h |
| Front wheel size | 6.50 - 16 |
| Rear wheel size | 11.20 - 24 |
| Engine oil volume, L | 6.6 |
| Engine cooling system volume, L | 10 |
| Fuel tank volume, L | 30 |
| Transmission oil volume, L | 14 |
| Front axle oil volume, L | 6 |
| Hydraulic tank oil volume, L | 9 |
Manufacturer brand: Jinma. Model: JMT 3244 HL. Power: 24 hp. Drive type: 4x4. Engine: 3-cylinder KM385BT with water cooling. PTO: 500/1000 rpm. The gearbox and power steering have separate oil baths.
This detailed information will help you assess the suitability of the JINMA JMT 3244 HL for your tasks and correctly select attachments. For ordering and technical consultations, contact a Flash Army manager.
