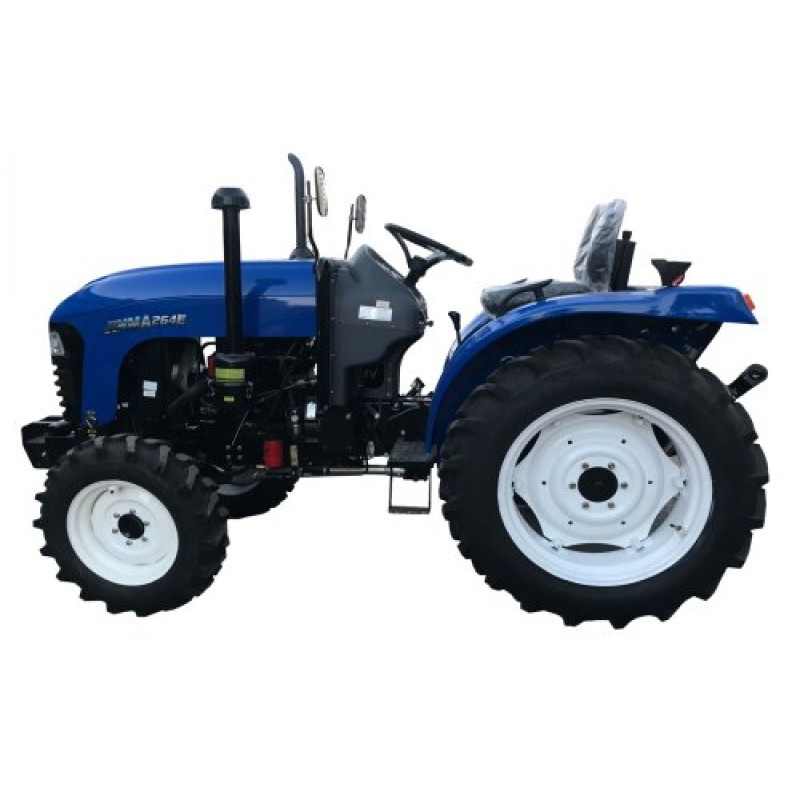

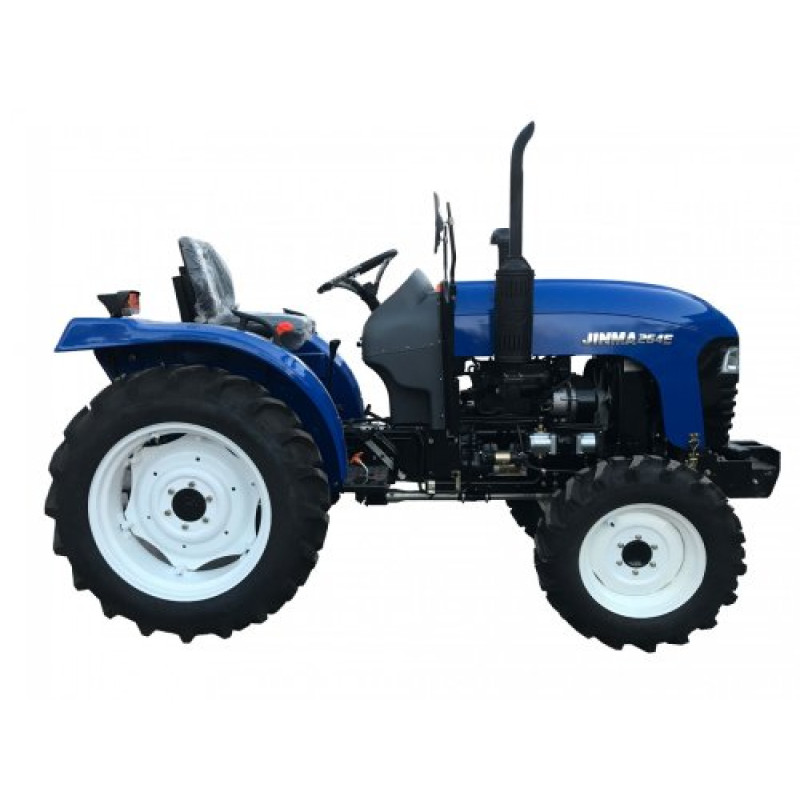

Jinma 264 E Mini Tractor — Compact and Powerful 24 HP Machine
Brand: Jinma. The Jinma 264 E mini tractor is designed as a versatile solution for small farms, private plots, and municipal work. This model combines compact dimensions with sufficient traction for plowing, cultivation, fodder harvesting, snow removal, and construction debris hauling. For convenient control, the model features power steering, which significantly eases maneuvering in confined spaces.
Who It's For
The Jinma 264 E is recommended for cultivating plots from approximately 0.15 to 10 hectares, where larger equipment struggles to maneuver. The tractor is compatible with a wide range of three-point mounted and trailed implements, making it a versatile tool in agriculture and municipal services. Official dealer warranty and the option to purchase on credit make the acquisition attractive and secure.
Features and Benefits
- Compact dimensions and excellent maneuverability in fields and yards;
- Power steering for easier control;
- Wide compatibility with mounted and trailed equipment;
- Reliable 4-stroke diesel engine with 24 HP (17.6 kW) power;
- Rear differential lock and dry single-disc clutch for operation in challenging conditions;
- Affordable price, official warranty, delivery across Ukraine (Kyiv, Chernihiv, Kharkiv, Vinnytsia, Poltava, and other cities), and credit programs.
Technical Specifications
| Engine power, HP (kW) | 24 HP (17.6) |
| Wheel formula | 4x4 |
| Engine type | 4-stroke diesel engine with water cooling |
| Engine displacement, cm3 | 1532 |
| Nominal fuel consumption g / kW * h | ≤275 |
| Nominal engine crankshaft speed rpm | 2350 |
| Nominal traction force kN | 7.7 |
| Gearbox (transmission) | non-synchronized, mechanical (4 forward + 1 reverse) x 2 |
| Rear differential lock | Yes |
| Clutch | Dry, single-disc |
| Power steering | Yes |
| Braking mechanism | drum type |
| Power take-off (PTO) speed rpm | 540 |
| Maximum lifting capacity of mounted mechanism, kg | 400.0 |
| Wheelbase, mm | 1595 |
| Front wheel track, mm | 1070~1270 |
| Rear wheel track, mm | 1040~1200 |
| Front tire size | 6.0-16 |
| Rear tire size | 9.50-24 |
| Theoretical forward speed, km / h | 26.4 |
| Theoretical reverse speed, km / h | 11.0 |
| Fuel tank volume L | 18 |
| Engine crankcase volume, L | 4 |
| Gearbox and rear axle crankcase volume, L | 14.0 |
| Lift housing volume, L | 9 |
| Engine cooling system volume, L | 12 |
| Overall dimensions (LxWxH), mm | 3080/1280/1930 |
| Structural weight, kg | 1280 |
The model is equipped with a four-cylinder 4-stroke water-cooled diesel engine with a working volume of 1532 cm3, ensuring economical operation and stable traction. The transmission is a non-synchronized mechanical type with two ranges (4 forward and 1 reverse gear in each), allowing adaptation to various field and transport tasks. The presence of a rear differential lock, dry single-disc clutch, and drum brakes increases reliability under intensive use.
The Jinma 264 E is characterized by its simple design, affordable cost, and extensive upgrade possibilities for mounted equipment. The mini tractor can be purchased with delivery across Ukraine or by arranging a credit purchase. We also recommend paying attention to other models: Jinma 404, Shifeng 354, Dongfeng, Xingtai, Foton, Zoomlion, DTZ 5244HRX, Bulat 454, Bulat 250, Bulat 254, Belarus 320.4, Shifeng, DW 244, DTZ 5404K, Solis 26.
