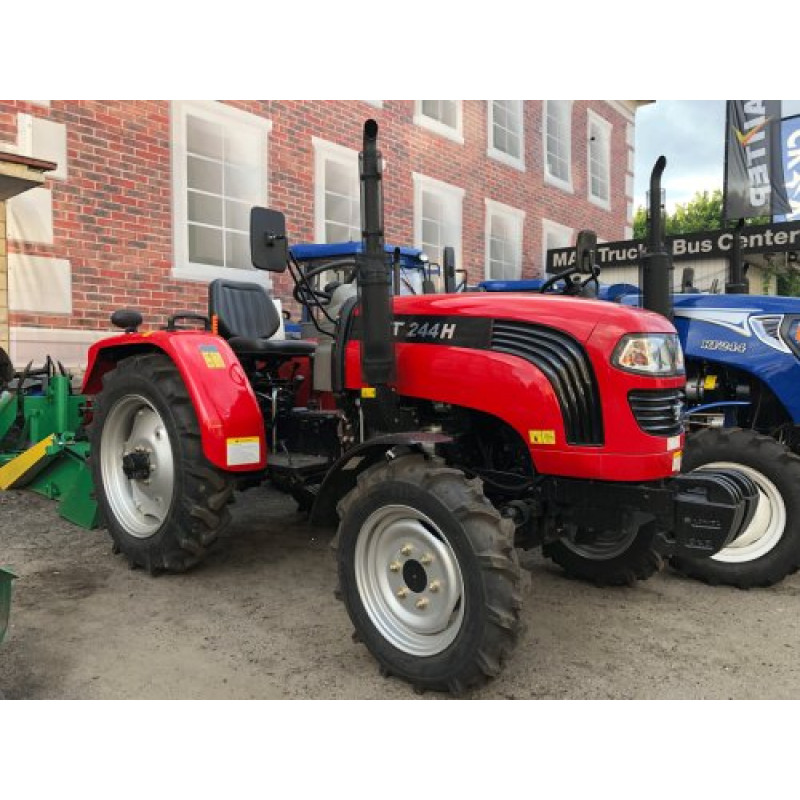

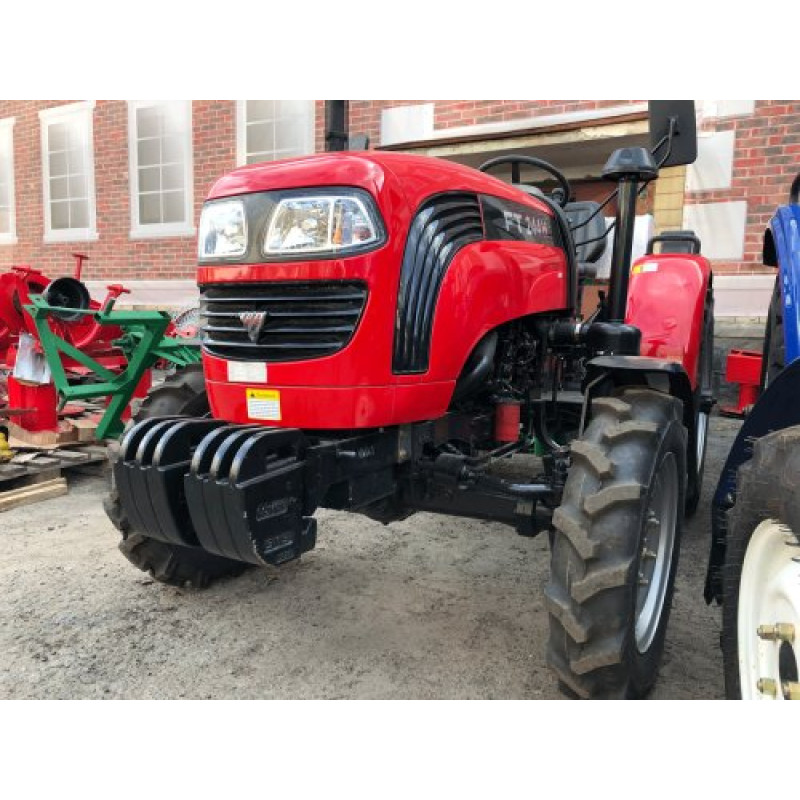

Mini Tractor Foton-Lovol 244 H
Brand: Foton (manufacturer Lovol). The Foton-Lovol 244 H model is an economical and reliable mini tractor with a power of 24 hp (17.6 kW), designed for various agricultural, forestry, and municipal tasks. This is a basic solution from the Lovol series, characterized by simple construction, durability, and affordable maintenance costs.
Purpose and Key Advantages
The mini tractor is ideal for cultivating fields, caring for gardens and vineyards, working with snow removal and transport equipment on the farm, as well as for daily municipal tasks. The stated lifting capacity of the hitch mechanism is 420 kg, which allows for effective use of a wide range of attachments.
Design and Technical Solutions

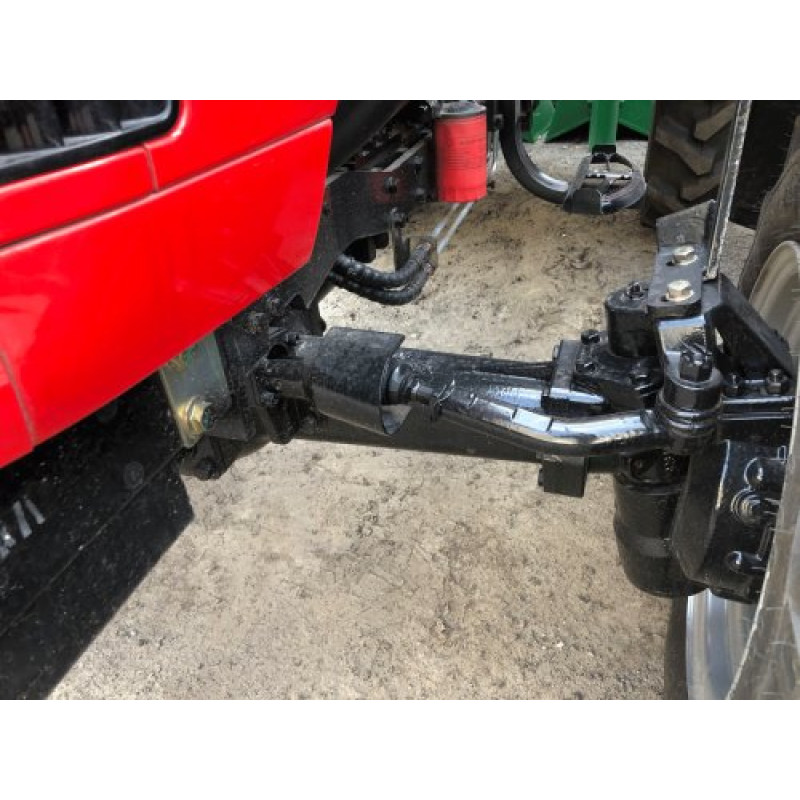

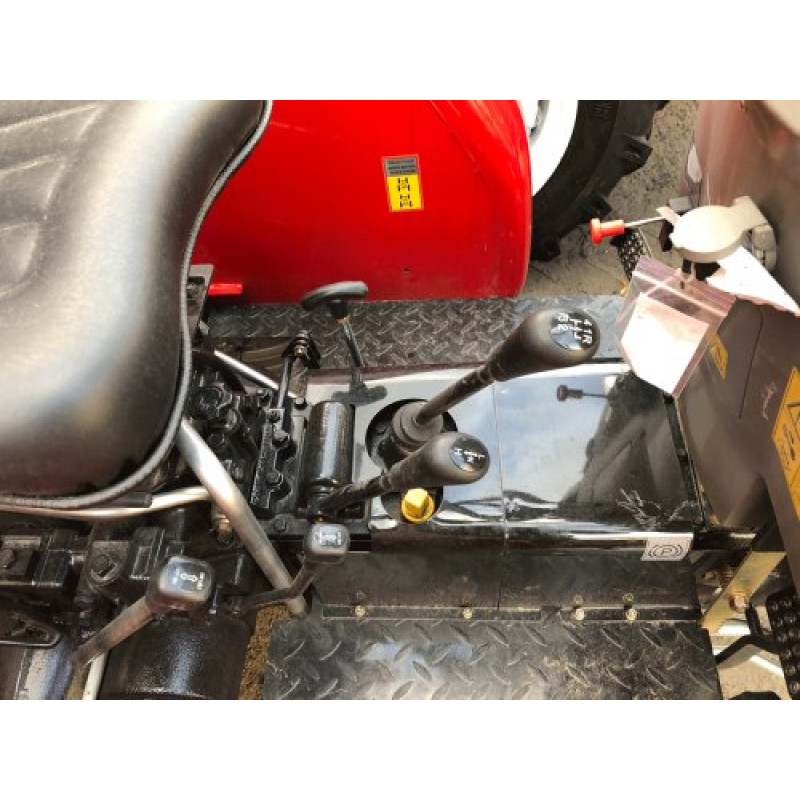

The heart of the machine is a three-cylinder KM385BT diesel engine with a volume of 1532 cm3 and a power of 24 hp, 4-stroke, with direct injection and a liquid cooling system (closed, with forced circulation). The transmission is mechanical with a (4+1)x2 shifting formula, providing 8 forward and 2 reverse gears in combination with high and low ranges; the main drive is direct. Steering is hydrostatic with power steering to reduce operator load.

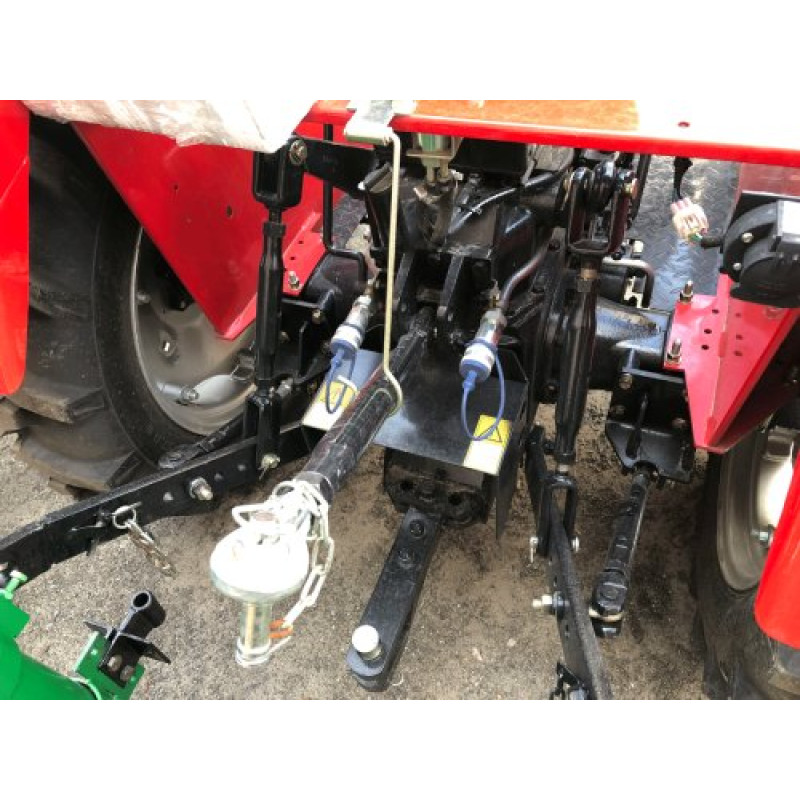

The hydraulic system is equipped with two high-performance pumps, which increases the efficiency of working with attachments. The clutch is single-disc, dry; the braking system is drum, dry type. Front tires 6-16", rear 9.5-24" with a "herringbone" tread provide reliable grip on various soils.
Operator Comfort and Additional Equipment
The configuration is aimed at increasing convenience: a seat with shock absorbers, an hour meter, mechanical locking of the rear differential, an electrical socket for a trailer, a reliable chassis, parking lights, and high and low beam headlights. An electric starter is provided for quick starting.
Why Buy from Flash Army
- All photos and videos on the website are real, taken at the Kyiv site.
- All products come with a warranty.
- Opportunity to buy equipment without prepayment, on credit, or by bank transfer with VAT.
- Discounts on attachments when purchasing motor equipment and an individual approach to each client.
- Address delivery by our own transport company in Kyiv, the region, and throughout Ukraine in the shortest possible time.
Technical Specifications
| Rated engine power, hp (kW) | 24 (17.6) |
| Wheel formula | 4x4 |
| Rated traction force, kN | 5.8 |
| Steering | hydrostatic |
| Gear shifting formula | (4+1)x2 |
| Clutch | single-disc, dry |
| Overall dimensions (L x W x H), mm | 3240x1350x1850 |
| Operating weight, kg | 1340 |
| Engine model | KM385BT |
| Engine type | diesel, 4-stroke, with direct injection |
| Number and arrangement of cylinders | 3, vertical |
| Cylinder volume, cm3 | 1532 |
| Rated crankshaft speed, rpm | 2350 |
| Rated fuel consumption, g/kWh | ≤248 |
| Fuel injection pressure, MPa (kgf/cm2) | 18.5-19.0 (185-190) |
| Starting system | electric starter |
| Cooling system | liquid, closed, with forced coolant circulation |
| Fuel tank volume, L | 29.0 |
| Oil volume in crankcase, L | 5.0 |
| Theoretical forward speed, km/h | 1.71-25.76 |
| Theoretical reverse speed, km/h | 2.23-10.29 |
The Foton-Lovol 244 H combines a reliable KM385BT engine, ergonomic transmission, advanced hydraulics, and options for comfortable operator work, making it a versatile option for farms of various scales. If you need a durable, easy-to-maintain, and economical mini tractor with 24 hp, this model deserves attention.
