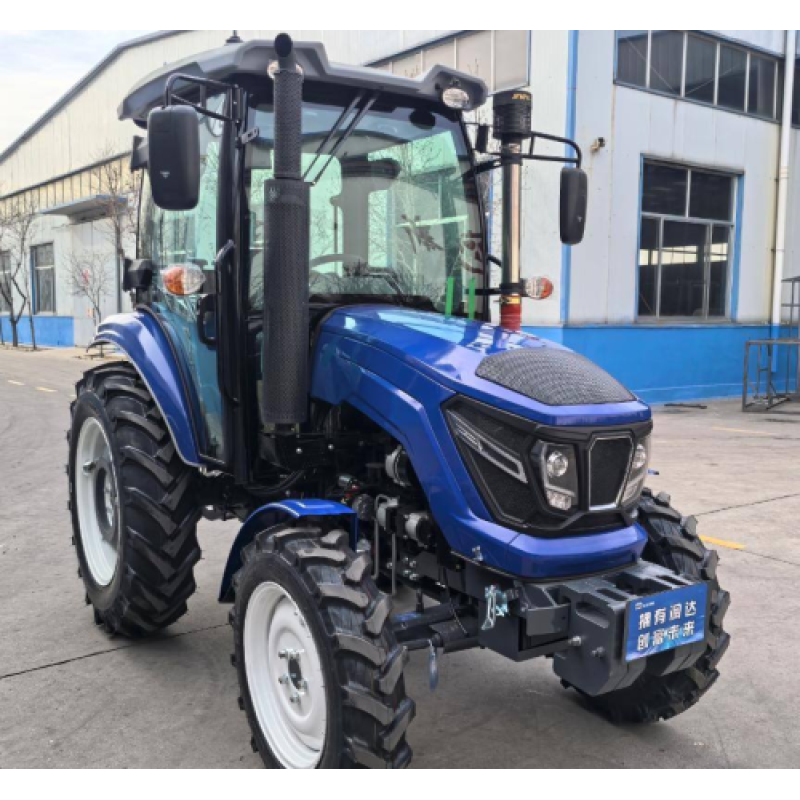

Forte RD 504C Mini Tractor — A Reliable All-Rounder for the Farm
The Forte RD 504C from the FORTE brand is a powerful and versatile mini tractor designed for use in agriculture, private farms, horticulture, municipal services, and construction sites. The model combines maneuverability, reliability, and the ability to connect a wide range of mounted and trailed equipment, making it an excellent choice for farmers and municipal enterprises.
At the heart of the tractor is a vertical 4-cylinder engine with forced liquid cooling and a direct injection system. The engine power is 50 hp (37 kW), and it starts with an electric starter with safe start. This power unit allows for efficient work with rotary harrows, tillage units, mowers, and other mounted equipment.
The tractor has a full-time 4x4 drive, which, combined with the rear differential lock, ensures confident movement over difficult terrain. The gearbox has a (4+4)x2 configuration, and the clutch is dry, twin-disc, guaranteeing reliable torque transmission. For more comfortable control and working with heavy implements, the Forte RD 504C is equipped with power steering.
The cooling system features a fan drive via a V-belt transmission, and the fuel system has an in-line plunger pump that ensures stable fuel delivery. The tractor is equipped with a gear pump for the hydraulic system, ensuring efficient operation of lifting mechanisms and mounted equipment. The braking mechanism is drum-type.
The Forte RD 504C has a power take-off (PTO) shaft with two speed modes, 540/1000 rpm, making it versatile for various operations. A minimum ground clearance of 350 mm and a robust design allow the tractor to be operated on uneven terrain, while massive tires and differential lock enhance off-road capability in difficult conditions.
| Tractor power, hp (kW) | 50 |
| Wheel formula | 4x4 |
| Engine type | Vertical, 4-cylinder with forced liquid cooling and direct injection. |
| Engine start | Electric starter with safe start |
| Fuel pump type | Plunger, in-line |
| Gearbox | (4+4)x2 |
| Rear differential lock | Yes |
| Clutch | Dry, twin-disc |
| Power steering | Yes |
| Cooling system fan drive | V-belt transmission |
| Braking mechanism | Drum-type |
| Power take-off (PTO) shaft speed, rpm | 540/1000 |
| Hydraulic system pump type | Gear pump |
| Minimum ground clearance, mm | 350 |
| Wheelbase, mm | 1560 |
| Tire size | rear 8.3x20, front 12.4x28 |
| Fuel tank capacity, L | 35 |
| Overall dimensions, (L × W × H), mm | 3250x1500x2300 |
| Structural weight, kg | 1850 |
The tractor's dimensions of 3250×1500×2300 mm and structural weight of 1850 kg make it well-balanced between stability and maneuverability. A 35 L fuel tank capacity ensures long working hours in the field without frequent refueling. Thanks to the two PTO modes and a powerful 50 hp engine, the tractor easily handles various tasks: soil cultivation, grass mowing, cargo transportation, and working with mounted implements.
The Forte RD 504C is suitable for those seeking a reliable and versatile mini tractor: small and medium-sized farmers, private farm owners, and municipal services. The model features simple operation, reliable components — a plunger fuel pump and a gear hydraulic pump — and balanced technical characteristics for daily intensive work.
