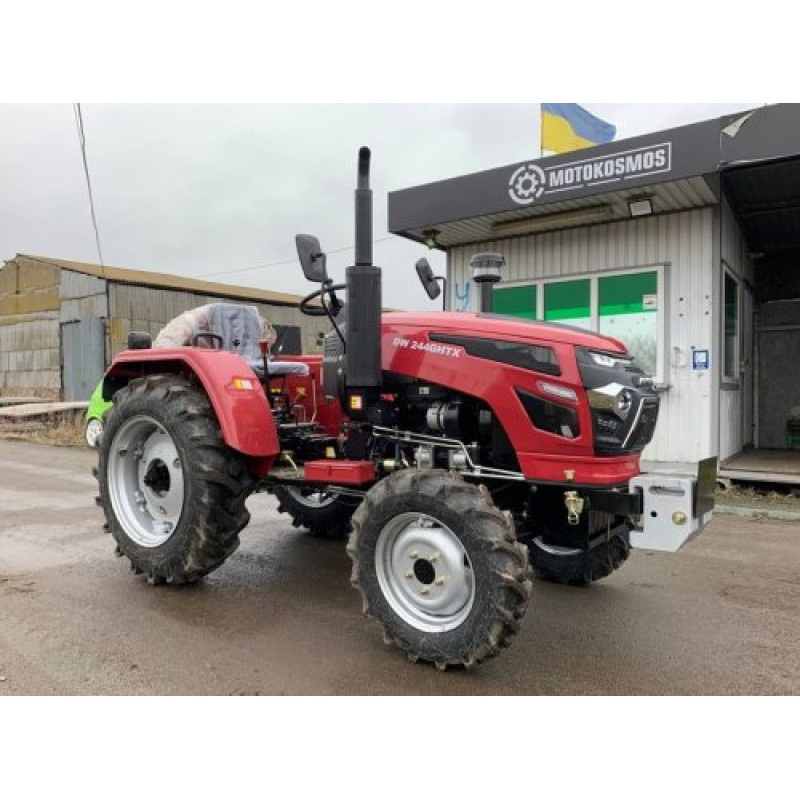

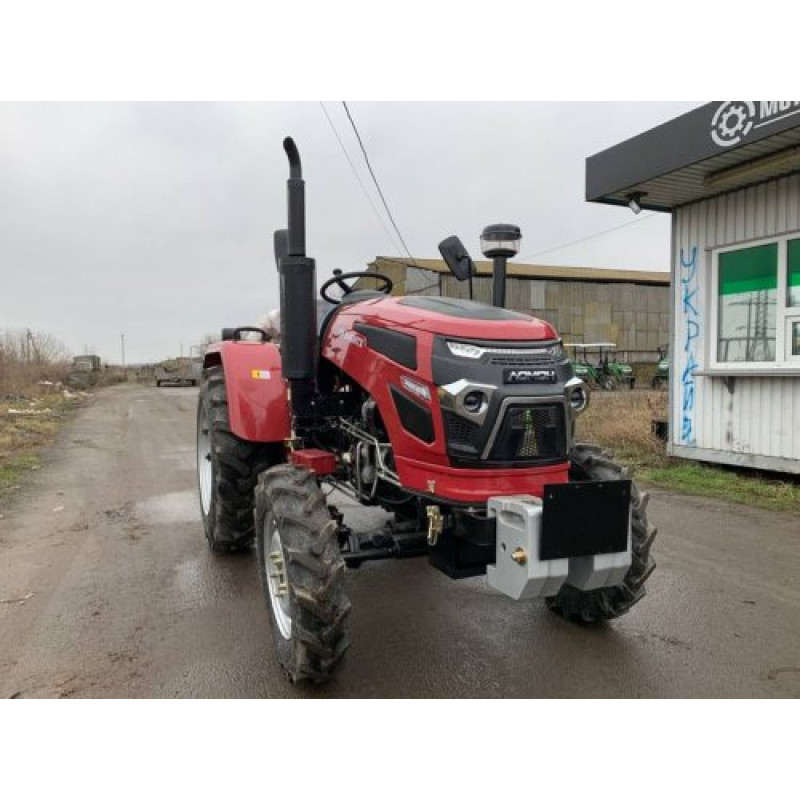

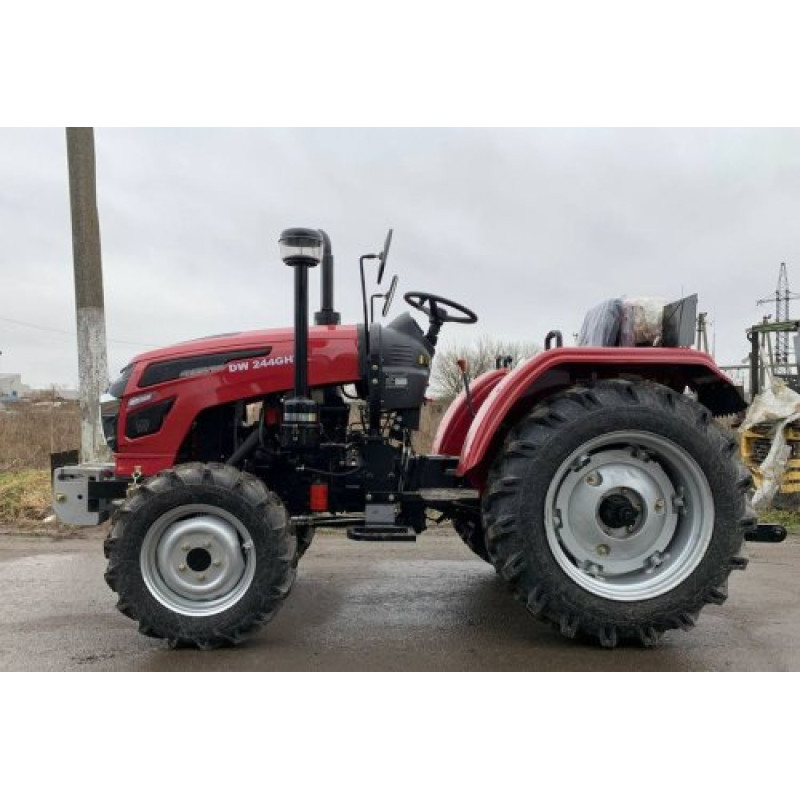

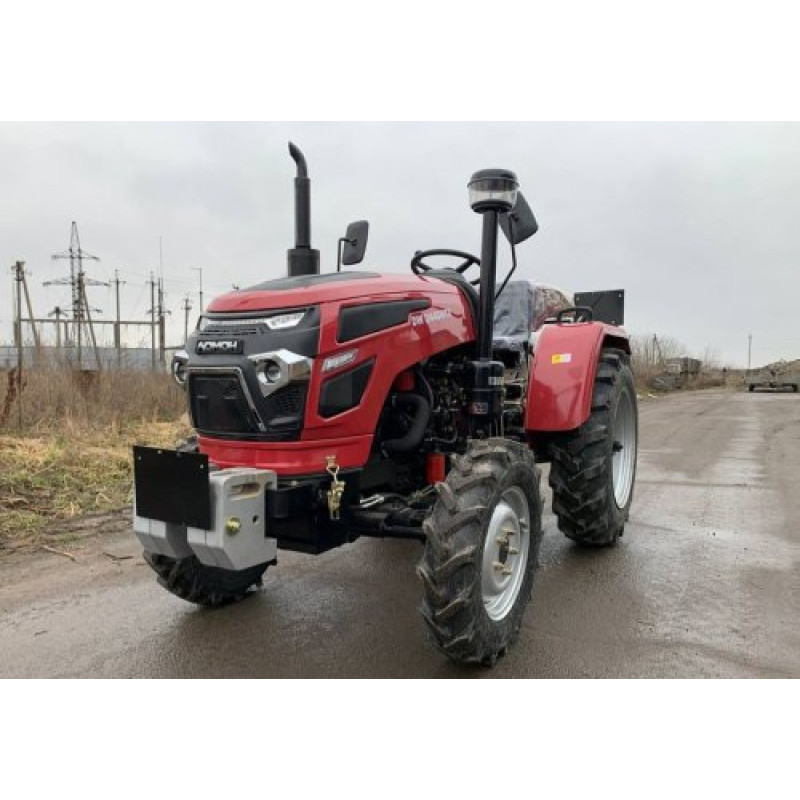

Mini Tractor DW 244 GHTX — Description and Specifications
The DW 244 GHTX mini tractor from manufacturer DW is a versatile and reliable 4x4 unit designed for work on small fields, private farms, gardens, and for municipal needs. The model combines an economical 3-cylinder diesel engine with direct injection, an efficient liquid cooling system, an electric starter, and a range of useful options: a rear splined power take-off (PTO) shaft with 540/720 rpm modes, power steering, rear differential lock, a spring-loaded seat, and the ability to install rear weights. This mini tractor is ideal for a wide range of tasks: plowing, harrowing, transportation, and working with mounted and trailed equipment.
| Engine power, hp (kW) | 24 (17.65) |
| Wheel formula | 4x4 |
| Engine type | diesel, 4-stroke, with direct injection |
| Number and arrangement of cylinders | 3, vertical |
| Engine start system | electric starter |
| Cooling system | liquid, closed, with forced circulation of coolant |
| Engine displacement, cm3 | 1530 |
| Rated engine crankshaft speed, rpm | 2350 |
| Rated traction force, kN | 7.2 |
| Gearbox (transmission) | (4+1)x2 |
| Rear differential lock | Yes |
| Clutch | dry, 1-disc, constantly closed type |
| Main drive | direct |
| Power take-off (PTO) shaft | rear, splined |
| Hydraulic system pump type | gear pump for hitch drive / gear pump for power steering operation |
| Power take-off (PTO) shaft speed, rpm | 540 / 720 |
| Minimum ground clearance, mm | 330 |
| Wheelbase, mm | 1760 |
| Tire size | front 6.50-16, rear 11.20-24 |
| Fuel tank capacity, L | 21 |
| Engine crankcase volume, L | 3 |
| Gearbox and rear axle crankcase volume, L | 11 |
| Front axle crankcase volume, L | 3 |
| Trailer connector (socket) | + |
| Power steering | + |
| Number of hydraulic outlets | 1 |
| Spring-loaded seat | + |
| Side-mounted gear lever | + |
| Rear weights | + |
| Curb weight, kg | 1328 |

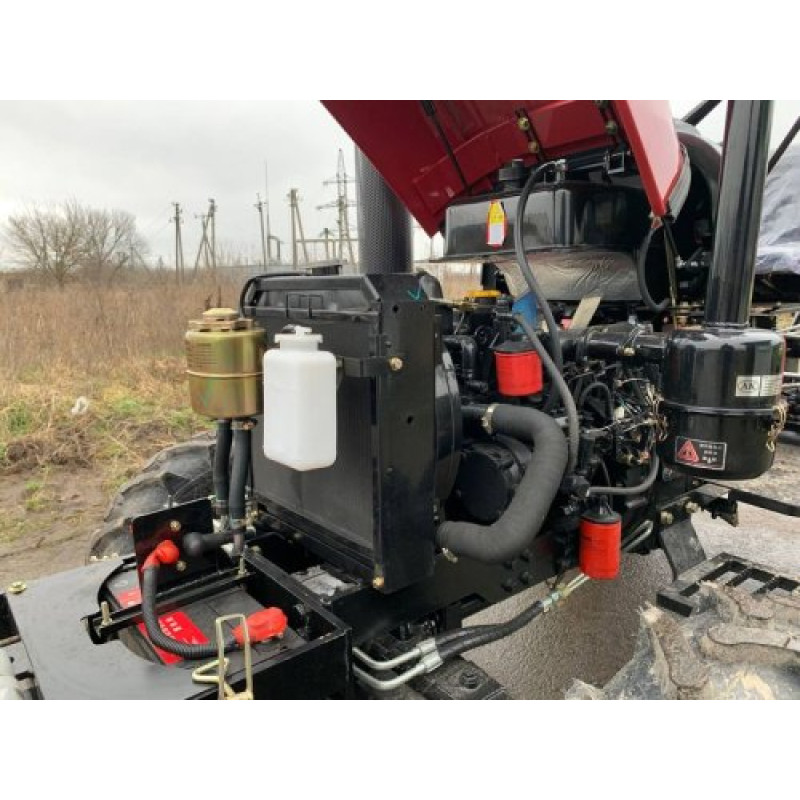

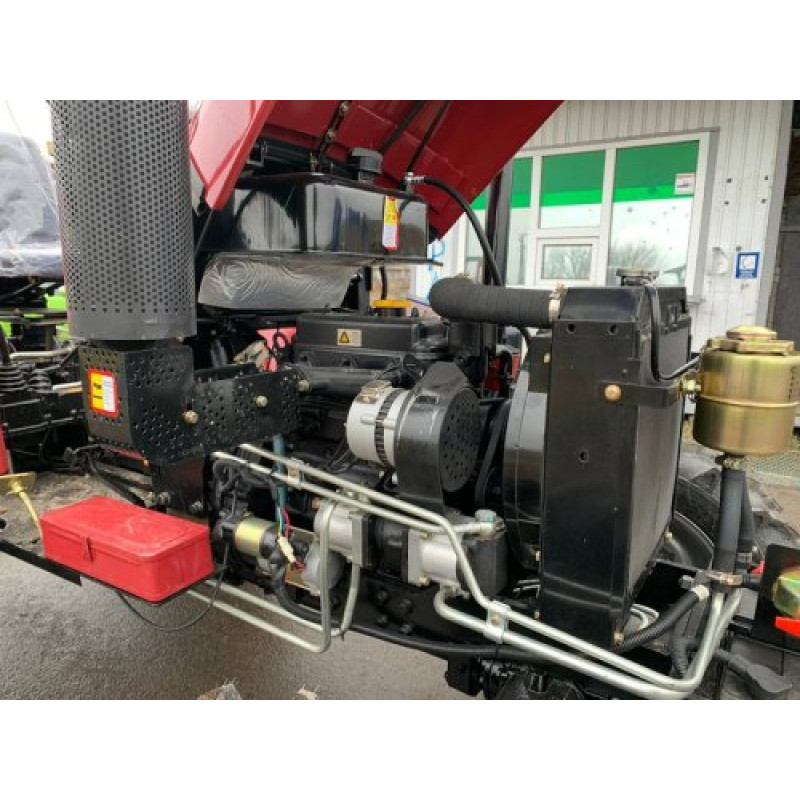

The DW 244 GHTX model's engine is a 3-cylinder diesel with a displacement of 1530 cm3, developing 24 hp (17.65 kW) at 2350 rpm. The presence of an electric starter and an efficient closed liquid cooling system with forced circulation ensures reliable starting and stable operation in various conditions. A traction force of 7.2 kN allows working with various mounted and trailed equipment.

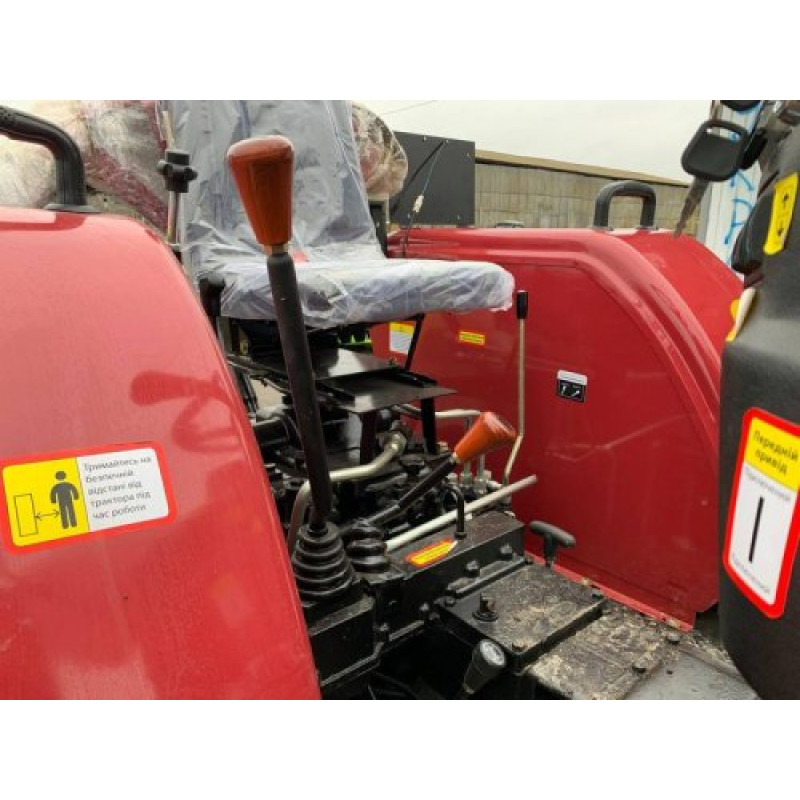

The transmission features a gearbox with a (4+1)x2 scheme and a side-mounted gear lever for operator convenience. The rear differential with a lock improves cross-country capability on difficult terrain, and a dry single-disc, constantly closed clutch ensures reliable power transmission. The main drive is direct, simplifying the design and maintenance.

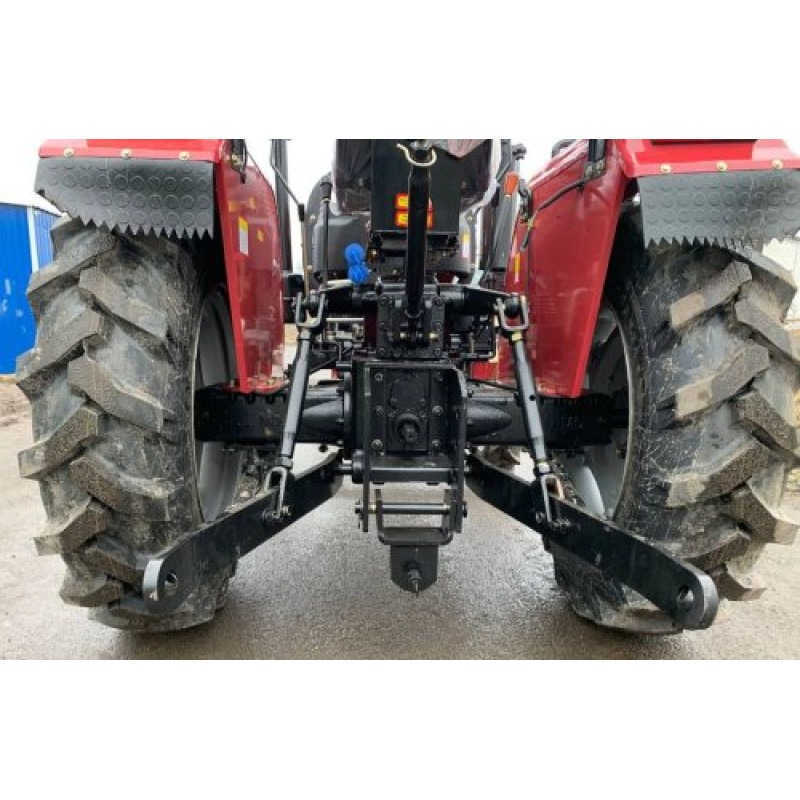

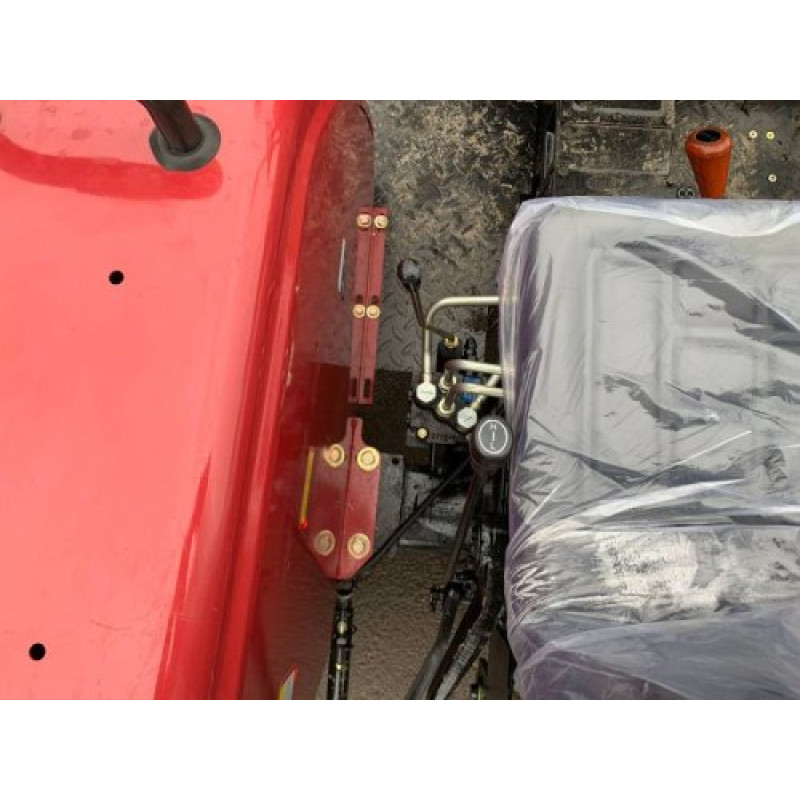

The hydraulic system is equipped with gear pumps: a separate one for the hitch drive and another for power steering operation. The presence of power steering and one hydraulic outlet makes connecting and working with mounted equipment more comfortable. The rear splined power take-off shaft operates at 540/720 rpm, providing compatibility with a wide range of mounted mechanisms.
Operational volumes and equipment include: a minimum ground clearance of 330 mm, a wheelbase of 1760 mm, front tire sizes 6.50-16 and rear 11.20-24, a 21 L fuel tank, engine crankcase volume of 3 L, gearbox and rear axle crankcase volume of 11 L, and front axle crankcase volume of 3 L. There is a trailer connector, a spring-loaded seat for increased operator comfort, and the ability to install rear weights. The tractor's curb weight is 1328 kg.
The DW 244 GHTX is designed for cultivating land, working in gardens and on farms, cleaning, and municipal tasks. The combination of compact dimensions with 4x4 all-wheel drive, intelligent component layout, and ease of maintenance ensures a long service life and efficient operation in various conditions.
Model: Mini Tractor DW 244 GHTX. Manufacturer: DW. Category: Tractors > Mini Tractors.
