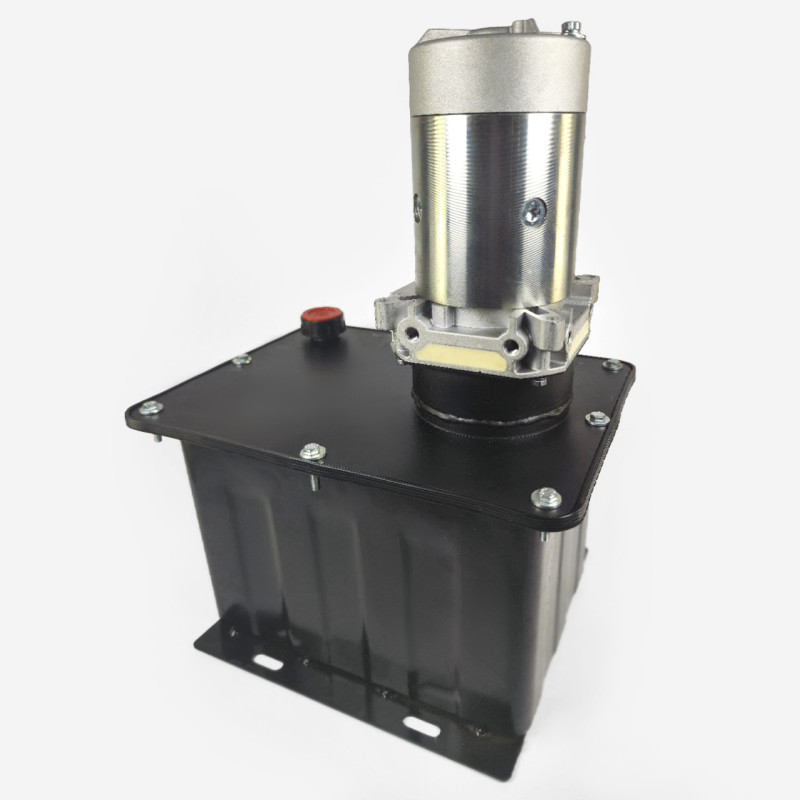

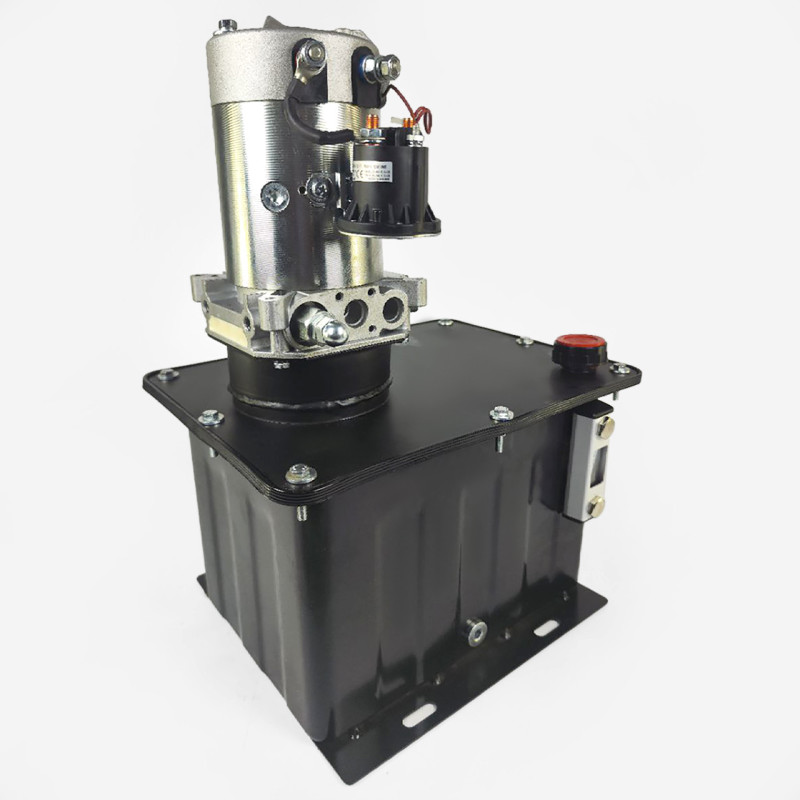

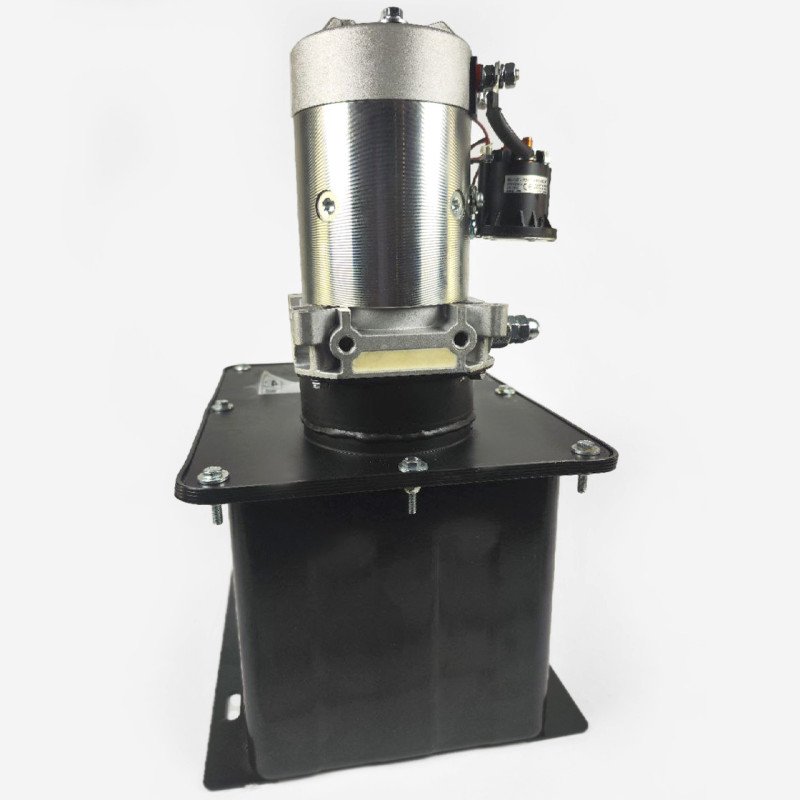

Mini Hydraulic Power Unit HYDRO-PACK HPP/D5-1033 (12 V, 2 kW, 15 L Tank) for Double-Acting Cylinders
Hydro-pack presents the compact mini hydraulic power unit HPP/D5-1033, designed for efficient and reliable control of double-acting hydraulic cylinders. This unit combines a powerful electric motor and a precise pump in a small housing with a 15-liter square steel tank. The unit operates on 12 V DC power and is designed for long-term operation in various mobile and stationary applications.
Brief Description and Advantages
The HPP/D5-1033 model is equipped with a 2.0 kW electric motor with a rotation speed of 2500 rpm, ensuring reliable supply at an operating pressure of up to 125 bar. The pump's displacement is 3.2 cm3/rev, guaranteeing optimal oil flow for precise control of double-acting cylinders. The square steel tank design allows for convenient vertical mounting of the unit and ensures stability and durability.
Technical Specifications:
| Electric Motor Power | 2.0 kW |
| Voltage | 12 V DC |
| Rotation Speed | 2500 rpm |
| Pump Displacement | 3.2 cm3/rev |
| Maximum Pressure | 125 bar |
| Oil Tank Volume | 15 L |
| Tank Type | Square |
| Tank Material | Steel |
| Installation | Vertical |
This information is crucial for selecting a hydraulic power unit for specific hydraulic tasks: lifting mechanisms, attachments, mobile platforms, and other systems where double-acting cylinders are used. Vertical installation and a square tank facilitate mounting in confined spaces, and an operating pressure of up to 125 bar ensures high performance even under heavy loads.
Configuration (Parts List)
| No. | Part Name | Quantity |
|---|---|---|
| 1 | MBWP-10 | 1 |
| 2 | DC Coupling | 1 |
| 3 | Welded Flange | 1 |
| 4 | Connecting Plate | 1 |
| 5 | Pressure Reducing Valve (PRV) | 1 |
| 6 | AB 1/2" | 1 |
| 7 | 10C3.2X302 | 1 |
| 8 | BP-FC | 1 |
| 9 | BP-3/4 UNF | 1 |
| 11 | Filter | 1 |
| 14 | STT12V150 | 1 |
| 15 | SP-45 | 1 |
| 16 | DC12MY-2 | 1 |
| 17 | TP15YD | 1 |
The Hydro-pack HPP/D5-1033 hydraulic power unit is an optimal choice for those seeking a compact, powerful, and easy-to-install hydraulic system for double-acting cylinders. It is suitable for agricultural machinery, special equipment, lifting mechanisms, and other devices where reliability, quick response, and ease of maintenance are important. Thanks to its steel tank and high-quality components, the model withstands intensive operation and ensures stable performance of the hydraulic system.
Product Category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Hydraulic Power Units. Manufacturer: Hydro-pack. Model: HPP/D5-1033.
