Mini Hydraulic Power Unit for Double-Acting Cylinders HYDRO-PACK (24 V, 4.5 kW, with 30 L Tank)

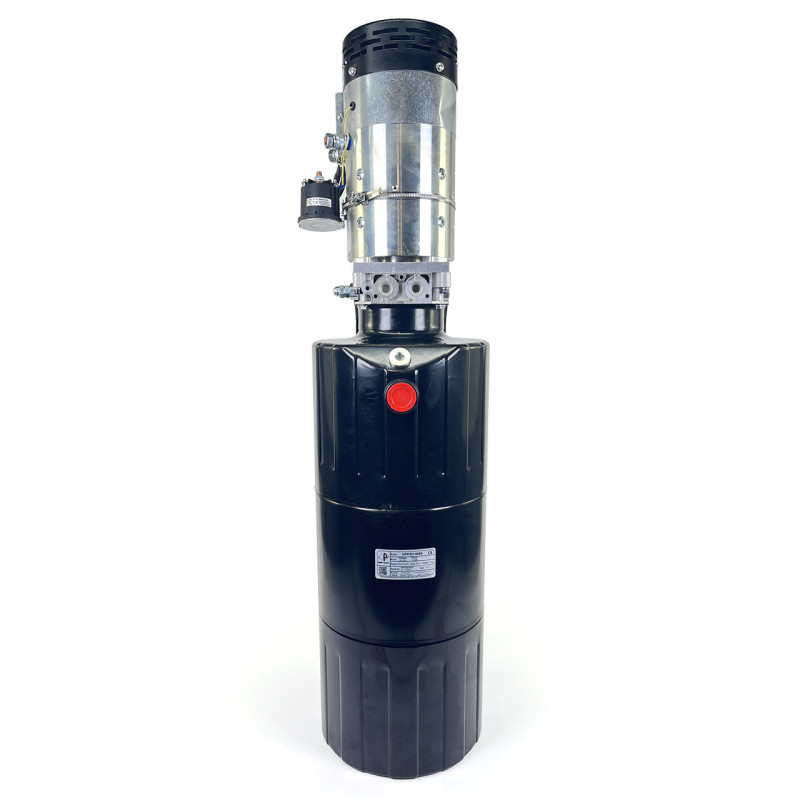

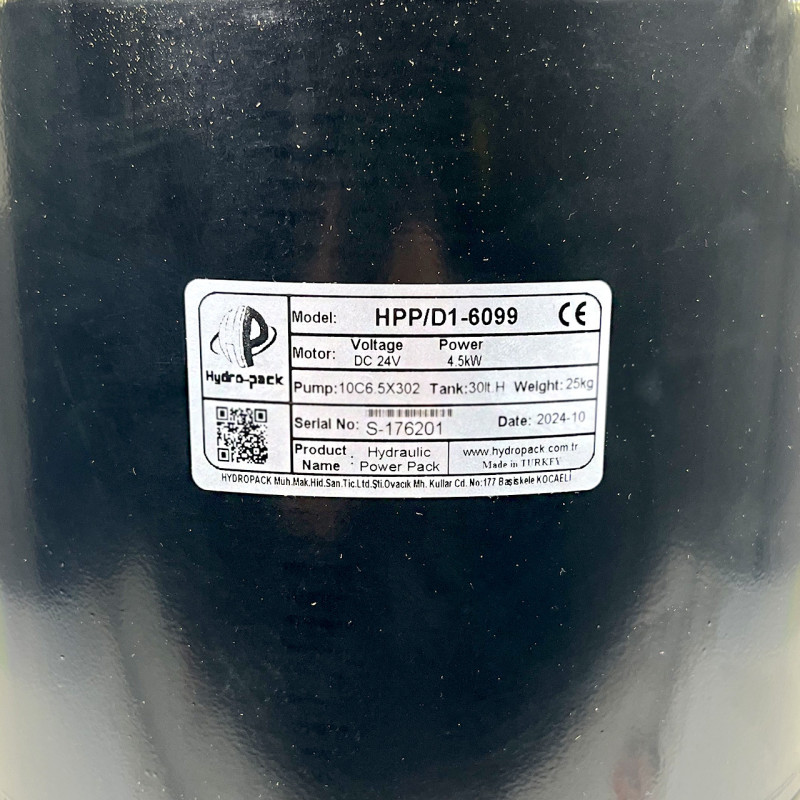

Brand: Hidros. Model: Hydro-Pack HPP/D1-6099 — a compact mini hydraulic power unit, specifically designed to control double-acting hydraulic cylinders in mobile and stationary equipment.
This power unit is equipped with a powerful 4.5 kW electric motor, operating on 24 V DC. With a rotation speed of 2000 rpm and a pump displacement of 6.5 cm3/rev, it ensures stable oil supply and maintains operating pressure up to 170 bar. The oil tank volume is 30 L; the description states that the tank is made of steel and has a square shape, while the technical specifications indicate a cylindrical tank type (both known data from the source are provided). The device is designed for horizontal installation.
Advantages and Purpose
The Hydro-Pack power unit from Hidros is ideal for units requiring power for double-acting cylinders: lifting mechanisms, hydraulic molds, special transport, and agricultural installations. The 24V power supply makes it compatible with vehicle onboard networks. Compact dimensions and a 30 L tank allow the system to operate for extended periods without frequent refueling.
Technical Specifications:
| Electric motor power | 4.5 kW |
| Voltage | 24 V DC |
| Rotation speed | 2000 rpm |
| Pump displacement | 6.5 cm3/rev |
| Maximum pressure | 170 bar |
| Oil tank volume | 30 L |
| Tank type | Cylindrical |
| Tank material | Steel |
| Installation | Horizontal |
The design, materials, and technical parameters of Hydro-Pack guarantee reliable operation in demanding conditions. The power unit is equipped with a filter for cleaning the working fluid, a PRV relief valve, and other control elements that ensure system safety and longevity.
Assembly and Components
Below is a list of the main parts included in the power unit (original structure preserved):
| Part Number | Part Name | Quantity |
|---|---|---|
| 1 | MBWOP-10 | 1 |
| 2 | DC Coupling | 1 |
| 59 | BP-FC | 1 |
| 4 | Connection Plate | 1 |
| 5 | PRV | 1 |
| 6 | AB 1/2" | 1 |
| 7 | 10C6.5X302 | 1 |
| 10 | SP-45 | 1 |
| 11 | Filter | 1 |
| 12 | DC24E-4.5-2000-F | 1 |
| 13 | TF12Y | 1 |
| 14 | STT24V150 | 1 |

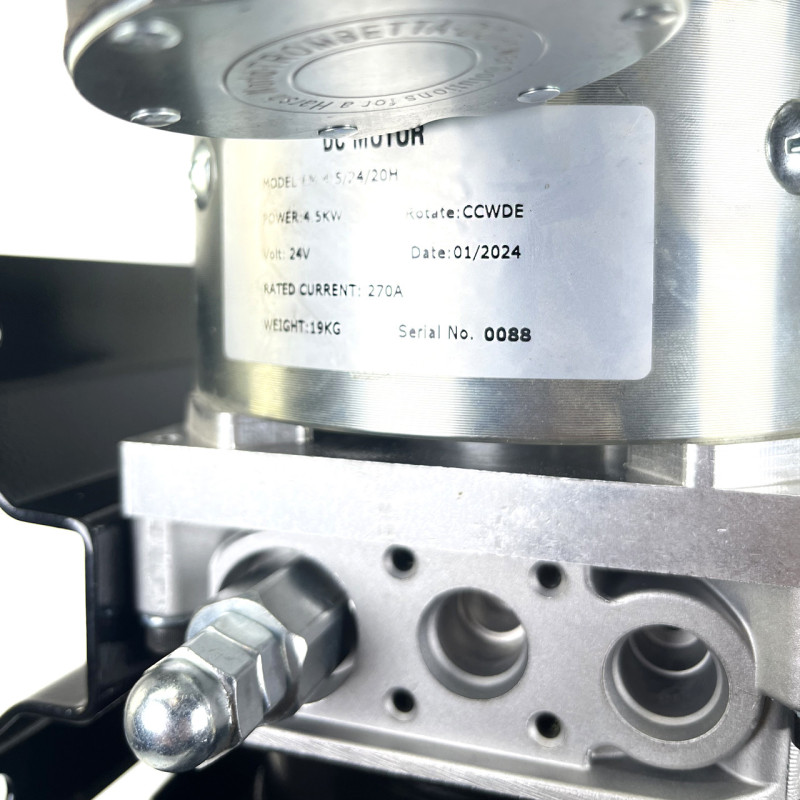

The motor/pump model in the component list is DC24E-4.5-2000-F, which corresponds to the specified operating parameters: 4.5 kW and 2000 rpm. The kit also includes elements for connecting and protecting the system (coupling, connection plate, relief valve, filter, etc.).
Hydro-Pack HPP/D1-6099 is a practical solution for those seeking a compact and reliable 24 V hydraulic power unit that provides high operating pressure up to 170 bar and an optimal pump displacement of 6.5 cm3/rev. Suitable for integration into equipment with horizontal mounting and limited space. For additional technical questions, please contact the manufacturer Hidros or the supplier's service center.
