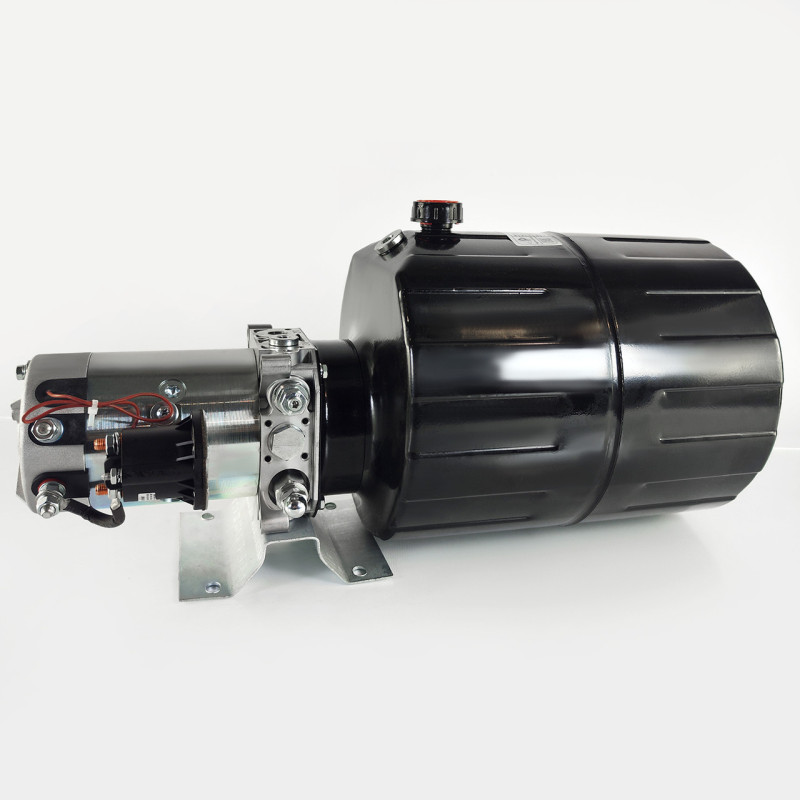

Mini Power Unit for Any Hydraulic Cylinder HYDRO-PACK (12 V, 2.0 kW, with 15 L Tank)
The Hydro-Pack HPP/D5-1033 mini power unit from Hidros is a compact and versatile solution for powering various hydraulic cylinders. The device is designed for use in mobile or stationary hydraulic systems and is suitable for tractors, motorcycles, ATVs, and boats, falling under the category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Power Units. The 2.0 kW electric motor operates on a 12 V DC onboard power supply, ensuring reliable and stable pump operation at a speed of 2500 rpm. The pump has a displacement of 3.2 cm³/rev, allowing for efficient oil flow regulation for different types of hydraulic cylinders. The maximum operating pressure is 125 bar.
The oil tank is made of steel, has a cylindrical shape, and a volume of 15 L, guaranteeing a sufficient supply of working fluid for extended operation. The power unit's design is intended for horizontal installation, simplifying mounting in vehicles and equipment with limited space. Thanks to its well-thought-out configuration and materials, durability and protection against mechanical damage are ensured.
Technical Specifications:
| Electric Motor Power | 2.0 kW |
| Voltage | 12 V DC |
| Rotation Speed | 2500 rpm |
| Pump Displacement | 3.2 cm³/rev |
| Maximum Pressure | 125 bar |
| Oil Tank Volume | 15 L |
| Tank Type | Cylindrical |
| Tank Material | Steel |
| Installation | Horizontal |
The mini power unit is especially useful where a compact source of hydraulic pressure powered by 12 V is needed: trailer equipment, tractor attachments, lifting mechanisms on light vehicles, and boat hydraulics. Advantages of the Hydro-Pack HPP/D5-1033 model include: compact dimensions, protected steel tank, stable flow at 2500 rpm, quick horizontal mounting capability, and compatibility with a wide range of hydraulic cylinders.
For maximum longevity, it is recommended to use high-quality hydraulic oils, periodically check the filter, and clean or replace it as needed. It is also important to monitor the condition of connections and fasteners, and when installing on a vehicle, ensure reliable insulation of electrical contacts from moisture.
| Part No. | Part Name | Quantity |
|---|---|---|
| 1 | MBWP-10 (hinges) | 1 |
| 2 | DC coupling | 1 |
| 3 | Welding neck | 1 |
| 4 | Connecting plate | 1 |
| 5 | Pressure Relief Valve (PRV) | 1 |
| 6 | AB 1/2" | 1 |
| 7 | 10C3.2X302 | 1 |
| 8 | BP-FC | 1 |
| 9 | BP-3/4 UNF | 1 |
| 11 | Filter | 1 |
| 14 | STT12V150 | 1 |
| 15 | SP-45 | 1 |
| 16 | DC12MY-2 | 1 |
| 17 | TP15YD | 1 |
This model from Hidros combines ease of connection and reliable operation, making it an excellent choice for those seeking a compact and powerful 12 V power unit with a 15 L tank and an operating pressure up to 125 bar.
