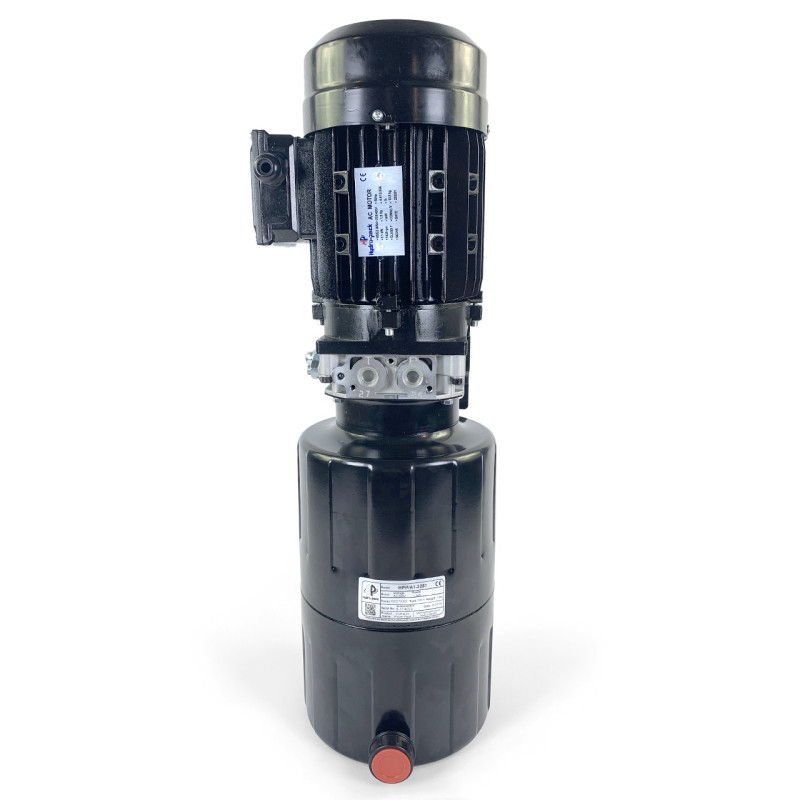

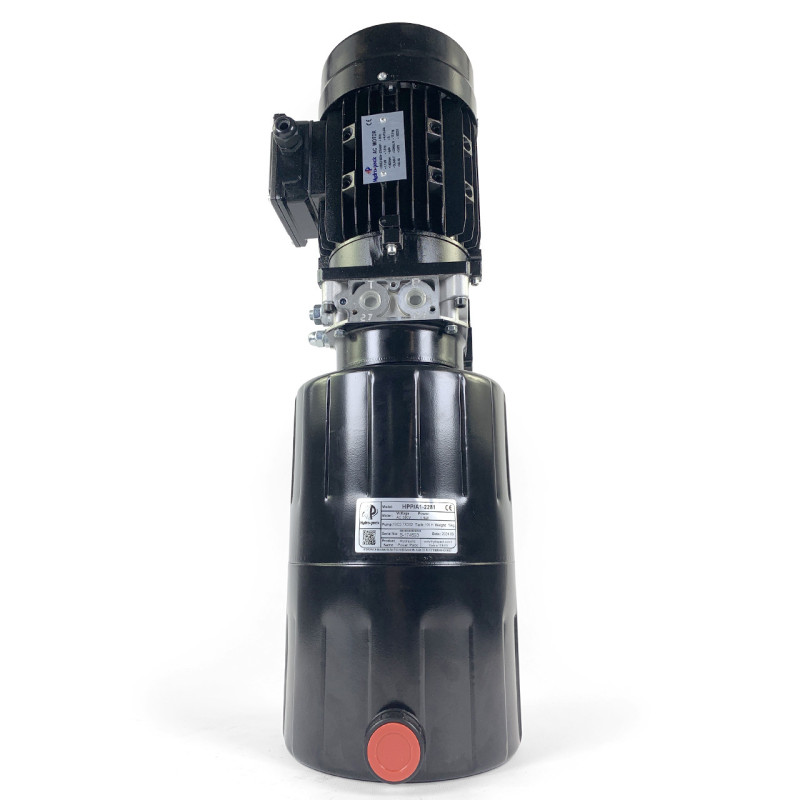

Mini Hydraulic Power Unit HYDRO-PACK HPP-A1-2281 (380V, 1.1 kW, 10 L tank)

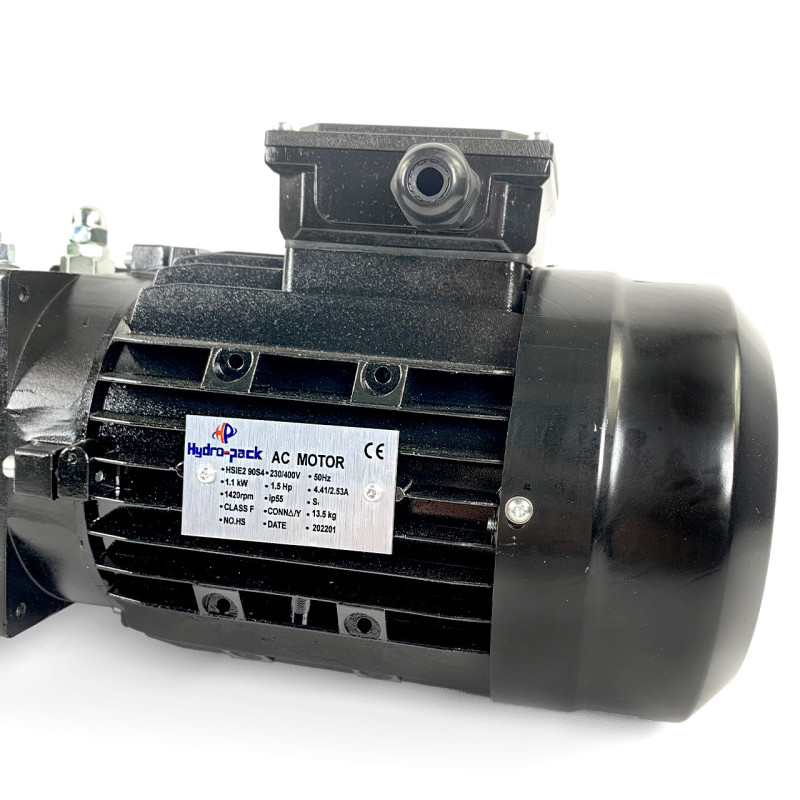

The Hydro-Pack 380V-1.1kW 3.7cm³ 10L hydraulic power unit is designed to ensure safe and reliable operation of lifts and other hydraulic mechanisms. The HPP-A1-2281 model from Hydro-pack is equipped with a three-phase electric motor with a power of 1.1 kW, designed to operate from a 380 V AC network, with a rotation speed of 1500 rpm. The pump with a displacement of 3.7 cm³/rev provides optimal oil flow, and the maximum operating pressure of up to 105 bar allows for effective lifting and holding functions.

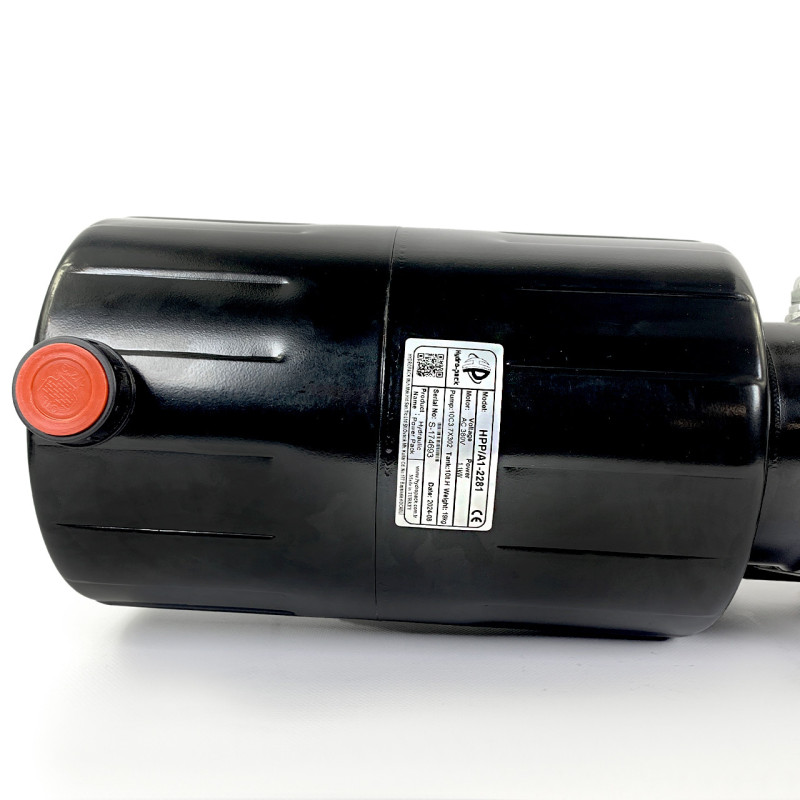

The 10-liter oil tank is made of steel, has a cylindrical shape, and is designed for horizontal installation. Compact dimensions and a well-thought-out configuration make this hydraulic power unit convenient for installation in confined spaces of lifting systems. The device is optimal for use in industries where reliable hydraulic support is required: car services, lifting platforms, warehouse equipment, and other industrial facilities.
Advantages and Features
- Reliable 1.1 kW AC electric motor for long-term operation.
- Continuous operation at 380 V AC and 1500 rpm.
- High operating pressure up to 105 bar for a wide range of tasks.
- Efficient pump with a displacement of 3.7 cm³/rev.
- 10 L steel cylindrical tank for durability and load resistance.
- Horizontal installation, which simplifies mounting.
Technical Specifications of HPP-A1-2281 Hydraulic Power Unit:
| Electric motor power | 1.1 kW |
| Voltage | 380 V AC |
| Rotation speed | 1500 rpm |
| Pump displacement | 3.7 cm³/rev |
| Maximum pressure | 105 bar |
| Oil tank volume | 10 L |
| Tank type | Cylindrical |
| Tank material | Steel |
| Installation | Horizontal |
The HPP-A1-2281 model is supplied with a selection of parts that ensure its correct operation and ease of maintenance. The set of main components and parts with their quantities is listed below.
| Part No. | Part Name | Quantity |
|---|---|---|
| 1 | MBWP-10 | 1 |
| 2 | AC Coupling | 1 |
| 62 | Weld Neck Flange | 1 |
| 4 | Connecting Plate | 1 |
| 5 | Pressure Relief Valve (PRV) | 1 |
| 6 | AB 1/2" | 1 |
| 7 | 10C3.7X302 | 1 |
| 10 | SP-45 | 1 |
| 11 | Filter | 1 |
| 12 | AC3H-1.1-1500 | 1 |
| 13 | TV10Y | 1 |
| 14 | BP-FC | 1 |
| 15 | BP-3_4 UNF | 1 |
By choosing the HYDRO-PACK HPP-A1-2281 mini hydraulic power unit, you get a compact and powerful unit from the Hydro-pack brand, adapted for operation at 380 V, with the possibility of horizontal mounting and a 10 L steel tank. This model is ideal for servicing lifts and other material handling equipment where stable hydraulic support and high reliability are required.
