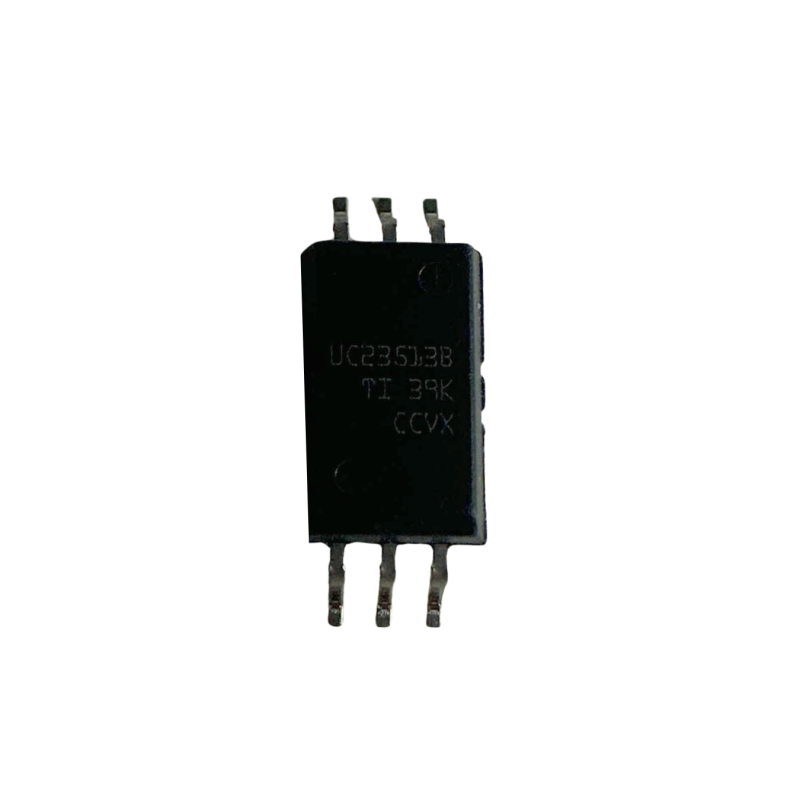

The UC23513B is a single-channel isolated gate driver with an opto-compatible input, designed to drive IGBT, MOSFET, and SiC MOSFET transistors. It provides a peak output current of up to 4.5A during charging and 5.3A during discharging, ensuring efficient switching of power transistors. A high isolation level of 5.7 kV RMS and an operating voltage of up to 33V make it a reliable solution for industrial applications. The compact SO-6 package with an extended creepage and clearance distance of over 8.5 mm ensures reliable operation in high-voltage environments. Key features: Peak output current: 4.5A (source), 5.3A (sink). Supply voltage range: 14V – 33V. Maximum propagation delay: 105 ns. Common-mode transient immunity (CMTI): at least 150 kV/µs. Operating temperature range: -40°C to +150°C. Thanks to these characteristics, the UC23513B is suitable for use in industrial drives, power supplies, solar inverters, and induction heating systems. *Depending on the supply, the appearance and configuration may differ from the images on the website. The appearance does not affect the quality and characteristics of the product.
