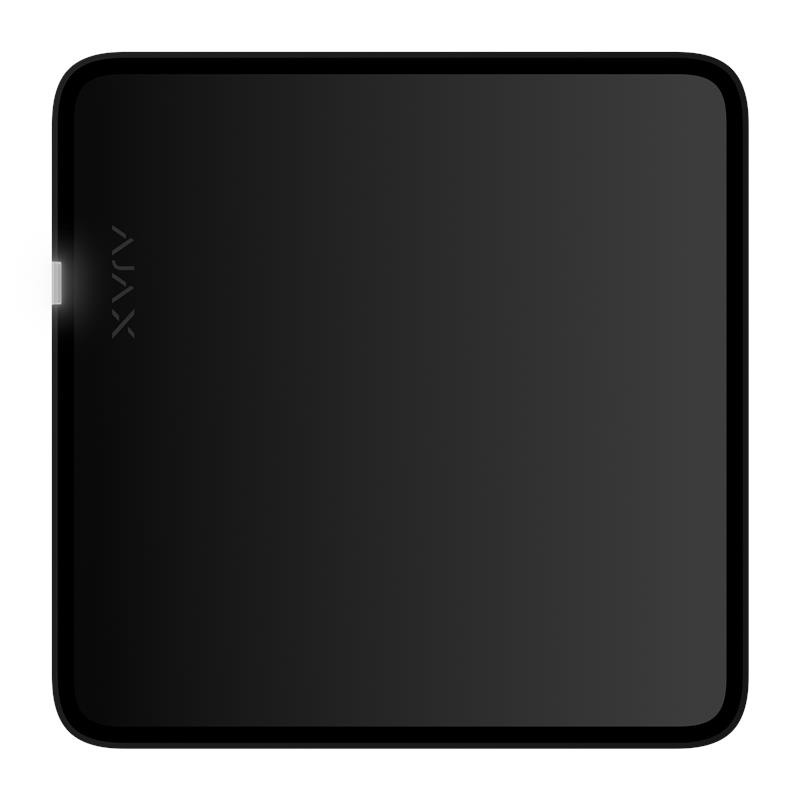

The Ajax NVR HAC is a high-quality network video recorder designed to connect IP cameras and form a powerful video surveillance system within the Ajax Systems security system. The device supports up to 8 video channels (8-ch version), allows video recording in resolutions up to 4K, works with large hard drive capacities (up to 16 TB), and provides flexible integration with security systems.
The recorder features its own software video processing, including built-in motion detection, the ability to configure detection zones directly in the app, and recording scenarios triggered by detectors or the security alarm system. Thanks to ONVIF/RTSP protocol support and integration with the Ajax app, it is compatible with both Ajax cameras and many third-party IP cameras, offering flexibility in system building.
Key advantages include: Videowall – simultaneous viewing of images from all connected cameras in the mobile app; instant access to archives and events; secure video transmission via TLS and mTLS protocols, session control, two-factor authentication, and access rights configuration. The device is installed indoors, mounted on a SmartBracket mounting panel, ensures reliable mounting with a tamper (notification of attempted dismantling), and supports 110–240 V power.
This recorder is an excellent choice for medium-sized video surveillance systems in offices, commercial premises, or residential properties where not only video recording but also close integration with the security system and quick response to events are important.
Specifications
| Characteristic | Value |
|---|---|
| Version | 8 channels (8-ch) |
| Camera support | Ajax IP cameras + third-party IP cameras (ONVIF/RTSP) |
| Maximum recording resolution | Up to 4K (25/30 fps) |
| Hard disk drive (HDD) support | Up to 16 TB (SATA, 3.5″) |
| Compression formats | H.264 / H.265 |
| Network bandwidth | Approximately up to 100 Mbps (depending on model) |
| Power supply | 110–240 V~, 50/60 Hz; consumption up to ~24 W |
| Backup power | CR2032 (for clock) |
| Housing / mounting | Indoor mounting, SmartBracket, tamper |
| Temperature range | 0 °C … +40 °C |
| Humidity | Up to 75 % |
| Sensor video processing | Built-in motion detector, detection zones, recording scenarios |
| Videowall | Ability to view all cameras simultaneously in the app |
| Encryption and security | TLS, mTLS, two-factor authentication, session control |
| System compatibility | Integration with Ajax security system |
