Product Code: FA94-6537-94
626 грн.
Buy this product in 1 click:
Main specifications
Angle of View (degrees): 80
Application: external
Compatibility: ONVIF, RTSP
Day/Night mode: is
Focal length, mm: 3.6
All specifications
We will deliver this product:
Payment
Description

Area of application.

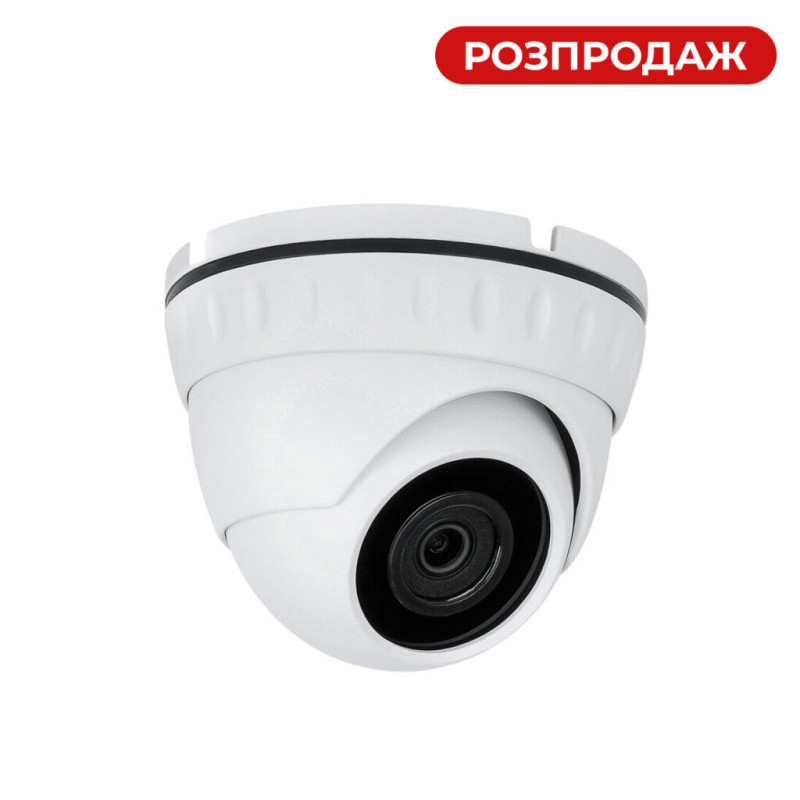

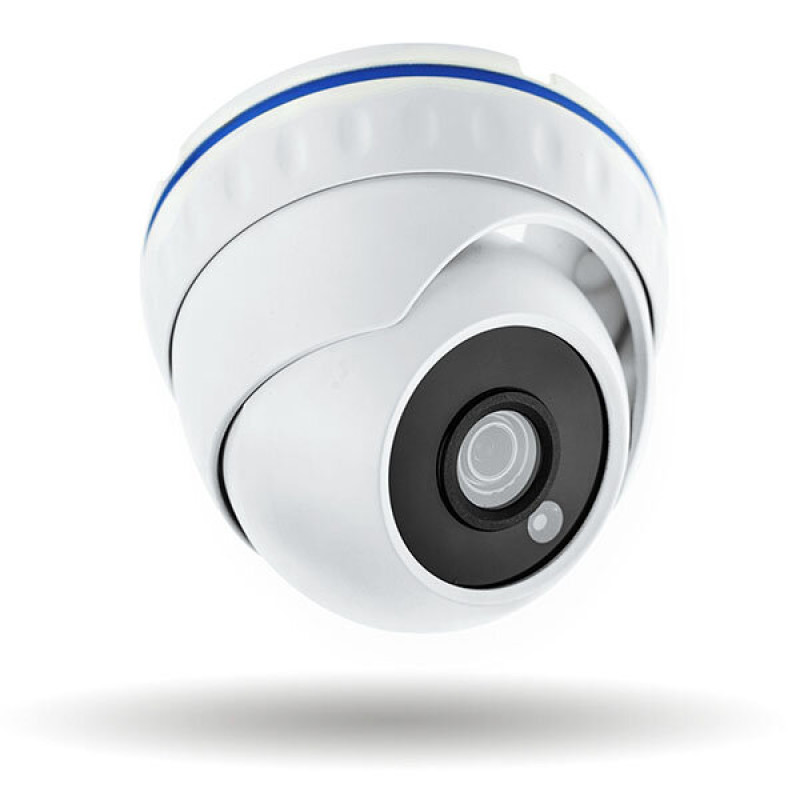

The operating principle of the GV-073-IP-H-DOA14-20 3MP (Lite) IP video surveillance camera is based on streaming image transmission over wired networks. The standard network protocols used for video signal transmission are IPv4, HTTP, TCP/IP, FTP, NTP, RTSP, UDP, SMTP, DNS, DDNS, ONVIF 2.4. In addition to security functions (video surveillance of an object), IP cameras can solve tasks such as: - remote monitoring of household or business processes (for example, you can monitor the work of a nanny, housekeeper, etc. from a mobile phone screen remotely); - video recording of emergency situations (images from surveillance cameras help expose burglars or investigate cases of currency fraud in banks, stores, etc.); - control of employee arrival and departure times, and much more.

Technical specifications.

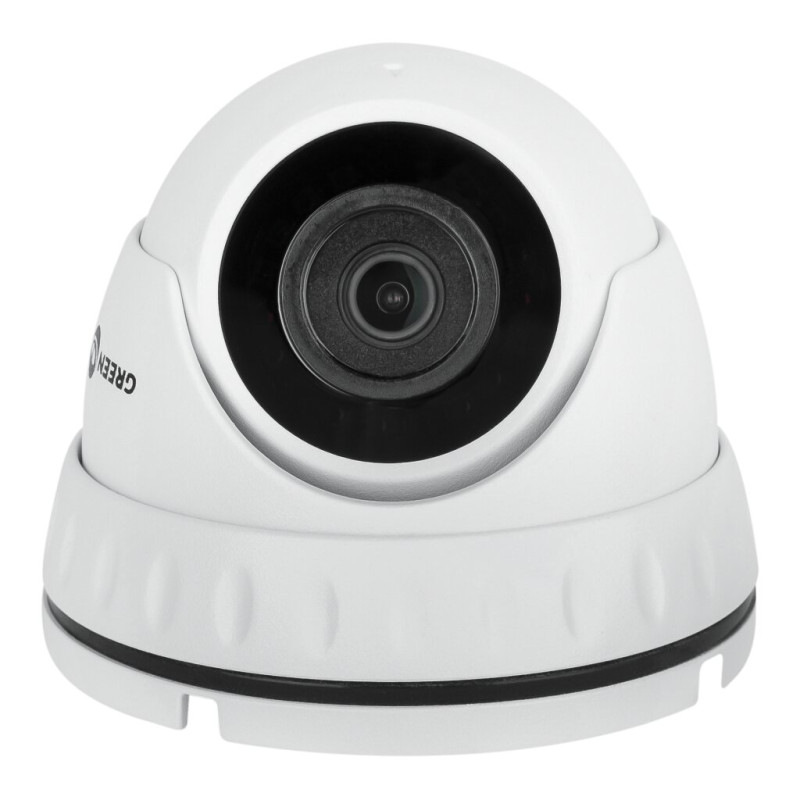

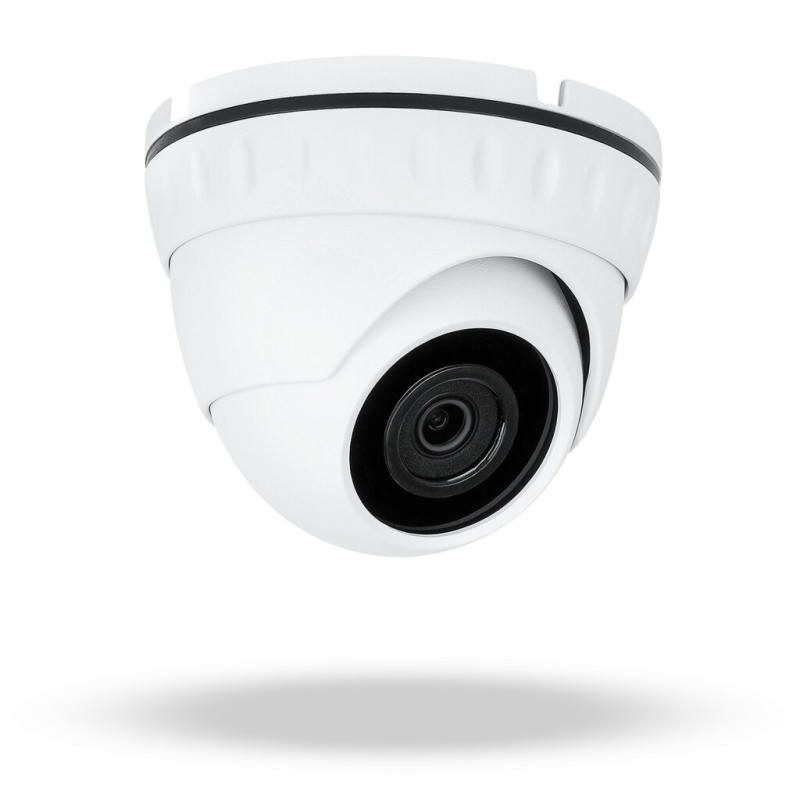

The video surveillance camera operates on a 1/3 CMOS Aptina sensor. Processor - HI3516E V100; Image resolution (2048x1536); Fixed lens with 3.6 mm focal length; Camera sensitivity - 0.05 Lux. The model is equipped with a built-in infrared illumination with a range of 20 meters; Controlled from mobile devices using a special application for iPhone and Android; Housing type - vandal-proof.

More information about ULTRA series cameras in our article →

Specifications
Angle of View (degrees) 80
Application external
Compatibility ONVIF, RTSP
Day/Night mode is
Focal length, mm 3.6

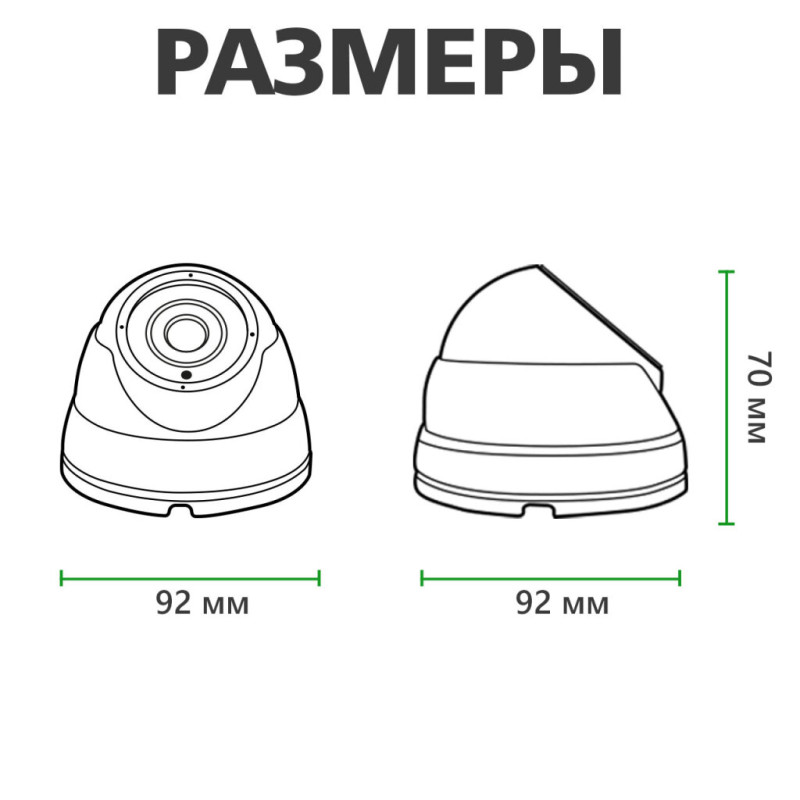

Height, mm 70
Housing material metal
Housing type anti-vandal
Illumination, m 20
Image resolution 2048x1536
Interface LAN

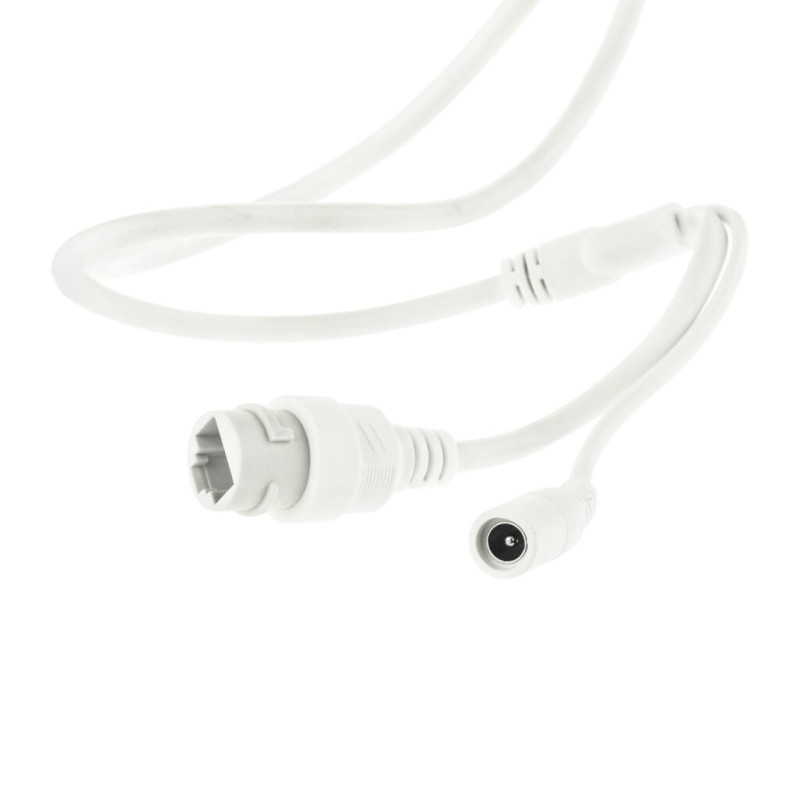

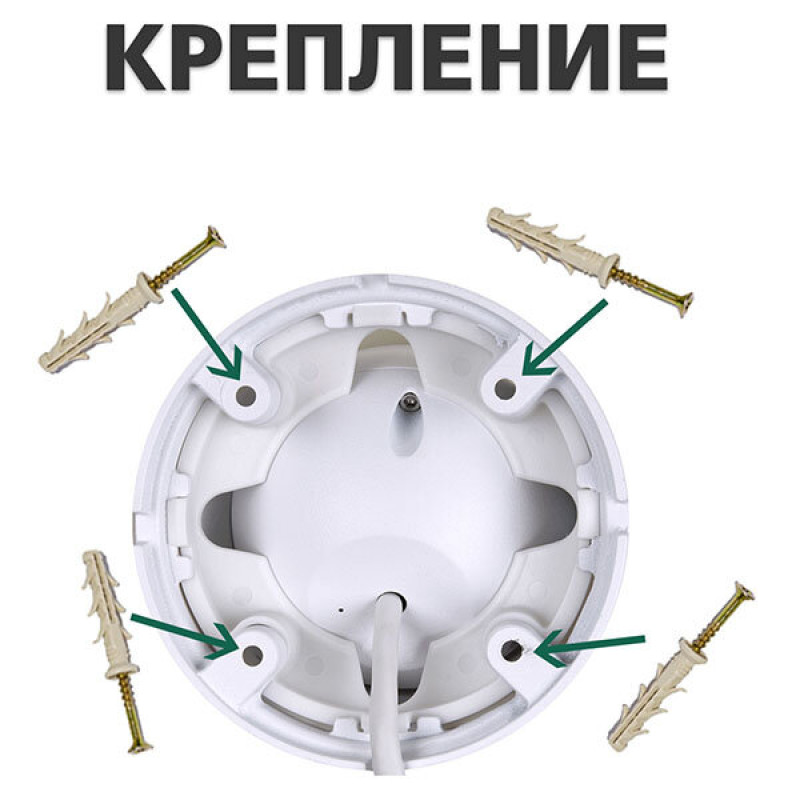

Kit Contents GreenVision Camera; Mounting hardware kit; RJ45 waterproof cable connector; Manual
Length, mm 90

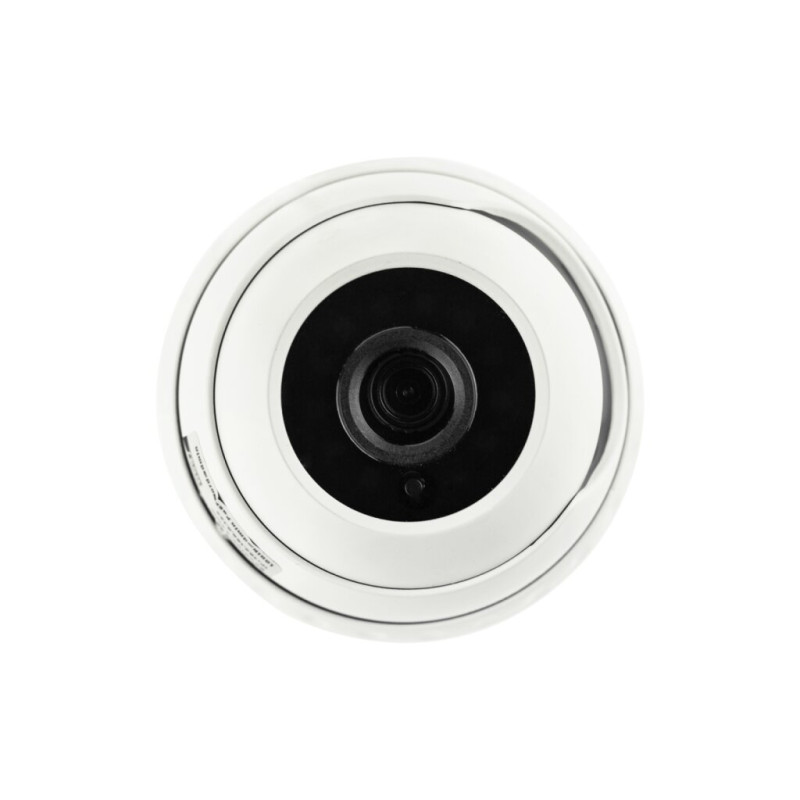

Lens type fixed
Main Stream 2048x1536, 1920x1080, 1280x960, 1280x720

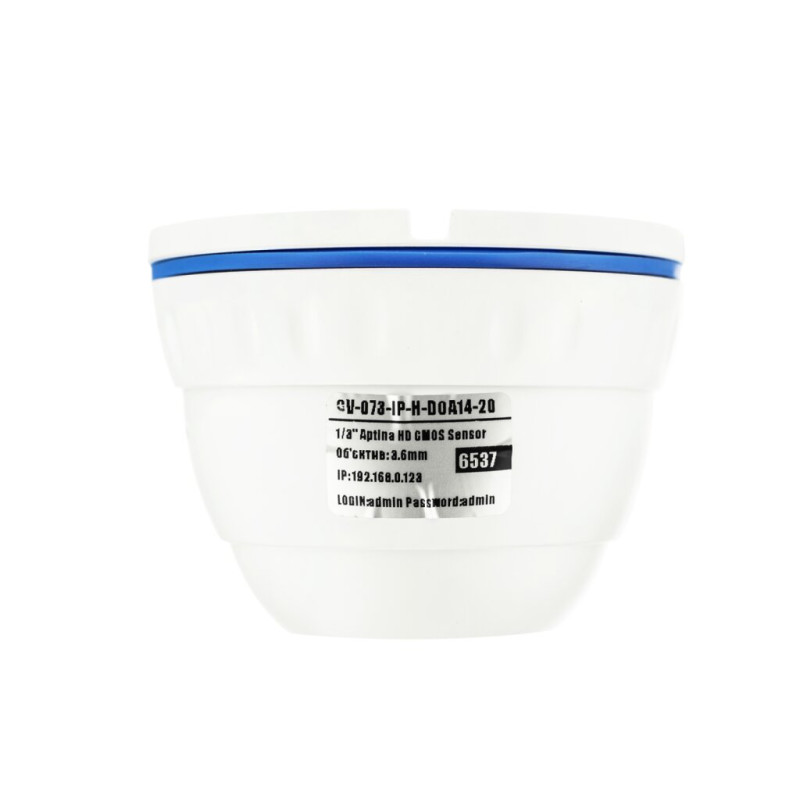

Matrix 1/3 CMOS Aptina
Megapixels, MP 3.0
Min. Sensitivity, Lux 0.05
Number of diodes, pcs d5x24
Operating temperature, °C -30 ~ +50
Power consumption, W 8.4
Power, V/mA 12/700
Processor HI3516E V100
Protection Type IP67
Protocols IPv4, HTTP, TCP/IP, FTP, NTP, RTSP, UDP, SMTP, DNS, DDNS, ONVIF 2.4
Sensor SC2236
Sub Stream 1280x720, 720x480, 352x288
Transmission speed 1024-8192 KB/s
Type IP
Video Compression H.264
Volume, m³ 0.000567
Warranty, months 12
Weight, kg 0.27
Width, mm 90
Color white
