Drone Detector 0.9 GHz, 2.4 GHz, 4.9 GHz, 5.8 GHz MDDSR1 "Kseon-M"

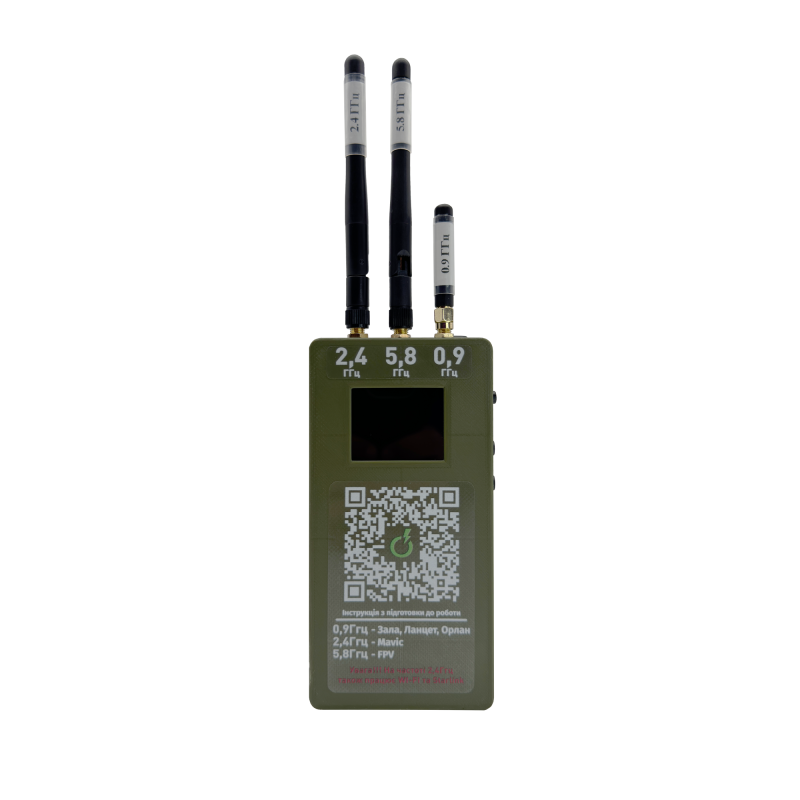

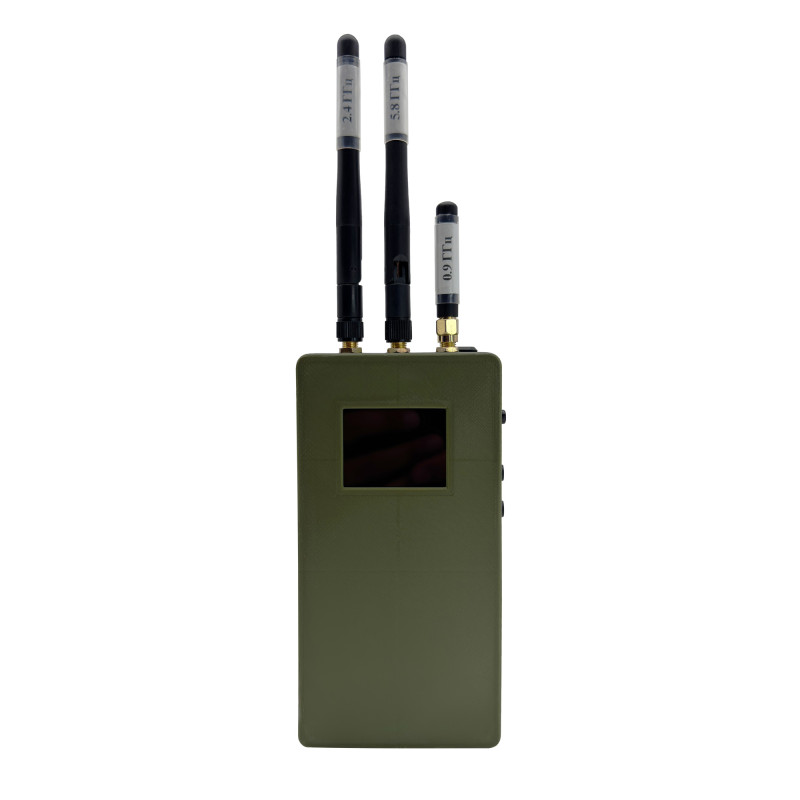

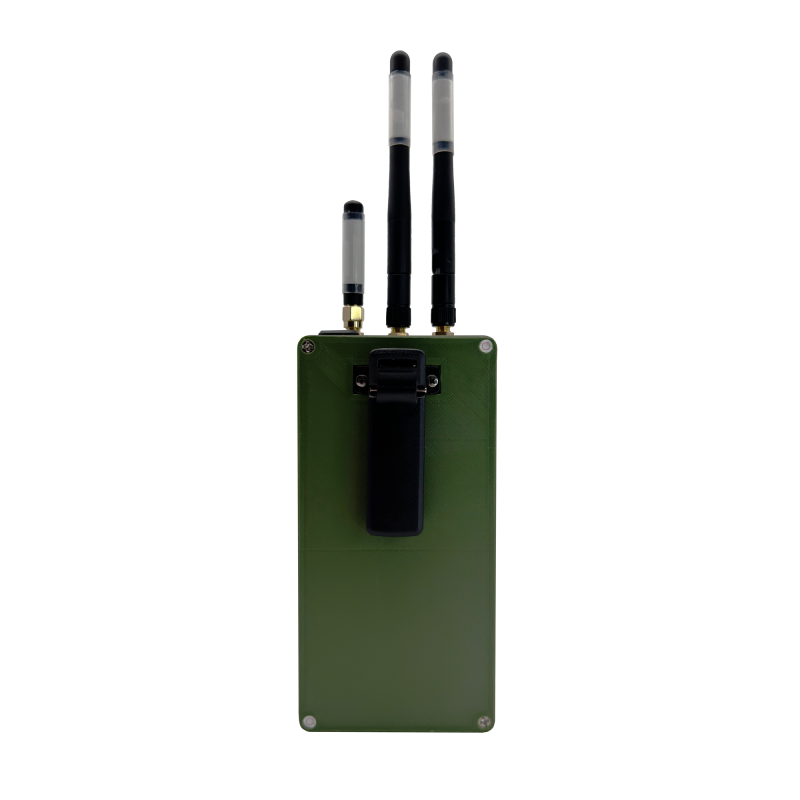

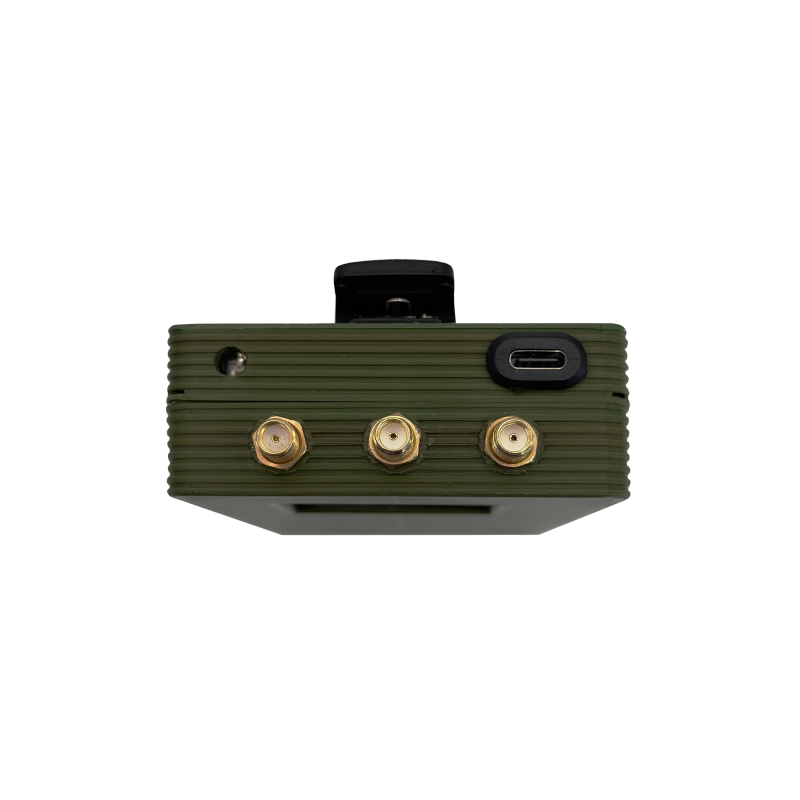

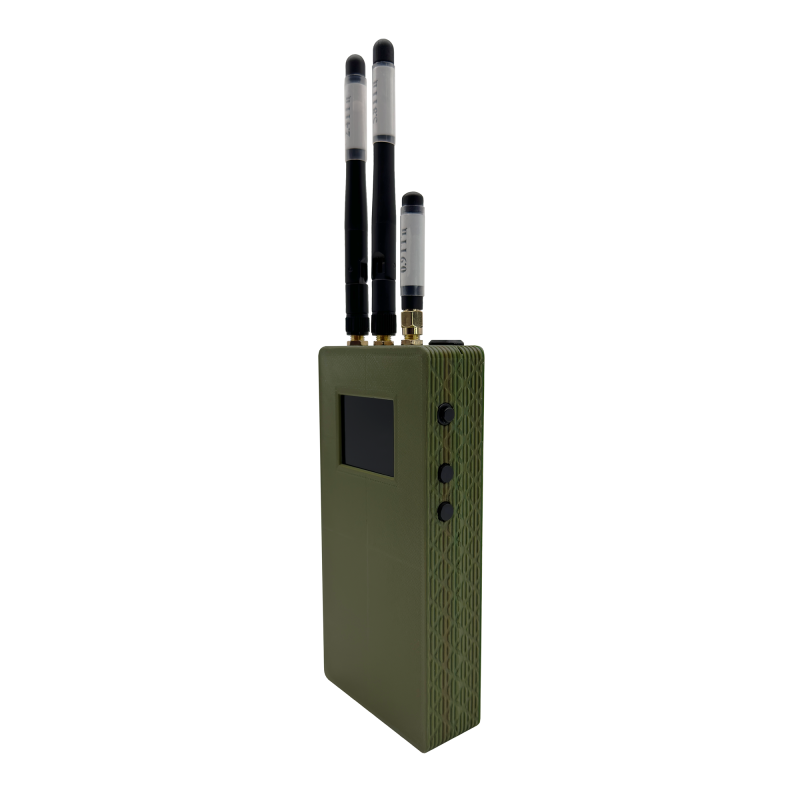

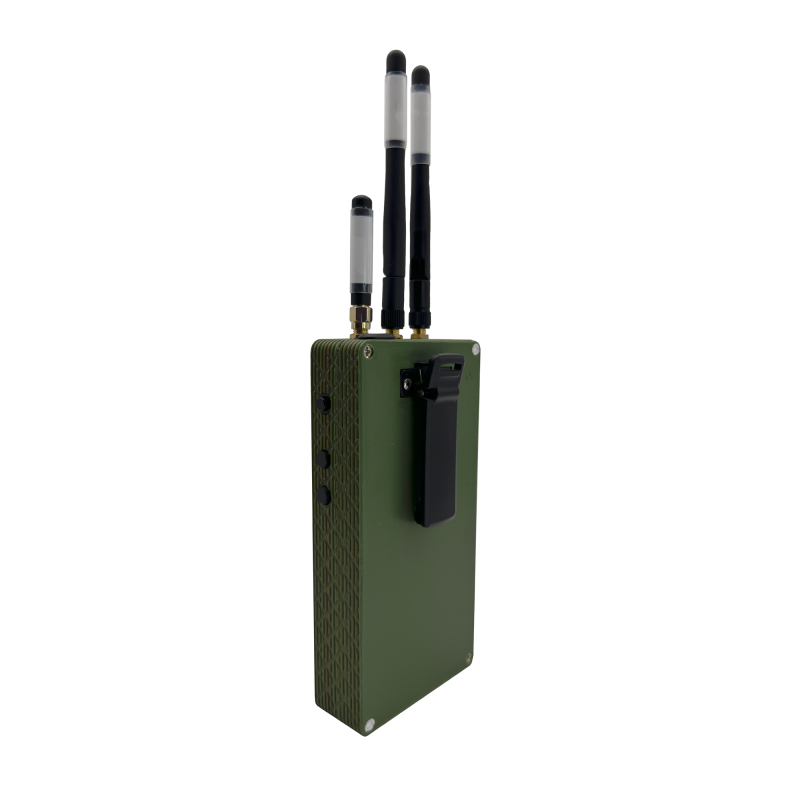

MDDSR1 "Kseon-M" — a portable drone detector from Kseonics Technology, designed for quick and reliable detection of unmanned aerial vehicles in various operating conditions. The device is compact and ergonomic: a lightweight body, a clip for attaching to a backpack or belt, an intuitive interface, and the ability to carry it in a bag. The MDDSR1 operates autonomously for up to 8 hours, has a 4000 mAh Li-Ion battery, and charges via USB Type-C (DC 5V/2A) in up to 3 hours. It can also be recharged from a standard power bank, making it an optimal solution for mobile airspace monitoring.
Functionality Overview

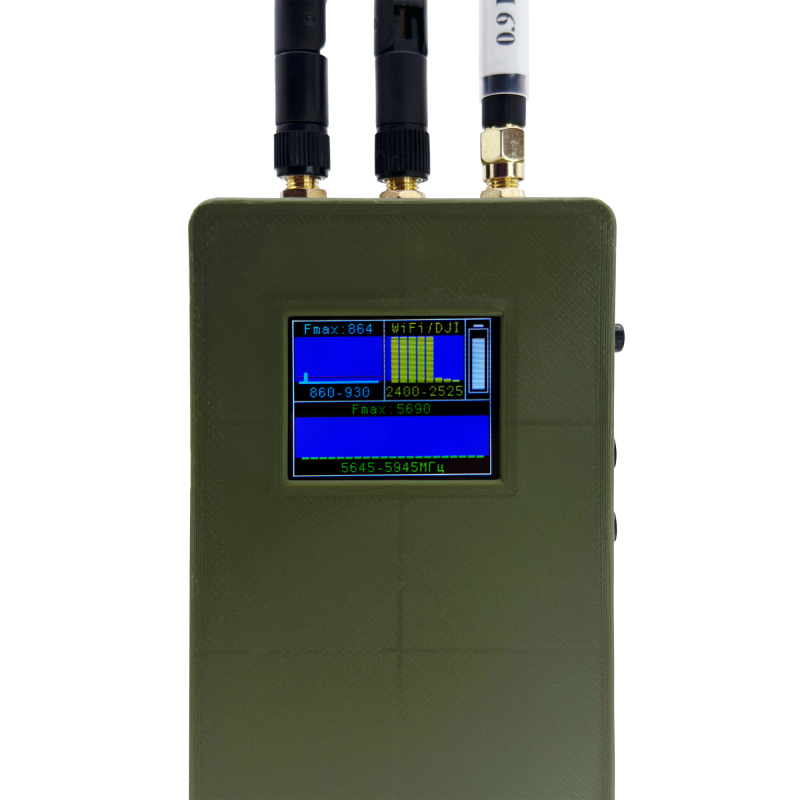

The MDDSR1 detects signals in key bands: 0.9 MHz (860–930 MHz), 2.4 GHz (2400–2525 MHz), 4.9 GHz, and 5.8 GHz (5650–5950 MHz). The mobile version features external omnidirectional antennas for each frequency, providing 360° monitoring. The device notifies of UAV detection in three ways: audible signal, vibration, and LED indication, and also displays graphical information on a 1.8" TFT display with 128×160 resolution for convenient signal analysis.
Advantages in Use
- Compact and portable design — convenient for transport and operational field use;
- Up to 8 hours of autonomy and the ability to recharge from a power bank;
- Omnidirectional antennas for full 360° monitoring;
- Multi-mode alert methods: sound, vibration, LEDs, and graphical display;
- Coded device with NATO stock number;
- IP54-rated protected casing;
- Intuitive controls and a clip for external equipment attachment.
Technical Specifications
- Frequency range: 0.9 MHz (860–930 MHz), 2.4 GHz (2400–2525 MHz), 4.9 GHz, 5.8 GHz (5650–5950 MHz);
- Effective detection range: for 0.9 GHz, 2.4 GHz, 4.9 GHz, 5.8 GHz — from 1000 m, in some cases detection range can reach up to 2000 m depending on the target drone's transmitter power;
- Stable signal display: from 500 m;
- Maximum tested detection altitude: 500 m;
- Alert methods: sound, vibration, LED indication, graphical display;
- Casing protection: IP54;
- Display: TFT 1.8" 128×160;
- Battery: Li-Ion 4000 mAh;
- Autonomy: up to 8 hours;
- Charging time: up to 3 hours (DC 5V/2A).
Dimensions and Weight
- Length: 150 mm;
- Width: 75 mm;
- Height: 28 mm;
- Weight: 300 g (without antennas).

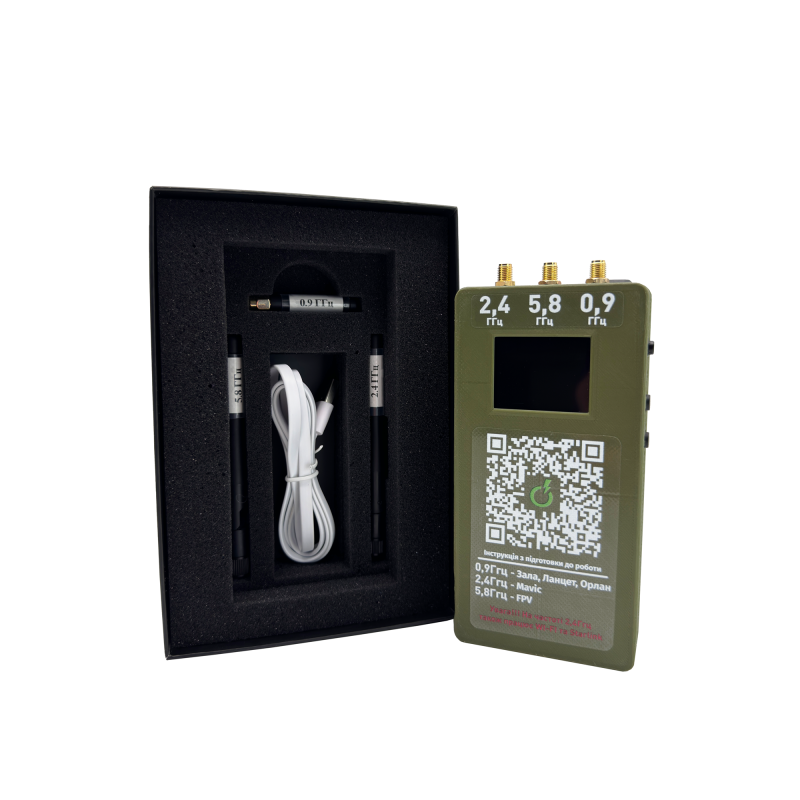

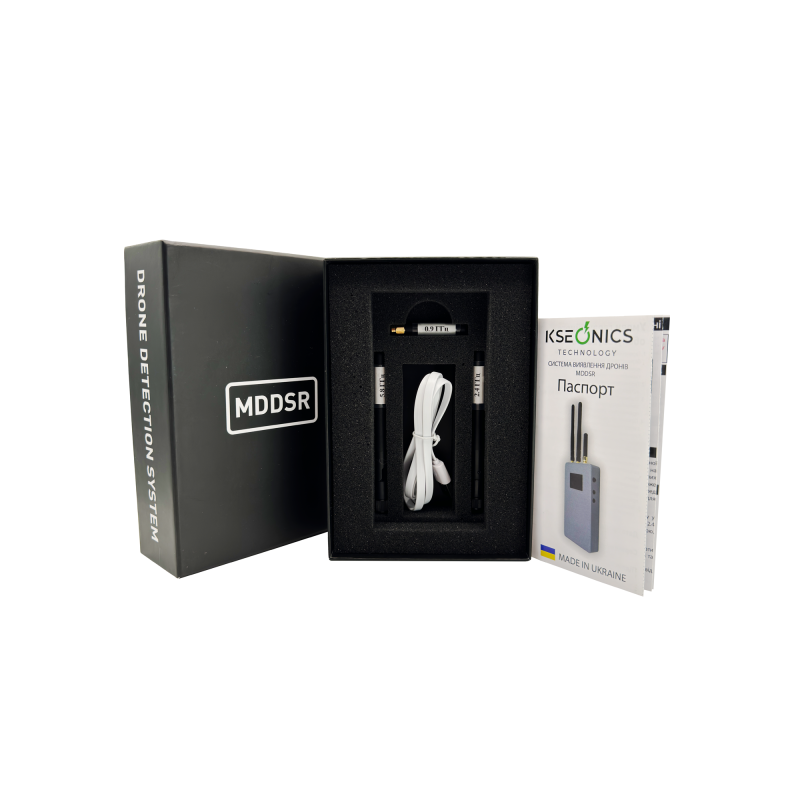

Package Contents
- Drone detection device MDDSR1;
- Omnidirectional antennas — 3 pcs.;
- USB Type-C charging cable;
- User manual and warranty card.
The MDDSR1 "Kseon-M" from Kseonics Technology — a reliable tool for prompt detection of unmanned aerial vehicles in civilian and specialized scenarios: object protection, event security, field operations, and response to approaching UAVs. Thanks to its wide frequency coverage, omnidirectional antennas, and combination of indications, it ensures quick detection and informs the operator of a potential threat. Product type: Drone Detector. Brand: Kseonics Technology.
