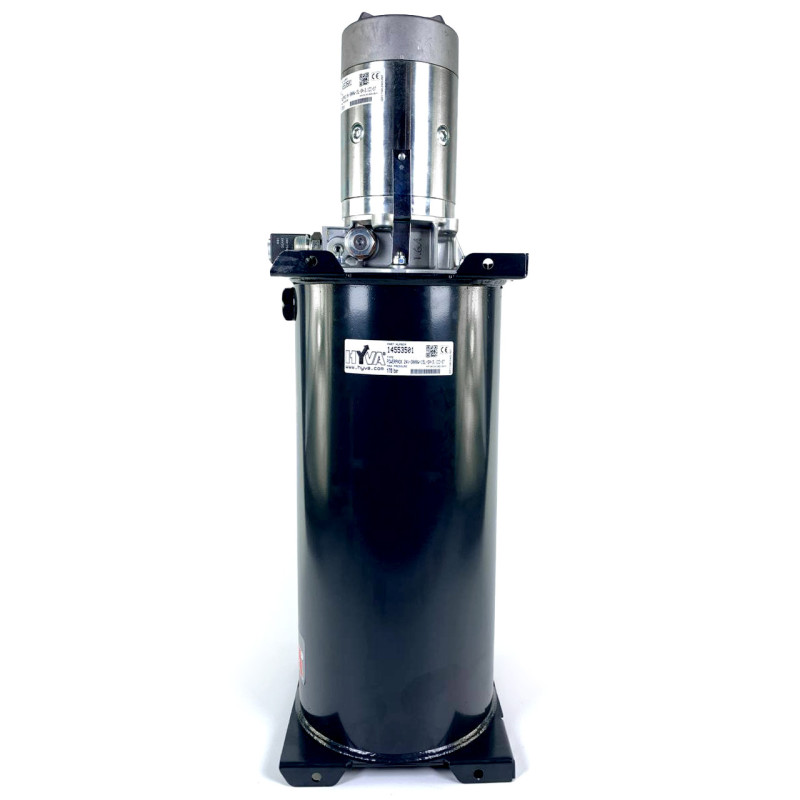

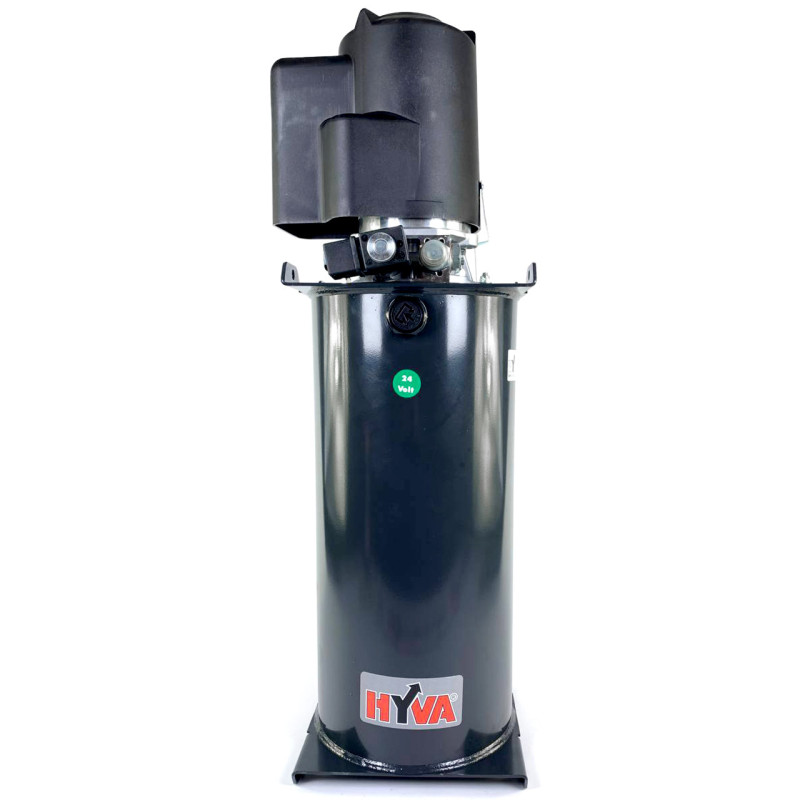

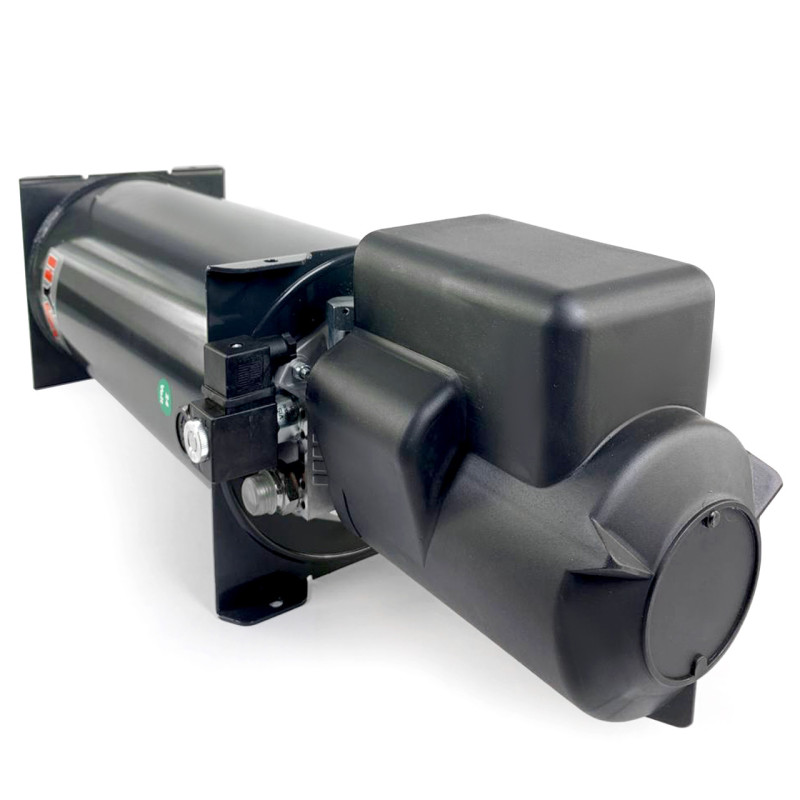

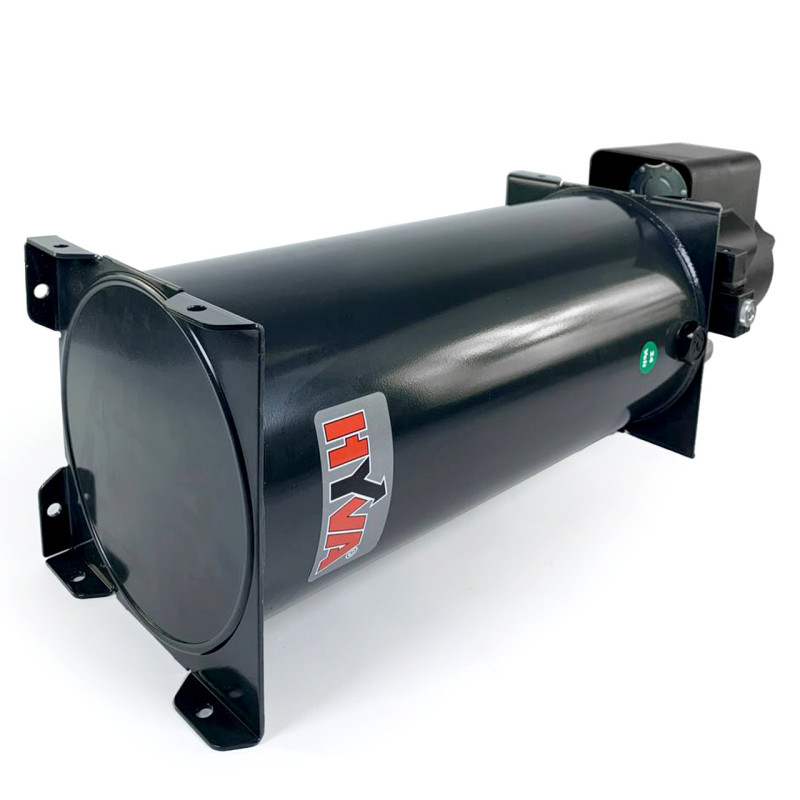

Hyva 14553501 Power Pack for Body Lift (24 V, 3.0 kW, with 15 L Tank)
The Hyva model 14553501 power pack is designed for lifting the bodies of small dump trucks and other vehicles with an operating weight of up to 3 tons. It is developed for use in semi-trailer, trailer, and special equipment systems powered by a 24 V on-board network. The power pack ensures reliable, precise, and stable operation of the hydraulic system during body lifting and lowering operations.
Description and Advantages
The Hyva 14553501 is equipped with a 3.0 kW electric motor and a gear pump with a displacement of 3.1 cm3/rev, which guarantees optimal working fluid flow and efficient operation under load. A body lift limiter (knock-off) is included, enhancing safety and ease of use. The motor's rotation direction is right (CW – clockwise), meeting the requirements of most installation schemes.
Technical Specifications
- Manufacturer: Hyva

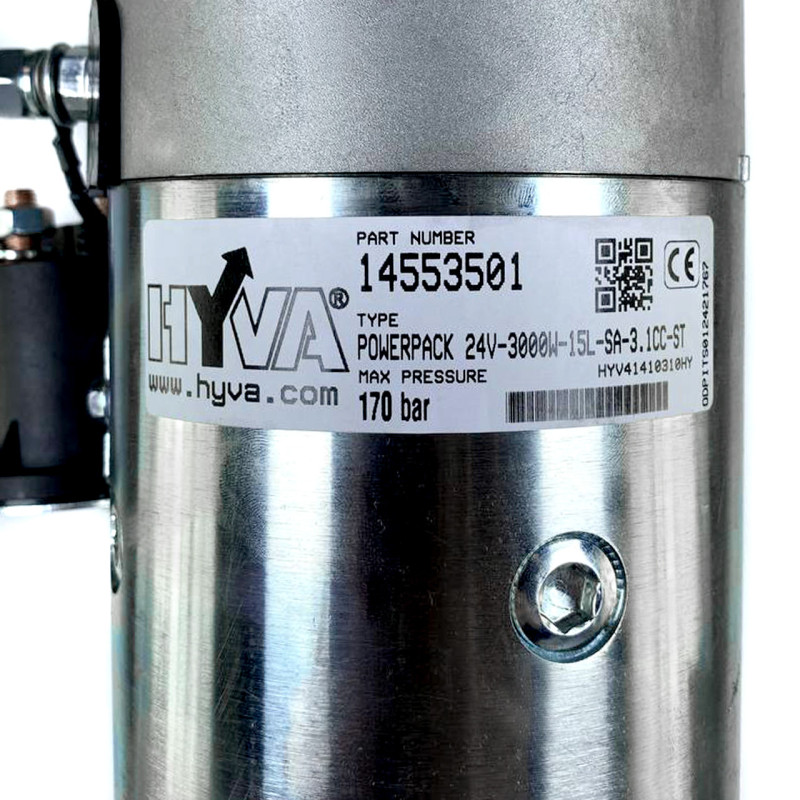

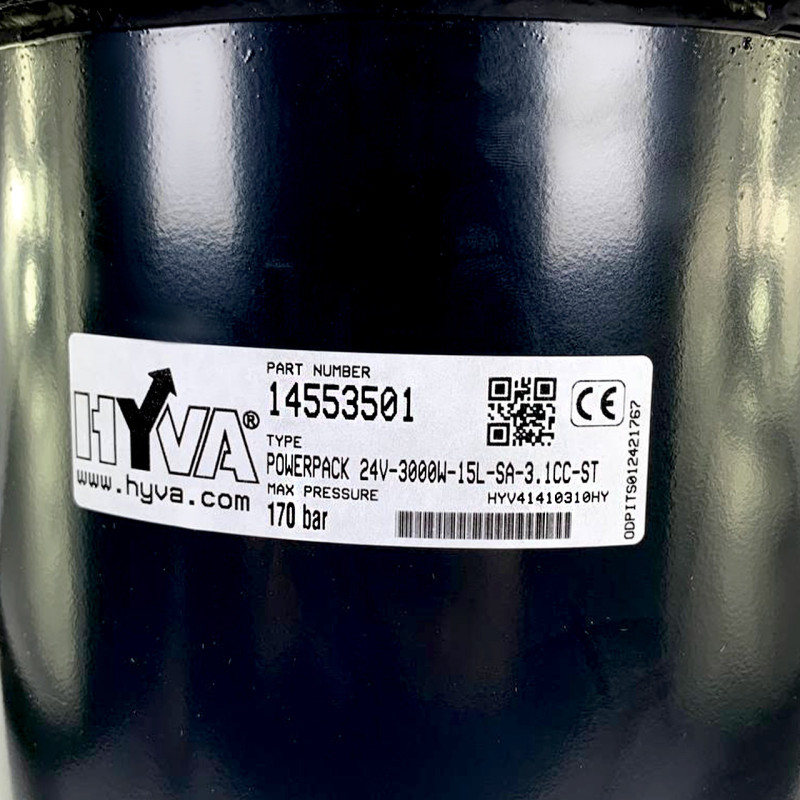

- Model: 14553501
- Voltage: 24 V
- Rated Power: 3000 W (3.0 kW)
- Pump Displacement: 3.1 cm3/rev
- Tank Volume: 15 L
- Maximum Pressure: 170 bar
- Current at Max Pressure: 165 A
- Flow at 100 bar: 7.2 L/min
- Connection: 1/2" BSPOT
- Motor Rotation Direction: Right (CW)
This power pack is ideally suited for use in hydraulic systems of small dump trucks where compactness, reliability, and energy efficiency are important. The powerful electric motor combined with the 3.1 cm3/rev pump provides the necessary pressure up to 170 bar and maintains a stable flow of 7.2 L/min at 100 bar, ensuring fast and controlled body lifting. The design with a 15-liter tank provides a sufficient supply of working fluid for extended operation in field conditions.
Dimensions (for installation)
A - 720 mm, B - 452 mm, C - 472 mm, D - 490 mm
The Hyva 14553501 combines quality and reliability from a renowned hydraulic equipment manufacturer. If you wish to adapt the power pack to a specific body type or vehicle, it is recommended to consult with specialists to select optimal fasteners and pipelines.
Product Category: Hydraulic Systems, Power Packs. Use the Hyva 14553501 to enhance the productivity and safety of your dump truck or trailer.
