Product Code: FA94-4978-94
3 058 грн.
Buy this product in 1 click:
Main specifications
AVR voltage stabilization function: is
Battery life, min: 10-15
Built-in battery capacity, Ah: 7
Frequency range, Hz: 50/60
Height, mm: 140
All specifications
We will deliver this product:
Payment
Description

The LPM-UL625VA line-interactive uninterruptible power supply (UPS) is used to stabilize the voltage in the power grid for household, office, or industrial equipment. Type - line-interactive UPS with an approximated sine wave. This model is an ideal solution (in terms of price-quality ratio) for connecting to kitchen or household appliances, TV or audio equipment (including security video surveillance devices), as well as lighting fixtures.
Power consumption - 625/437VA/W.
The operating time of the LPM-UL625VA UPS in autonomous mode (from the battery) is 10-15 minutes. The switching time to autonomous mode is 4-6 ms.
The LPM-UL625VA UPS stabilizes the input voltage in the network in the range of 145-290V to an output voltage of 220±10%. Frequency range - 50/60 Hz.

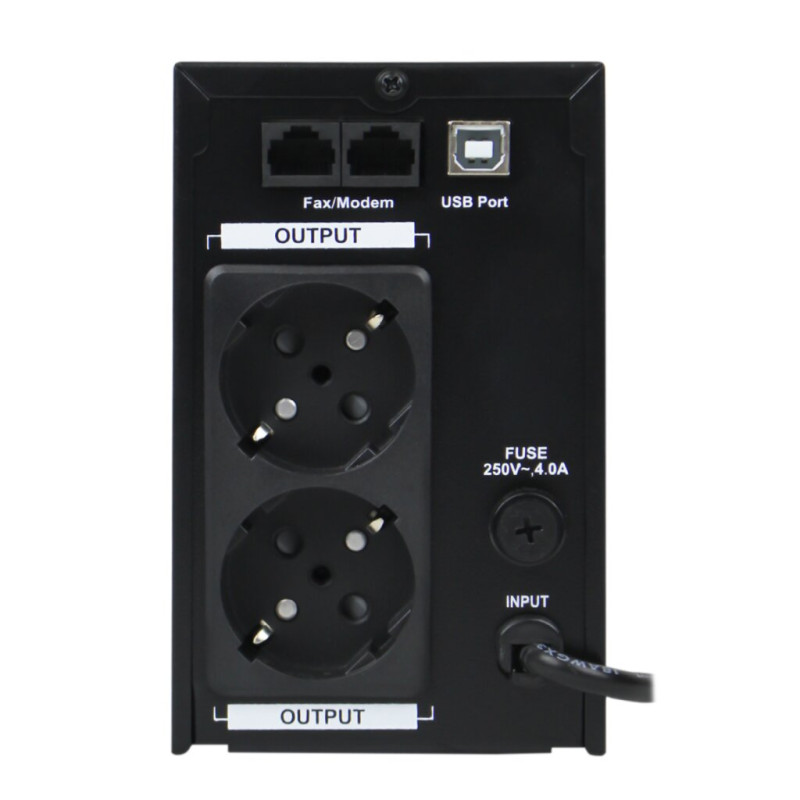

Network connection type - Euro plug. For connecting electrical appliances, the external side of the LPM-UL625VA UPS housing has 2 European-type sockets. Interface for connecting to a personal computer - USB.

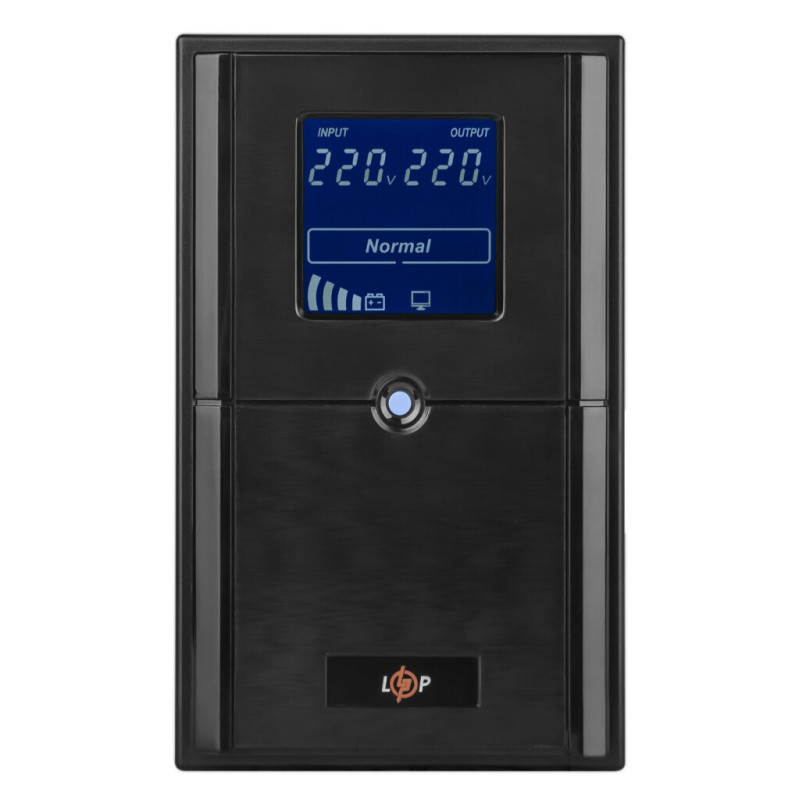

On the outside of the housing, there is an LCD indicator that shows the operating mode of the device (from the mains or from the battery). Dimensions - xx mm. Housing material - metal. Housing color - black.

Specifications
AVR voltage stabilization function is
Battery life, min 10-15
Built-in battery capacity, Ah 7
Frequency range, Hz 50/60
Height, mm 140
Housing material metal
Indication type LCD
Input voltage range, V 145-290
Length, mm 310
Network Connection Type Europlug
Nominal battery voltage, V 12
Number of built-in batteries, pcs 1
Number of Outputs 2
Operating temperature, °C 0 ~ +40
Output voltage waveform Approximated sine wave
Output voltage waveform from battery Approximated sine wave
Output voltage, V 220±10%
Output waveform from mains pure sine wave
PC connection interface USB
Power, VA/W 625/437
Protection against short circuit, voltage surges, overload, discharge, overcharge of batteries
Switching time, ms 4-6
Type line-interactive
Type of UPS load connection Euro socket
Volume, m³ 0.009964
Warranty, months 24 - for UPS, 12 - for battery
Weight, kg 4.6
Width, mm 85
Color black
