Product Code: FA94-3172-94
2 173 грн.
Buy this product in 1 click:
Main specifications
AVR voltage stabilization function: is
Battery life, min: 10-15
Built-in battery capacity, Ah: 7
Frequency range, Hz: 50/60
Height, mm: 140
All specifications
We will deliver this product:
Payment
Description

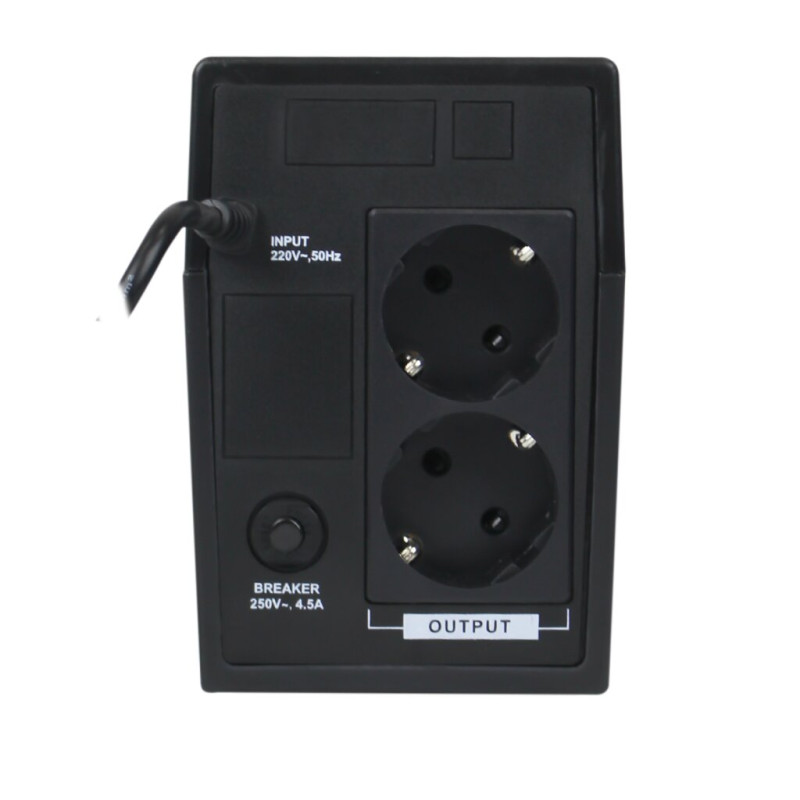

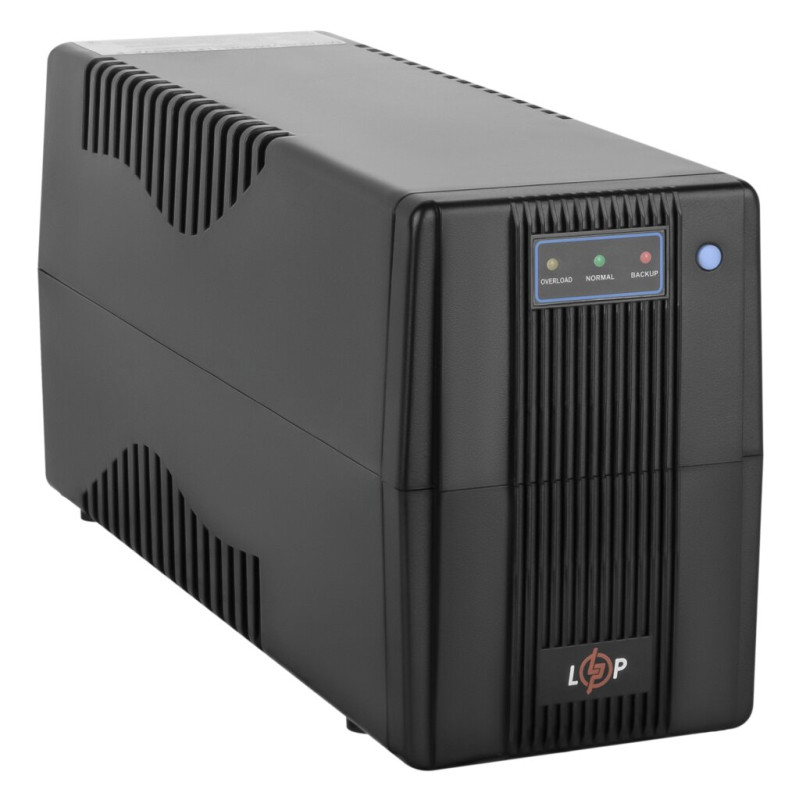

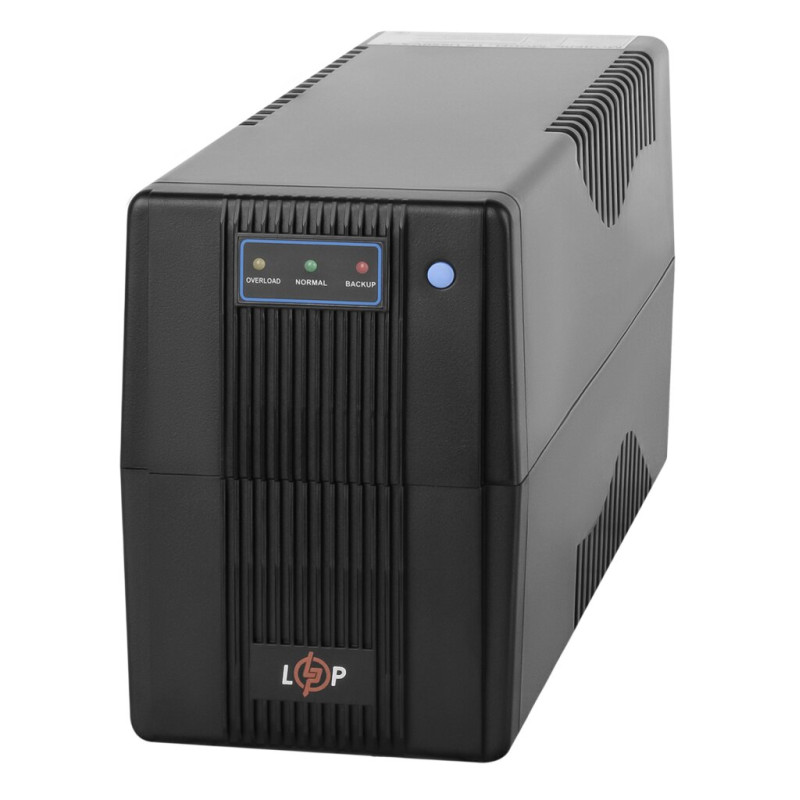

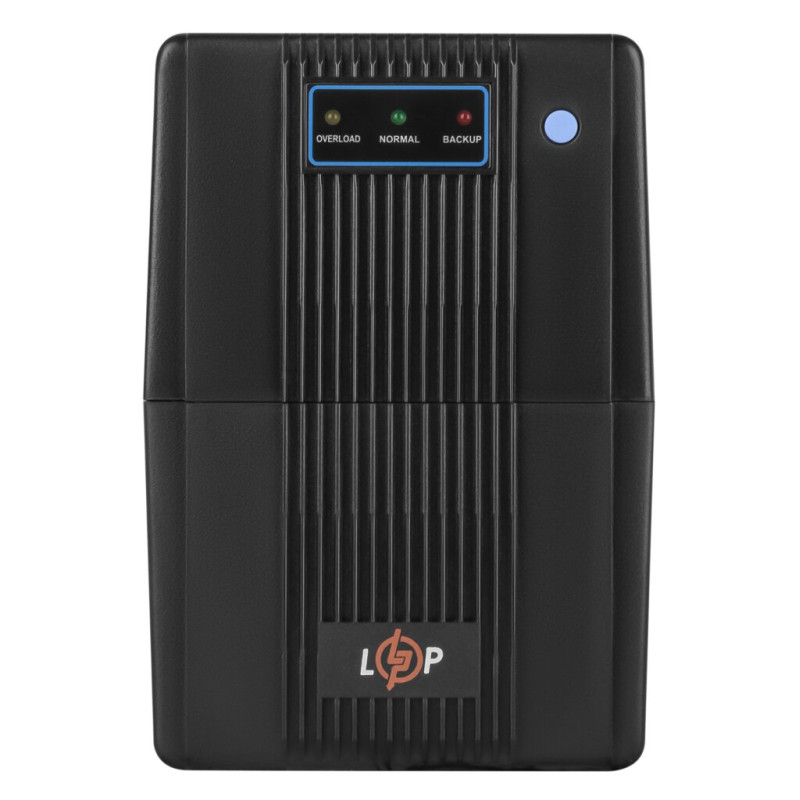

The line-interactive uninterruptible power supply LPM-700VA-P has a power consumption of 700VA/490W. It is used to stabilize voltage in the electrical network and for short-term autonomous operation of household, office, or industrial equipment in case of power outages. The operating time of the line-interactive UPS LPM-700VA-P in autonomous mode (from the battery) is 10-15 minutes. The switching time to autonomous mode is 4-6 ms. The UPS LPM-700VA-P operates with an input voltage range of 145-290V. The output voltage is 220V±10%. The frequency range is 50/60 Hz. The output voltage waveform is an approximated sine wave. The UPS is recommended for use with television or audio equipment (including security video surveillance devices), kitchen and household appliances, as well as lighting fixtures. The network connection type is a Euro plug. For connecting electrical appliances, the exterior of the LPM-700VA-P UPS housing has two sockets (Euro type). The housing material is high-quality plastic. The housing color is black. On the exterior of the housing, in addition to the plug and sockets, there is an LCD indicator that shows the operating mode of the LPM-700VA-P (from the mains or from the battery). Dimensions are 310x90x140 mm. Weight is 4.1 kg.

Specifications
AVR voltage stabilization function is
Battery life, min 10-15
Built-in battery capacity, Ah 7
Frequency range, Hz 50/60
Height, mm 140
Housing material Plastic
Indication type LED
Input voltage range, V 145-290
Length, mm 280
Network Connection Type Europlug
Nominal battery voltage, V 12
Number of built-in batteries, pcs 1
Number of Outputs 2
Operating temperature, °C 0 ~ +40
Output voltage waveform Approximated sine wave
Output voltage waveform from battery Approximated sine wave
Output voltage, V 230±10%
Output waveform from mains pure sine wave
PC connection interface no
Power, VA/W 700/490
Protection against short circuit, voltage surges, overload, discharge, overcharge of batteries
Switching time, ms 2-6
Type line-interactive
Type of UPS load connection Euro socket
Volume, m³ 0.009408
Warranty, months 24 - for UPS, 12 - for battery
Weight, kg 4.1
Width, mm 100
Color black
