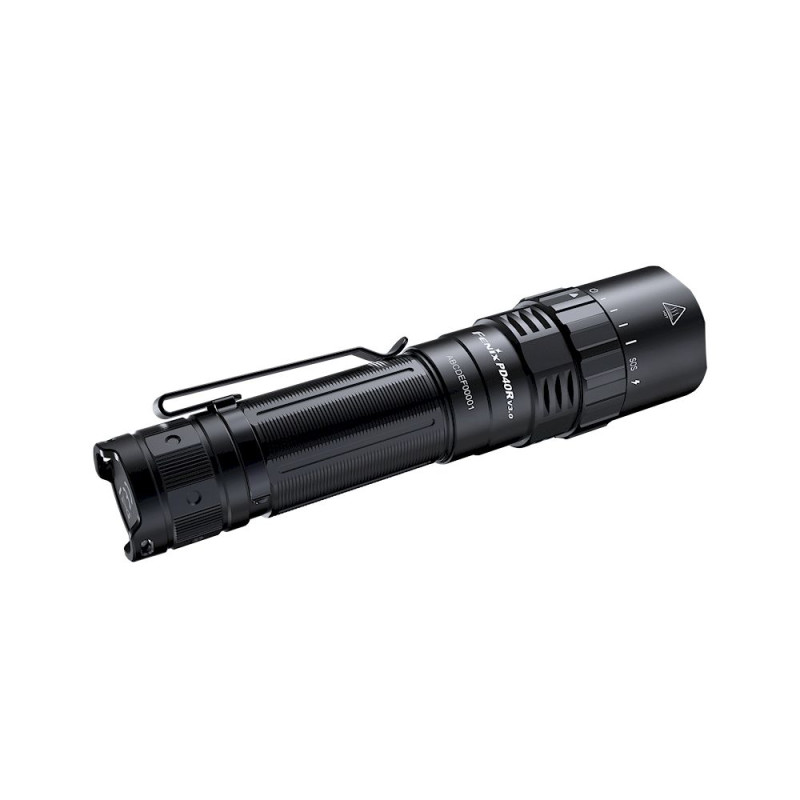

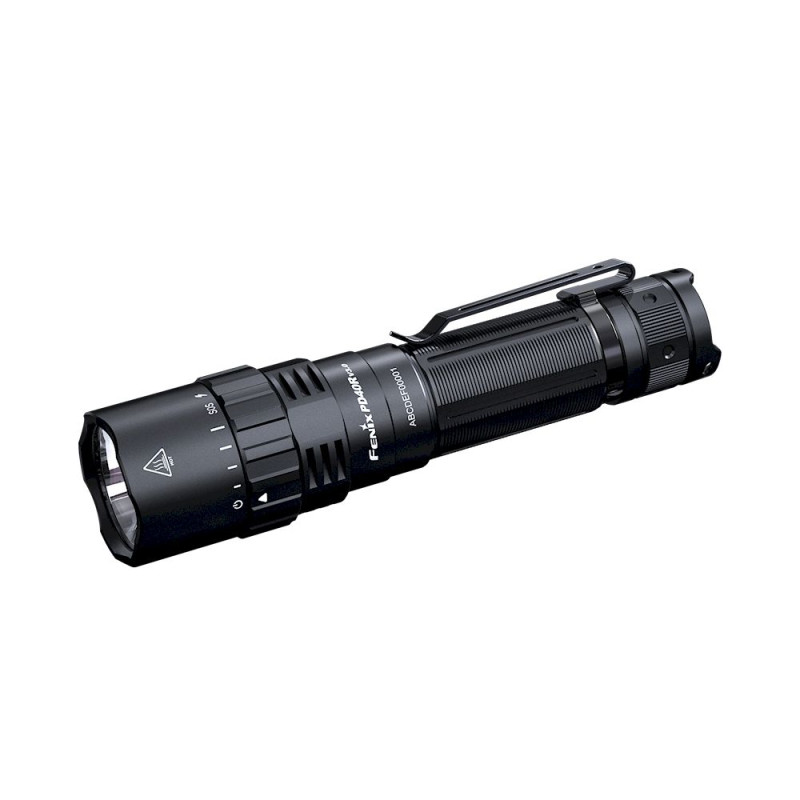

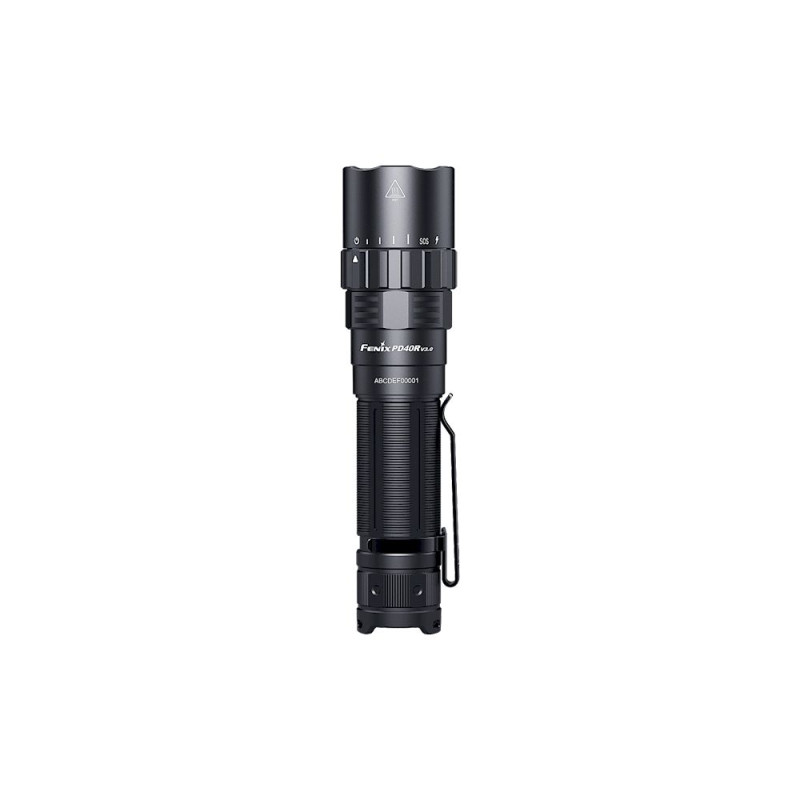

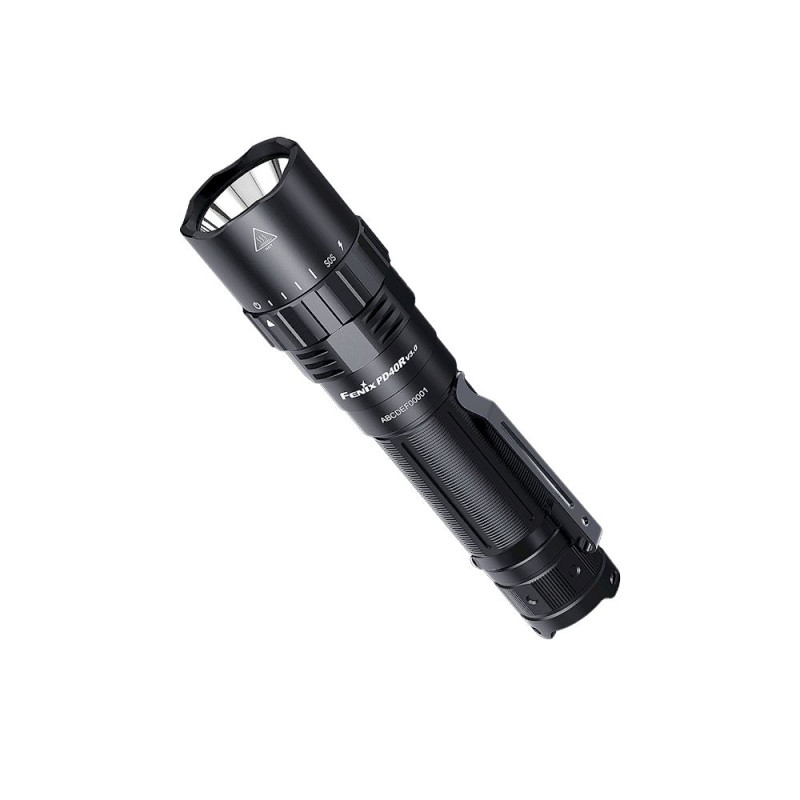

Fenix PD40R V3.0 Handheld Flashlight — Overview

The Fenix PD40R V3.0 is an updated third-generation handheld flashlight model, featuring increased beam distance (up to 500 meters) and an additional flashing SOS mode alongside the strobe. Compared to the V2.0 version, the beam distance has increased by almost a quarter, and a Luminus SFT70 LED with a color temperature of 6500K and a guaranteed lifespan of at least 50,000 hours is used to create the long-range light beam.

Light Modes and Illumination Characteristics

The flashlight offers six operating modes, which are conventionally divided into constant and flashing: from 30 to 3000 lumens in constant modes, and SOS and strobe modes in flashing. Mode specifications:

• Turbo: 3000 lumens – 60,954 candelas – 500 meters – 2 hr 40 min;
• High: 1000 lumens – 22,648 candelas – 300 meters – 3 hr 10 min;
• Medium: 350 lumens – 7,684 candelas – 175 meters – 8 hr 30 min;
• Low: 30 lumens – 612 candelas – 50 meters – 89 hr;
• SOS: 350 lumens;
• Strobe: 3000 lumens.

When using Turbo mode, it is important to consider operation in a combined mode with automatic overheating protection: to protect the electronics, after a certain time at maximum power, less bright modes are activated if necessary, and after cooling, the device can operate at full power again.

Control and Design

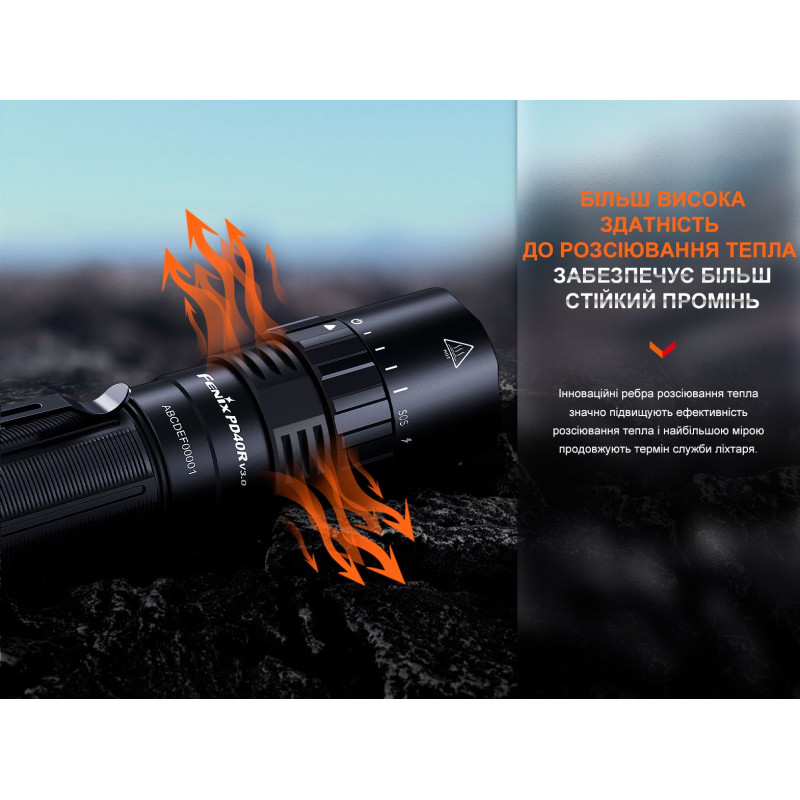

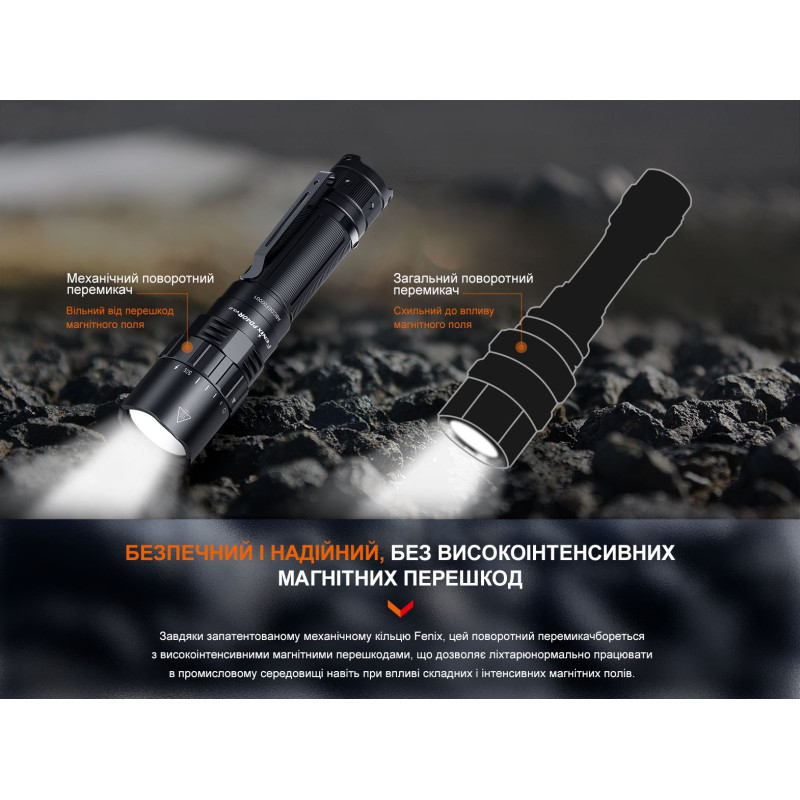

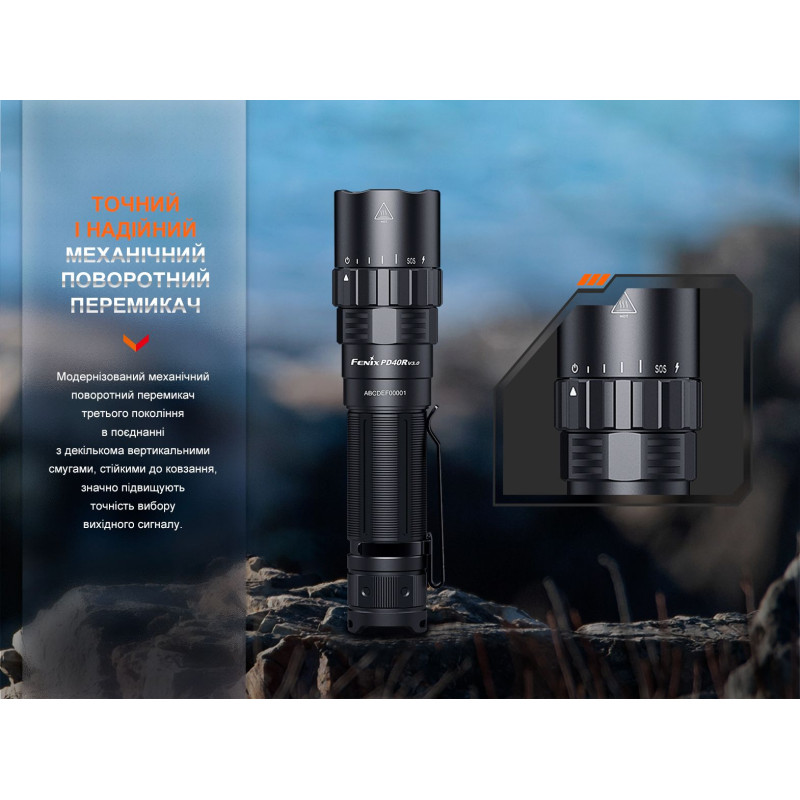

Control is implemented using a rotating mechanical switch — simple step-by-step rotation of the ring switches modes sequentially. The body is made of durable A6061-T6 aluminum with premium HAIII anodizing, and CNC machining ensures structural precision. In the head part, under the switch, there are deep cooling fins for heat dissipation when operating at high brightness levels.

Power and Charging

Power is provided by one 21700-size Li-ion battery; the package includes a proprietary ARB-L21-5000 V2.0 battery, designed for high current consumption. Important: the ARB-L21-5000 version without the V2.0 designation is not suitable for the PD40R V3.0 due to the flashlight's operating current exceeding 14 A. The flashlight's operating voltage is 2.8 V - 4.2 V. The model is equipped with a waterproof USB Type-C charging port, a charging cable is included, and full charging takes about 3 hours; thanks to Type-C, the device can be charged from a portable Power Bank in the field.

Protection, Operating Conditions, and Compatibility

The Fenix PD40R V3.0 has an IP68 protection rating — it is dustproof and capable of operating after immersion in water. The stable operating temperature range is from -35°C to +45°C. The impact resistance of the design corresponds to a drop from a height of up to 1.5 meters. The flat tail design allows the flashlight to be stood vertically. The model is compatible with proprietary accessories, including the Fenix AOD-M diffusion filter and the Fenix AOF-M red light filter.

Dimensions, Weight, and Package Contents

Body dimensions: 143 x 34 x 26 mm; weight with battery — 198 g. For carrying, a holster with a belt loop, a clip, and a lanyard are provided. The package includes: Fenix PD40R V3.0 flashlight, spare O-ring, ARB-L21-5000 V2.0 battery, USB Type-C charging cable, holster, lanyard, warranty card, and user manual. Package dimensions: 174 x 100 x 45.5 mm.

Key Specifications

• Type: handheld flashlight for everyday use;
• Color: black;
• LED: Luminus SFT70, brightness up to 3000 lumens;
• Color temperature: 6500K;
• Beam distance: up to 500 meters;
• Number of modes: 6 (including SOS and strobe);
• Control type: rotating mechanical switch;
• Overheat protection: yes;
• Battery included: Li-ion Fenix ARB-L21-5000 V2.0;
• Operating voltage: 2.8 V - 4.2 V;
• Charging port: USB Type-C (waterproof);
• Charging time: about 3 hours;
• Body: A6061-T6 aluminum with HAIII anodizing;
• Cooling: deep fins in the head of the body;
• Operating temperature range: -35°C to 45°C;
• Protection rating: IP68;
• Impact resistance: 1.5 m;
• Body dimensions: 143 x 34 x 26 mm;
• Weight: 198 g (with battery);
• Package dimensions: 174 x 100 x 45.5 mm.

The Fenix PD40R V3.0 is a reliable choice for camping, hiking, and everyday use where beam distance, power, and device durability are important. It combines premium body materials, a modern Luminus LED, and a convenient USB-C charging system, making it a versatile solution for field conditions.
