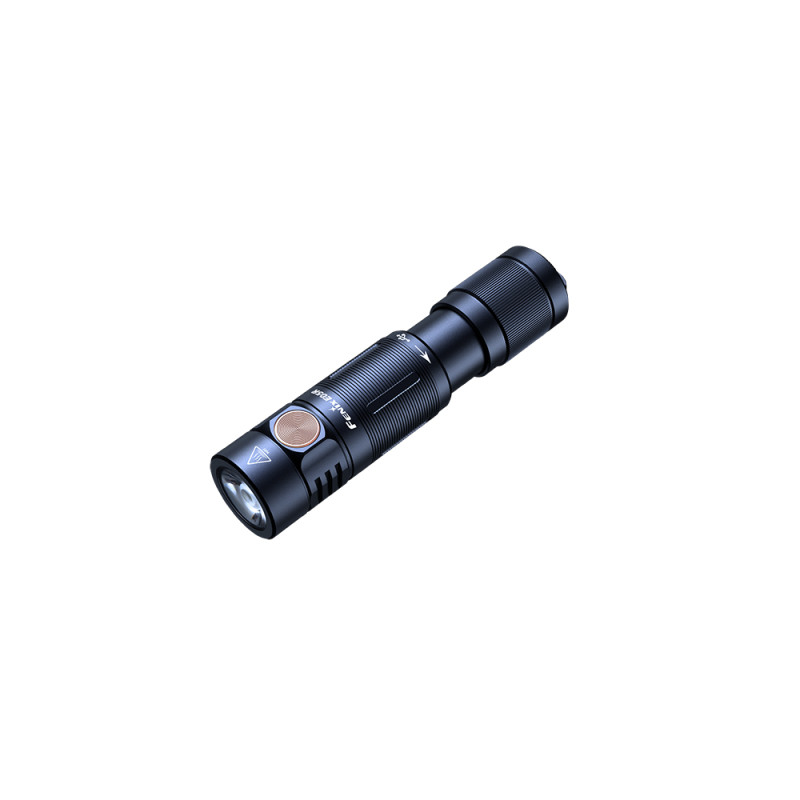

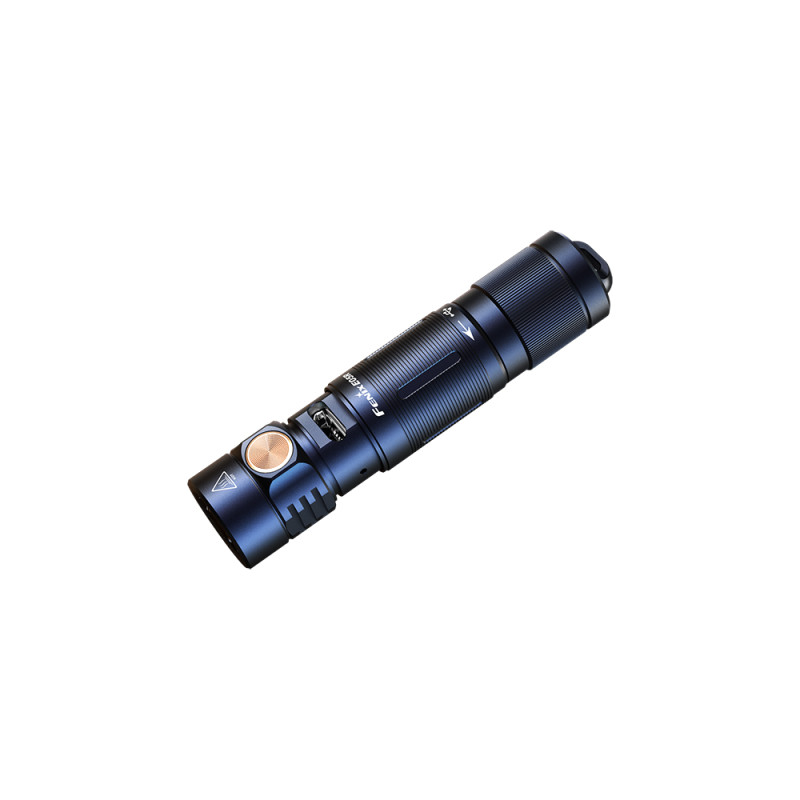

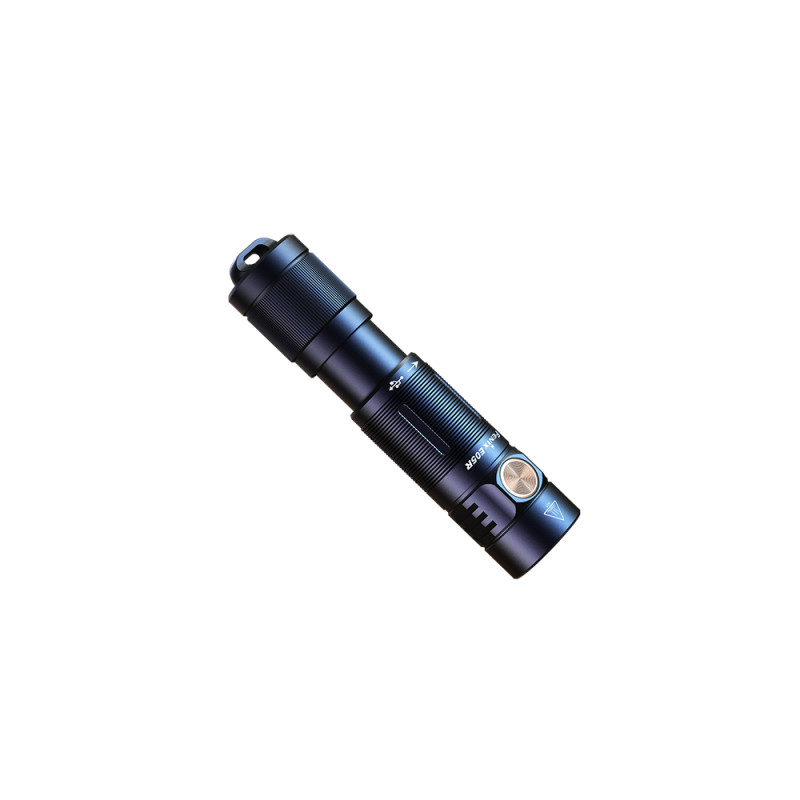

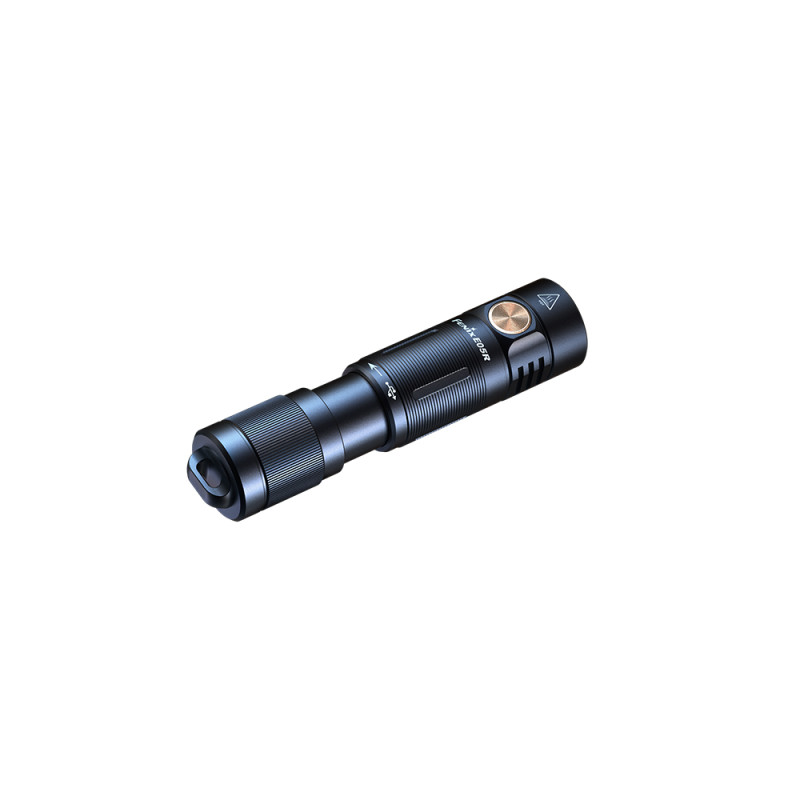

Fenix E05R Handheld Flashlight (Black)
The compact and ultralight Fenix E05R keychain flashlight is an ideal companion for camping and everyday use. This Fenix brand product is available in three body colors: black, green, and bronze. The light source is a Cree XP-G2 S3 white LED, providing a maximum luminous flux of up to 400 lumens and a beam distance of up to 64 meters. It is powered by a built-in 320 mAh Li-polymer battery, rechargeable via a hidden micro-USB port. The body is made of durable A6061-T6 aircraft-grade aluminum with a premium HAIII hard-anodized finish for enhanced abrasion resistance.
Technical Specifications
| Parameter | Turbo | Max | Mid | Min |
|---|---|---|---|---|
| Brightness | 400 lumens | 150 lumens | 25 lumens | 3 lumens |
| Runtime | / | 55 minutes* | 5 hours | 30 hours |
| Distance | 64 m | 40 m | 17 m | 8 m |
| Intensity (cd) | 1046 candela | 412 candela | 72 candela | 15 candela |
| Impact Resistance | 1 m | |||
| Water Resistance | IP68 | |||
| Dimensions | 68 mm (length) × 15.3 mm (head diameter) × 15 mm (body diameter) | |||
| Weight | 24 g (without battery) | |||
| Power Source | Built-in 320 mAh Li-polymer battery | |||
| Reflector Type | Smooth | |||
| Body Material | A6061-T6 aircraft-grade aluminum, impact-resistant plastic | |||
| Optical System | Reflector with high-efficiency lens and full reflective coating | |||

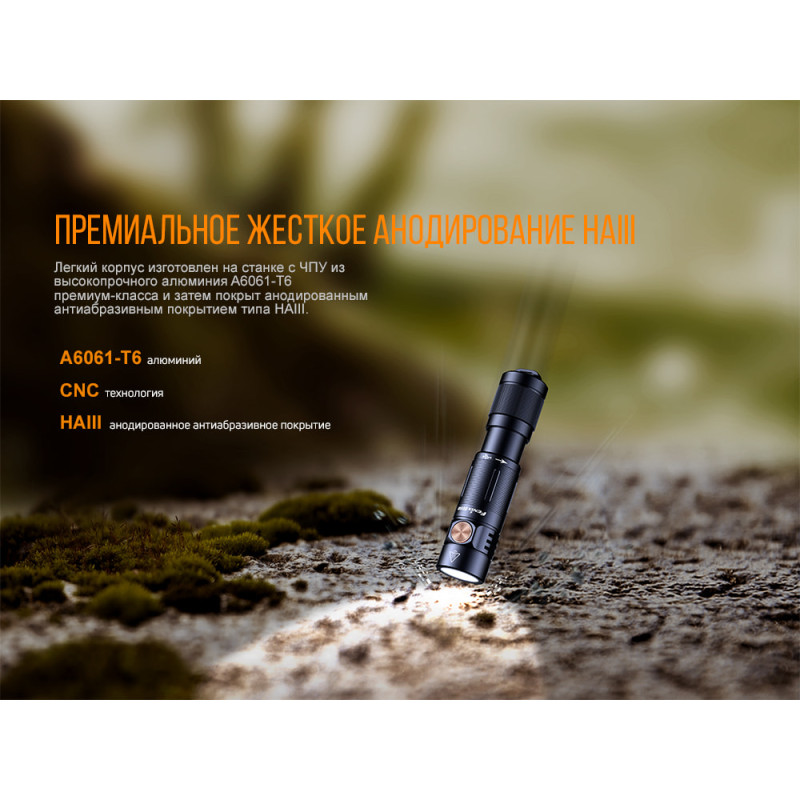

| Body Finish | HAIII hard-anodized | |||
| Packaging | Cardboard box | |||
| Activation | Button on the head | |||
| Mode Switching | Button on the flashlight body | |||

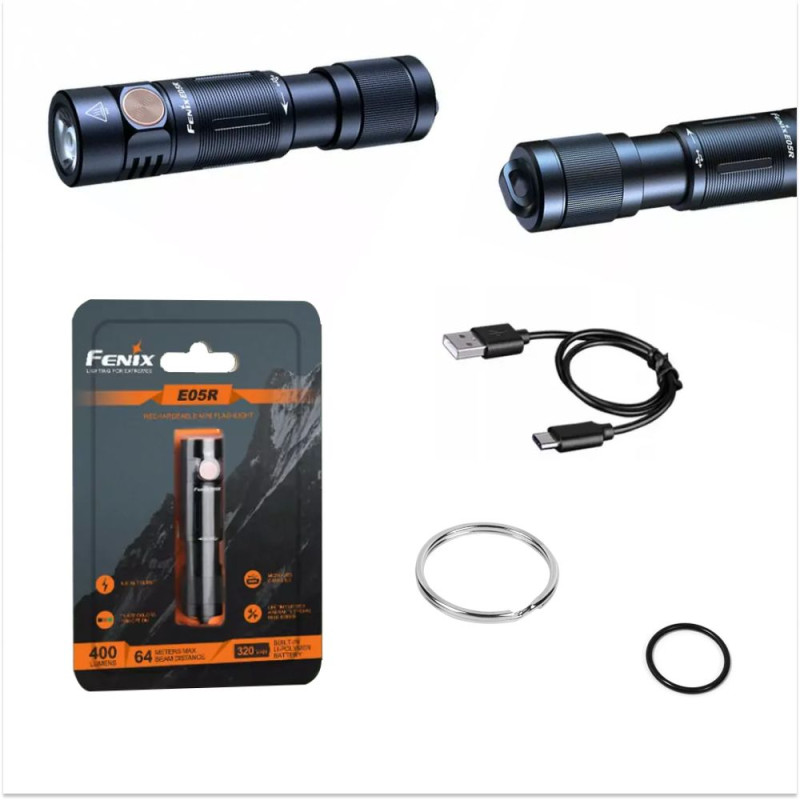

| Package Contents | Fenix E05R flashlight, Micro USB charging cable, keychain ring, spare O-ring, manual, warranty card | |||
Description and Features

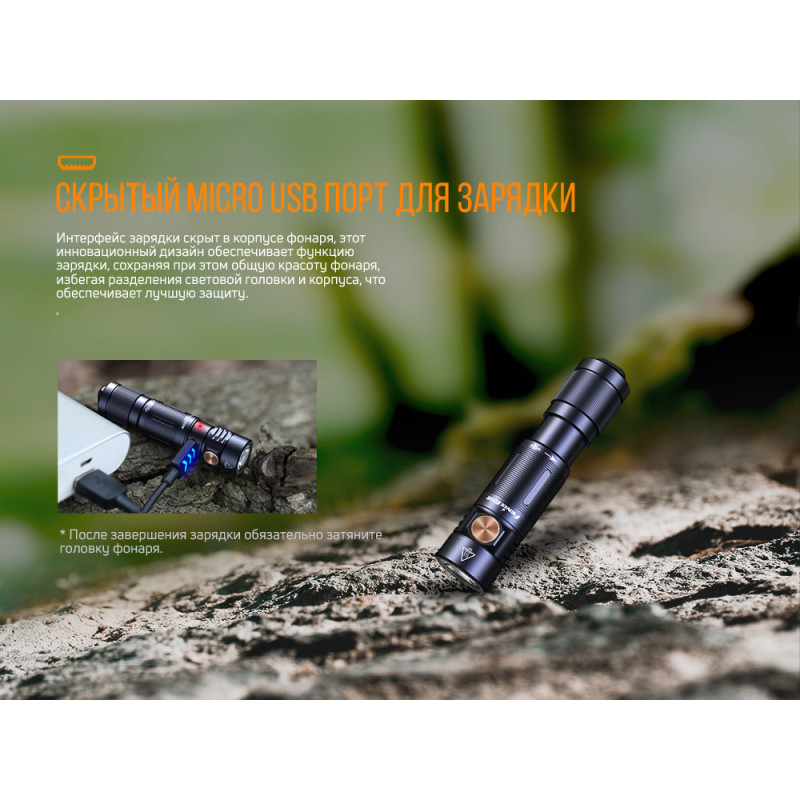

The Fenix E05R combines functionality and compactness: its small size makes it convenient to carry on a keychain or in a pocket. The hidden micro-USB port allows for quick recharging of the built-in 320 mAh battery. The metal button on the body is used for power on/off and mode switching. The flashlight provides bright white light with low weight and high structural durability.
Flashlight Operation

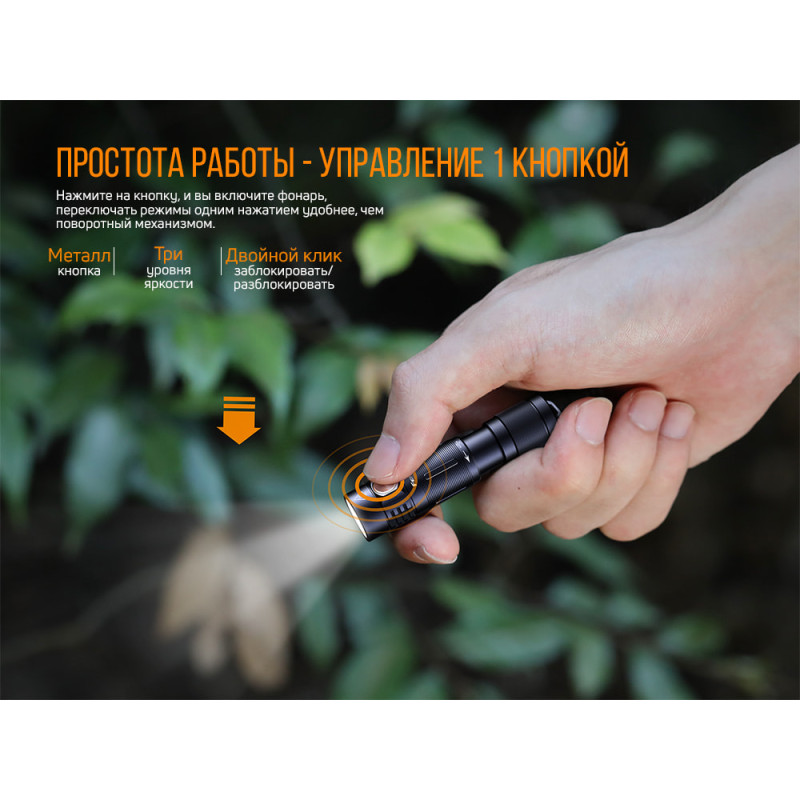

To turn on or off, press and hold the side button for approximately 0.5 seconds. To switch modes when the flashlight is on, press the side switch once (sequence: Min → Mid → Max). For momentary Turbo, press and hold the button for 1.2 seconds — if released, the flashlight will return to Min mode. To lock the device when off, double-press the button within 0.5 seconds; the flashlight will flash twice in Min mode. Unlocking is done similarly — double-press, and the flashlight will turn on in Min mode.
Operating Modes
- Turbo: 400 lumens, 64 m range, 1046 cd intensity.
- Max: 150 lumens, runtime — 55 minutes (laboratory data), 40 m range, 412 cd intensity.
- Mid: 25 lumens, runtime — 5 hours, 17 m range, 72 cd intensity.
- Min: 3 lumens, runtime — 30 hours, 8 m range, 15 cd intensity.
*The specified values are measured under laboratory conditions with a built-in 320 mAh battery at 21±3°C and 50%–80% humidity. Actual results may vary depending on operating conditions and battery status.
The flashlight features overheat protection: if the body temperature exceeds 60°C, brightness automatically decreases to prevent overheating; after cooling, the maximum mode can be resumed.

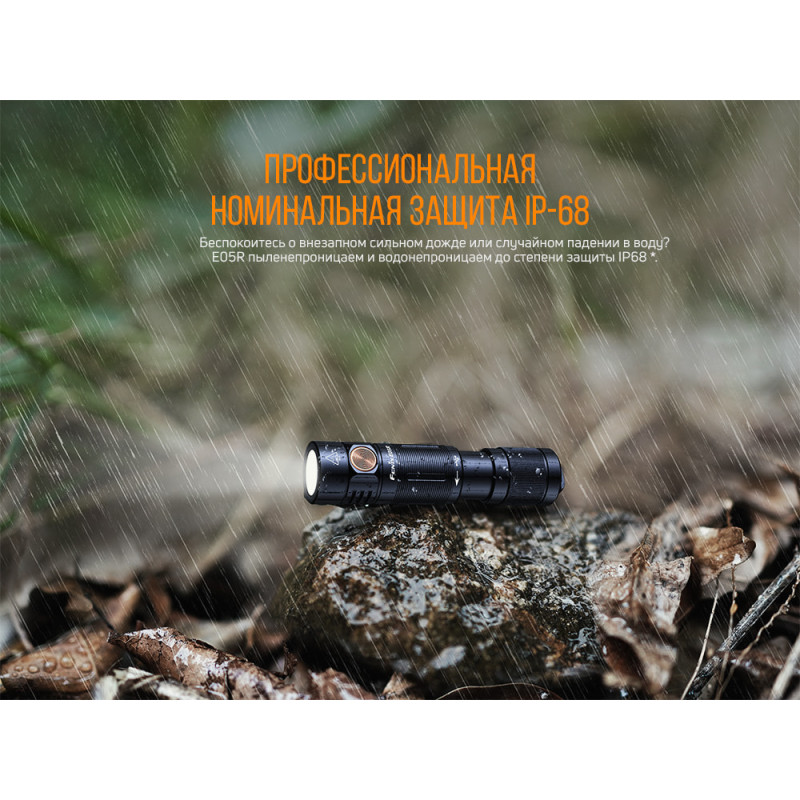

The device body is resistant to drops from 1 meter, and its weight is 24 g (without battery). The dust and water protection standard is IP68, making the Fenix E05R suitable for outdoor activities in high humidity conditions.
Specifications
- Small keychain flashlight for everyday use;

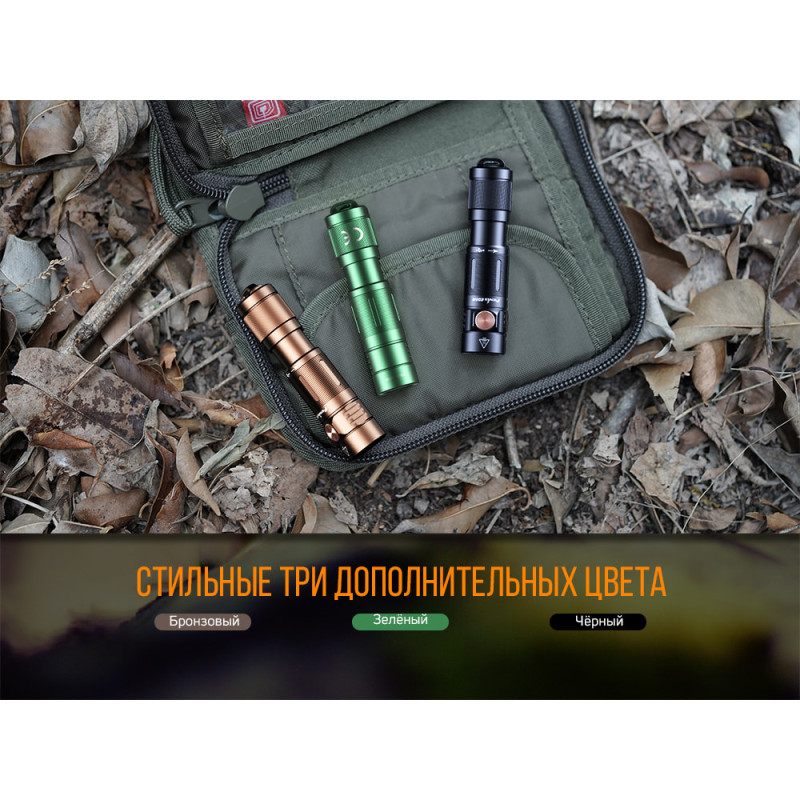

- Body colors: black, green, bronze;
- Maximum luminous flux: 400 lumens;
- Beam distance: 64 meters;
- LED: Cree XP-G2 S3 white light;
- Four operating modes;
- Charging via micro-USB port;
- 320 mAh Li-polymer battery;
- High-efficiency lens with full reflective coating;
- Overheat protection;
- Body material: A6061-T6 aluminum;
- Protection standard: IP68;
- Impact resistance: 1 m;
- Finish: HAIII hard-anodized;

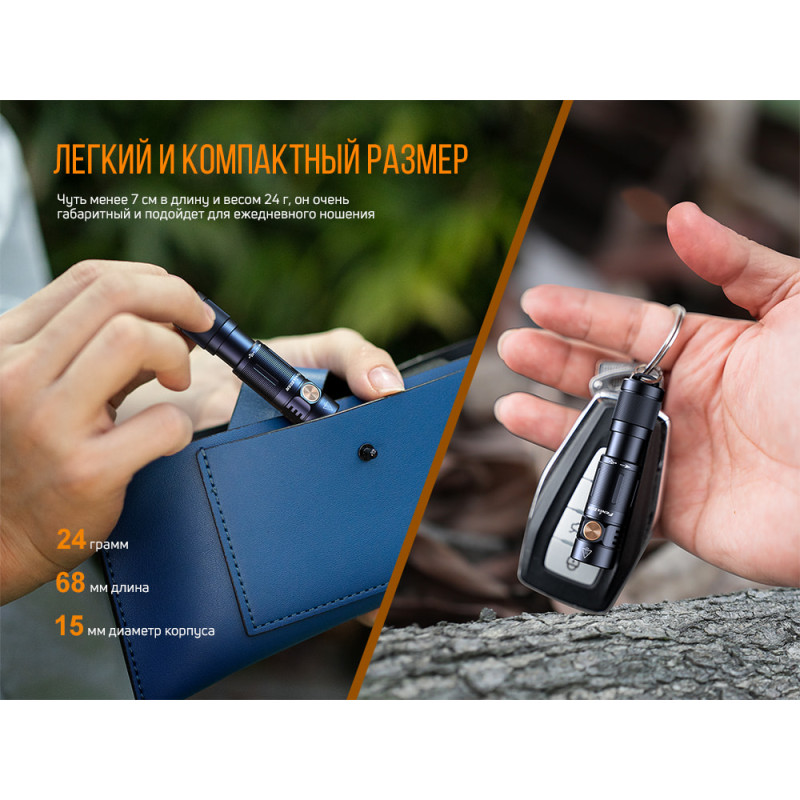

- Dimensions: 68 × 15.3 × 15 mm;
- Weight: 24 g.
Package Contents
Fenix E05R flashlight, micro-USB charging cable, keychain ring, spare O-ring, user manual, warranty card.
Official Warranty
Flashlight warranty — 2 years.
