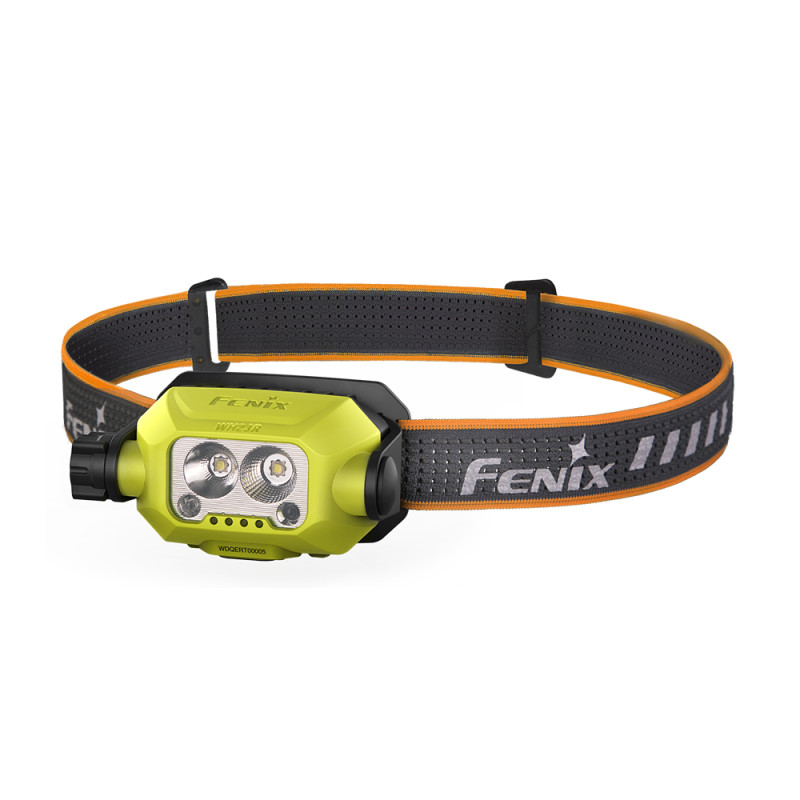

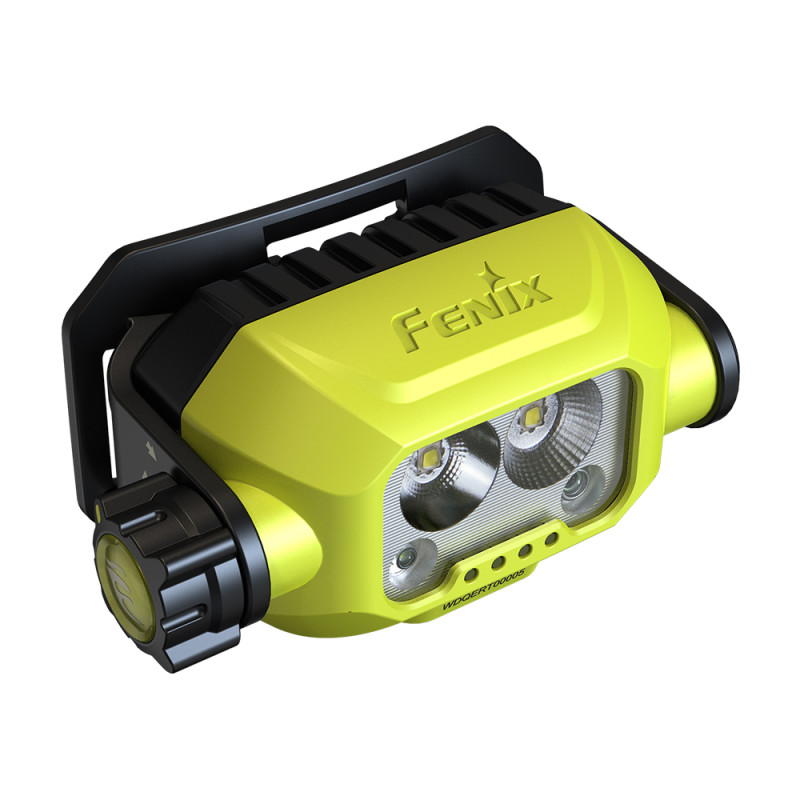

Fenix WH23R Headlamp with Contactless Sensor

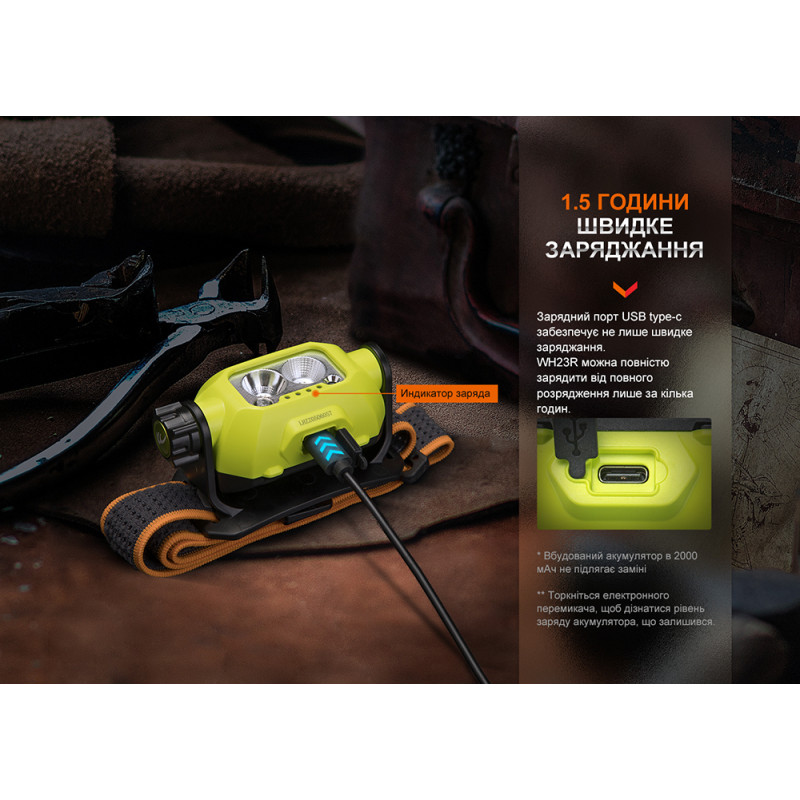

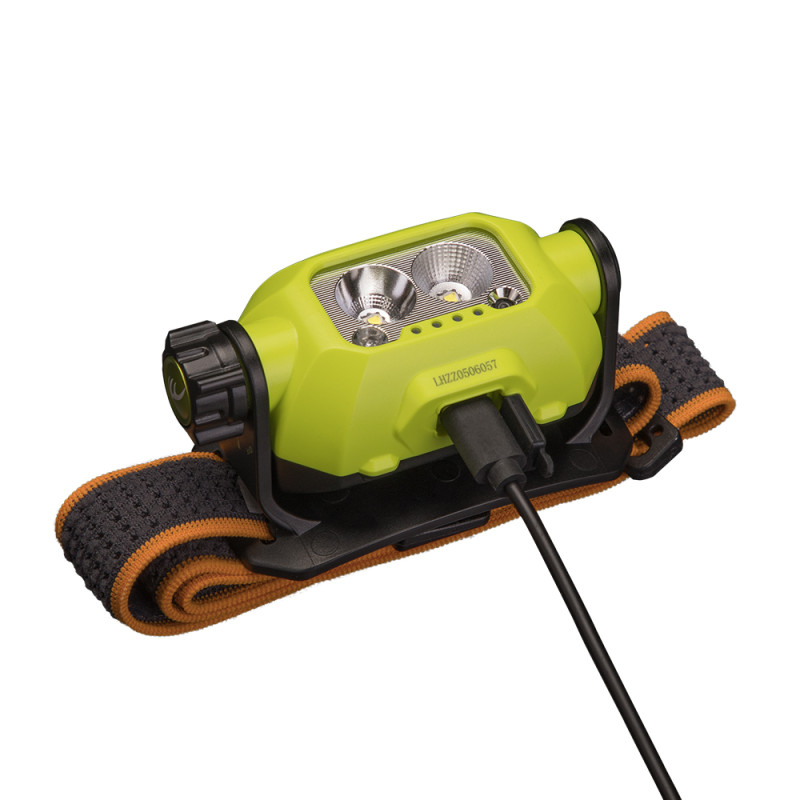

Brand: Fenix. Product type: Camping & Tourism > Camping > Camping Lanterns. The Fenix WH23R is a modern headlamp with an intelligent inductive gesture sensor that allows you to turn the light on and off with a wave of your hand, leaving your hands free for work. This feature also prevents the housing from getting dirty when in contact with soiled fingers. The model is equipped with two Lumileds LEDs with a lifespan of up to 50,000 hours, a built-in 2000 mAh battery, and a USB Type-C charging port. A full charge takes approximately 1.5 hours.
Control and Smart Features

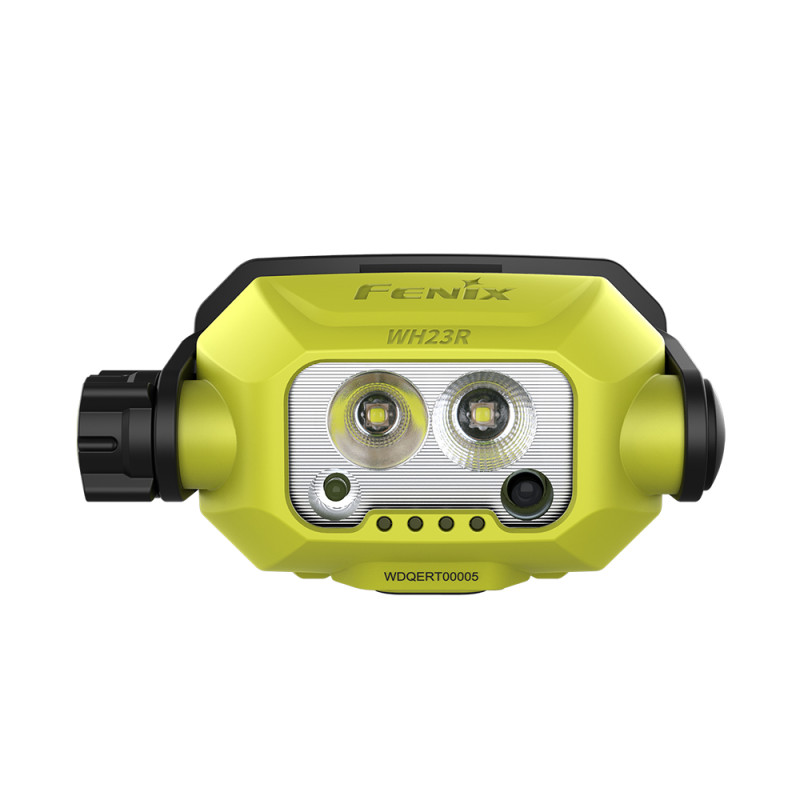

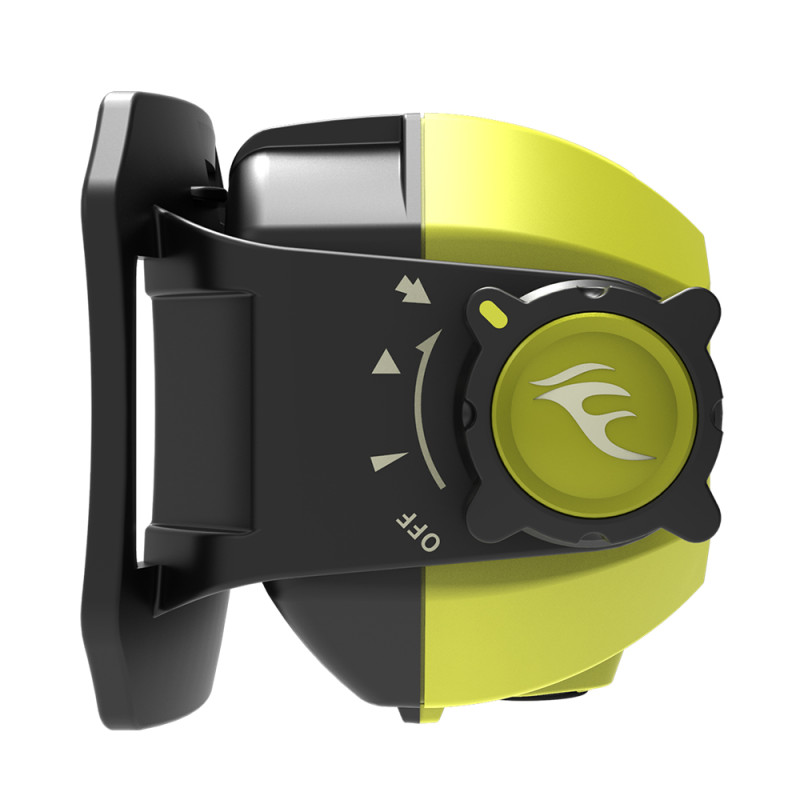

Control is implemented using rotary and electronic switches on the right side of the housing. Rotate to turn the headlamp on or off, and to change modes, rotate the rotary switch to the corresponding marking. The electronic button allows you to switch between brightness levels in high and low beam modes. The headlamp has a mode memory function — when turned on again, it restores the last used brightness level. The intelligent gesture control sensor has a blue indicator on the left side, which shows the function's status; it can be manually disabled.
Brightness Modes and Performance Characteristics

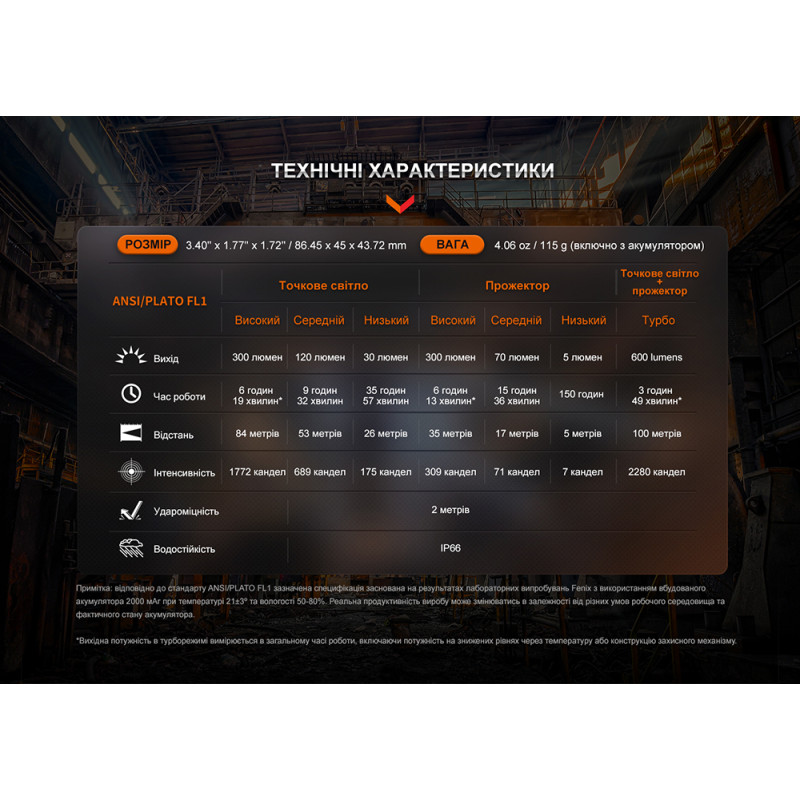

Maximum brightness in combined mode (Low + High, Turbo) — up to 600 lumens with a beam distance of 100 meters and an intensity of 2280 candelas. Runtime in Turbo — 3 hours 49 minutes. High beam has three levels: High — 300 lm (6 hr 19 min, range 84 m, 1772 cd), Med — 120 lm (9 hr 32 min, 53 m, 689 cd), Low — 30 lm (35 hr 57 min, 26 m, 175 cd). Low beam: High — 300 lm (6 hr 19 min, 35 m, 309 cd), Med — 70 lm (15 hr 36 min, 17 m, 71 cd), Low — 5 lm (150 hours, 5 m, 7 cd). Note: parameters are based on laboratory tests with a built-in 2000 mAh Li-ion battery at 21±3 °C and 50–80% humidity; actual performance may vary depending on operating conditions.
Charge Indication and Safety
Charge check: from the off state, briefly press the electronic switch — the indicators will light up for 3 seconds. Four steady blue indicators — 100–80%, three — 80–60%, two — 60–40%, one steady — 40–20%, one blue flash — critically low charge (20–1%). The headlamp has intelligent overheat protection: during prolonged operation at high brightness levels, the system automatically reduces power to prevent overheating; brightness is restored after cooling. Low voltage warning is also provided.
Design and Physical Parameters
The body is made of durable, impact- and corrosion-resistant plastic. Dimensions: 86.45 × 45 × 43.72 mm. Weight with battery: 115 g. Impact resistance to drops: 2 meters. Dust and water protection standard: IP66. Additionally, the headlamp features a perforated headband structure for better breathability and comfort during prolonged wear.
The model is compatible with several helmet types and is available for use with a headband or ALG03 and AG04 mounts (available as separate accessories).

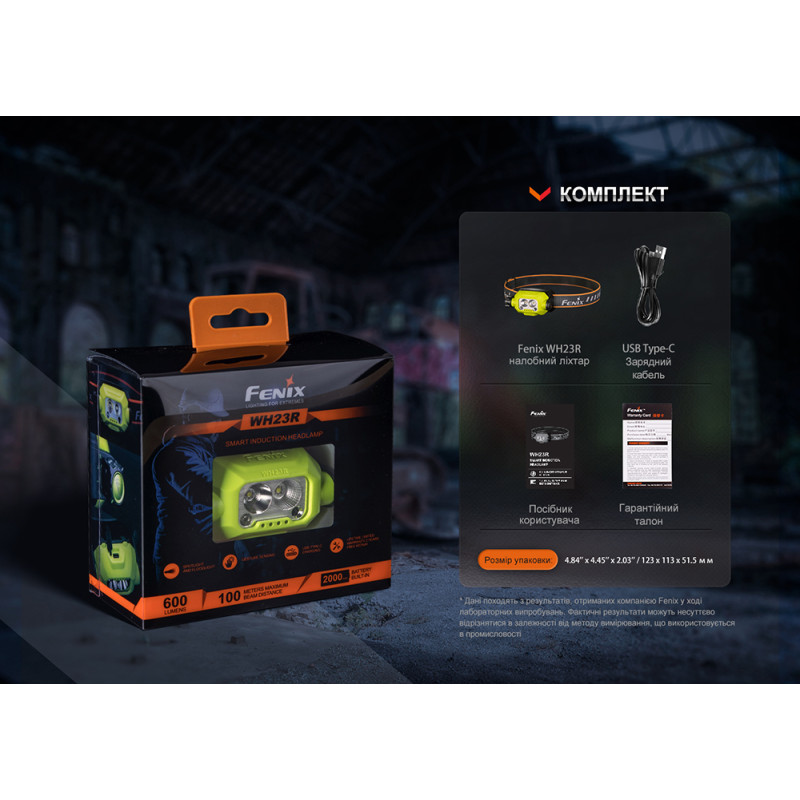

Package Contents and Warranty
- Fenix WH23R headlamp;
- USB Type-C charging cable;
- user manual;
- warranty card.
Official warranty period: 2 years from the date of purchase.
Key features: maximum brightness 600 lm; beam distance up to 100 m; Lumileds diodes (50,000 hours); built-in 2000 mAh battery; USB Type-C charging; 7 brightness modes; charge level indication; gesture recognition function; overheat protection; low voltage warning; dimensions 86.45 × 45 × 43.72 mm; impact resistance 2 m; IP66; weight 115 g.
