Fenix HM50R V2.0 Headlamp (XP-G S4, ANSI 700 lm) — Fenix
| Fenix Fenix HM50R V2.0 (XP-G S4, ANSI 700 lm) | ||||||
| ANSI | White Light | Red Light | ||||
| Turbo | High | Mid | Low | Red | Red Flash | |
| Brightness | 700 lumens | 400 lumens | 130 lumens | 30 lumens | 5 lumens | 5 lumens |
| Runtime | 1 hour* | 3 hours | 8 hours | 42 hours | 60 hours | 120 hours |
| Distance | 115 m | 86 m | 49 m | 23 m | 6 meters | 6 meters |
| Impact Resistance | 2 m | |||||
| Waterproof | IP68, submersible to 2 meters | |||||
| Size | 64 mm (Length) 36 mm (Width) | |||||
| Weight | 78 (including battery and headband) g | |||||
| Package Contents | Headlamp, ARB-L16-700P battery, spare O-ring, USB Type-C charging cable, manual, warranty card | |||||
| Power Source | 1x16340 | Reflector Type | Smooth | |||
| Body Material | Aircraft-grade aluminum | Optical System Type | Reflector | |||
| Body Coating | Premium Type III hard-anodized finish | Packaging | Cardboard box | |||
| Activation | Button on headlamp body | Mode Switching | Button on headlamp body | |||

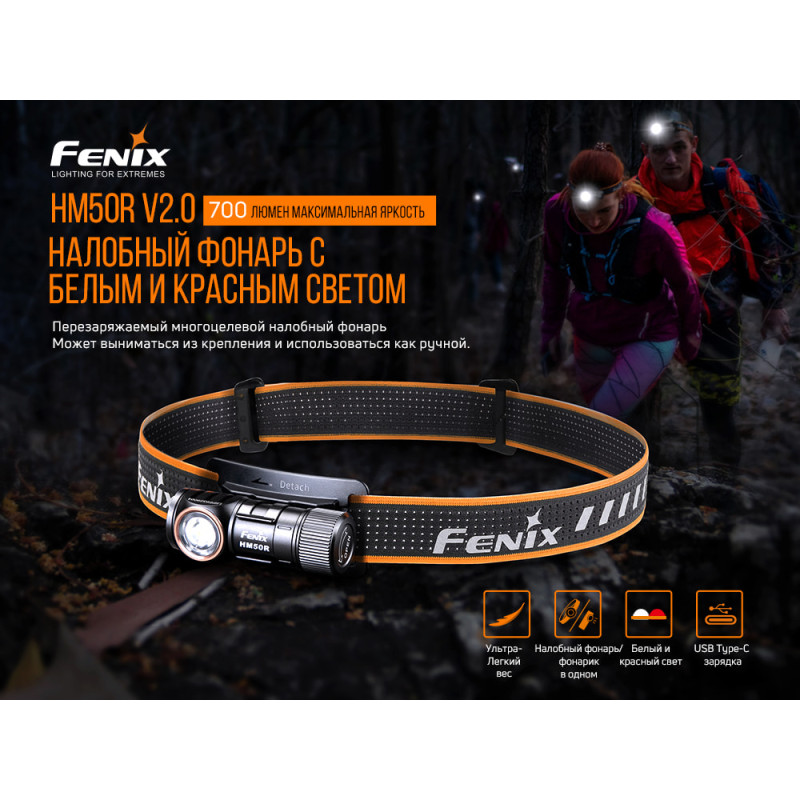

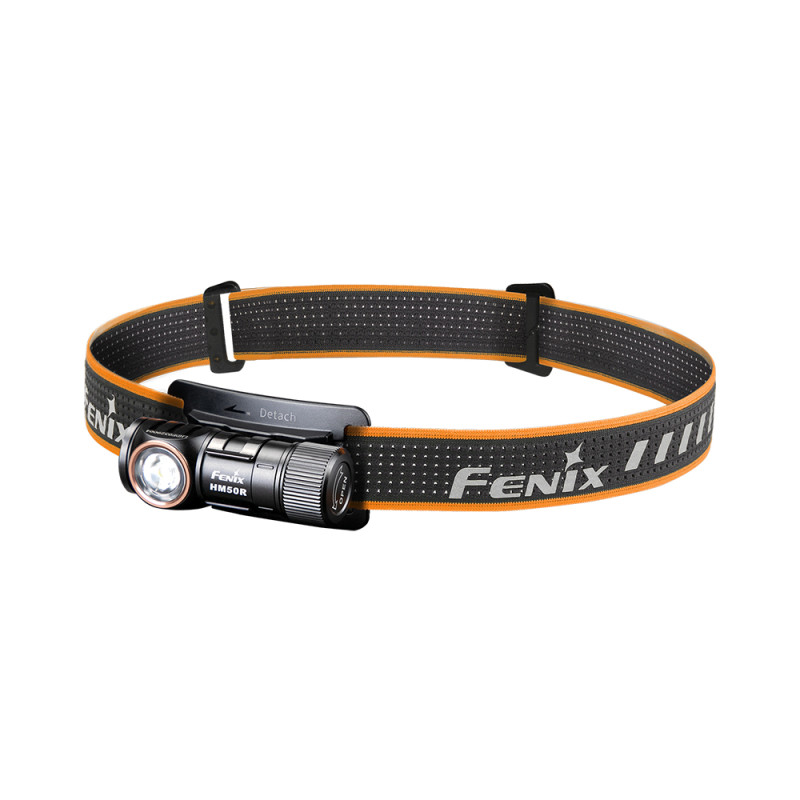

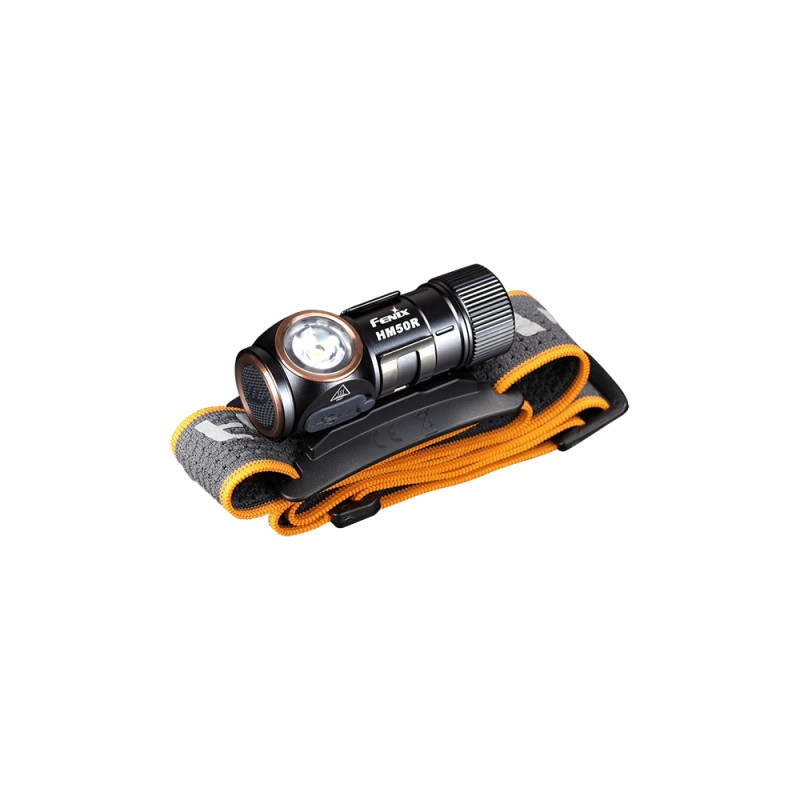

The Fenix HM50R V2.0 is a rechargeable, multi-functional headlamp from the Fenix brand, designed for camping, hiking, and outdoor activities. It is powered by a 16340 Li-ion battery (ARB-L16-700P battery included). The Cree XP-G3 S4 (XP-G S4) LED provides white light with a maximum output of up to 700 lumens and a beam distance of up to 115 meters, and also features red light to preserve night vision.
Operation and Modes

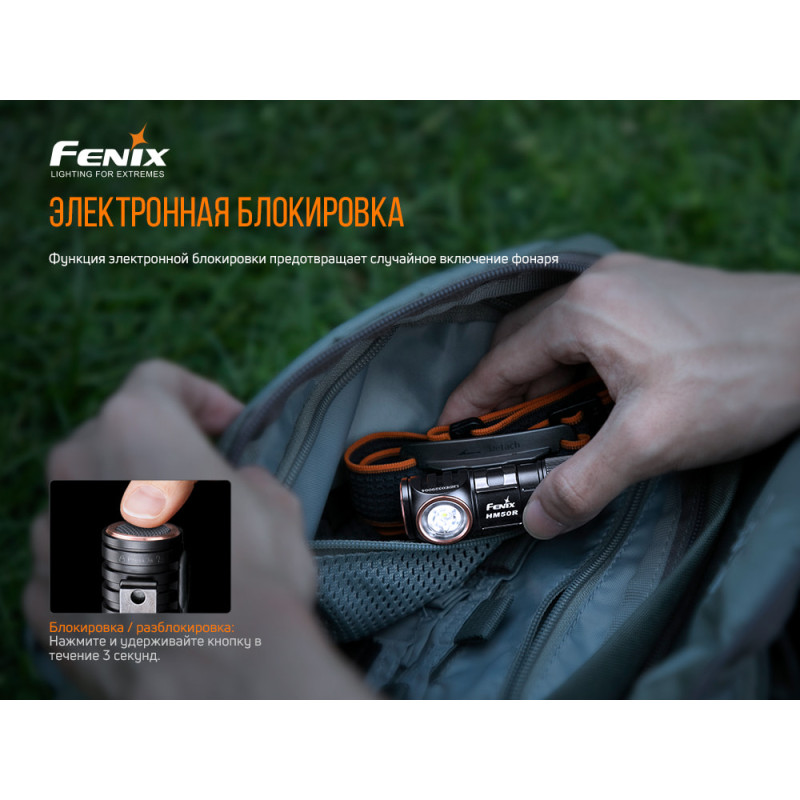

The headlamp is controlled by a single button on the body: to turn on white light, press and hold the button for half a second; a double press when the headlamp is off activates red light. A single click in white mode cycles through Low → Mid → High → Turbo, and the white mode is memorized. For red illumination, a single click switches between Red → Red Flash; the red mode is not memorized. Lockout function to prevent accidental activation: when off, press and hold the button for three seconds — the headlamp will flash red four times. To unlock, repeat the action.
White and Red Light — Technical Parameters
- Turbo: 700 lumens, 1 hour runtime, 115 m distance, 3350 cd intensity.
- High: 400 lumens, 3 hours, 86 m, 1849 cd intensity.
- Mid: 130 lumens, 8 hours, 49 m, 596 cd intensity.
- Low: 30 lumens, 42 hours, 23 m, 128 cd intensity.

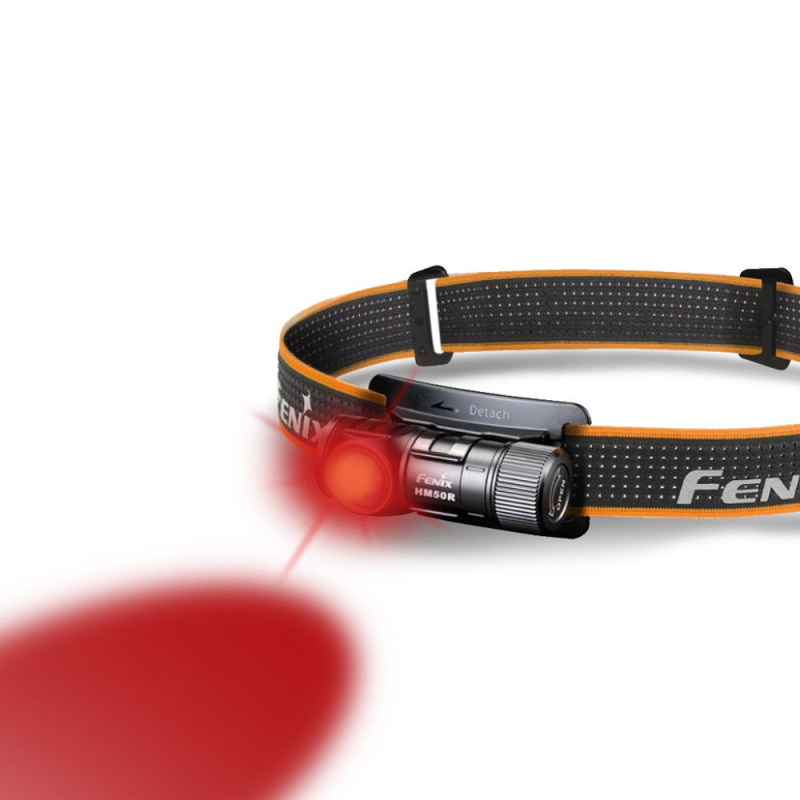

Red light: 5 lumens, 60 hours runtime, 6 m distance, 9 cd intensity. Red flash mode: 5 lumens, 120 hours, 6 m, 9 cd.
The stated results were obtained under laboratory conditions with an ARB-L16-700P battery at a temperature of approximately 21±3 °C and humidity of 50–80%. In real-world conditions, performance may vary depending on the battery and external factors.
Convenience and Safety

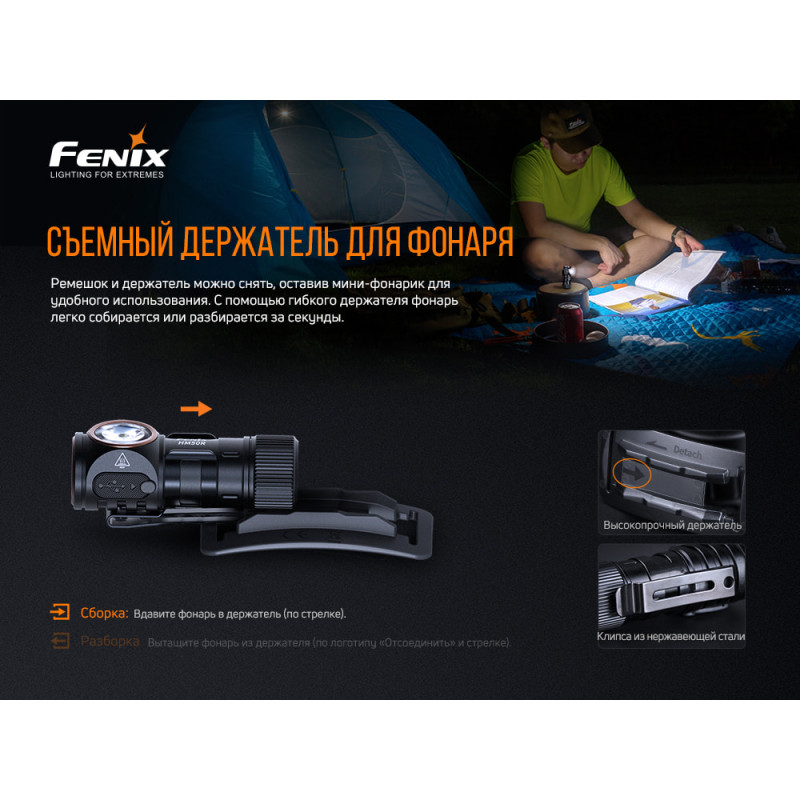

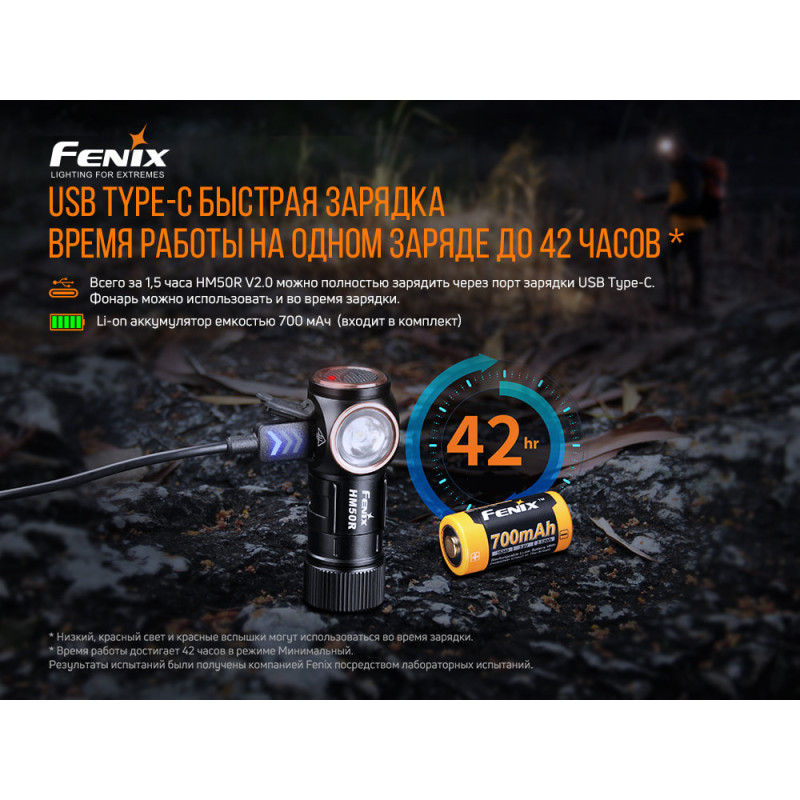

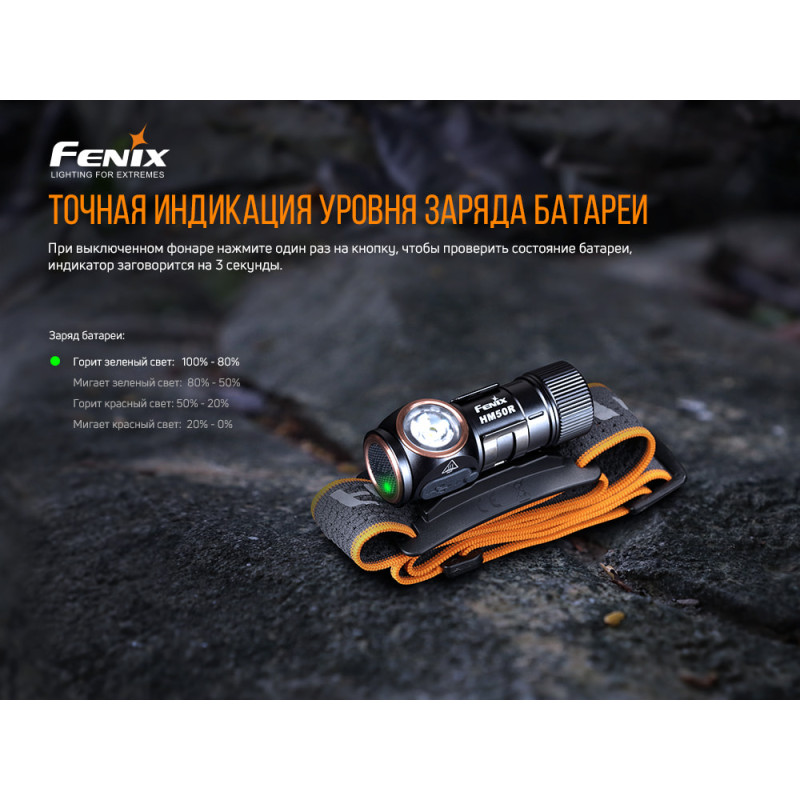

The headlamp features a detachable design, allowing it to be used as a handheld flashlight. A USB Type-C port is provided for charging. There is a battery level indication function: with the headlamp off, a short press of the button activates the indicator for 3 seconds — solid green light means 80–100%, flashing green 50–80%, solid red 20–50%, flashing red 0–20% (charging required). To protect against overheating, automatic brightness reduction is implemented when the body temperature reaches 60 °C or higher.
Body and Reliability

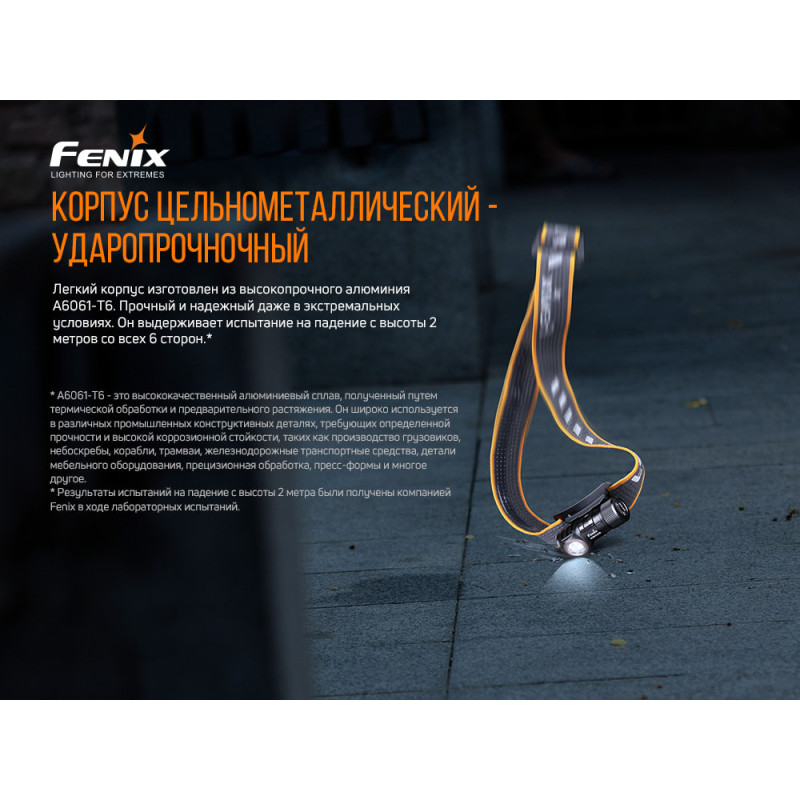

The body is made of durable A6061-T6 aluminum with high-quality anodizing (premium Type III hard-anodized finish), ensuring resistance to abrasive influences. The IP68 protection standard allows submersion up to 2 meters; impact resistance from drops is up to 2 meters. Headlamp dimensions: 64×36×32 mm, weight — 78 g including battery and headband.
Package Contents and Warranty

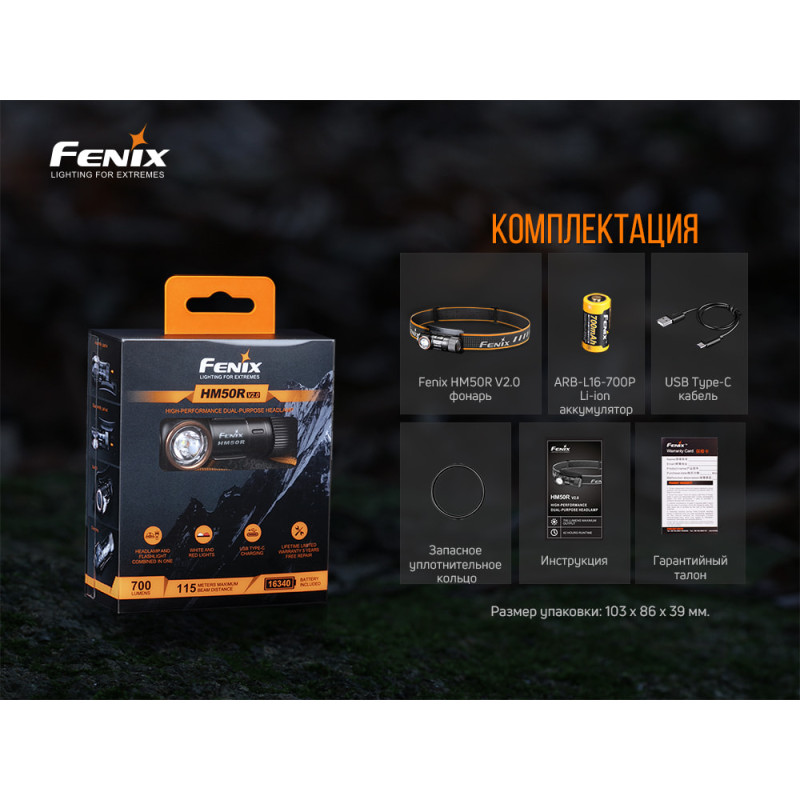

Included: Fenix HM50R V2.0 headlamp, ARB-L16-700P Li-ion battery, USB Type-C charging cable, spare O-ring, user manual, warranty card. Manufacturer's warranty: 5 years.
Key Features
- Headlamp for tourism and outdoor activities;
- Maximum brightness: 700 lm;
- Beam distance: 115 m;
- Power source: 16340 battery (ARB-L16-700P included);
- LED: Cree XP-G3 S4 (white light), red light available;
- Six brightness levels; white mode memory;

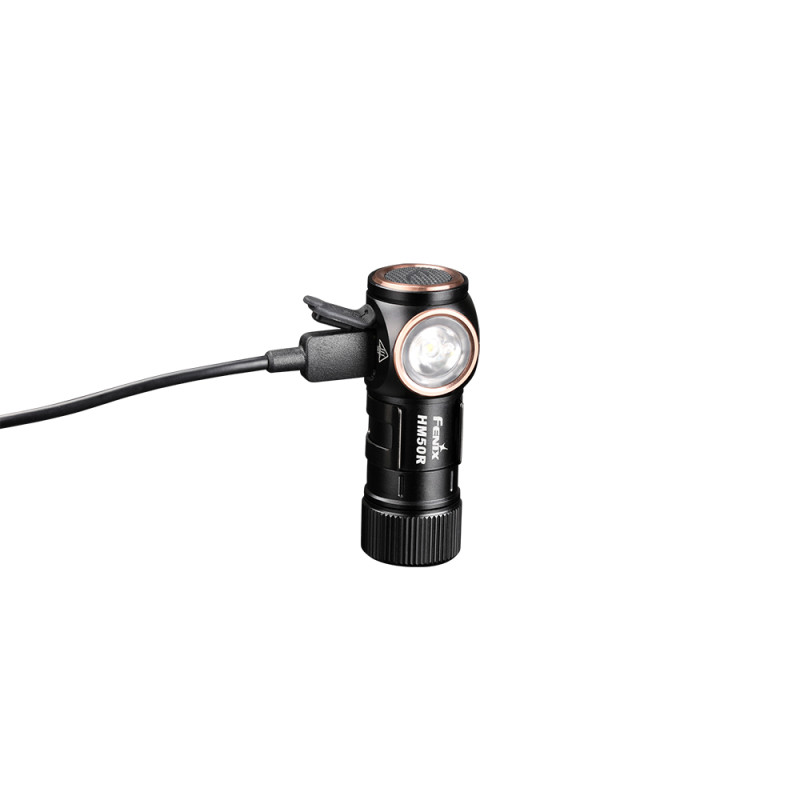

- USB Type-C charging;
- Accidental activation lockout capability;

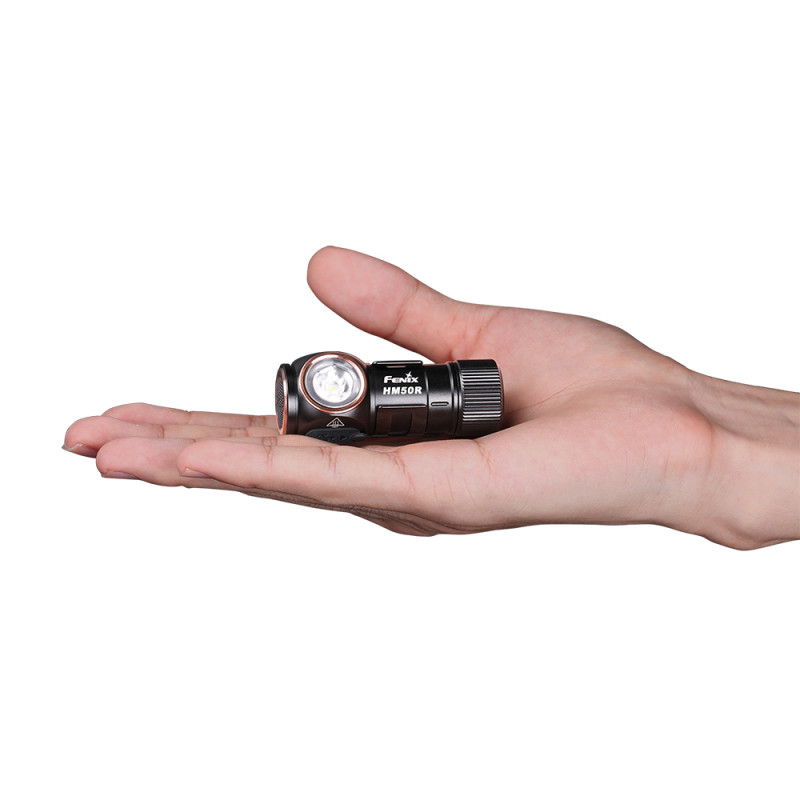

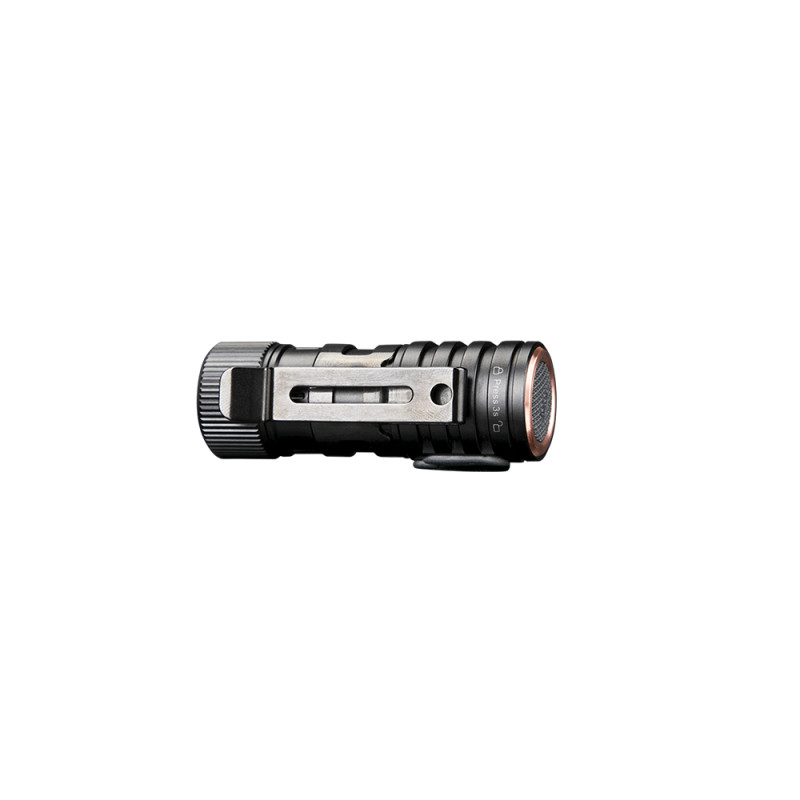

- Can be used as a handheld flashlight;
- Button control on the body; battery level indication; low voltage warning;
- Overheat protection; 2 m impact resistance; IP68 protection;
- Body material: A6061-T6 aluminum with anodizing;
- Dimensions: 64×36×32 mm; weight: 78 g (with battery and mount).
