Features:
Back/Head Section Position Adjustment Function - the patient can be in a sitting or semi-reclining position and perform activities related to normal daily life, which facilitates the patient care process for medical staff and ensures patient comfort.
Leg and Intermediate Section Position Adjustment Function - lowering the leg section below bed level and raising the leg section above bed level; provides relaxation for the patient's legs, improves blood circulation in the legs, prevents varicose veins, and facilitates the daily leg care process.

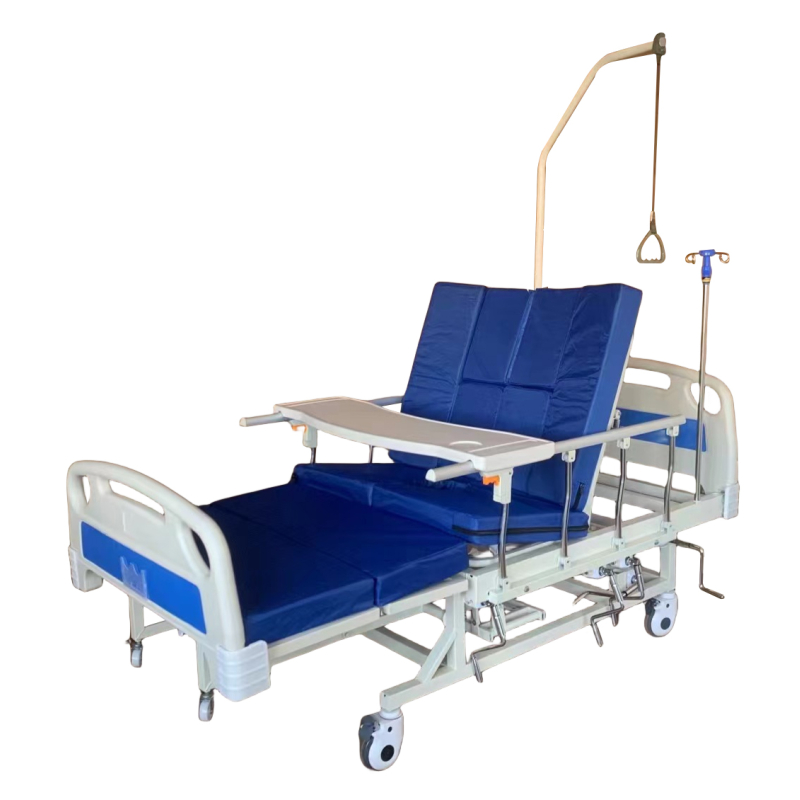

Cardiac Chair Position - seating the patient fully upright without lifting the patient from the bed.
Lateral Tilt (Left/Right) Adjustment Function - facilitates the process of turning the patient to the right/left side. This function provides effective protection against bedsores and reduces the number of hematomas in paralyzed patients.
Bed Mobility - the bed is equipped with four large-diameter swivel casters. Individual brakes allow the bed to be securely locked in a stationary position.
Toilet Function - the bed is equipped with a built-in under-bed commode that can be used without lifting the patient.
Hair Washing Function - the bed design provides convenience for washing the patient's hair, and the bed set includes a special container (basin) that is installed in a special niche of the mattress on the back/head section.
Side Rails - foldable, facilitating access to the patient; when unfolded, the side rails automatically lock in the upper position.
End Rails - quick-release, made of durable ABS plastic resistant to aging and fading.
Overbed Table - easily installed and removed on raised side rails.
IV Pole - made of stainless steel with height adjustment function. Can be installed on both sides of the bed.
Bed Mattress - 80 mm thick, two-component (coconut fiber and polyurethane foam).
| Parameter | Value |
| Control | mechanical |
| Drive type | worm gear |
| Number of main bed sections, pcs. | 4 |
| Overall bed dimensions (LxWxH) | 2030x1070 mm |
| Bed deck height from floor | 500 mm |
| Bed deck dimensions (LxW) | 1970x900 mm |
| Overall mattress dimensions (LxWxH) | 1970x900x80 mm |
| Back section tilt range | 0 to 85 ° |
| Leg section downward tilt range | 0 to 55 ° |
| Leg section upward tilt range | 0 to 35 ° |
| Bed deck left tilt range | 0 to 50 ° |
| Bed deck right tilt range | 0 to 50 ° |
| IV pole height adjustment range | 850 to 1600 mm |
| Wheel diameter | 125 mm |
| Weight | 92 kg |
| Maximum safe load | 250 kg |
| Height of side rails when unfolded | 400 mm |
| Bed frame (square tube) | 40x80 mm, 1.2 mm thickness |
| Bed deck (square tube) | 15x30 mm, 1.0 mm thickness |
