Electric Winch for ATV 0.9t — Husar Winch BST 2000 LBS
The Husar 0.9t BST 2000 LBS electric winch from Husar Winch is a compact and reliable solution for small ATVs, plows, and special equipment. The model is designed for operation in various conditions where easy-to-install and effective pulling power is required. Product category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Winches.

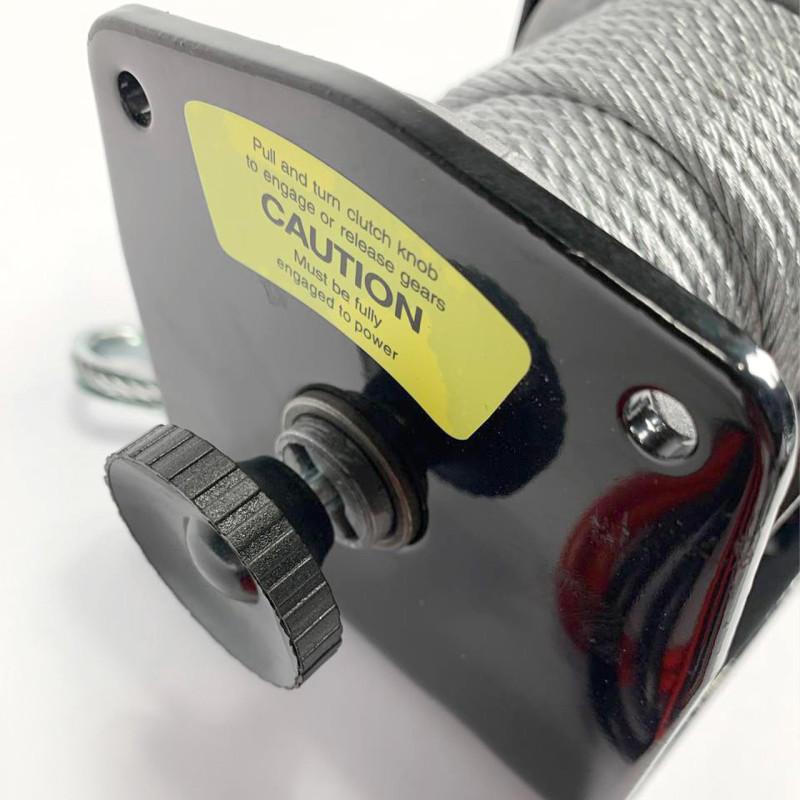

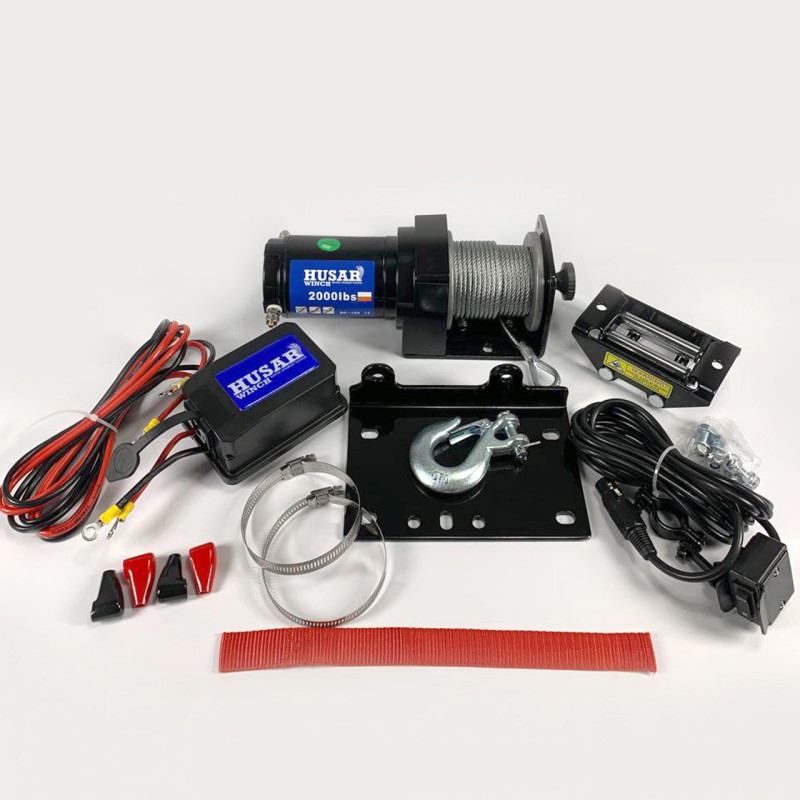

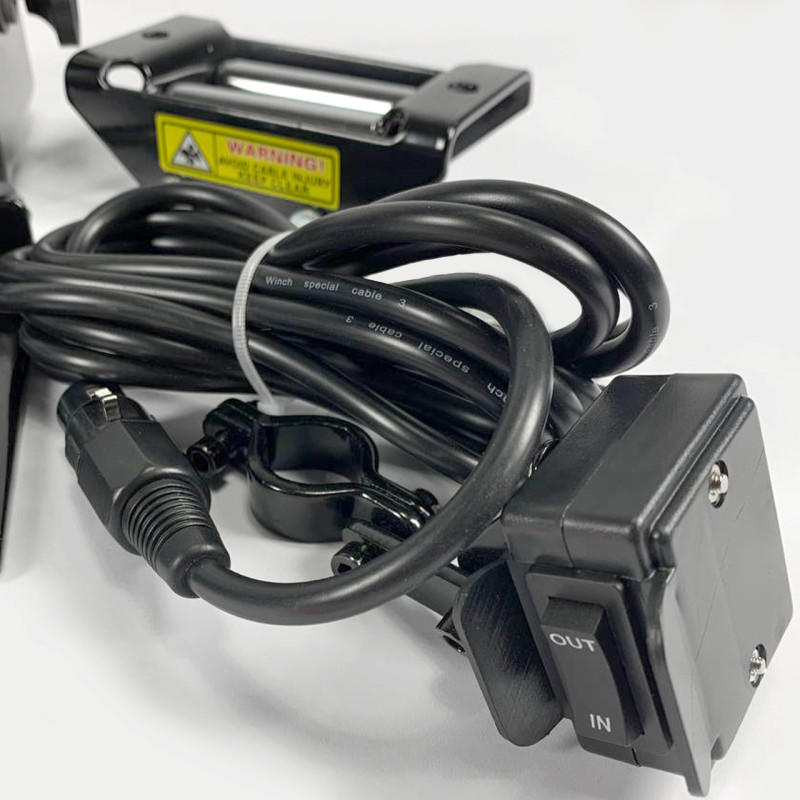

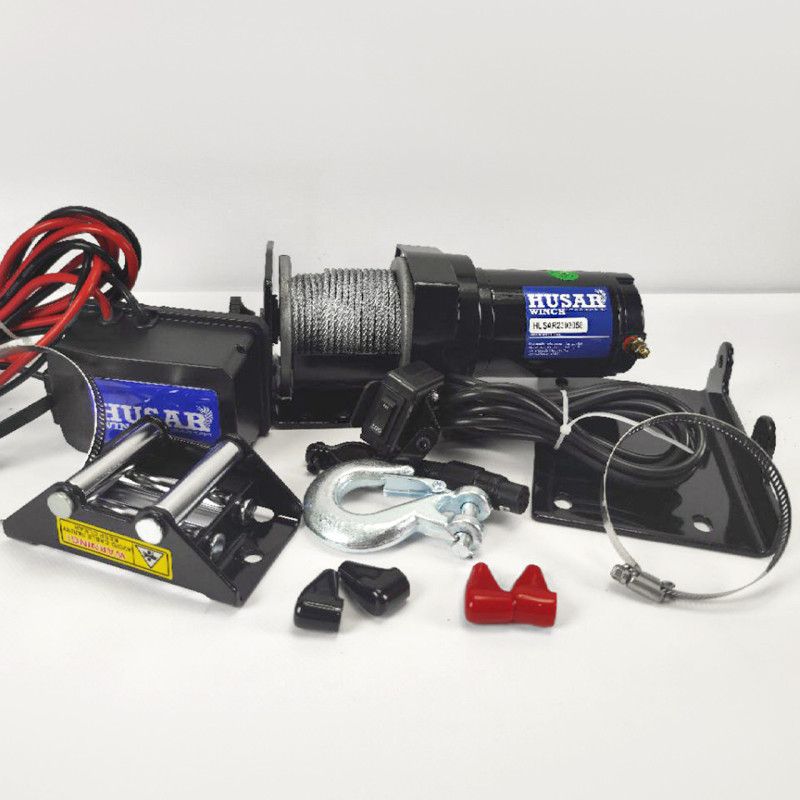

The winch is structurally equipped with a motor with a pulling force of 2000 lbs (907 kg), a wired remote control, and an automatic brake that reliably secures the load if the motor stops. The main advantage is a 15 m long steel cable with a diameter of 4 mm, which is evenly wound thanks to roller fairleads. The gear ratio of the mechanism is 153:1, ensuring an optimal balance of speed and force.

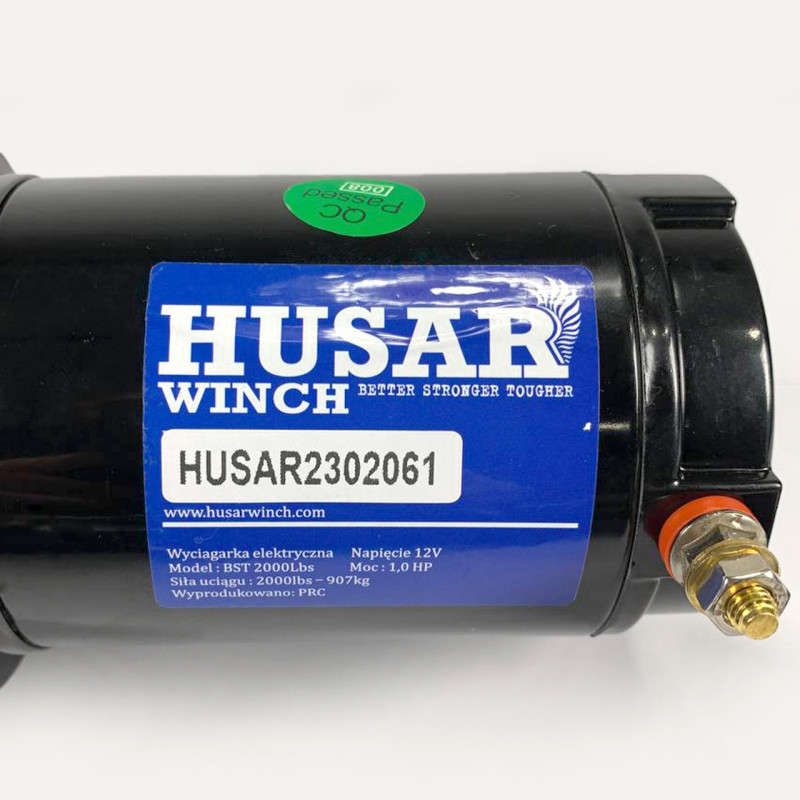

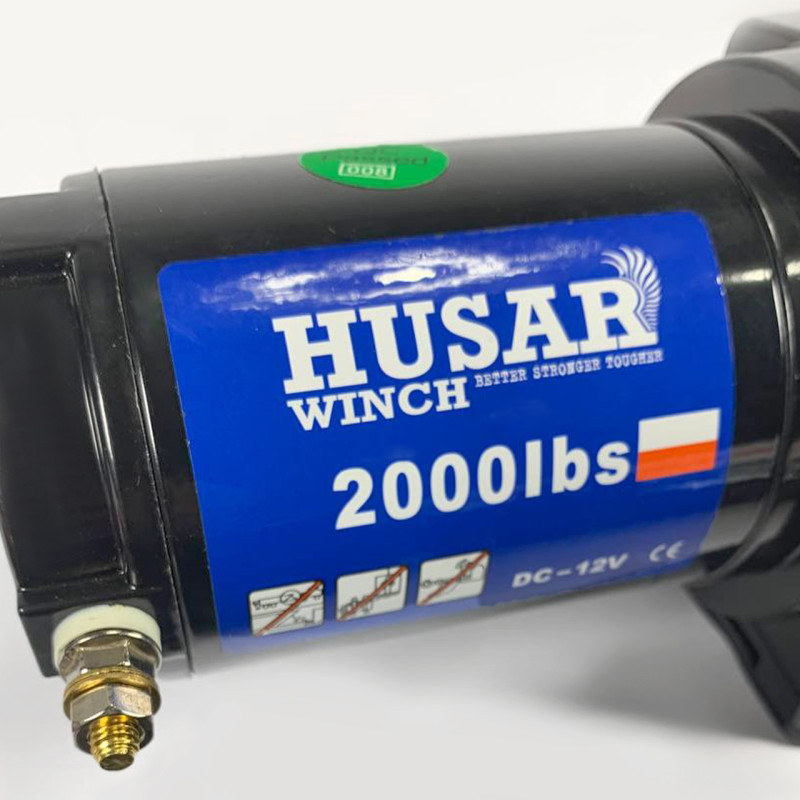

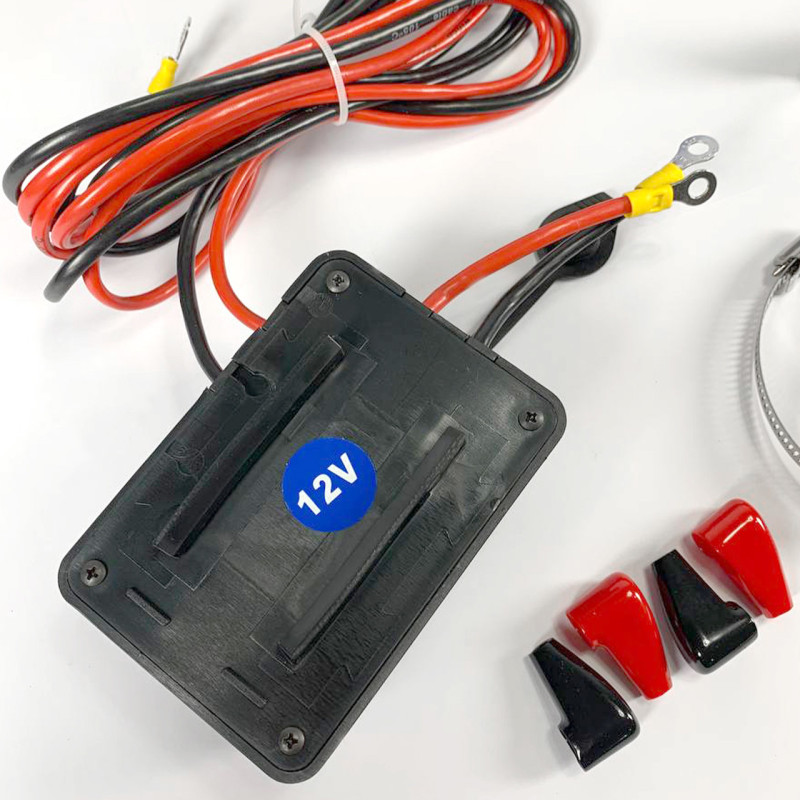

The winch operates on a 12-volt onboard network, has a low weight — about 6 kg, making it easy to install on vehicles. The motor has a power of 0.4 hp, and control is carried out by the included wired remote.
Our company offers professional installation and mounting of winches by certified specialists both at our service station and directly at the customer's site. It is important to correctly install and secure the winch for safe and long-term operation. The estimated time for work depends on the type of winch and mounting location, usually about 8 hours, including bracket fabrication. You can find more about winch installation and connection on the website or by contacting our manager.
Parameters of Husar Winch BST 2000 LBS electric winch:
| Line speed and motor current (first layer) | ||||||
| Rope load | lbs | 0 | 500 | 1000 | 1500 | 2000 |
| kg | 0 | 227 | 454 | 680 | 907 | |
| Rope speed | m/min | 3.2 | 2.8 | 2.3 | 1.6 | 0.6 |
| Power consumption | amps | 12 | 30 | 60 | 90 | 120 |
Pulling performance on Husar Winch BST 2000 LBS winch layers:
| Pulling force depending on rope layer | |||||||
| Rope layer | 1 | 2 | 3 | 4 | 5 | ||
| Pulling rope | lbs | 2000 | 1630 | 1380 | 1190 | 1050 | |
| kg | 906 | 740 | 620 | 540 | 470 | ||
| Amount of rope on drum | M | 2 | 4.3 | 7.2 | 10.6 | 15 | |
Winch dimensions:
Dimensions (L*W*H): 285.00 mm x 105.00 mm x 105.00 mm
| Technical specifications | |
| Pulling force | 2000 lbs / 907 kg |
| Voltage, volts | 12 volts |
| Motor | 0.4 hp |
| Cable length | 15 m |
| Cable diameter | 4 mm |
| Brake | automatic |
| Winch weight | 6 kg |
| Fairlead | rollers |
| Gear ratio | 153:1 |
| Wired remote control | Yes |
| Country of origin | Poland |
Information provided for informational purposes.
Husar Winch is a renowned Polish brand that has earned the trust of consumers in Europe and Asia. The brand offers a wide range of electric, hydraulic, manual, chain, and industrial winches, as well as accessories: compressors, pulleys, shackles, cables, and more. All products are certified and come with an official manufacturer's warranty.
