Electric Winch 9.9t 24V BST S 22000 LBS Husar Winch
The Husar BST S 22000 LBS electric winch is professional towing equipment from the renowned Polish brand Husar Winch, designed for use on SUVs, tow trucks, and large specialized vehicles. The winch has an analog and combines high power and reliability in challenging operating conditions.

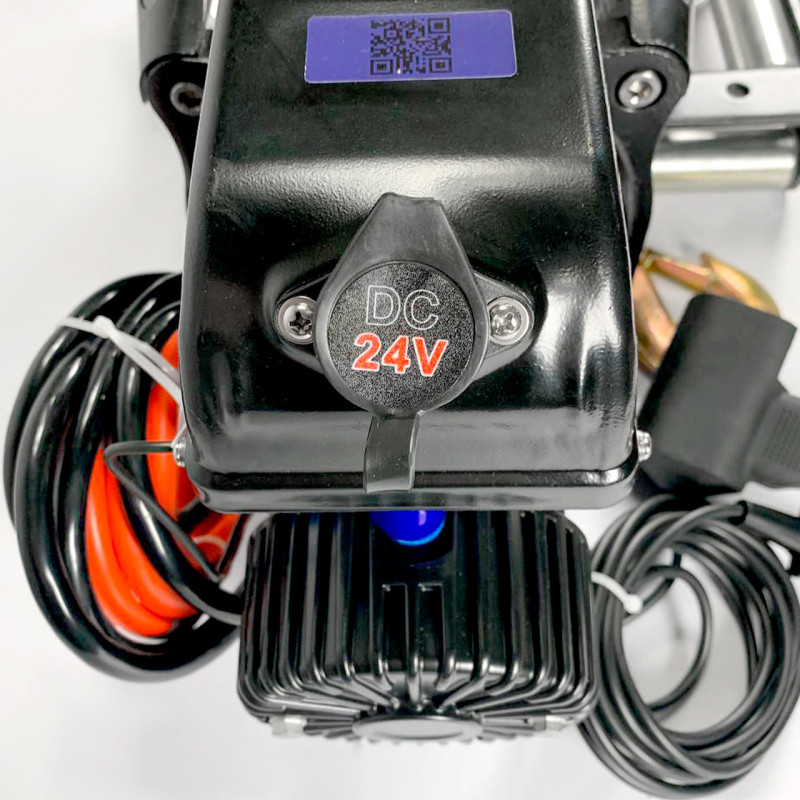

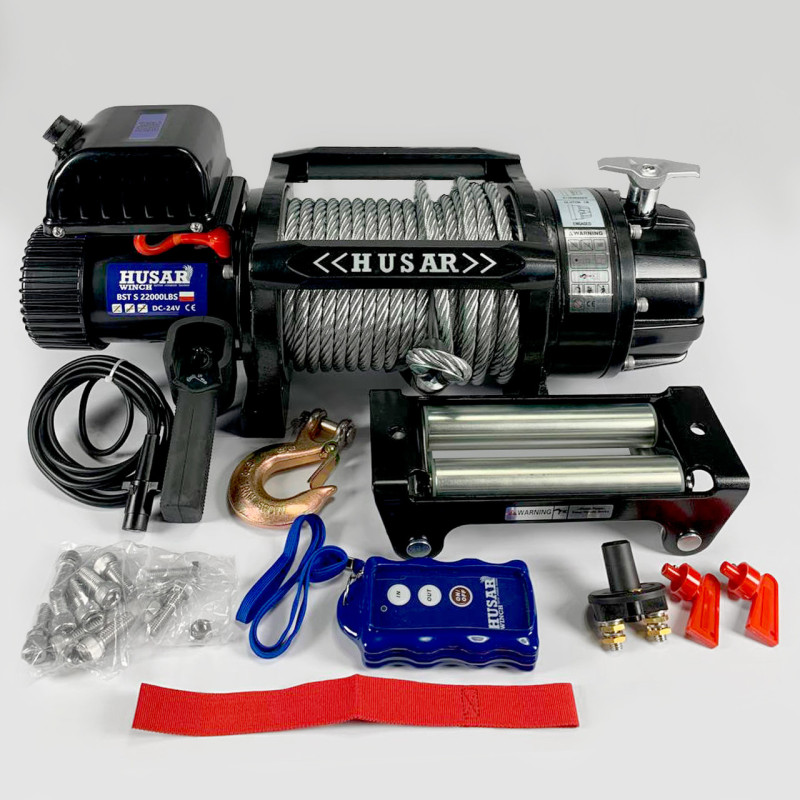

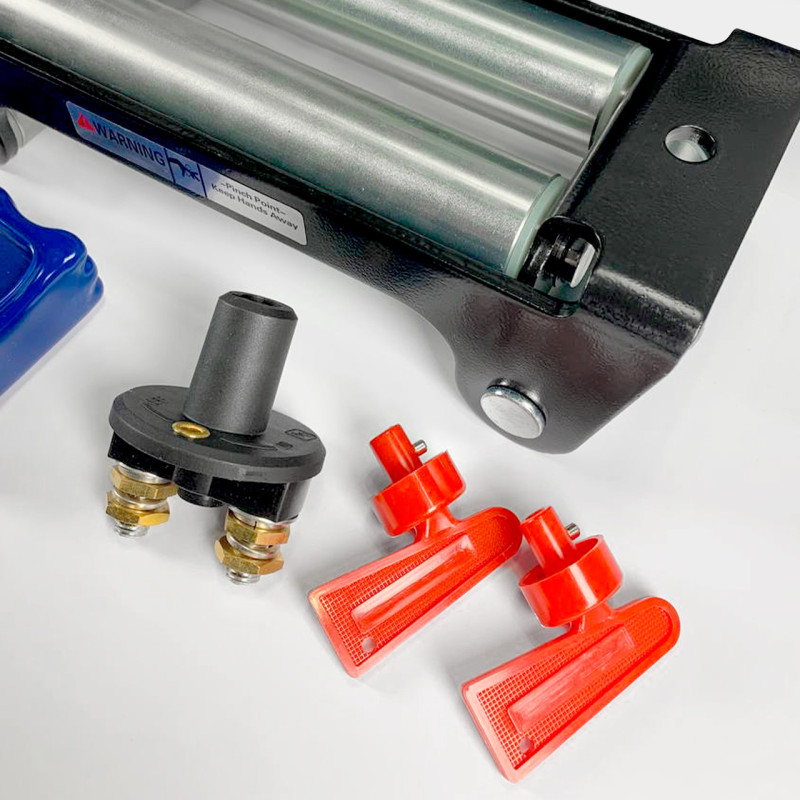

The maximum pulling force of the model is 22000 lbs (9979 kg). The rope winding speed on the first layer is 8.4 m/min (no load). The winch is equipped with an 8.2 hp motor and operates on a standard 24 V car battery. The kit includes a 30-meter rope with a diameter of 12 mm and a roller fairlead for even winding onto the drum.

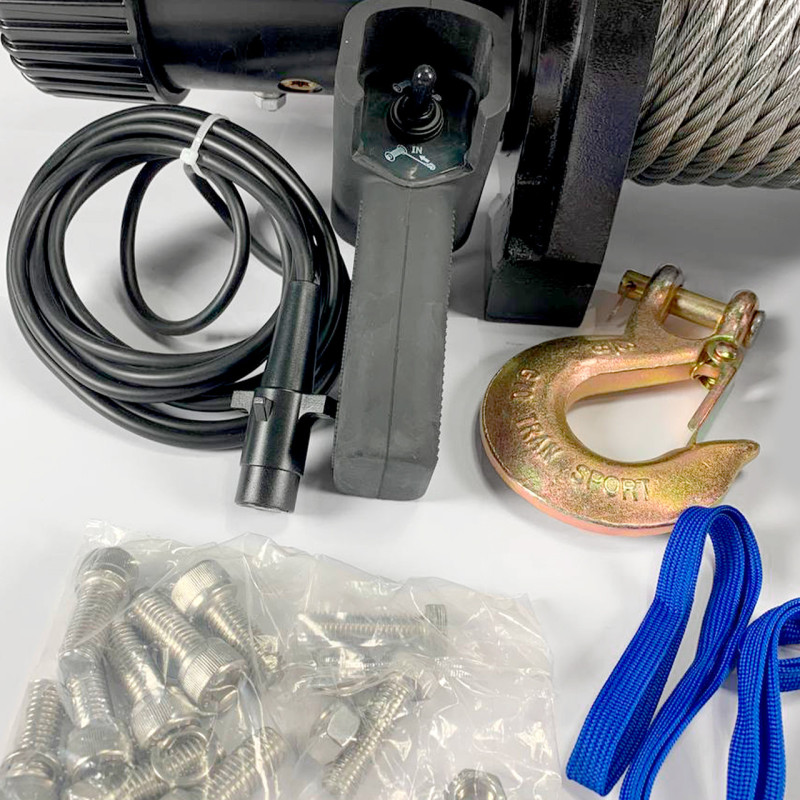

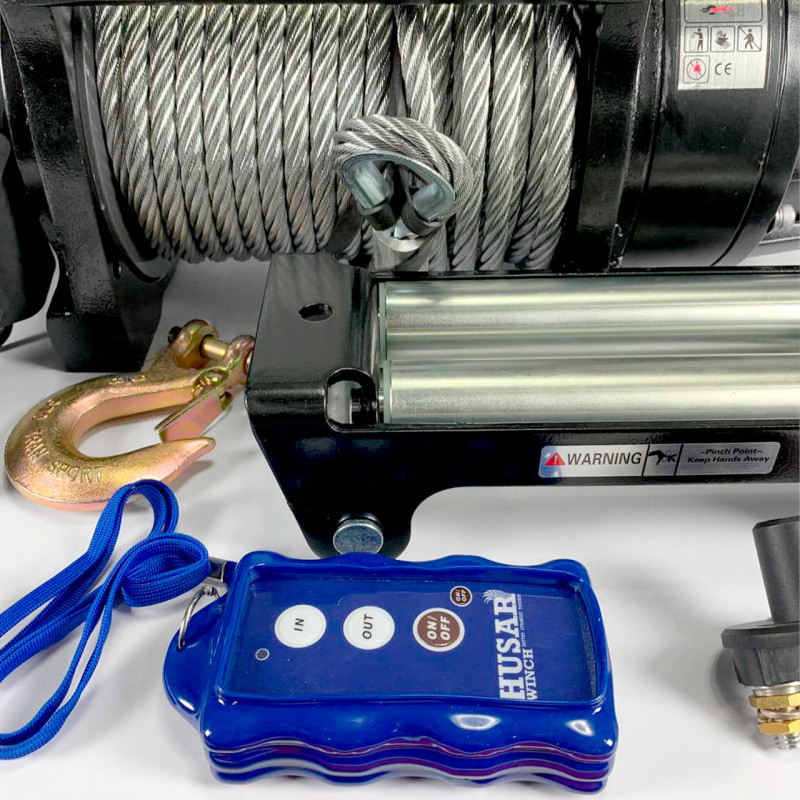

Control is possible via both wired and wireless remote controls (remote control included). Power is transmitted through a 3-stage planetary gearbox with a gear ratio of 370:1. The winch is equipped with a dynamic brake. The device weighs 70 kg. Mounting hole dimensions: 254 mm × 114.3 mm and 254 mm × 165.1 mm.
Important: the pulling force depends on the number of rope layers on the drum — the more layers, the lower the maximum force. Our company offers professional installation of winches by certified specialists at our service station or at the customer's site. The estimated installation time, including bracket fabrication, is about 8 hours, depending on the type of mounting and working conditions. More information about winch installation and connection can be found on the website or by contacting a manager.
Husar BST S 22000 LBS Husar Winch Specifications
| Rope winding speed and current consumption (1st rope layer) | ||||||
|---|---|---|---|---|---|---|
| Load | LBS | 0 | 10000 | 14000 | 17000 | 22000 |
| kg | 0 | 4536 | 6350 | 7711 | 9979 | |
| Winding speed | m / min 24V | 8.4 | 3.3 | 2.1 | 1.4 | 1.1 |
| Current consumption | amps 24V | 35 | 115 | 198 | 220 | 280 |
| Pulling force depending on rope layer | ||||||
|---|---|---|---|---|---|---|
| Rope layer | 1 | 2 | 3 | 4 | ||
| Max. load | LBS | 22000 | 17742 | 1465 | 1291 | |
| kg | 9979 | 8048 | 6743 | 5802 | ||
| Remaining rope on drum | m | 5.6 | 12 | 20 | 28.5 | |
| Technical Specifications | |
| Pulling force | 22000 lbs / 9979 kg |
| Voltage | 24 volts |
| Motor | 8.2 hp |
| Rope length | 30 m |
| Rope diameter | 12 mm |
| Gearbox | 3-stage, planetary |
| Brake | dynamic |
| Wireless remote control | Yes |
| Winch weight | 70 kg |
| Mounting holes | 254mm×114.3 mm I 254mm×165.1 mm |
| Fairlead | rollers |
| Gear ratio | 370:1 |
| Wired remote control | Yes |
| Country of origin | Poland |
Husar Winch is a well-known and trusted Polish brand that has earned the confidence of consumers across Europe and Asia. The brand offers a wide range of electric, hydraulic, manual, chain, and industrial winches, as well as accessories: compressors, pulleys, shackles, ropes, etc. All products are certified and come with an official manufacturer's warranty.
Category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Winches. For ordering, consultation, and installation, please contact our managers.
