Product Code: FA112-2184191756-112
1 299 грн.
Buy this product in 1 click:
Main specifications
Connector type:
SMA
Material:
polycarbonate
Polarization:
RHCP (right)
Weight (depends on size):
10.4 g
Frequency range:
5.5 – 6 GHz
All specifications
We will deliver this product:
Payment
Description

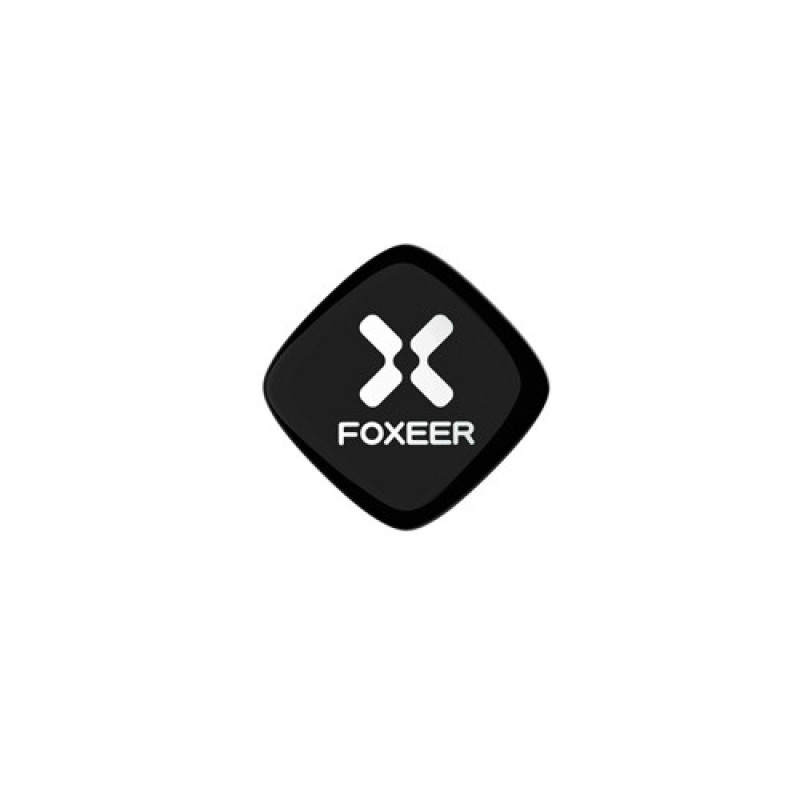

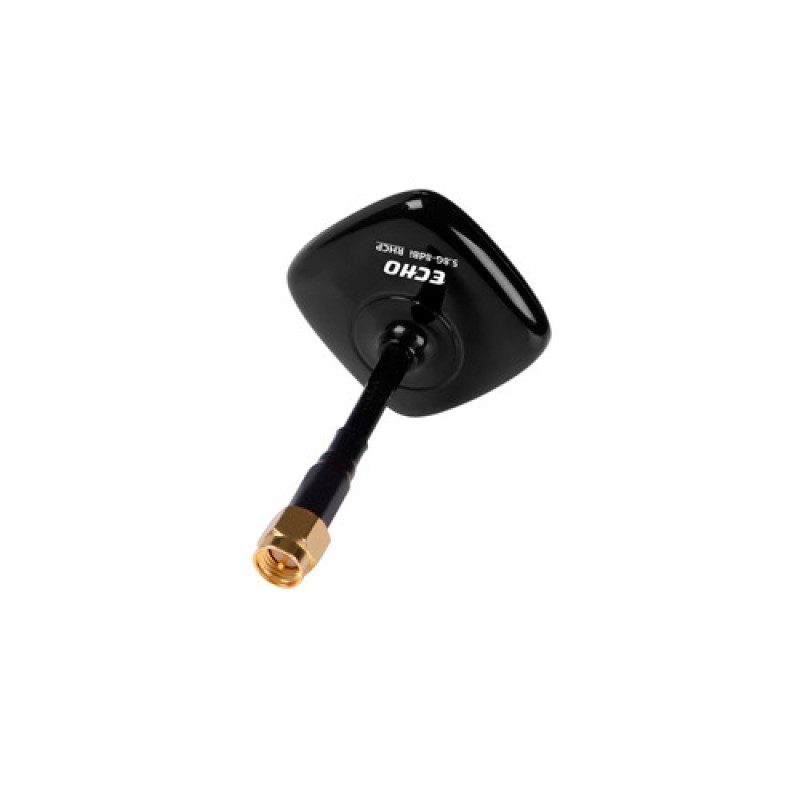

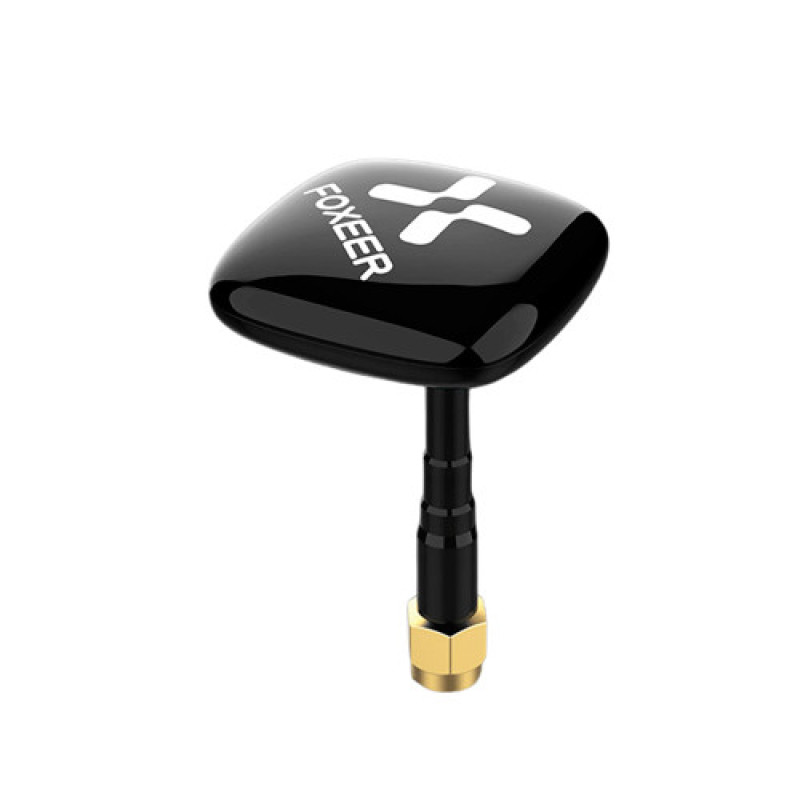

FOXEER Echo V2 antenna for use with FPV goggles, video helmets, and monitors operating at 5.8 GHz. It will improve image quality and increase transmission range. The polycarbonate casing will reliably protect the antenna from damage and extend its service life.
Operating frequency: 5.5 – 6 GHz
Center frequency: 5.8 GHz
Gain: 9 dBi
Polarization: RHCP (right-hand)
VSWR:
Operating frequency: 5.5 – 6 GHz
Center frequency: 5.8 GHz
Gain: 9 dBi
Polarization: RHCP (right-hand)
VSWR:
Specifications
Connector type
SMA
Material
polycarbonate
Polarization
RHCP (right)
Weight (depends on size)
10.4 g
Size
40 × 22 mm
Antennas
Frequency range
5.5 – 6 GHz
Beam angle
84.7°
Enhancements
9 dBi
