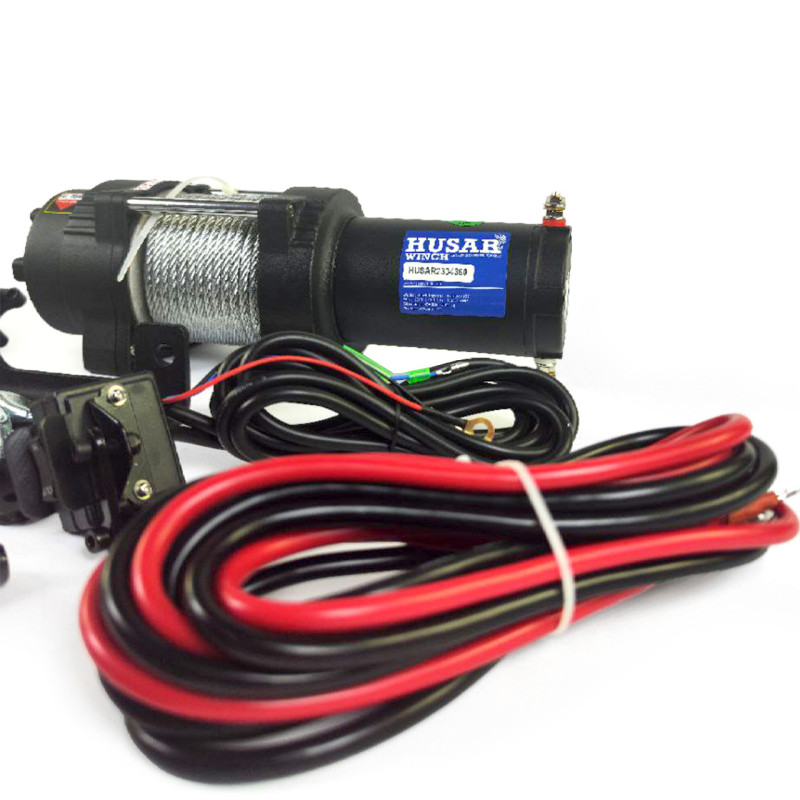

Electric Winch 2.04 t BST S 4500 LBS Husar Winch
The BST S 4500 LBS electric winch from the Polish brand Husar Winch is reliable pulling equipment with a working capacity of 4500 LBS / 2041 kg (approximately 2.04 t), designed for installation on ATVs, special vehicles, plows, trailers, and other small equipment. The model features a sealed design that protects the mechanics from moisture and dirt, and operates on a 12 V onboard power supply.

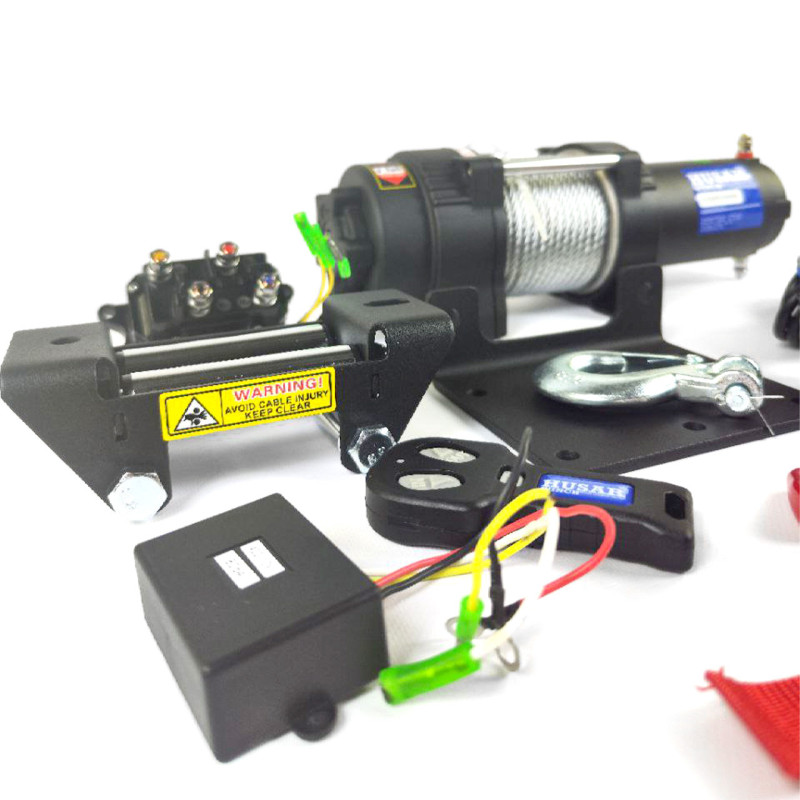

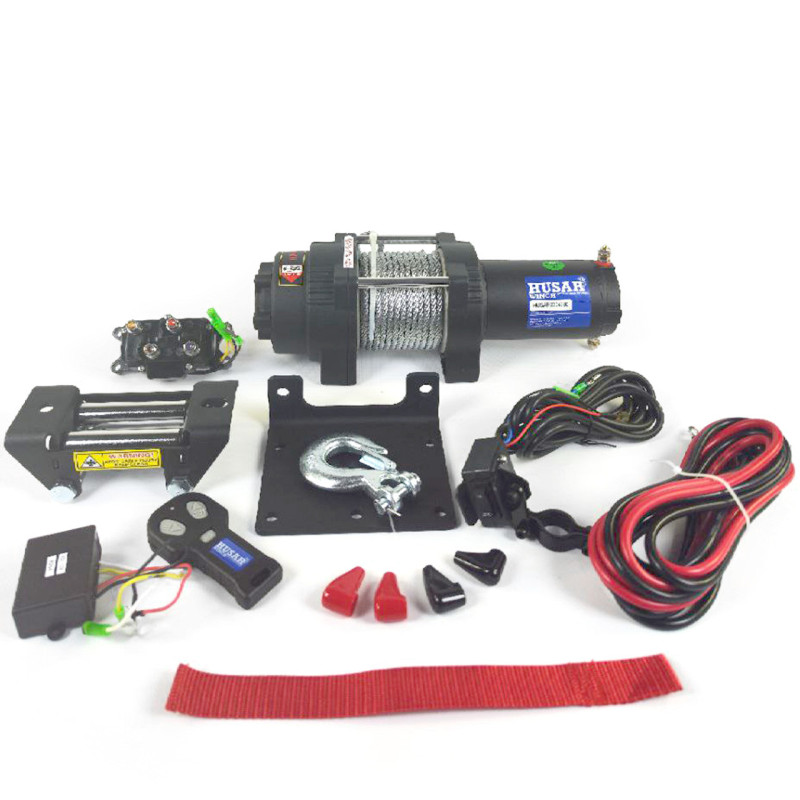

Package contents and main features: an engine with a power of approximately 2.5 hp (the table also states "12V Motor: 1.7 km/1.3 kW" — this data is provided in the manufacturer's technical specification), automatic brake, 12 m steel cable, remote control (wired and wireless), hawse fairlead, and 4-way roller fairlead. The cable winding speed without load is 4.9 m/min, and at maximum effort, it is 1.5 m/min. The presence of a remote control makes operation convenient and safe.
The winch has compact dimensions and convenient mounting sizes: mounting bolt pattern 124 mm x 76 mm, dimensions (L x W x H) 348 mm x 114 mm x 120 mm, weight — 10 kg. Gear ratio — 198:1.
Installation and Service
We offer professional installation by certified specialists both at our service station and at the customer's site. Proper winch installation is crucial for safe and long-lasting operation. The estimated time for completion is about 8 hours, including bracket fabrication, depending on the winch type and mounting conditions. More details on winch installation and connection can be found on the website or by contacting our manager.
Technical Specifications
| BST S 4500LBS — Technical Specifications | |
|---|---|
| Pulling Force | 4500LBS / 2041 kg |
| 12V Motor | 1.7 km/1.3 kW (description also states ~2.5 hp) |
| Control | wired / remote control |
| Gear Ratio | 198:1 |
| Brake | automatic |
| Cable | 12 m — text states 5.5 mm diameter; tech table: 6.3 mm |
| Fairlead | 4-way roller fairlead |
| Weight | 10 kg |
| Mounting Bolt Pattern | 124 mm x 76 mm |
| Overall Dimensions | (L x W x H) 348 mm x 114 mm x 120 mm |
Winding Speed and Current Consumption (1st layer of cable)
| Cable Winding Speed and Current Consumption (1st layer of cable) | ||||||
|---|---|---|---|---|---|---|
| Load | LBS | 0 | 1000 | 2000 | 3000 | 4500 |
| kg | 0 | 454 | 907 | 1360 | 2041 | |
| Winding Speed | m/min | 4.9 | 3.2 | 2.8 | 2.2 | 1.5 |
| Current Consumption | amps | 17 | 70 | 105 | 135 | 180 |
Pulling Force by Cable Layer
| Pulling Force by Cable Layer | ||||||
|---|---|---|---|---|---|---|
| Cable Layer | 1 | 2 | 3 | 4 | ||
| Max. Load | LBS | 4500 | 3841 | 3310 | 2907 | |
| kg | 2041 | 1742 | 1501 | 1319 | ||
| Remaining Cable on Drum | m | 2 | 4.3 | 7.2 | 12 | |
Husar Winch is a well-known Polish brand whose products are widely represented in Europe and Asia. The brand offers electric, hydraulic, manual, chain, and industrial winches, as well as accessories: compressors, pulleys, shackles, cables, and other equipment. All products are certified and come with an official manufacturer's warranty.
The BST S 4500 LBS model is suitable for users looking for a compact, robust, and functional winch with remote control capability and a reliable automatic brake. Thanks to its sealed design and simple maintenance, this winch will provide long service life in outdoor operating conditions.
Other important points: the compact weight of 10 kg facilitates installation, and universal mounting dimensions simplify integration onto various platforms. If you have doubts about your choice or wish to order installation, please contact our manager — we will provide professional consultation and assist with the setup.
