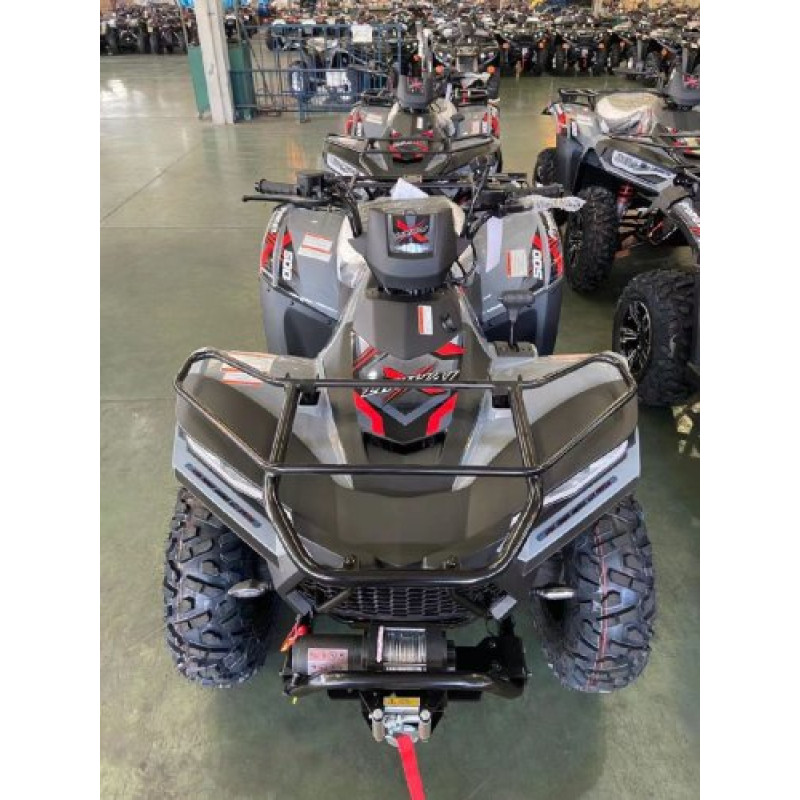

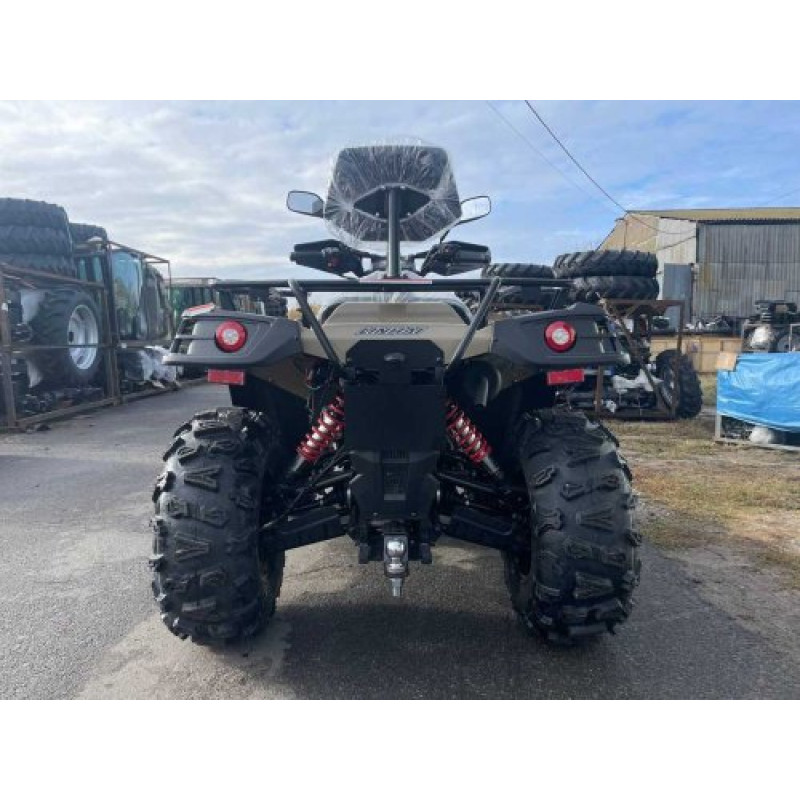

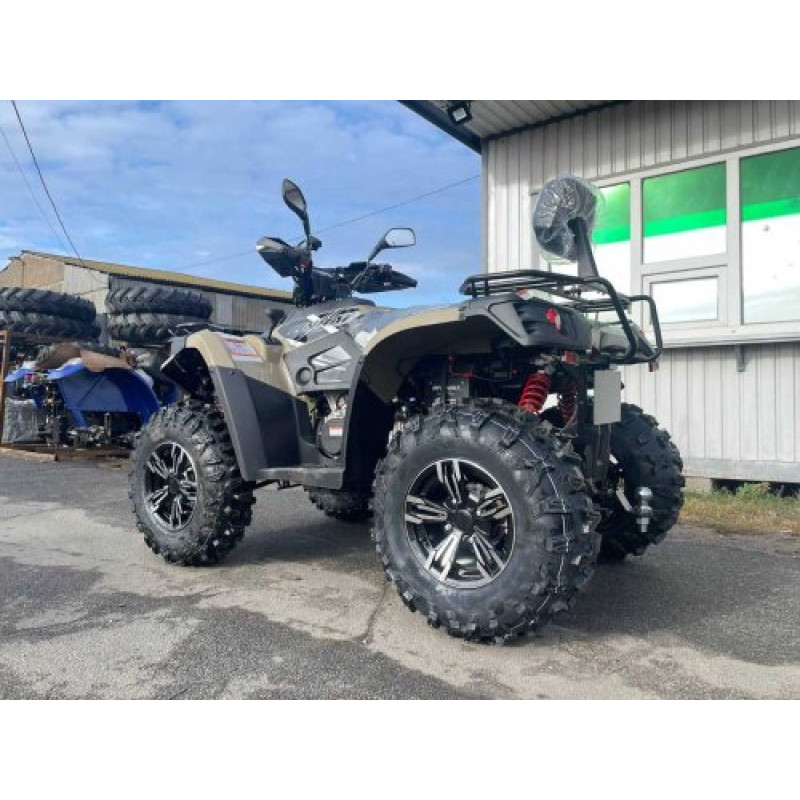

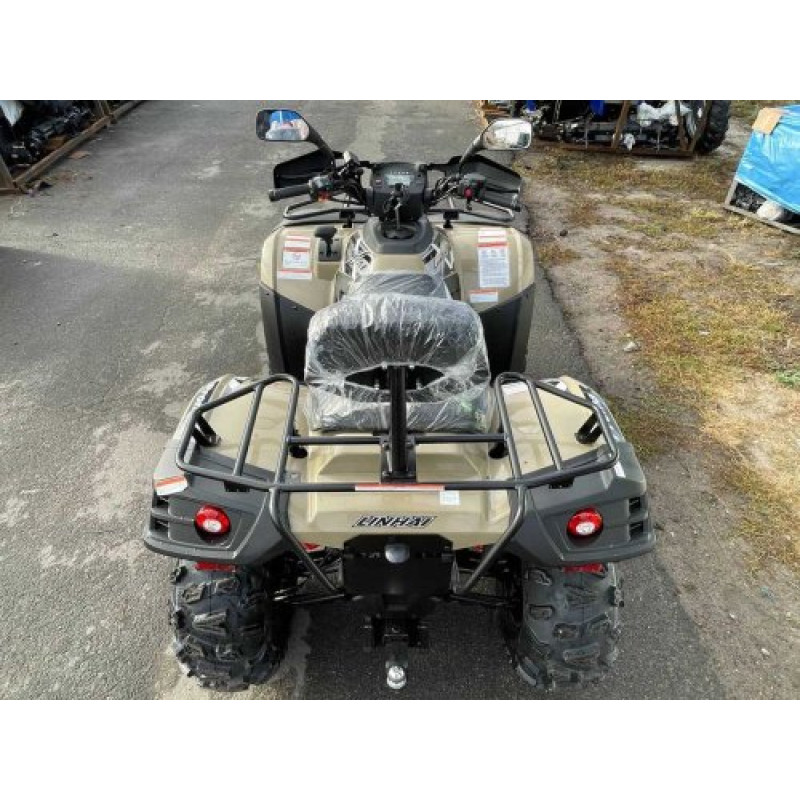

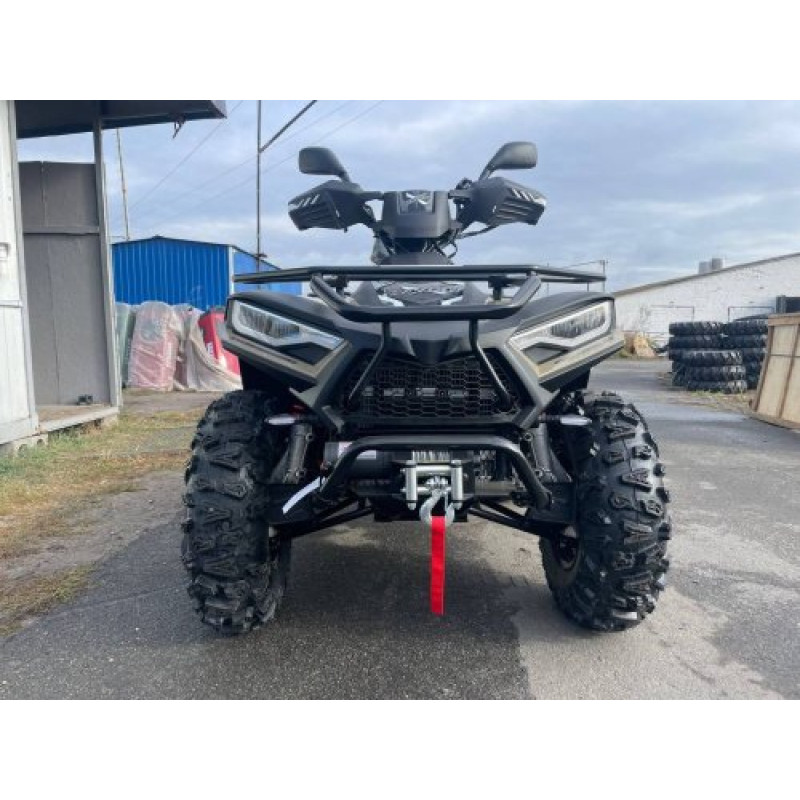

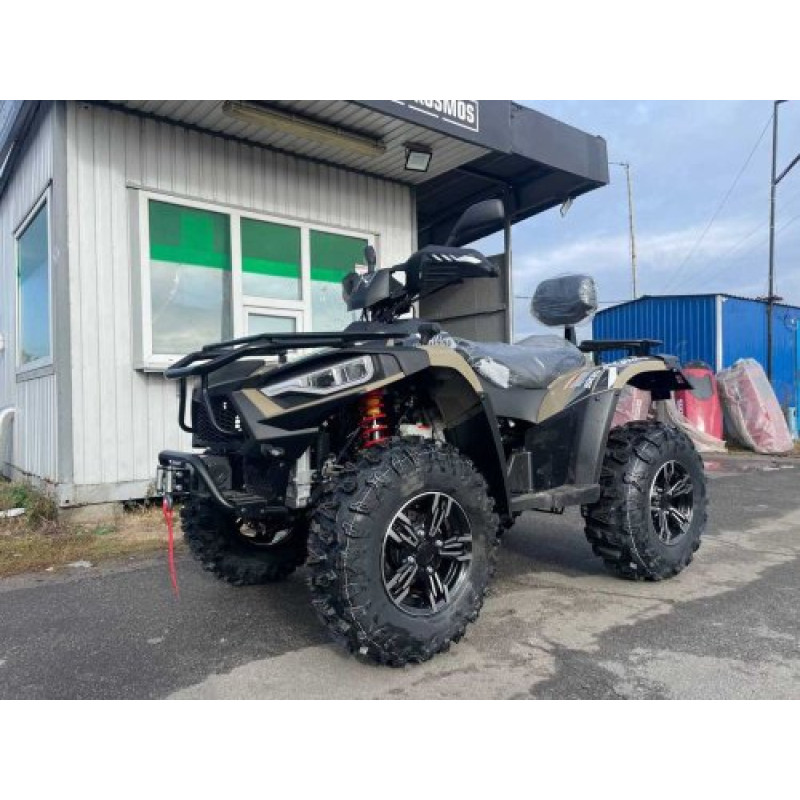

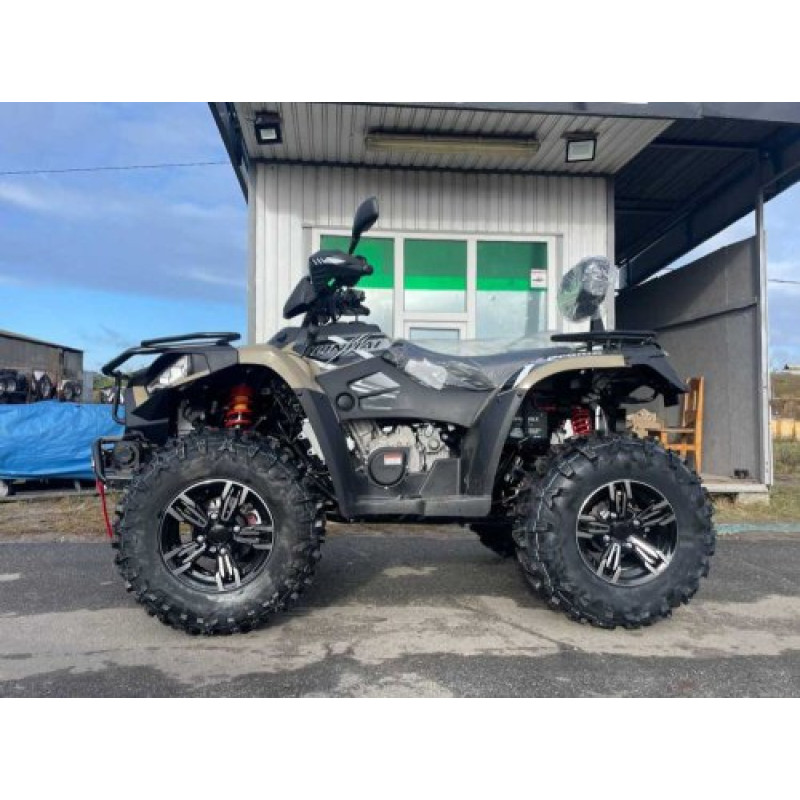

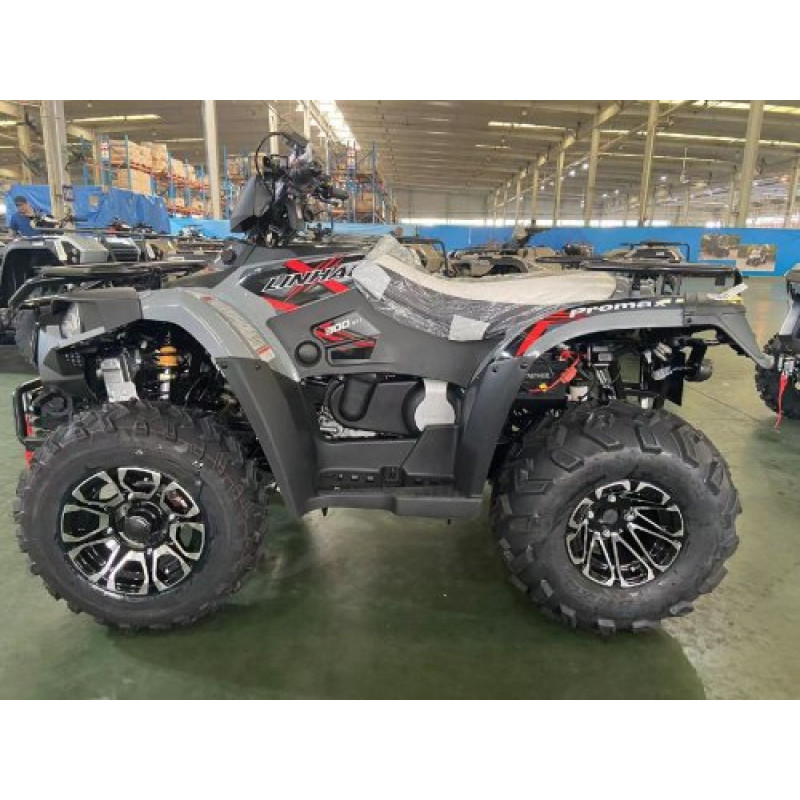

Linhai LH500ATV-D EFI PROMAX Quad Bike
Brand: LINHAI. Model: LH500ATV-D EFI PROMAX. This is a versatile four-wheel off-road vehicle that combines power, reliability, and thoughtful ergonomics for active recreation, field work, and challenging off-road conditions.
Product type: Motor Vehicles > Quad Bikes. Product ID: 10315.
Engine and Dynamics: 493 cm3 EFI fuel-injected four-stroke gasoline engine, 33 hp at 7000 rpm, and a maximum torque of 27 Nm. The EFI fuel injection system ensures fuel efficiency, reliable starting in various climatic conditions, and stable operation under variable loads.
Starting and Cooling: Electric starter; liquid cooling system, which increases operational stability during prolonged and intensive use.
Transmission and Drives: CVT continuously variable transmission with high, low, forward, neutral, and reverse modes. Features a differential lock for improved off-road capability. Direct final drive.
Brakes and Suspension: Front disc brakes and a rear disc brake on the wheel axle. Independent McPherson front suspension with double A-arms, coil springs, and shock absorbers; independent rear suspension of similar design ensures a smooth ride and stability on uneven terrain.
Dimensions and Weight: Wheelbase 1300 mm, dimensions 2283x1300x1293 mm, weight 365 kg. Fuel tank capacity 20 L.
External Body Kit: Plastic body kit made of high-strength ABS (front bumper, side mudguards, fender flares) and a tubular metal body kit integrated into the frame with the possibility of installing additional storage boxes.
Specifications:
| Wheel formula | 4x4 |
| Engine power, hp | 33 hp at 7000 rpm |
| Engine type | gasoline, 4-stroke, EFI injector |
| Engine displacement, cm3 | 493 |
| Maximum torque, Nm | 27 |
| Engine starting system | electric starter |
| Cooling system | liquid |
| Transmission (gearbox) | CVT variator |
| Transmission modes | high, low, forward, neutral, and reverse |
| Differential lock | yes |
| Final drive | direct |
| Front brakes | disc |
| Rear brake | disc on wheel axle |
| Wheelbase, mm | 1300 |
| Tire size | front 25x8-12, rear 25x10-12 |
| Fuel tank capacity, L | 20 |
| Dimensions, LxWxH mm | 2283x1300x1293 |
| Front suspension | independent McPherson, double A-arms, coil springs, shock absorbers |
| Rear suspension | independent, double A-arms, coil springs, shock absorbers |
| Weight, kg | 365 |
| Plastic body kit | high-strength ABS plastic (front bumper, side mudguards, fender flares) |
| Metal body kit | tubular, integrated into the frame with the possibility of installing additional storage boxes |
The applications for this quad bike are very broad: active recreation, hunting, fishing, agricultural work, and touring. The reliable frame design, combined body kit, and differential lock make the Linhai LH500ATV-D a good choice for both fast road sections and challenging off-road terrain. Thanks to the well-designed suspension and disc brakes, comfort and safety are ensured when driving on various types of surfaces.
