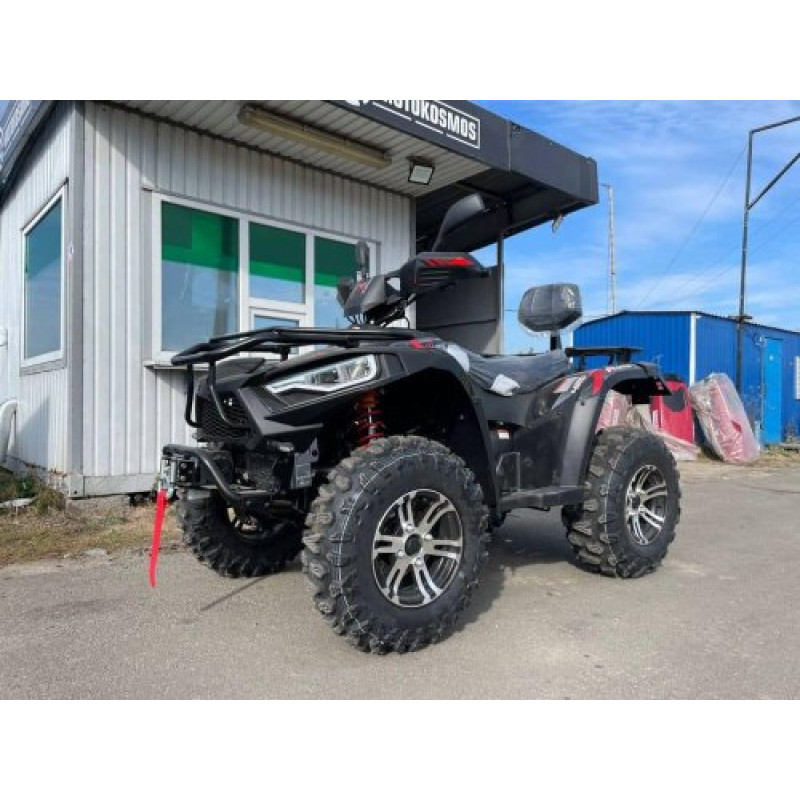

Linhai LH400ATV-D PROMAX Quad Bike
Linhai LH400ATV-D PROMAX is a practical and reliable 4x4 quad bike designed for active recreation and work in challenging conditions. Its compact dimensions are combined with powerful technical features: a 352 cm3 4-stroke carbureted gasoline engine develops 20 hp at 7000 rpm and provides a maximum torque of 27 Nm. The TCI ignition system and electric starter guarantee quick and reliable engine start-up, while the liquid cooling system maintains stable temperature during prolonged loads.
The transmission is implemented with a CVT variator with high, low, forward, neutral, and reverse modes. The presence of a differential lock and a direct final drive increases off-road capability on difficult terrain and reliability during towing. The 4x4 drive combined with a robust frame makes the LH400ATV-D PROMAX versatile for off-road and work tasks.
| Wheel formula | 4x4 |
| Engine power, hp | 20 hp at 7000 rpm |
| Engine type | gasoline, 4-stroke, carburetor |
| Engine displacement, cm3 | 352 |
| Maximum torque, Nm | 27 |
| Ignition system | TCI |
| Engine starting system | electric starter |
| Cooling system | liquid |
| Transmission (gearbox) | CVT variator |
| Gearbox modes | high, low, forward, neutral, and reverse |
| Differential lock | yes |
| Final drive | direct |
| Front brakes | disc |
| Rear brake | disc on wheel axle |
| Wheelbase, mm | 1300 |
| Tire size | front 25x8-12, rear 25x10-12 |
| Fuel tank capacity, L | 20 |
| Dimensions, LxWxH mm | 2100x1150x1300 |
| Front suspension | independent McPherson, double A-arms, coil springs, shock absorbers |
| Rear suspension | independent, double A-arms, coil springs, shock absorbers |
| Weight, kg | 330 |
| Plastic body kit | high-strength ABS plastic (front bumper, side mudguards, fender flares) |
| Metal body kit | tubular, integrated into the frame with the possibility of installing additional cases |
The braking system includes front disc brakes and a rear disc brake on the axle, ensuring effective deceleration under various loads. Independent front and rear suspensions with double A-arms and coil springs absorb shocks and enhance comfort even on long routes.
The body and body kit are made of high-strength ABS plastic; the front bumper and fender flares protect against dirt and stones. The tubular metal body kit is integrated into the frame and allows for the installation of additional cases and accessories for cargo transport. The 20-liter fuel tank provides a solid range for trips to the field and forest.
The 1300 mm wheelbase and dimensions of 2100x1150x1300 mm make the quad bike maneuverable yet stable. A weight of 330 kg emphasizes the structural strength while maintaining mobility for operators of various skill levels.
Brand: LINHAI. Product type: Motor Vehicles > Quad Bikes. The Linhai LH400ATV-D PROMAX is suitable for both active recreation and utility work, where off-road capability, load capacity, and component reliability are important. If you need a versatile 4x4 with liquid cooling, an electric starter, and the option to install additional luggage, this model is worth considering.
