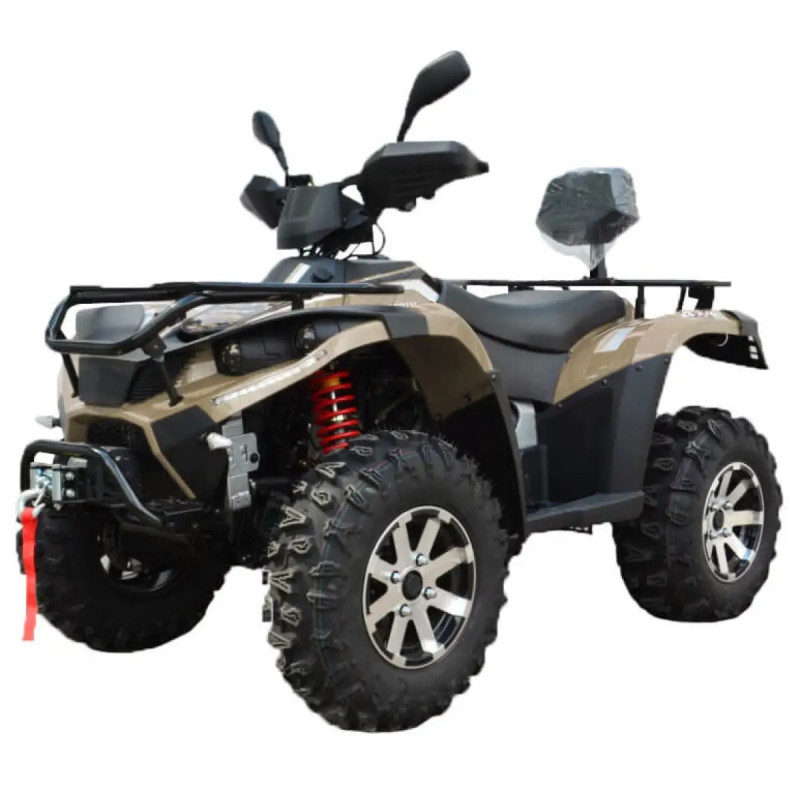

Linhai LH400ATV-D Khaki Quad Bike

The Linhai LH400ATV-D Khaki quad bike is a reliable and versatile all-terrain vehicle from the LINHAI brand, designed for outdoor recreation and demanding off-road work. This two-person model combines excellent cross-country capability, thoughtful ergonomics, and technical simplicity of maintenance. The package includes handguards for the driver, a tow hitch for trailer towing, projector optics for quality illumination at any time of day, and a digital speedometer for precise speed control. For convenient transport of items, front and rear luggage racks are provided.

At the heart of the model is a single-cylinder, four-stroke SOHC engine with a displacement of 352 cm³, 20 hp of power, and a maximum torque of 27 N·m at 7000 rpm. The engine runs on gasoline, features water cooling, and starts with an electric starter. Average fuel consumption is 5.5 l/100 km, and the fuel tank capacity is 20 l, ensuring long rides without frequent refueling. The quad bike's maximum speed is 90 km/h.

Transmission and Chassis

The transmission is a CVT variator with L-H-N-R-P modes, and the drive is chain-driven. The frame is a steel tubular structure, and the ignition system is TCI. The front suspension is independent McPherson, and the rear is independent Twin-A, guaranteeing stability and comfort on various types of terrain. Ground clearance is 280 mm, width 1140 mm, length 2105 mm, height 1270 mm, and weight is 330 kg.

Operational Features and Technical Advantages

• Cross-country capability: aluminum wheels combined with low-pressure tires and an aggressive tread ensure confident off-road riding.
• Suspension: independent front McPherson and independent rear Twin-A for comfort and stability.
• Braking: front and rear dual disc ventilated hydraulic brakes for effective and reliable stopping.
• Functionality: tow hitch for towing, front and rear luggage racks, digital speedometer, projector optics, and driver's handguards.
• Load capacity: maximum load capacity is 200 kg, allowing for the transport of tools, equipment, or small loads on the luggage racks.

Technical Specifications

The Linhai LH400ATV-D Khaki model combines reliability, functionality, and a high level of comfort when riding on varied terrain. Thanks to water cooling, an electric starter, a robust steel frame, and a well-designed suspension, this machine is suitable for both active recreation and work in the agricultural sector or on a private plot. Manufacturer: LINHAI. Product category: Motor Vehicles > Quad Bikes.
