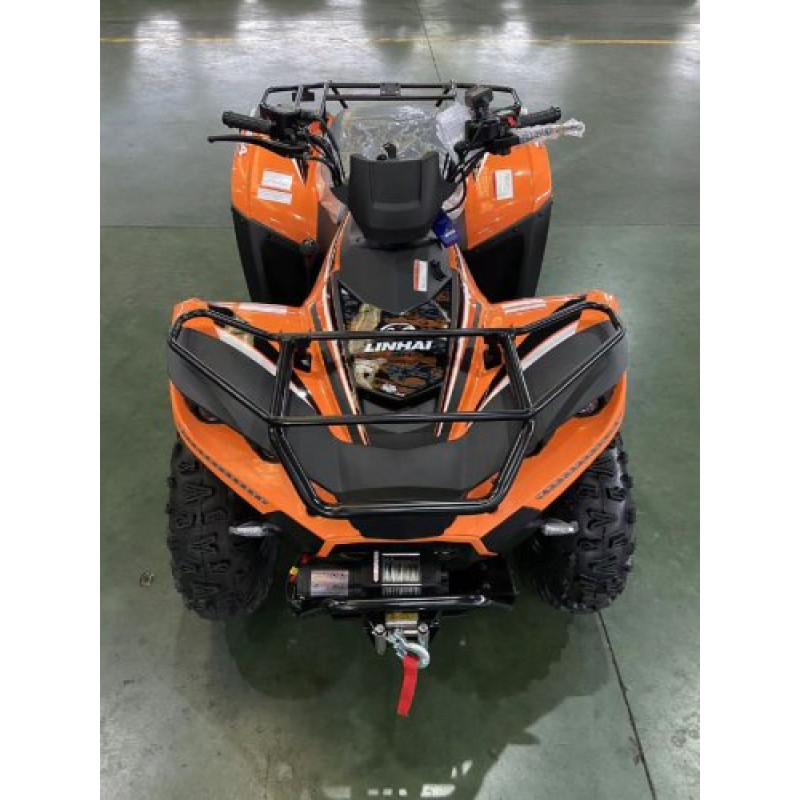

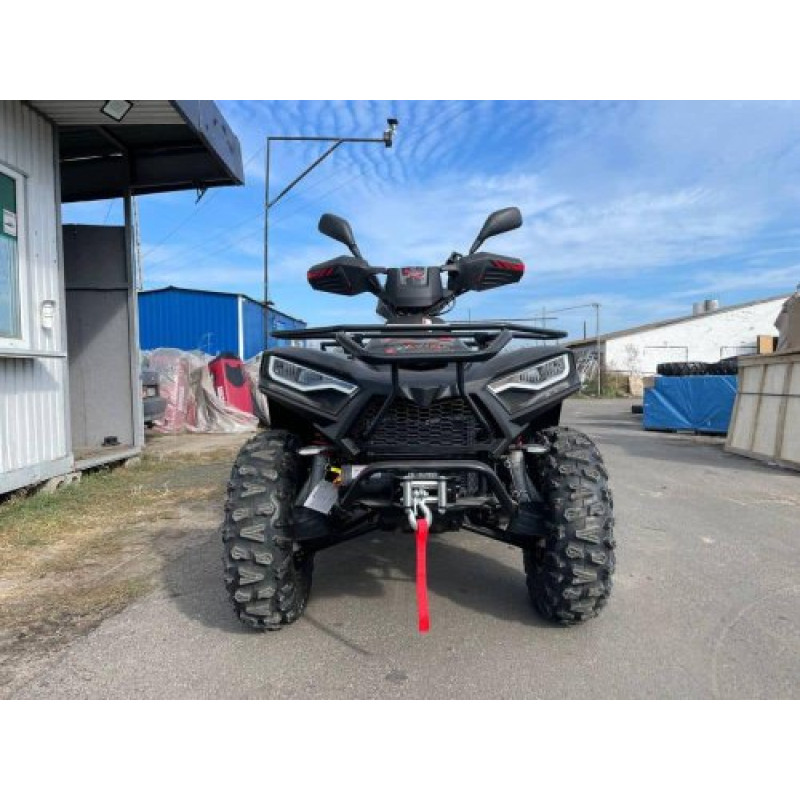

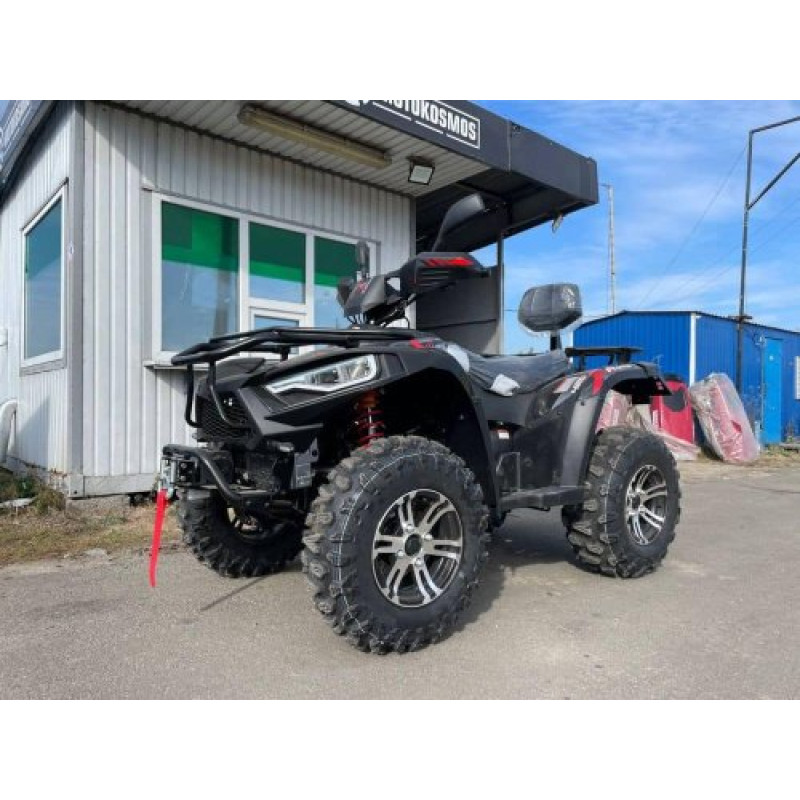

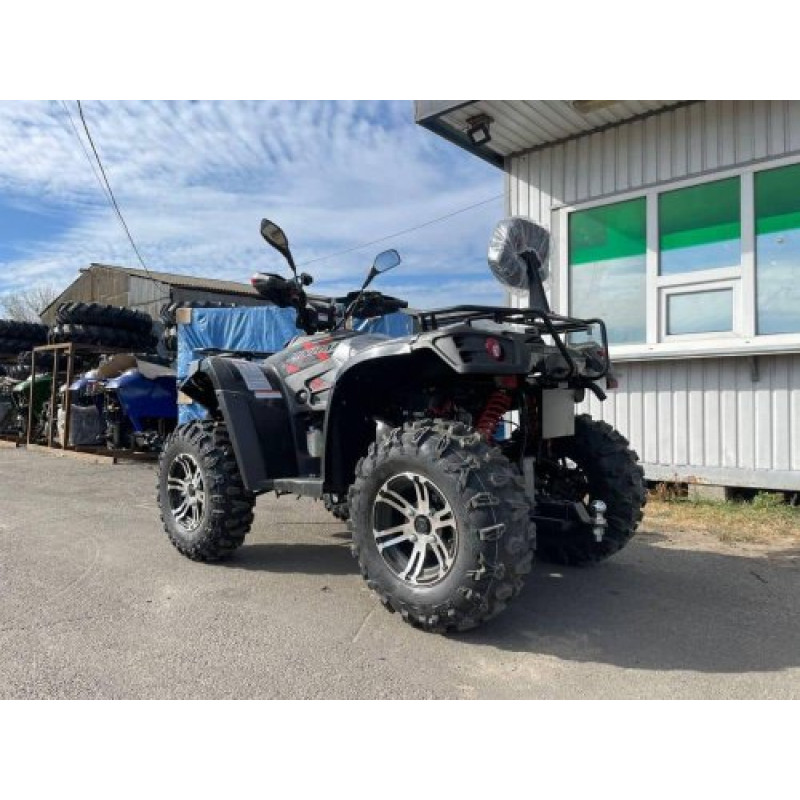

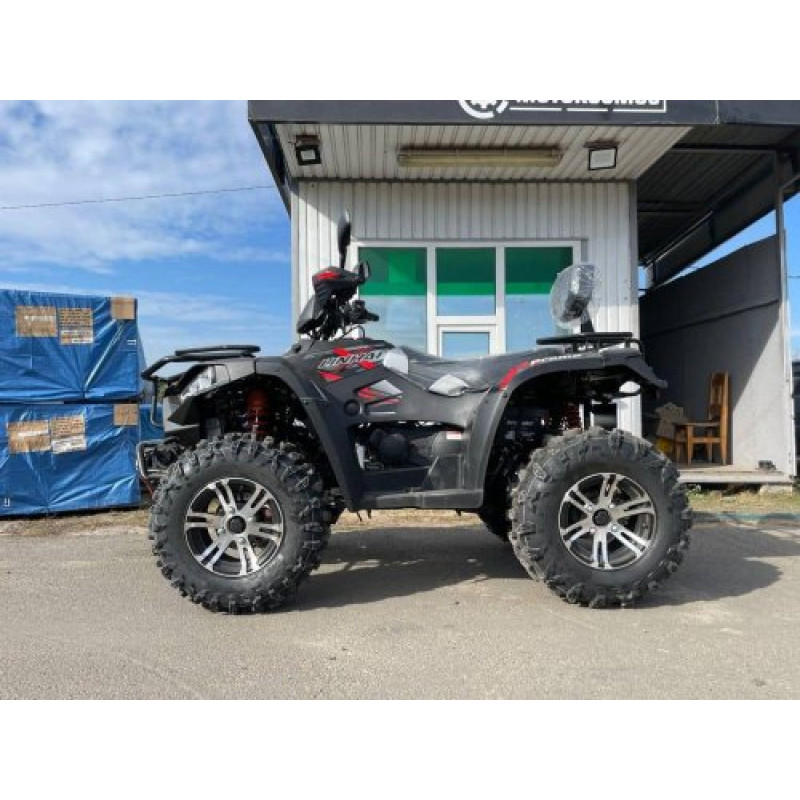

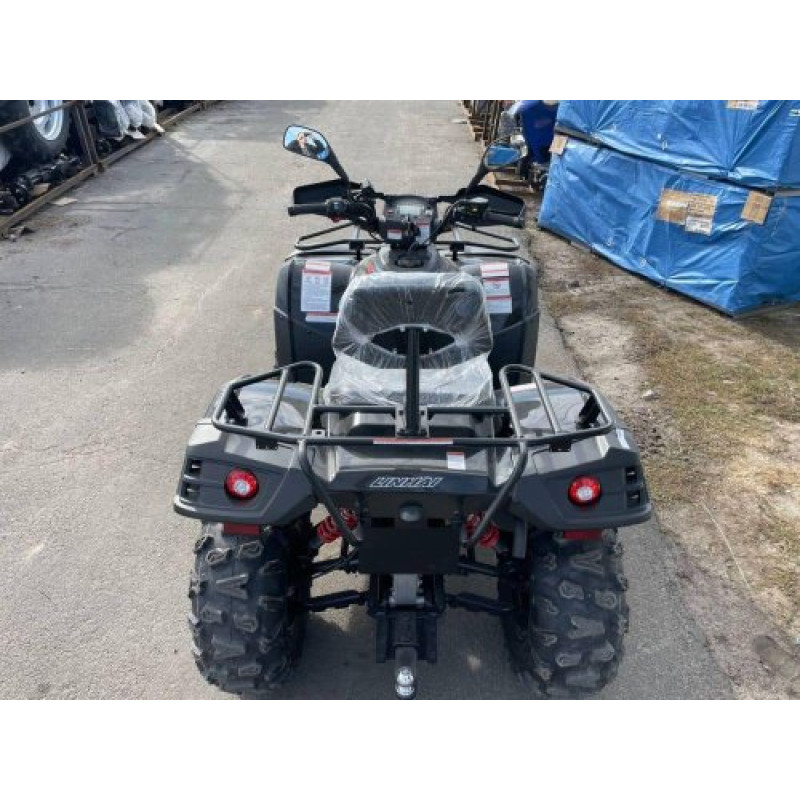

Linhai LH400ATV-D EFI PROMAX ATV
Brand: LINHAI. The Linhai LH400ATV-D EFI PROMAX model is a versatile 4x4 ATV designed for work and recreation in challenging conditions: field roads, forest trails, swamps, and off-road terrain. This vehicle combines cross-country capability, reliability, and operator comfort, and features a design that allows for the installation of additional equipment.
Engine and Dynamics: 4-stroke gasoline engine with EFI injection system, 352 cm3 displacement, 20 hp at 7000 rpm, and a maximum torque of 27 Nm. The TCI ignition system and electric starter ensure quick and confident starting, while the liquid cooling system maintains optimal temperature during intensive use.
Transmission and Drive: CVT variator with high, low, forward, neutral, and reverse modes. The 4x4 all-wheel drive with differential lock and direct final drive allows for overcoming difficult obstacles, working on slopes, and in muddy terrain.

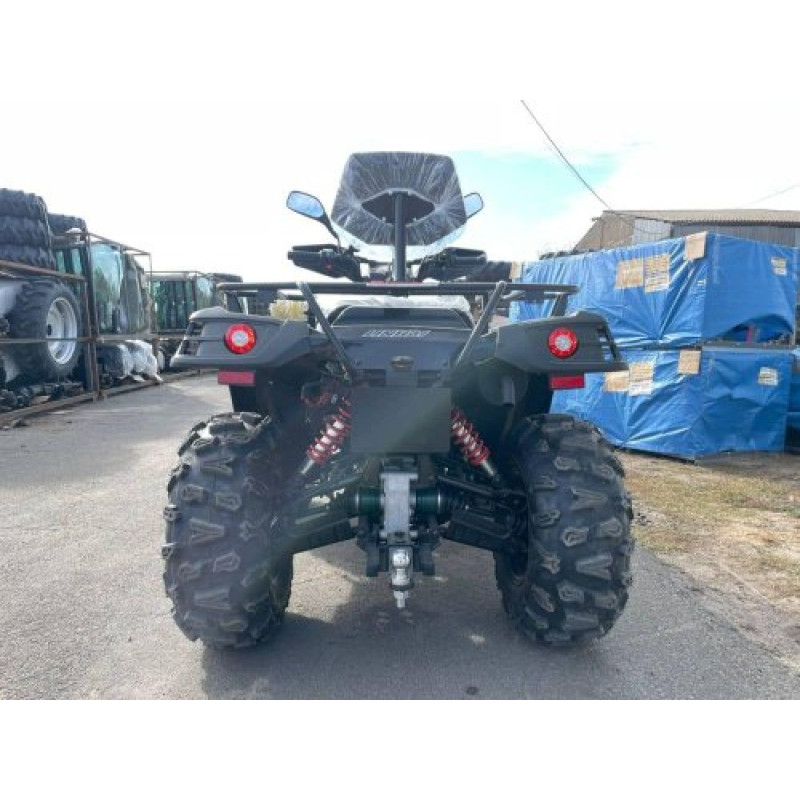

Chassis and Brakes: Front independent McPherson suspension with double A-arms, coil springs, and shock absorbers; rear independent suspension, also with double A-arms, coil springs, and shock absorbers. Front disc brakes and a rear disc brake on the wheel axle ensure effective braking in various driving conditions.
Dimensions, Weight, and Wheels: Wheelbase 1300 mm, dimensions 2100x1150x1300 mm, weight 330 kg. Tire size: front 25x8-12, rear 25x10-12. The 20 L fuel tank capacity guarantees a long range for extended trips.
Construction and Additional Elements: High-strength ABS plastic body kit (front bumper, side mudguard panel, fender flares) combined with a tubular metal body kit integrated into the frame. This design increases platform strength and allows for the installation of additional top cases and other attachments for cargo transport.
Specifications:
| Wheel formula | 4x4 |
| Engine power, hp | 20 hp at 7000 rpm |
| Engine type | gasoline, 4-stroke, EFI injector |
| Engine displacement, cm3 | 352 |
| Maximum torque, Nm | 27 |
| Ignition system | TCI |
| Engine starting system | electric starter |
| Cooling system | liquid |
| Transmission (КП) | CVT variator |
| Transmission modes | high, low, forward, neutral, and reverse |
| Differential lock | yes |
| Final drive | direct |
| Front brakes | disc |
| Rear brake | disc on wheel axle |
| Wheelbase, mm | 1300 |
| Tire size | front 25x8-12, rear 25x10-12 |
| Fuel tank capacity, L | 20 |
| Dimensions, LxWxH mm | 2100x1150x1300 |
| Front suspension | independent McPherson, double A-arms, coil springs, shock absorbers |
| Rear suspension | independent, double A-arms, coil springs, shock absorbers |
| Weight, kg | 330 |
| Plastic body kit | high-strength ABS plastic (front bumper, side mudguard panel, fender flares) |
| Metal body kit | tubular, integrated into the frame with the possibility of installing additional top cases |
Model advantages:
- Reliable fuel-injected engine for economical and stable operation.
- Versatile suspension and 4x4 all-wheel drive with differential lock for challenging conditions.
- Durable body kit construction and the ability to install additional equipment (top cases, racks).
- Effective disc brakes and thoughtful ergonomics for operator comfort during long rides.
The Linhai LH400ATV-D EFI PROMAX ATV is suitable for both active recreation and for tasks in agriculture, hunting, game reserve protection, and any other tasks requiring a combination of power, cross-country capability, and practicality. Category: Motor Vehicles > ATVs.
