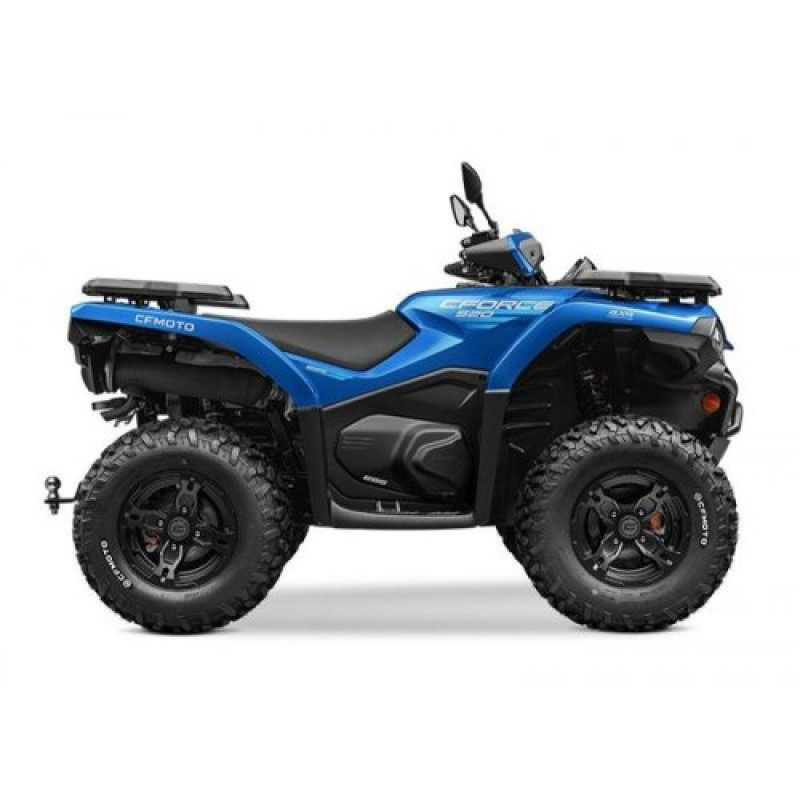

CFMOTO CFORCE 520 EPS ATV — a reliable and functional assistant
Brand: CFMOTO. Product type: Motor Vehicles > ATVs. The CFORCE 520 EPS combines power, off-road capability, and thoughtful ergonomics for active recreation, professional work, and challenging terrain.
At the heart of the ATV is a 4-stroke single-cylinder SOHC gasoline engine with a displacement of 495 cm3 and a nominal power of 34 hp. The engine is equipped with an electronic fuel injection system, ensuring economical operation and stable traction, while the liquid cooling system maintains optimal temperature. The nominal engine speed is 7200±150 rpm, and the maximum torque is 39 Nm at 6000 rpm. The starting system is an electric starter.
The transmission is an automatic gearbox — a V-belt variator with L-H-N-R-P driving modes. The 4x4 drive is complemented by a differential lock and direct final drive, guaranteeing excellent off-road capability. Electric power steering (EPS) is installed for easier and more comfortable control.
The braking system consists of hydraulic disc brakes front and rear. Wheelbase — 1460 mm; tire sizes: front 25x8-12, rear 25x10-12. Fuel tank capacity — 17 L. Vehicle dimensions: 2385x1125x1220 mm.
The suspension is designed for comfort and stability: independent front suspension on double A-arms with gas-oil shock absorbers and adjustable settings; independent rear suspension on double transverse A-arms with an anti-roll bar. The metal body kit is a tubular structure integrated into the frame, with the possibility of installing additional storage boxes; the plastic body kit is made of high-strength ABS (front bumper, side mudguards, fender flares).
The package includes rearview mirrors, handguards, an instrument panel with an LCD screen, a winch, alloy wheels, and a tow hitch. The electrical equipment includes front lenses with halogen lamps (low/high beam), front and rear marker lights, brake light, turn signals, horn, and speedometer. Power is supplied by a sealed lead-acid battery.
Detailed technical specifications are listed below:
| Engine power, hp | 34 |
| Wheel formula | 4x4 |
| Electric power steering EPS | yes |
| Engine type | gasoline, 4-stroke, 1 cylinder SOHC |
| Engine displacement, cm3 | 495 |
| Fuel system | electronic fuel injection |
| Engine starting system | electric starter |
| Cooling system | liquid |
| Nominal engine speed, rpm | 7200±150 |
| Torque, Nm/rpm | 39 at 6000 |
| Gearbox (transmission) | automatic (V-belt variator) |
| Modes | L-H-N-R-P |
| Differential lock | yes |
| Final drive | direct |
| Front brakes | disc, hydraulic |
| Rear brake | disc, hydraulic |
| Wheelbase, mm | 1460 |
| Tire size | front 25x8-12, rear 25x10-12 |
| Fuel tank capacity, L | 17 |
| Dimensions, LxWxH mm | 2385x1125x1220 |
| Front suspension | independent double A-arm, gas-oil shock absorbers with adjustable settings |
| Rear suspension | independent, double transverse A-arm, anti-roll bar |
| Equipment | rearview mirrors, handguards, instrument panel with LCD screen, winch, alloy wheels, tow hitch |
| Electrics | front lenses with halogen lamps (low/high beam), front and rear marker lights, brake light, turn signals, horn, speedometer |
| Battery | sealed lead-acid |
| Plastic body kit | high-strength ABS plastic (front bumper, side mudguards, fender flares) |
| Metal body kit | tubular, integrated into the frame with the possibility of installing additional storage boxes |
The CFMOTO CFORCE 520 EPS is an optimal choice for those seeking a reliable ATV with good dynamics, comfortable suspension, and a full set of useful equipment. It is suitable for weekend recreation as well as for serious tasks in the field and on challenging terrain.
