Meteor75 FPV Quadcopter with Walksnail Video Transmitter and ELRS Protocol — Compact FPV Drone from BetaFPV

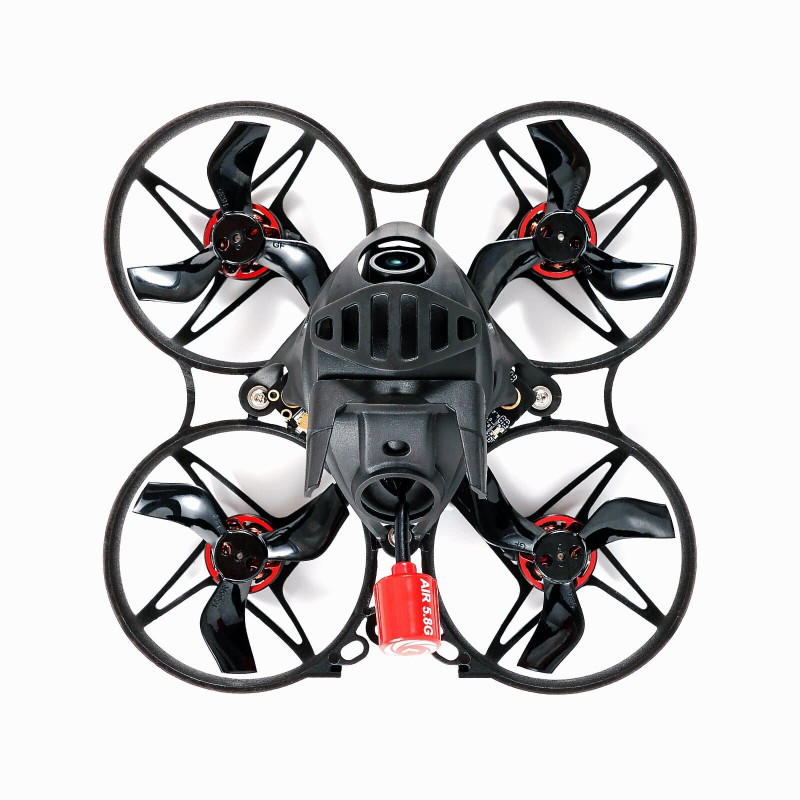

Introducing the Meteor75 Brushless Whoop Quadcopter — a compact 1S HD digital FPV quadcopter from the BetaFPV brand. The model combines lightweight engineering, an advanced Walksnail Avatar Mini HD VTX HD video transmission system, and a stable Serial ELRS 2.4G receiver, making this drone an excellent choice for beginners and enthusiasts who value shooting quality, minimal weight, and reliable communication.

Key Advantages

• Digital HD System: Walksnail Avatar Mini HD VTX with H.265 encoding provides video recording in 1080P resolution at 60FPS with very low latency of about 22 ms.
• Powerful Brushless Motors: 1102 18000KV guarantee high thrust even on a 1S battery; the weight of one motor with connectors is 2.9 g, and the motors are equipped with PCB connectors for easier repair.
• Compactness and Low Weight: weight without battery is 40.5 g in Walksnail configuration (36.4 g in HDZero configuration), ensuring maneuverability and ease of transport.
• Optimized Controller and ESC: F4 1S 5A FC (Serial ELRS 2.4G) V2.0 with BOSH BMI270 gyroscope and BB51 ESC hardware platform for enhanced flight stability.

Technical Specifications

• Model: Meteor75 Brushless Whoop Quadcopter (1S HD Digital VTX)
• Flight Time: approximately 3 minutes using Walksnail video transmitter and BT2.0 450mAh battery
• Adjustable Camera Angle: 0-45°
• Motors: 1102 18000KV (motor weight with connectors — 2.9 g)
• Battery: BT2.0 450mAh 1S 30C
• Frame: Meteor75 Micro Brushless Whoop Frame
• Propellers: 40 mm 3-blade (1.5 mm shaft hole)
• Weight without battery: 40.5 g (Walksnail) / 36.4 g (HDZero)
• Receiver: Serial ELRS 2.4G
• Controller and ESC: F4 1S 5A FC (Serial ELRS 2.4G) V2.0
• VTX Output Power: 350 mW (Walksnail)
• Video Transmitter: 1S Walksnail Avatar Mini HD VTX
• Camera: Walksnail Avatar Nano Camera

HD Digital VTX Walksnail Avatar Mini System

Walksnail Avatar Mini HD VTX uses efficient H.265 encoding and allows video recording in 1080P/60FPS resolution with very low latency of ~22 ms. The VTX is optimized for 3.1–5 V power, weighs about 10 g, and has a built-in 8 GB storage for recording HD video without volume limitations. The Canvas function supports Betaflight OSD display, which can be configured using a remote control. Recorded video files can be exported via USB using a 4-pin connector.

Housing, Camera Protection, and Design

The molded micro-capsule for the HD camera is designed specifically for compatibility with the Walksnail digital VTX; the capsule has an adjustable lens in the range of 0–45° and is made by injection molding for increased strength and flexibility. This design provides better impact protection, reduces the effect of heating on electronics, and allows for decorative finishing.

Motors, Hardware, and Maintainability

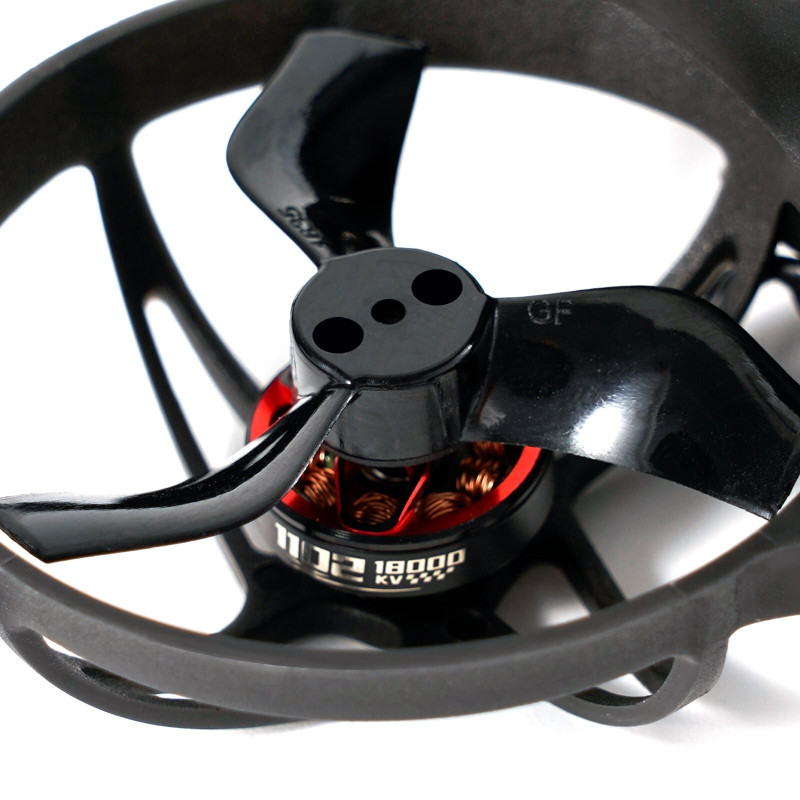

New 1102 18000KV motors provide an optimal weight-to-power ratio for 75 mm 1S quadcopters; high RPMs deliver significant thrust, and PCB connectors facilitate replacement or repair in case of cable damage. The Meteor75 HD version flight controller features F4 1S 5A, for ELRS configurations, communication is implemented via Serial ELRS 2.4G (instead of SPI), and the ESC uses the BB51 hardware platform, the gyroscope is updated to BOSH BMI270 for enhanced flight stability.

Pilots can view and export recorded videos from the Walksnail VTX via a 4-pin connector. A user manual is available for quick start: Walksnail Avatar Mini User Manual (PDF).

This quadcopter is ideal for those looking for a compact, lightweight, and technologically advanced FPV drone with HD video and reliable ELRS communication. Brand: BetaFPV. Product category: Drones & Quadcopters > Drones for Beginners.
