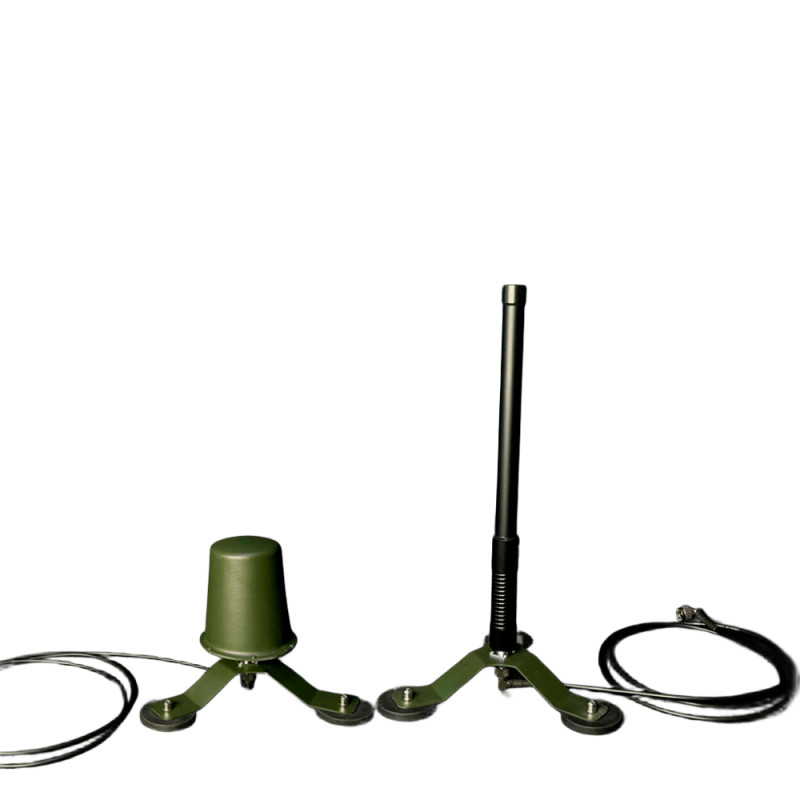

PELUSTKA Wartex Magnetic Antenna Mount

We offer a reliable and versatile PELUSTKA magnetic antenna mount from Wartex. It is designed for professional use in electronic warfare (EW) and electronic reconnaissance (SIGINT) systems, suitable for both stationary installation and direct mounting on equipment. The product falls under the category: EW > EW Antenna Mounts, highlighting its specialized purpose and compatibility with modern systems.

Key Technical Specifications

• Number of extensions: 1 piece.
• Interface: N-Type Female.
• Cable length: 2 meters.
• Mounting type: Threaded/Magnetic.
• Weight (without antennas): approximately 1 kg.
• Dimensions (without antennas): 28x28x10 mm.

Signal Attenuation

• LMR240 (900 MHz) – 23.5 dBi per 100 meters.
• LMR400 (900 MHz) – 12.8 dBi per 100 meters.

The mount provides a stable mechanical and electrical connection between the antenna and the platform, allowing for quick antenna fixation thanks to magnetic or threaded mounting. The design is intended for field conditions and operation on equipment where strength, compactness, and quick installation are important.

Included: 5 coaxial cables of SLR or LMR240 type with N-Type Male interface, cut into segments of 2 meters or more. This set of cables ensures quick connection of multiple antenna lines without additional preparation, saving time and simplifying system setup.

Important: antennas are not included in the kit — they must be purchased separately according to the requirements of a particular system and frequency characteristics. Before purchasing antennas, pay attention to interface compatibility (N-Type) and LMR240/LMR400 cable parameters, which affect overall signal attenuation and system performance.

This antenna mount from Wartex is ideal for integration into EW and SIGINT systems where a compact, lightweight, yet robust mounting element is required. Thanks to the versatility of the mount and the included cables, it will be a useful addition in both field and stationary operating conditions.

Brief technical data: 1 extension, N-Type Female interface, 2m cable, threaded/magnetic mounting type, weight ~1 kg, dimensions 28x28x10 mm; LMR240 attenuation — 23.5 dBi/100 m, LMR400 — 12.8 dBi/100 m. The kit with 5 SLR/LMR240 coaxial cables with N-Type Male, cut from 2 m, allows quick connection of multiple lines without additional cutting and crimping.
